Huion Tablet USB Cable Realignment

The Huion tablet on my desk has its USB cable sticking straight out of the left side, whereupon it must loop around to burrow under the shelf under my monitor on its way to the port on the back of the PC case. The loop snagged on all the clutter atop the desk and I finally got around to Fixing That Problem:

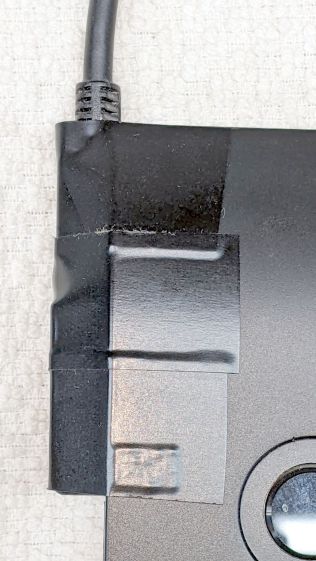

Huion tablet - rerouted USB cable
Huion tablet – rerouted USB cable

Of course, it wasn’t quite that simple.

Right angle USB Mini-B connectors are still a thing:

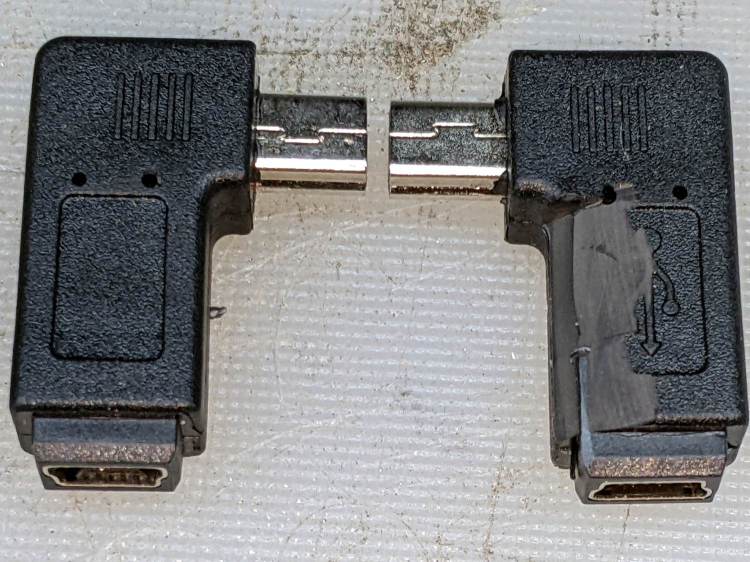

Huion tablet - USB angle adapters
Huion tablet – USB angle adapters

Which is a “left angle” adapter and which is a “right angle” adapter depends on which supplier you ask and how much you trust their descriptions / product photos, so you should get a set containing both: it’s the only way to be sure.

The one on the right (a “right angle”) shows a bit of carving, which came after the completely unsurprising discovery that the stylin’ curves on the side of the tablet collided with the rectangular adapter:

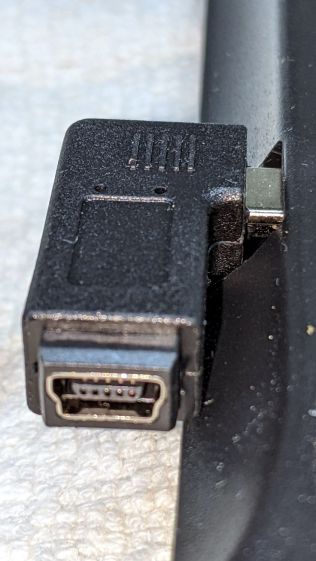

Huion tablet - misfit adapter
Huion tablet – misfit adapter

Some diligent X-Acto knife work carved away enough of both the adapter and the tablet case to snugly join them:

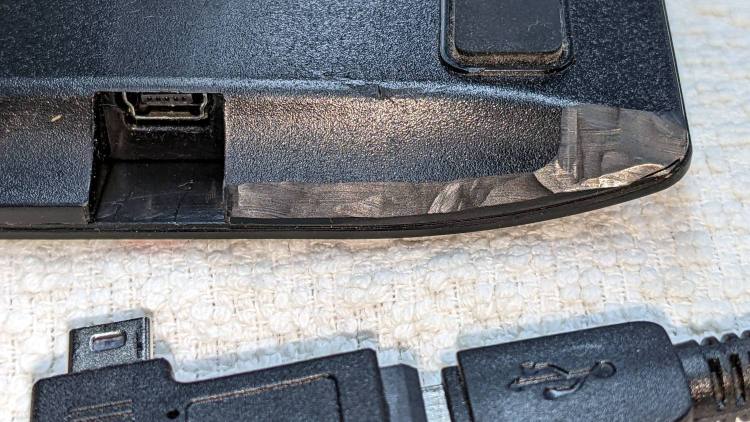

Huion tablet - plastic surgery
Huion tablet – plastic surgery

The hackery over on the far right fits around the USB cable’s molded connector. I simply cut away any parts that touched until the adapter seated firmly in the USB socket and the cable exited parallel to the edge.

Part of this involved not carving deeply enough into the adapter or cable connector to expose the internal wiring. I assumed the tablet didn’t have anything vital immediately inside that fancy curve, so that’s where I dug deepest.

Stick adapter + cable to the tablet with good-quality electrical tape and now the cable points directly to where it should go.

Declare victory and move on!
