Kenmore Microwave Turntable Drive Rollers

Our ancient Kenmore microwave has a three-armed turntable drive:

Kenmore Microwave - turntable installed
Kenmore Microwave – turntable installed

After all these years the (white) rollers have worn to the extent they fall off the (brown) drive arms all too easily. They ride in a recessed track in the glass plate that holds them in place during normal operation, but having once again found a roller wandering around when I put the turntable back in, it’s time for at least a temporary fix.

Everything is, of course, plastic:

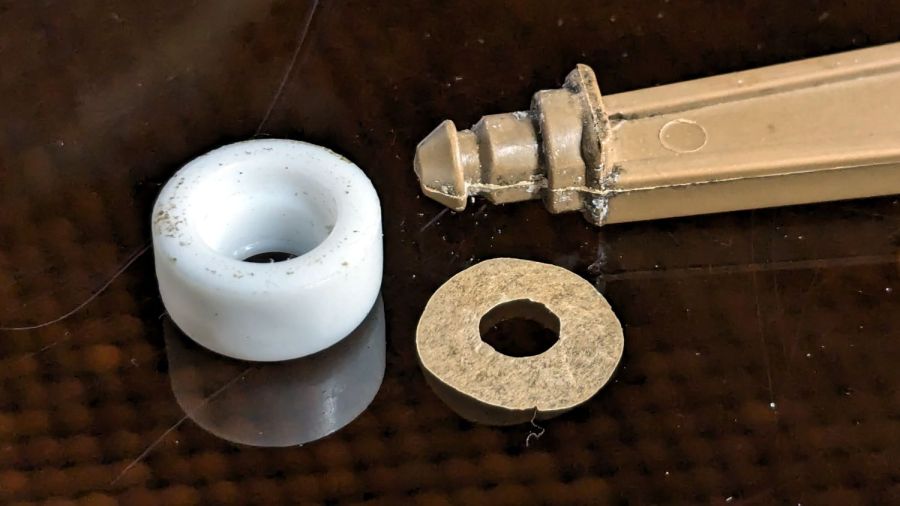

Kenmore Microwave - turntable drive roller parts
Kenmore Microwave – turntable drive roller parts

I considered drilling the end of the axle and tapping it for a nylon screw + washer, but came to my senses just in time:

Kenmore Microwave - turntable drive
Kenmore Microwave – turntable drive

The laser-cut parchment paper disk (barely) fits over the axle against the outside of the roller, while allowing the hot-melt glue to glom onto the undercut and hold everything in place:

Kenmore Microwave - roller glopped
Kenmore Microwave – roller glopped

I expect the paper to wear / fall off in short order, but the HDPE roller won’t bind against the glue and the blob should remain latched in place for a while.

When those hideous glue blobs do fall off, I’ll reconsider drilling & tapping. More likely, I’ll just fire up the glue gun again.

Actual use required trimming the blob from the upper side of the roller / hub, because the track in the glass plate fits very close against the edge of the roller. The hideous glue blob slid freely on the roller, but jammed firmly against the plate, causing it to turn at half speed.

4 thoughts on “Kenmore Microwave Turntable Drive Rollers

  1. The hideous glue blob slid freely on the roller, but jammed firmly against the plate …

    Dremel!
