Arduino Digital Output Drive vs. Direct-connected LEDs

What happens when you jam an LED into an Arduino digital output and turn it on?

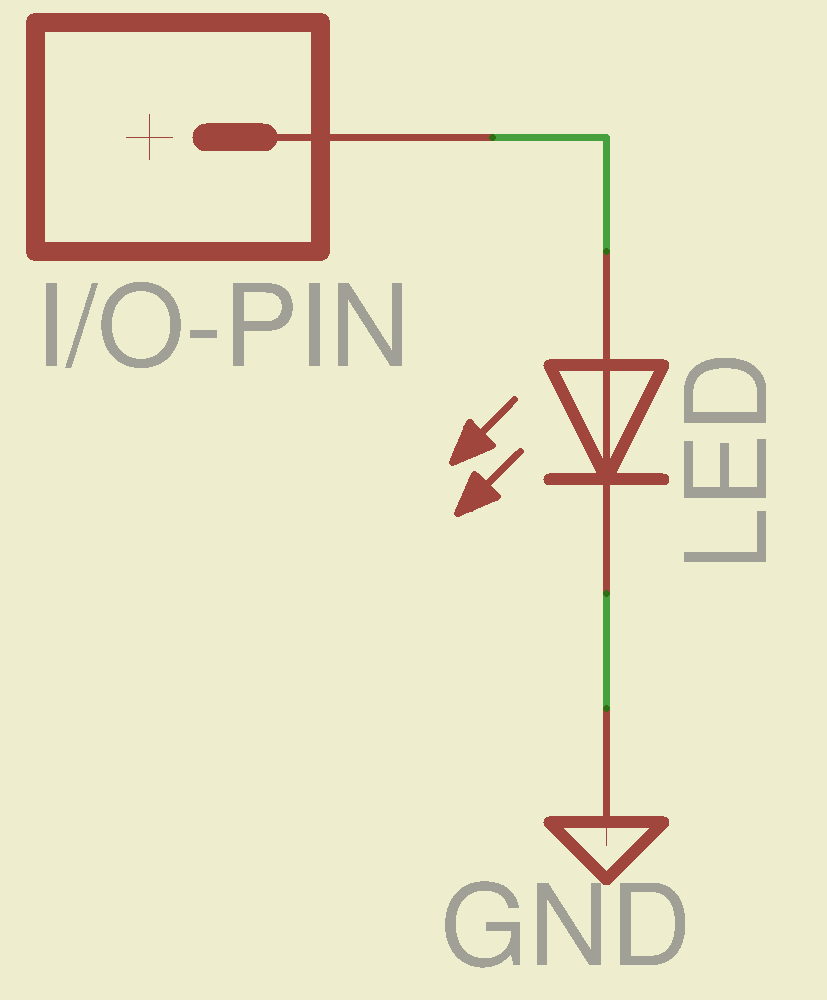

Direct LED drive - no ballast resistor

Direct LED drive – no ballast resistor

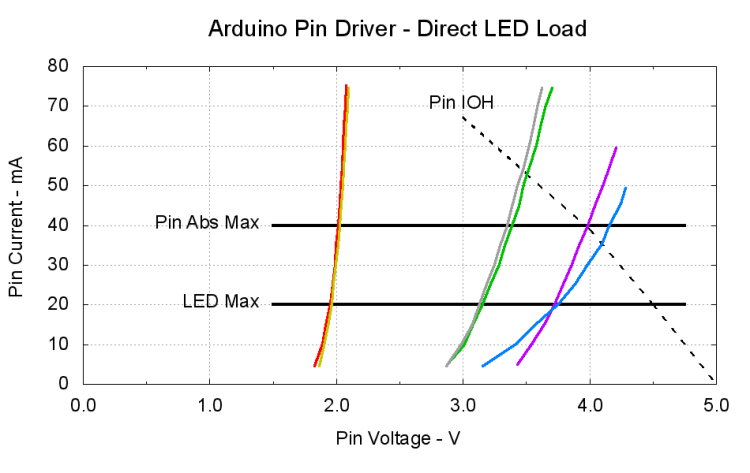

This plot gives the load-line solution for that situation:

Arduino Pin Driver - Direct LED Load

Arduino Pin Driver – Direct LED Load

The dotted curve comes from Figure 29-22 of the ATmega168 datatsheet and shows the typical source current vs. voltage for a digital output pin on your favorite Arduino.

The cheerful colored curves show the current vs. voltage characteristics of some random LEDs, with data from the same curve tracer setup as those.

Given a particular LED directly connected between an Arduino output pin and circuit common (without the formality of a current-limiting ballast resistor), the intersection of the dotted output pin curve with the colored LED curve gives you the current & voltage at the pin. For example, the violet LED would operate at 4 V and 40 mA.

Some gotchas:

  • Typical 5 mm LEDs, of the sort one might use for this experiment, have a maximum DC current limit of 20 mA
  • Arduino output pins have an absolute maximum current limit of 40 mA

So all of the direct solutions drive too much current through the LED. Although the blue and violet LEDs don’t quite exceed the output pin limit, the others certainly do. Those old standby red & amber LEDs would have absurdly high intercepts, well beyond the limit of sanity, in the region where the data you see here breaks down, where the pin driver gives up and goes poof, not that that ever stopped anybody from trying.

You’ve probably seen somebody do it. Next time, aim ‘em here in a non-confrontational manner… [grin]

My Arduino Survival Guide presentation has other info that may help that poor sweating Arduino survive. You don’t get my performance-art patter, but the pictures and captions should carry the tale…
