With the Juki TL-2010Q all lit up, it seemed reasonable to apply the same technique to the Kenmore 158 sewing machine a few feet away:

In an ideal world, I’d match the COB LED module to the opening under the machine’s arm, but module length isn’t a free variable, so it sticks out a bit on both sides.

As you can see from the reflections on the base, this machine already has LEDs over the needle and in the endcap:

They run from a 12 VDC 18 W power supply with an adjustable boost converter producing 18 V for the nominally 21 V LEDs:

I replaced the coaxial power plug with a DE-9 connector:

The 1/4 inch QD connectors on the AC power are marginally OK in this situation, as they’re tucked under the sewing table out of harm’s way. The other end of the AC line cord burrows into the sewing machine’s guts and isn’t easily removed, so this was the least-awful place for a connection.

The LED connector pinout:

The black cable comes from my lifetime supply of lovely supple flexible 28-ish AWG 9-conductor serial cables with molded-on male connectors.

I used some silver-plated / Teflon-insulated coaxial cable for the COB LED wiring. It burrows into the guts of the machine through a gap above the presser foot lift lever, then joins up with similar cables from the other LEDs routed through the (grossly oversized) heatsink fins:

The cables meet the repurposed serial cable inside the arm, following the original route of the 120 VAC wires formerly lighting the glowworm incandescent bulb in the endcap:

What’s not obvious in that picture: the cables pass under two stamped steel guides and through two stamped steel clamps, each secured to the frame by a cheese head screw in a tapped hole. They definitely don’t make ’em like they used to!

A 2.0 Ω ballast resistor produced the right amount of light, dropping 780 mV to run the LEDs at 390 mA and burning 300 mW. This supply produces 12.0 V at that current, so the COB LEDs run at 11.2 V and dissipate only 4.4 W.

The lower output voltage (compared to the supply on the Juki) is probably the result of the higher load from the SMD LEDs lighting up the area around the needle. We cranked up their voltage to match the COB LEDs, so they’re surely conducting more than the original (guesstimated) 50 mA apiece = 300 mA total. I have no convenient (pronounced “easy”) way to measure either their current or voltage; when the light’s good, it’s all good.

The other Kenmore 158 machines will eventually get the same treatment, but not right now.

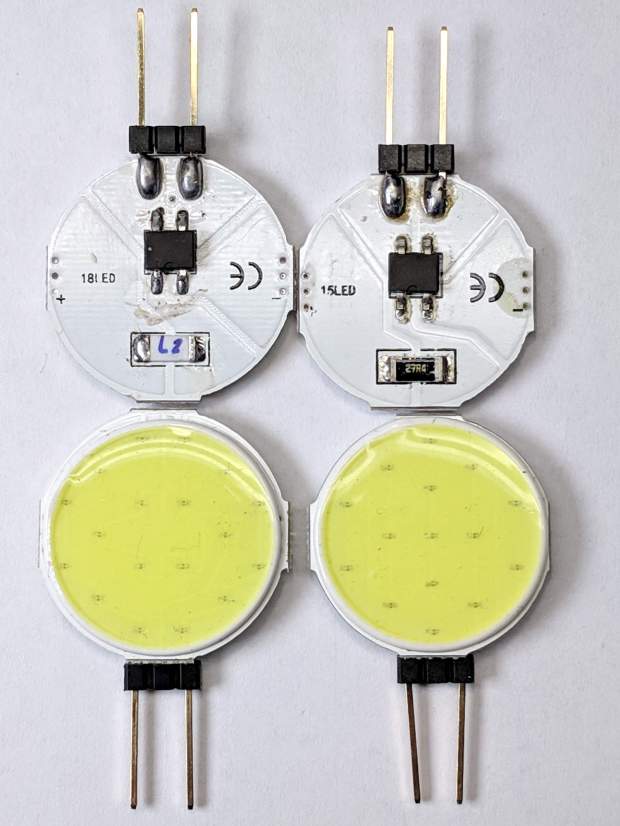

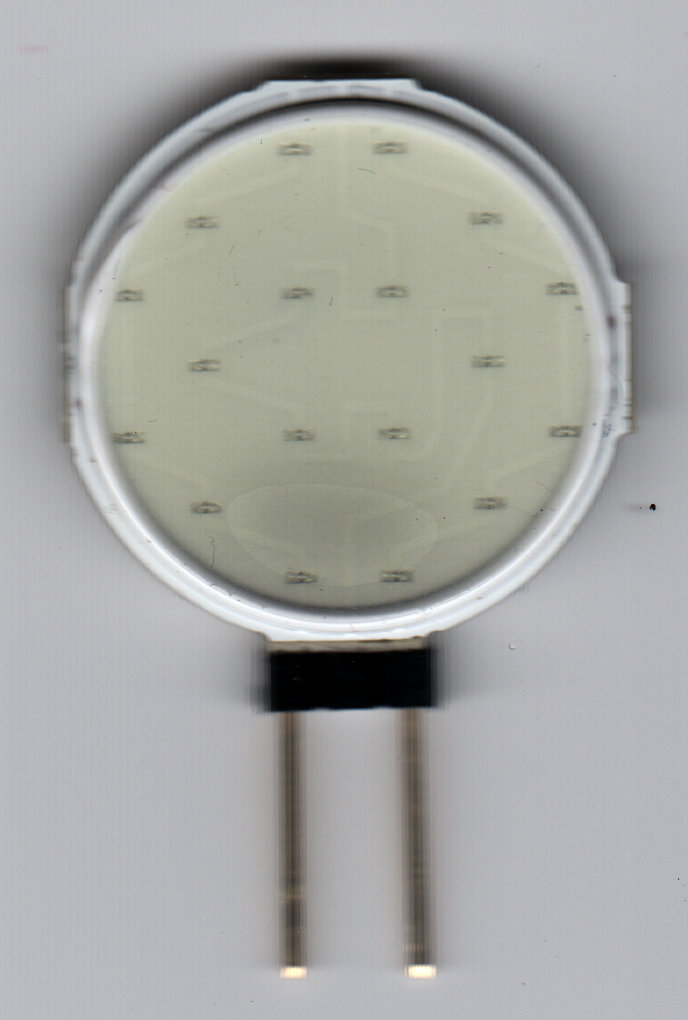

The COB LED module claims to run at 12 V and 6 W, so it expects to draw 500 mA. First pass measurements showed 500 mA happened at 11.6 V:

The 12 VDC supply actually produced 12.1 V at 500 mA, so a 1 Ω 1/2 W resistor should produce the right current:

Which it did, but the Customer Base judged 6 W to be far too much light. A 2.7 Ω resistor seemed too dim, so we settled on 2.2 Ω:

For the record, a 2.2 Ω resistor drops 980 mV and dissipates 440 mW, probably too close to its 500 mW rating. The supply produces 12.2 VDC at 450 mA, so the LEDs run at 11.2 V and dissipate 5 W; the heatsink remains pleasantly warm to the touch.

The hot melt glue anchoring the pin header won’t win any prizes, but it sticks like glue to the Kapton tape and, in any event, there’s not much to go wrong in there.

A cardboard cover hides the ugly details:

And then It Just Works™:

As evidenced by the glove fingertips, she does a lot of sewing and I’m glad I can shed some light on the subject …

The wires to my earlier LED lights on Mary’s Kenmore 158 produced one absolute requirement: the Juki TL-2010Q lights must not have any external wiring. Some experimentation showed putting the COB LED module across the rear of the arm, just over the opening, would spill enough light to the front:

Juki’s teeny OEM SMD LED in the endcap, just above the far side of the needle, casts a dim glow over her left hand. Although they deem it sufficient, I’ll fix that in the near future.

The machine’s power supply and drive motor live inside a plastic cover on the rear of the machine, just to the left of where the LED lights will attach to the arm:

For future reference, a detailed look at the PCB:

The yellow-and-blue pair come from the AC power line switch. The brown-and-blue pair carry +120 VDC from the bridge rectifier (left of their connector) to the motor driver. The white-and-blue pair carry filtered 120 VAC from the PCB to the bulky transformer below the motor.

I snipped the white-and-blue pair, added Y connections, and threaded the wires through the vent slots to the 12 VDC power supply:

If I had to do it again, I’d cut the white-and-blue pair an inch further away from the transformer, so as to move the butt splice connectors around the corner of the frame, rather than across the back of the transformer frame. The flanged screw boss pretty well fills the space left of the transformer and made it difficult to arrange the new connectors.

The 12 VDC 18 W LED supply attaches to the 120 VAC lines with 1/4 inch quick-disconnects, making it possible, if not easy, to completely remove the cover and LED power supply. You’d install dummy plugs in the vacant QD sockets to keep the AC out of harm’s way.

There’s just enough space to the right of the PCB enclosure to route the LED wires around-and-down to meet the wire nuts. They’re not the most elegant connectors you’ve ever seen, but wire nuts are impossible to confuse with the QD connectors on the AC line.

With that in hand, the power supply almost looks like it grew under the spool flange:

In an ideal world, the label would be right-side-up, but ya can’t have everything. The wires had to be where they are, primarily to avoid snagging on fabric passing through the machine.

The green-and-black PET braid covers the AC wires to make them a little less exposed, but it’s surely unnecessary. I gently singed the braid ends to prevent unraveling.

The COB LED supply wires emerge through a slot filed in the cover:

Next step: LED brightness tweakage.
