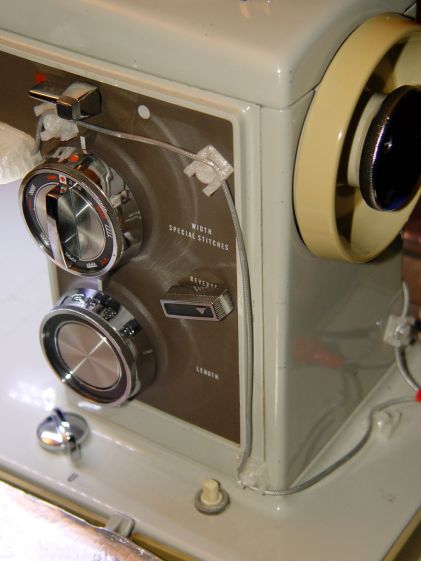

Commercial LED strip lights for sewing machines mount their cables with little stick-on anchors and cable ties. I wasn’t happy with the cable tie thing and finally figured this out:

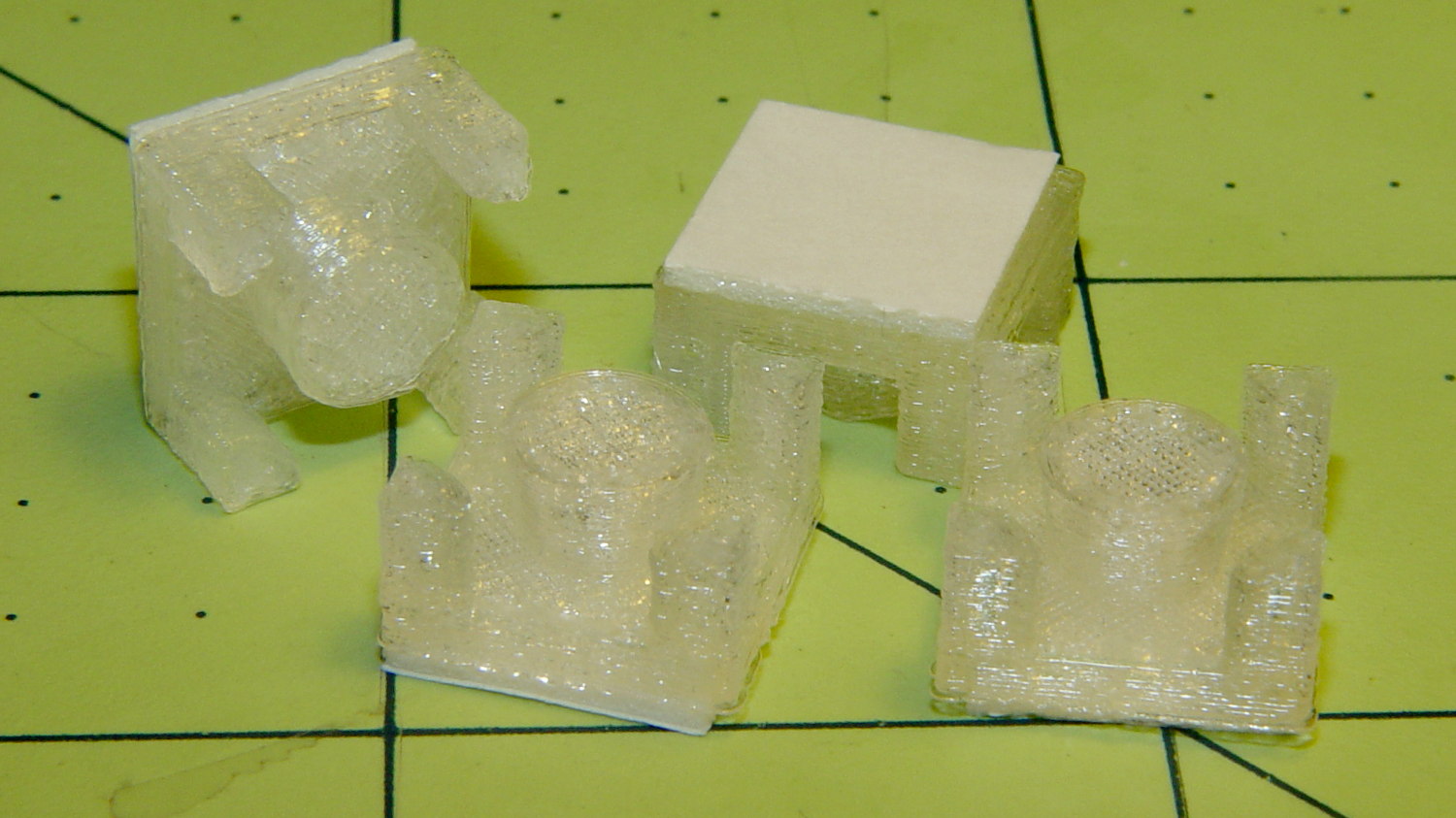

The clips have that size & shape because they fit exactly atop some pre-cut foam squares from the Tape Lookaside Buffer:

You can see the shape better in the solid model:

The central bollard has a slight taper to retain the cable, the quarter-posts are straight, and they’re both twice the cable diameter tall. The clearance between the center and corner posts at the top matches the cable diameter, so there’s a bit of bending room at the bottom, and, with the cable bent around the center, it won’t fall out on its own.
The cute coaxial cable I’m misusing for the LED strips measures just shy of 2 mm, making these into little bitty things. The corner posts seem surprisingly strong, despite 3D printing’s reputation for crappy quality; I haven’t been able to break one off with more effort than seemed warranted.
The OpenSCAD source code:
// LED Cable Clips // Ed Nisley - KE4ZNU - October 2014 //- Extrusion parameters must match reality! ThreadThick = 0.20; ThreadWidth = 0.40; HoleWindage = 0.2; // extra clearance Protrusion = 0.1; // make holes end cleanly AlignPinOD = 1.70; // assembly alignment pins: filament dia function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit); //---------------------- // Dimensions Base = [12.0,12.0,IntegerMultiple(2.0,ThreadThick)]; // base over sticky square CableOD = 2.0; BendRadius = 3.0; Bollard = [BendRadius,(sqrt(2)*Base[0]/2 - CableOD - BendRadius),2*CableOD]; B_BOT = 0; B_TOP = 1; B_LEN = 2; NumSides = 5*4; //---------------------- // Useful routines module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2); FixDia = Dia / cos(180/Sides); cylinder(r=(FixDia + HoleWindage)/2, h=Height, $fn=Sides); } module ShowPegGrid(Space = 10.0,Size = 1.0) { RangeX = floor(100 / Space); RangeY = floor(125 / Space); for (x=[-RangeX:RangeX]) for (y=[-RangeY:RangeY]) translate([x*Space,y*Space,Size/2]) %cube(Size,center=true); } //---------------------- // Build it ShowPegGrid(); intersection() { translate([0,0,(Base[2] + Bollard[2])/2]) // overall XYZ outline cube(Base + [0,0,Bollard[2]],center=true); union() { translate([0,0,Base[2]/2]) // oversize mount base scale([2,2,1]) cube(Base,center=true); for (i=[-1,1] , j=[-1,1]) { // corner bollards translate([i*Base[0]/2,j*Base[1]/2,(Base[2] - Protrusion)]) rotate(180/NumSides) cylinder(r=Bollard[B_BOT],h=(Bollard[B_LEN] + Protrusion),center=false,$fn=NumSides); translate([0,0,(Base[2] - Protrusion)]) // center tapered bollard cylinder(r1=Bollard[B_BOT],r2=Bollard[B_TOP],h=(Bollard[B_LEN] + Protrusion),center=false,$fn=NumSides); } } }
Now that I think of it, maybe a round clip would look nicer. The central bollard would stay, but the circular outside rim could have three cutouts. When these fall off, I’ll give that a try.
They may be square and clunky, but they look much better than Gorilla Tape…
If you remake the clips, I’m wondering about a round base with only two oval/D shapes on it — that is, the path through the center looks like ) (.
Assuming the bollards had enough inverse taper to retain the cable, that’d give you a straight path through the center for where you want to go straight and rounded “corners” for where you need to turn a corner. You seem to have a mix of both in your cable layout.
I originally figured the central bollard would have enough oomph to hold the wire as it bent around the corner, but that plastic stud turned out to be way over-strong. Putting half of it on each side should work just fine, plus that gets rid of the little prongs.
The straight path has a little jog in it around the bollard to keep the wire from walking away, but that probably doesn’t matter except at the very end where the wire goes off the machine platform.
I like it!
Thanks for the suggestion…
