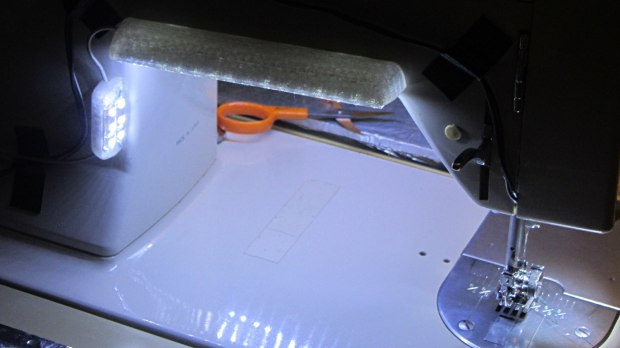

Mary needed more light under the arm of her Juki TL-2010Q sewing machine, so I proposed a 12 V 6 W COB LED module instead of the high-density LED strips I used on her Kenmore 158s:
Because the COB LEDs dissipate 6W, far more power than I’m comfortable dumping into a 3D printed structure, I redefined a length of aluminum shelf bracket extrusion to be a heatsink and epoxied the module’s aluminum back plate thereto:

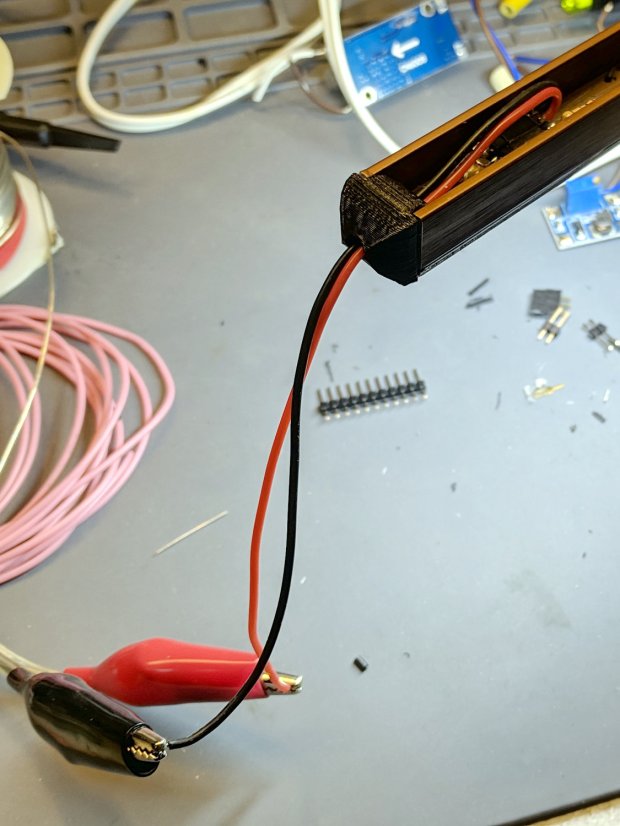

Unlike the flexible LED strips, the COB LED modules have no internal ballast resistors and expect to run from a constant-current supply. Some preliminary testing showed we’d want less than the maximum possible light output, so a constant-voltage supply and a few ohms of ballast would suffice:
With all that in hand, the heatsink extrusion cried out for smooth endcaps to control the wires and prevent snagging:
The central hole in the left cap passes 24 AWG silicone wires from the power supply, with 28 AWG silicone wires snaking down through the L-shaped rectangular cutouts along the extrusion to the LED module’s solder pads.

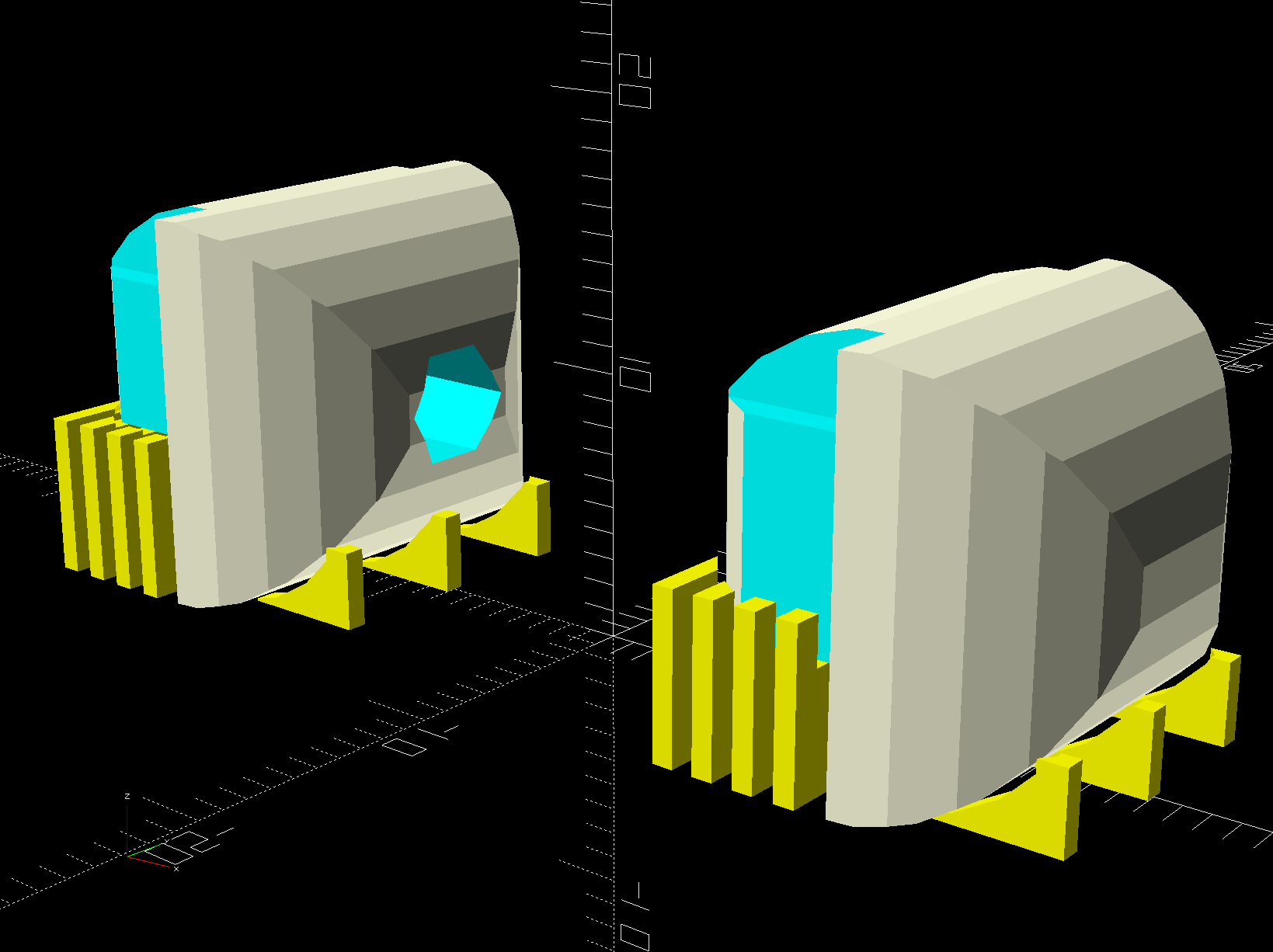

The model includes built-in support:

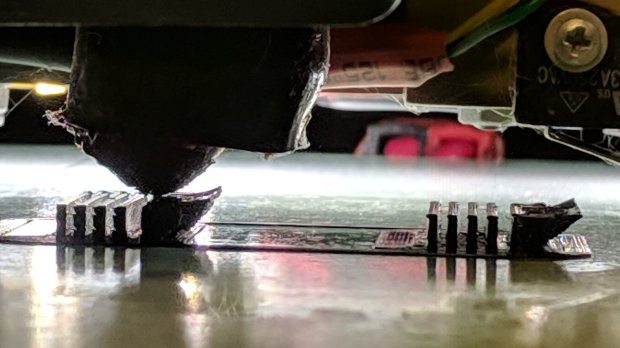

Assuming the curved ends didn’t need support / anchors holding them down turned out to be completely incorrect:
Fortunately, those delicate potato chips lived to tell the tale and, after a few design iterations, everything came out right:

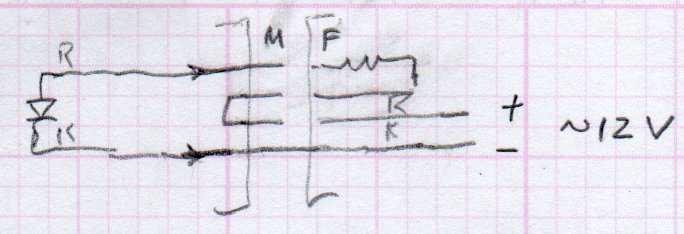

The “connector”, such as it is, serves to make the light bar testable / removable and the ballast resistor tweakable, without going nuts over the details. The left side is an ordinary pin header strip held in place with hot melt glue atop the obligatory Kapton tape, because the heatsink doesn’t get hot enough to bother the glue. The right side is a pair of two-pin header sockets, also intended for PCB use. The incoming power connects to one set and the ballast resistor to the other, thusly:
The diagram is flipped top-to-bottom from the picture, but you get the idea. Quick, easy, durable, and butt-ugly, I’d say.
The next step was to mount it on the sewing machine and steal some power, but that’s a story for another day.
The relevant dimensions for the aluminum extrusion:
The OpenSCAD source code as a GitHub Gist:
| // Juki TL-2010Q Sewing Machine - COB LED Light Bars | |
| // Ed Nisley - KE4ZNU | |
| // 2019-01 | |
| /* [Layout Options] */ | |
| Layout = "Build"; // [Bracket,Endcap,Show,Build] | |
| Wiring = [1,0]; // left and right wire holes | |
| BuildSupport = true; | |
| /* [Extrusion Parameters] */ | |
| ThreadWidth = 0.40; | |
| ThreadThick = 0.20; | |
| HoleWindage = 0.2; | |
| Protrusion = 0.1; | |
| //----- | |
| // Shelf bracket used as LED heatsink | |
| /* [Hidden] */ | |
| LEDPlate = [15.0,2.4]; // 2D coords from end of LED | |
| BktOuter = [15.9,12.6 + LEDPlate.y]; // 2D coords as seen from end of extrusion | |
| BktWalls = [1.3,2.2 + LEDPlate.y]; // ... extend base to cover LED | |
| BktCap = [2.5,3.0]; | |
| BracketPoints = [ | |
| [0,0], | |
| [BktOuter.x,0], | |
| [BktOuter.x,BktOuter.y], | |
| [(BktOuter.x - BktCap.x),BktOuter.y], | |
| [(BktOuter.x - BktCap.x),(BktOuter.y - BktCap.y)], | |
| [(BktOuter.x - BktWalls.x),(BktOuter.y - BktCap.y)], | |
| [(BktOuter.x - BktWalls.x),BktWalls.y], | |
| [BktWalls.x,BktWalls.y], | |
| [BktWalls.x,(BktOuter.y - BktCap.y)], | |
| [BktCap.x,(BktOuter.y - BktCap.y)], | |
| [BktCap.x,BktOuter.y], | |
| [0,BktOuter.y], | |
| [0,0] | |
| ]; | |
| BracketPlugInsert = 10.0; // distance into bracket end | |
| WireOD = 1.6; // COB LED jumpers - 24 AWG silicone | |
| WireOC = BktOuter.x - 2*BktWalls.x - WireOD; | |
| echo(str("Wire OC: ",WireOC)); | |
| CableOD = 4.0; // power entry cable | |
| CapSides = 2*3*4; | |
| //----- | |
| // Useful routines | |
| module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes | |
| Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2); | |
| FixDia = Dia / cos(180/Sides); | |
| cylinder(r=(FixDia + HoleWindage)/2, | |
| h=Height, | |
| $fn=Sides); | |
| } | |
| //----- | |
| // Endcap with smooth rounding | |
| // Wires = true to punch holes for LED wires | |
| module Endcap(Wires = true) { | |
| // arc length to flatten inside of cap | |
| // not needed to build in normal orientation | |
| m = BktOuter.x/2 - sqrt(pow(BktOuter.x/2,2) - pow(BktOuter.x - 2*BktCap.x,2)/4); | |
| difference() { | |
| translate([0,0,BktOuter.y/2]) // basic endcap shape | |
| intersection() { | |
| cylinder(d=BktOuter.x,h=BktOuter.y,$fn=CapSides,center=true); | |
| rotate([90,0,0]) | |
| rotate(180/CapSides) | |
| cylinder(d=BktOuter.y,h=BktOuter.x,$fn=CapSides,center=true); | |
| } | |
| translate([-BracketPlugInsert,0,0]) // extrusion + LED plate | |
| Bracket(BracketPlugInsert); | |
| if (false) // flatten inner end | |
| translate([-BktOuter.y + m,0,BktOuter.y/2]) | |
| cube([BktOuter.y,BktOuter.x,BktOuter.y],center=true); | |
| if (Wires) { | |
| for (j=[-1,1]) // COB LED connections | |
| translate([WireOD - BktOuter.x/2,j*WireOC/2,(BktWalls.y + WireOD - Protrusion)/2]) | |
| rotate([0,00,0]) | |
| cube([BktOuter.x,WireOD + Protrusion,BktWalls.y + WireOD + Protrusion],center=true); | |
| translate([0,0,BktOuter.y/2]) // power entry / exit | |
| rotate([0,90,0]) | |
| translate([0,0,-BktOuter.x]) | |
| rotate(180/6) | |
| PolyCyl(CableOD,2*BktOuter.x,6); | |
| } | |
| } | |
| } | |
| // Totally ad-hoc support structures | |
| module Support(Wiring = false) { | |
| Spacing = 4*ThreadWidth; | |
| NumBars = floor((BktOuter.y/2) / Spacing); | |
| echo(str("Support bars: ",NumBars)); | |
| color("Yellow") { | |
| render() difference() { | |
| union() { | |
| for (i=[1:NumBars]) // inside extrusion | |
| translate([-i*Spacing,0,(BktWalls.y + WireOD)/2]) | |
| cube([2*ThreadWidth,BktOuter.x - 0*BktWalls.x,BktWalls.y + WireOD],center=true); | |
| if (true) | |
| for (j=[-1:1]) // reduce outside curve uplift | |
| translate([0.3*BktOuter.y,j*BktOuter.x/3,BktOuter.y/10]) | |
| cube([BktOuter.y/3,2*ThreadWidth,BktOuter.y/5],center=true); | |
| } | |
| minkowski() { // all-around clearance | |
| Endcap(Wiring); | |
| cube(2.0*ThreadThick,center=true); | |
| } | |
| if (Wiring) { | |
| translate([0,0,BktOuter.y/2]) // remove rubble from wire bore | |
| rotate([0,90,0]) | |
| translate([0,0,-BktOuter.x]) | |
| rotate(180/6) | |
| PolyCyl(CableOD,2*BktOuter.x,6); | |
| } | |
| } | |
| if (false) | |
| translate([-(BktOuter.x/4 + ThreadWidth),0,ThreadThick/2]) // adhesion pad | |
| cube([BktOuter.x/2,BktOuter.x - BktWalls.x,ThreadThick],center=true); | |
| // translate([BktOuter.x/3,0,ThreadThick/2]) // adhesion pad | |
| // cube([0.3*BktOuter.x,0.7*BktOuter.x,ThreadThick],center=true); | |
| if (false) | |
| for (j = [-1:1]) // tie pad to bottom of cap | |
| translate([-(4*ThreadWidth)/2,j*(BktOuter.x - 2*ThreadWidth)/2,ThreadThick/2]) | |
| cube([4*ThreadWidth,2*ThreadWidth,ThreadThick],center=true); | |
| } | |
| } | |
| //----- | |
| // Heatsink extrusion + LED plate | |
| // Centered on Y with Length extending in +X | |
| module Bracket(Length = 10) | |
| translate([0,-BktOuter.x/2,0]) | |
| rotate([90,0,90]) | |
| linear_extrude(height = Length,convexity=3) | |
| polygon(points=BracketPoints); | |
| //----- | |
| // Build things | |
| if (Layout == "Bracket") | |
| Bracket(); | |
| if (Layout == "Endcap") | |
| Endcap(); | |
| if (Layout == "Show") { | |
| translate([BktOuter.x,0,0]) | |
| Endcap(Wiring[1]); | |
| translate([-BktOuter.x,0,0]) | |
| rotate(180) | |
| Endcap(Wiring[0]); | |
| color("Yellow",0.35) | |
| translate([-BktOuter.x/2,0,0]) | |
| Bracket(BktOuter.x); | |
| } | |
| if (Layout == "Build") { | |
| translate([BktOuter.y,0,0]) { | |
| Endcap(Wiring[0]); | |
| if (BuildSupport) | |
| Support(Wiring[0]); | |
| } | |
| translate([-BktOuter.y,0,0]) { | |
| Endcap(Wiring[1]); | |
| if (BuildSupport) | |
| Support(Wiring[1]); | |
| } | |
| } |
