Sony HDR-AS30V Helmet Camera: MicroSD Card Spacer

Sony tried, they really tried, to make their proprietary Memory Stick flash memory cards catch on, but the slot in their HDR-AS30V Action / Helmet camera accepts both Memory Stick Micro and MicroSD cards. The two cards have slightly different sizes, the AS30V’s dual-purpose slot allows MicroSD cards to sit misaligned with the contacts, and the camera frequently kvetches about having no card.

The only solution seemed to be starting the camera while watching the display to ensure the card worked, but it would sometimes joggle out of position during a ride.

I cut out a tiny polypropylene rectangle(-ish) spacer to fill the Memory Stick side of the slot, sized to fit between the spring fingers holding the MicroSD card against its contacts:

Sony HDR-AS30V Camera – MicroSD card and spacer

Not the best cutting job I’ve ever done, but it was an iterative process and that’s where I stopped. If this works and I have need for another / better spacer, I promise to do better.

The spacer’s somewhat mottled appearance comes from tapeless sticky (an adhesive layer on a peel-off backing: inverse tape!) applied to the top side, which will affix it to the slot. I’d rather glue the spacer to the MicroSD card, but then the card wouldn’t fit in the USB 3.0 adapter I use to transfer the files.

The chips along the left edge of silkscreen come from my fingernail, because pressing exactly there seems to be the best way to force the damn thing into the proper alignment.

So the slot + spacer looks like this:

Sony HDR-AS30V Camera – dual-card slot with spacer

The MicroSD card fits in the far side of the slot, facing toward you with contacts downward, thusly:

Sony HDR-AS30V Camera – MicroSD card with spacer

And then It Just Works™, at least on the very few rides we’ve gotten in during December and early January.

Incidentally, the blue and exceedingly thin latch finger holding the battery in place will snap, should you drop the camera on its non-lens end from any height. Conversely, should you drop it on the lens end, you can kiss the optics goodbye. Your choice.

2019-01-23
Tensilizing Copper Wire

The “bus bars” on the battery holders are 14 AWG copper wire:

Astable – NP-BX1 base – detail

Slightly stretching the wire straightens and work-hardens it, which I’d been doing by clamping one end in the bench vise, grabbing the other in a Vise-Grip, and whacking the Vise-Grip with a hammer. The results tended to be, mmm, hit-or-miss, with the wires often acquiring a slight bend due to an errant whack.

I finally fished out the slide hammer Mary made when we took a BOCES adult-ed machine shop class many many years ago:

Slide Hammer

The snout captured the head of a sheet metal screw you’d previously driven into a dented automobile fender. For my simple purposes, jamming the wire into the snout and tightening it firmly provides a Good Enough™ grip:

Slide Hammer Snout

Clamp the other end of the wire into the bench vise, pull gently on the hammer to take the slack out of the wire, and slap the weight until one end of the wire breaks.

With a bit of attention to detail, the wires come out perfectly straight and ready to become Art:

Straightened 14 AWG Copper Wires

The wires start out at 1.60 mm diameter (14 AWG should be 1.628, but you know how this stuff goes) and break around 1.55 mm. In principle, when the diameter drops 3%, the area will decrease by 6% and the length should increase by 6%, but in reality the 150 mm length stretches by only 1 mm = 1%, not 3 mm. My measurement-fu seems weak.

Highly recommended, particularly when your Favorite Wife made the tool.

The Harbor Freight version comes with a bunch of snouts suitable for car repair and is utterly unromantic.

2019-01-18

Astable Multivibrator: Monochrome Pirhana LED

The LED parts box disgorged some single-color Pirhana-style LEDs:

Astable - 2N7000 - Mono Pirhana LED — Astable – 2N7000 – Mono Pirhana LED

Didn’t quite catch the blink, but the ~~Ping-Pong ball~~ radome lights up just as you’d expect.

The radome sits on a stripped-down RGB LED spider:

Astable Multivibrator Battery Holder - mono LED Spider - fit view — Astable Multivibrator Battery Holder – mono LED Spider – fit view

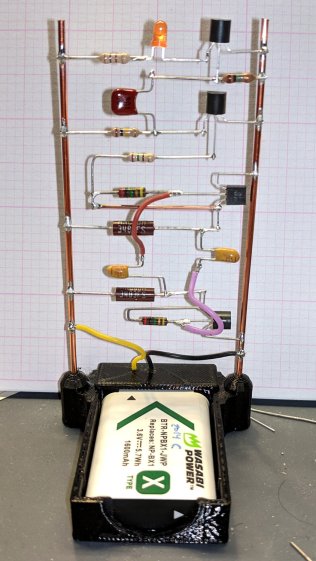

The circuitry is the same as the First Light version, with a 1 MΩ resistor stabilizing the LED ballast resistor:

Astable - 2N7000 - Mono Pirhana LED - detail — Astable – 2N7000 – Mono Pirhana LED – detail

Those are 1 µF ceramic caps in the astable section, so I’m no longer abusing electrolytics, and a stylin’ 100 nF film cap metering out the LED pulse up above.

Just for pretty, I’ve been using yellow / black wires for the battery connections and matching the LED color with its cathode lead.

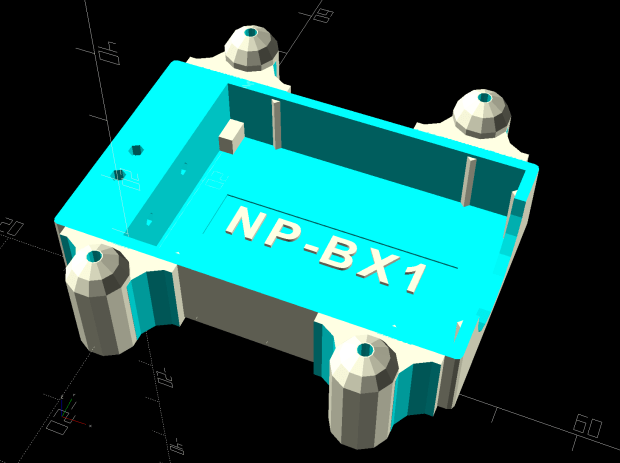

The OpenSCAD source code as a GitHub Gist:

	// Holder for Li-Ion battery packs
	// Ed Nisley KE4ZNU January 2013
	// 2018-11-15 Adapted for 1.5 mm pogo pins, battery data table
	// 2018-12 RGB LED spider, general cleanups

	/* [Layout options] */

	BatteryName = "NP-BX1"; // [NP-BX1,NB-5L,NB-6L]

	RGBCircuit = false; // false = 1 strut pair, true = 2 pairs

	Layout = "Spider"; // [Build,Show,Fit,Case,Lid,Pins,RGBSpider,Spider]

	/* [Extrusion parameters] – must match reality! */
	// Print with +2 shells and 3 solid layers

	ThreadThick = 0.25;
	ThreadWidth = 0.40;

	HoleWindage = 0.2;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);
	function IntegerLessMultiple(Size,Unit) = Unit * floor(Size / Unit);

	Protrusion = 0.1; // make holes end cleanly

	/* [Hidden] */

	inch = 25.4;

	BuildOffset = 3.0; // clearance for build layout

	Gap = 2.0; // separation for Fit parts

	//- Basic dimensions

	WallThick = 4*ThreadWidth; // holder sidewalls

	BaseThick = 6*ThreadThick; // bottom of holder to bottom of battery
	TopThick = 6*ThreadThick; // top of battery to top of holder

	//- Battery dimensions – rationalized from several samples
	// Coordinate origin at battery corner with contacts, key openings downward

	T_NAME = 0; // Name must fit recess, so don't get loquacious
	T_SIZE = 1;
	T_CONTACTS = 2;
	T_KEYS = 3;

	BatteryData = [
	["NP-BX1",[43.0,30.0,9.5],[[-0.75,6.0,6.2,"+"],[-0.75,16.0,6.2,"-"]],[[1.70,3.70,2.90],[1.70,3.60,2.90]]],
	["NB-5L", [45.0,32.0,8.0],[[-0.82,4.5,3.5,"-"],[-0.82,11.0,3.5,"+"]],[[2.2,0.75,2.0],[2.2,2.8,2.0]]],
	["NB-6L",[42.5,35.5,7.0],[[-0.85,5.50,3.05,"-"],[-0.85,11.90,3.05,"+"]],[[2.0,0.70,2.8],[2.0,2.00,2.8]]],
	];

	echo(str("Battery: ",BatteryName));

	BatteryIndex = search([BatteryName],BatteryData,1,0)[0];
	echo(str(" Index: ",BatteryIndex));

	BatterySize = BatteryData[BatteryIndex][T_SIZE]; // X = length, Y = width, Z = thickness
	echo(str(" Size: ",BatterySize));

	Contacts = BatteryData[BatteryIndex][T_CONTACTS]; // relative to battery edge, front, and bottom
	echo(str(" Contacts: ",Contacts));

	ContactOC = Contacts[1].y – Contacts[0].y; // + and – terminals for pogo pin contacts
	ContactCenter = Contacts[0].y + ContactOC/2;

	KeyBlocks = BatteryData[BatteryIndex][T_KEYS]; // recesses in battery face set X position
	echo(str(" Keys: ",KeyBlocks));

	//- Pin dimensions

	ID = 0;
	OD = 1;
	LENGTH = 2;

	PinShank = [1.5,2.0,6.5]; // shank, flange, compressed length
	PinFlange = [1.5,2.0,0.5]; // flange, length included in PinShank
	PinTip = [0.9,0.9,2.5]; // extended spring-loaded tip

	WireOD = 1.7; // wiring from pins to circuitry

	PinChannel = WireOD; // cut behind flange for solder overflow
	PinRecess = 3.0; // recess behind pin flange end for epoxy fill

	echo(str("Contact tip dia: ",PinTip[OD]));
	echo(str(" .. shank dia: ",PinShank[ID]));

	OverTravel = 0.5; // space beyond battery face at X origin

	//- Holder dimensions

	GuideRadius = ThreadWidth; // friction fit ridges
	GuideOffset = 7; // from compartment corners

	LidOverhang = 2.0; // atop of battery for retention
	LidClearance = LidOverhang * (BatterySize.z/BatterySize.x); // … clearance above battery for tilting
	echo(str("Lid clearance: ",LidClearance));

	CaseSize = [BatterySize.x + PinShank[LENGTH] + OverTravel + PinRecess + GuideRadius + WallThick,
	BatterySize.y + 2WallThick + 2GuideRadius,
	BatterySize.z + BaseThick + TopThick + LidClearance];
	echo(str("Case size: ",CaseSize));

	CaseOffset = [-(PinShank[LENGTH] + OverTravel + PinRecess),-(WallThick + GuideRadius),0]; // position around battery

	ThumbRadius = 10.0; // thumb opening at end of battery

	CornerRadius = 3*ThreadThick; // nice corner rounding

	LidSize = [-CaseOffset.x + LidOverhang,CaseSize.y,TopThick];

	LidOffset = [0.0,CaseOffset.y,0];

	//- Wire struts

	StrutDia = 1.6; // AWG 14 = 1.6 mm
	StrutSides = 3*4;

	StrutBase = [StrutDia,StrutDia + 4*WallThick,CaseSize.z – TopThick]; // ID = wire, OD = buildable

	//StrutOC = [IntegerLessMultiple(BatterySize.x – StrutBase[OD],5.0), // set easy OC wire spacing
	// IntegerMultiple(CaseSize.y + StrutBase[OD],5.0)];
	StrutOC = [IntegerLessMultiple(CaseSize.x – 2CornerRadius -2StrutBase[OD],5.0),
	IntegerMultiple(CaseSize.y + StrutBase[OD],5.0)];

	StrutOffset = [CaseSize.x/2 + CaseOffset.x,BatterySize.y/2]; // from case centerlines

	StrutAngle = atan(StrutOC.y/StrutOC.x);

	echo(str("Strut OC: ",StrutOC));

	//- RGB / Pirhana / Neopixel-ish LEDs

	RGBBody = [8.0,8.0,5.0]; // Z = body height

	PixelPCB = [4.0,10.0,3.0]; // Neopixel-ish PCBs, ID = chip window

	RGBPin = 5.0; // pin length
	RGBPinsOC = [5.0,5.0]; // pin layout

	RGBRecess = RGBBody.z + RGBPin/2; // maximum LED recess depth

	BallOD = 40.0; // radome sphere
	BallSides = 4*StrutSides; // nice number of sides

	BallPillar = [norm([RGBBody.x,RGBBody.y]),
	norm([RGBBody.x,RGBBody.y]) + 4*WallThick,
	StrutBase[OD] + RGBBody.z];
	BallChordM = BallOD/2 – sqrt(pow(BallOD/2,2) – (pow(BallPillar[OD],2))/4);
	echo(str("Ball chord depth: ",BallChordM));

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);

	FixDia = Dia / cos(180/Sides);

	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}

	//——————-
	//– Guides for tighter friction fit

	module Guides() {
	translate([GuideOffset,-GuideRadius,0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([GuideOffset,(BatterySize.y + GuideRadius),0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([(BatterySize.x – GuideOffset),-GuideRadius,0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([(BatterySize.x – GuideOffset),(BatterySize.y + GuideRadius),0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([(BatterySize.x + GuideRadius),GuideOffset/2,0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([(BatterySize.x + GuideRadius),(BatterySize.y – GuideOffset/2),0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);

	}

	//– Contact pins
	// Rotated to put them in their natural oriention
	// Aligned to put tip base / end of shank at Overtravel limit

	module PinShape() {

	translate([-(PinShank[LENGTH] + OverTravel),0,0])
	rotate([0,90,0])
	rotate(180/6)
	union() {
	PolyCyl(PinTip[OD],PinShank[LENGTH] + PinTip[LENGTH],6);
	PolyCyl(PinShank[ID],PinShank[LENGTH] + Protrusion,6); // slight extension for clean cuts
	PolyCyl(PinFlange[OD],PinFlange[LENGTH],6);
	}
	}

	// Position pins to put end of shank at battery face
	// Does not include recess access into case

	module PinAssembly() {

	union() {
	for (p = Contacts)
	translate([0,p.y,p.z])
	PinShape();

	translate([-(PinShank[LENGTH] + OverTravel) + PinChannel/2, // solder space
	ContactCenter,
	Contacts[0].z])
	cube([PinChannel,
	(Contacts[1].y – Contacts[0].y + PinFlange[OD]),
	PinFlange[OD]],center=true);

	for (j=[-1,1]) // wire channels
	translate([-(PinShank[LENGTH] + OverTravel – PinChannel/2),
	j*ContactOC/4 + ContactCenter,
	Contacts[0].z – PinFlange[OD]/2])
	rotate(180/6)
	PolyCyl(WireOD,CaseSize.z,6);
	}
	}

	//– Case with origin at battery corner

	module Case() {

	difference() {

	union() {

	difference() {
	union() {
	translate([(CaseSize.x/2 + CaseOffset.x), // basic case shape
	(CaseSize.y/2 + CaseOffset.y),
	(CaseSize.z/2 – BaseThick)])
	hull()
	for (i=[-1,1], j=[-1,1], k=[-1,1])
	translate([i*(CaseSize.x/2 – CornerRadius),
	j*(CaseSize.y/2 – CornerRadius),
	k*(CaseSize.z/2 – CornerRadius)])
	sphere(r=CornerRadius/cos(180/8),$fn=8); // cos() fixes undersize spheres!

	for (i= RGBCircuit ? [-1,1] : -1) { // strut bases
	hull()
	for (j=[-1,1])
	translate([iStrutOC.x/2 + StrutOffset.x,jStrutOC.y/2 + StrutOffset.y,-BaseThick])
	rotate(180/StrutSides)
	cylinder(d=StrutBase[OD],h=StrutBase[LENGTH],$fn=StrutSides);

	translate([i*StrutOC.x/2 + StrutOffset.x,StrutOffset.y,StrutBase[LENGTH]/2 – BaseThick])
	cube([2*StrutBase[OD],StrutOC.y,StrutBase[LENGTH]],center=true); // blocks for fairing

	for (j=[-1,1]) // hemisphere caps
	translate([i*StrutOC.x/2 + StrutOffset.x,
	j*StrutOC.y/2 + StrutOffset.y,
	StrutBase[LENGTH] – BaseThick])
	rotate(180/StrutSides)
	sphere(d=StrutBase[OD]/cos(180/StrutSides),$fn=StrutSides);

	}
	}

	translate([-OverTravel,-GuideRadius,0])
	cube([(BatterySize.x + GuideRadius + OverTravel),
	(BatterySize.y + 2*GuideRadius),
	(BatterySize.z + LidClearance + Protrusion)]); // battery space

	translate([BatterySize.x/2,BatterySize.y/2,0]) // recess around battery name
	cube([0.8BatterySize.x,8,2ThreadThick],center=true);

	translate([CaseOffset.x + CaseSize.x/2,BatterySize.y/2,-BaseThick + ThreadThick – Protrusion]) // recess around battery name
	cube([0.75CaseSize.x,8,2ThreadThick],center=true);
	}

	Guides(); // improve friction fit

	translate([-OverTravel,-GuideRadius,0]) // battery keying blocks
	cube(KeyBlocks[0] + [OverTravel,GuideRadius,0],center=false);
	translate([-OverTravel,(BatterySize.y – KeyBlocks[1].y),0])
	cube(KeyBlocks[1] + [OverTravel,GuideRadius,0],center=false);

	translate([BatterySize.x/2,BatterySize.y/2,-ThreadThick])
	linear_extrude(height=2*ThreadThick,convexity=10)
	text(text=BatteryName,size=5,spacing=1.20,font="Arial:style:Bold",halign="center",valign="center");

	translate([CaseOffset.x + CaseSize.x/2,BatterySize.y/2,-BaseThick])
	linear_extrude(height=2*ThreadThick + Protrusion,convexity=10)
	mirror([0,1,0])
	text(text="KE4ZNU",size=6,spacing=1.20,font="Arial:style:Bold",halign="center",valign="center");
	}

	translate([2*CaseOffset.x, // battery top access
	(CaseOffset.y – Protrusion),
	BatterySize.z + LidClearance])
	cube([2CaseSize.x,(CaseSize.y + 2Protrusion),2*TopThick]);

	for (i2 = RGBCircuit ? [-1,1] : -1) { // strut wire holes and fairing
	for (j=[-1,1])
	translate([i2StrutOC.x/2 + StrutOffset.x,jStrutOC.y/2 + StrutOffset.y,0])
	rotate(180/StrutSides)
	PolyCyl(StrutBase[ID],2*StrutBase[LENGTH],StrutSides);

	for (i=[-1,1], j=[-1,1])
	translate([iStrutBase[OD] + (i2StrutOC.x/2 + StrutOffset.x),
	j*StrutOC.y/2 + StrutOffset.y,
	-(BaseThick + Protrusion)])
	rotate(180/StrutSides)
	PolyCyl(StrutBase[OD],StrutBase[LENGTH] + 2*Protrusion,StrutSides);
	}

	translate([(BatterySize.x – Protrusion), // remove thumb notch
	(CaseSize.y/2 + CaseOffset.y),
	(ThumbRadius)])
	rotate([90,0,0])
	rotate([0,90,0])
	cylinder(r=ThumbRadius,
	h=(WallThick + GuideRadius + 2*Protrusion),
	$fn=22);

	PinAssembly(); // pins and wiring

	translate([CaseOffset.x + PinRecess + Protrusion,(Contacts[1].y + Contacts[0].y)/2,Contacts[0].z])
	translate([-PinRecess,0,0])
	cube([2*PinRecess,
	(Contacts[1].y – Contacts[0].y + PinFlange[OD]/cos(180/6) + 2*HoleWindage),
	2*PinFlange[OD]],center=true); // pin insertion hole

	}

	}

	// Lid position offset to match case
	// The polarity indicator recesses are pure bodges

	module Lid() {

	union() {
	difference() {
	translate([-LidSize.x/2 + LidOffset.x + LidOverhang,LidSize.y/2 + LidOffset.y,0])
	difference() {
	hull()
	for (i=[-1,1], j=[-1,1], k=[-1,1])
	translate([i*(LidSize.x/2 – CornerRadius),
	j*(LidSize.y/2 – CornerRadius),
	k*(LidSize.z – CornerRadius)]) // double thickness for flat bottom
	sphere(r=CornerRadius,$fn=8);

	translate([0,0,-LidSize.z/2]) // remove bottom
	cube([(LidSize.x + 2Protrusion),(LidSize.y + 2Protrusion),LidSize.z],center=true);

	translate([LidSize.x/8,0,0])
	cube([LidSize.x/4,0.75LidSize.y,4ThreadThick],center=true); // epoxy recess
	}

	translate([0,0,-(Contacts[0].z + PinFlange[OD])]) // punch wire holes
	PinAssembly();

	for (n=[0,1]) // polarity recesses
	translate([-LidOverhang/2 – 0.40,Contacts[n].y,LidSize.z – ThreadThick/2])
	cube([4,4.5,ThreadThick + Protrusion],center=true);

	}

	for (n=[0,1]) // polarity indicators
	translate([-LidOverhang/2,Contacts[n].y,LidSize.z – 1*ThreadThick]) // … proud of surface
	rotate(90)
	linear_extrude(height=2*ThreadThick,convexity=10)
	text(text=Contacts[n][3],size=5,font="Arial:style:Bold",halign="center",valign="center");
	}

	}

	// Spider for RGB LED + radome atop vertical struts

	module RGBSpider() {

	difference() {
	union() {
	for (i=[-1,1], j=[-1,1]) {
	translate([iStrutOC.x/2,jStrutOC.y/2,StrutBase[OD]/2])
	rotate(180/StrutSides) // doesn't quite match crosspieces; close enough
	sphere(d=StrutBase[OD]/cos(180/StrutSides),$fn=StrutSides);
	translate([iStrutOC.x/2,jStrutOC.y/2,0])
	rotate(180/StrutSides)
	cylinder(d=StrutBase[OD],h=StrutBase[OD]/2,$fn=StrutSides);
	}

	for (m=[-1,1]) // connecting bars
	rotate(m*StrutAngle)
	translate([0,0,StrutBase[OD]/4])
	cube([norm(StrutOC),StrutBase[OD],StrutBase[OD]/2],center=true);

	translate([0,0,0]) // pillar for RGB LED and ball
	cylinder(d=BallPillar[OD],h=BallPillar[LENGTH],$fn=BallSides);
	}

	for (i=[-1,1], j=[-1,1]) // strut wires
	translate([iStrutOC.x/2,jStrutOC.y/2,-Protrusion])
	rotate(0)
	PolyCyl(StrutBase[ID],StrutBase[OD]/2,6);

	for (m=[-1,1], n=[0,1]) // RGBA wires through bars
	rotate(mStrutAngle + n180)
	translate([StrutOC.x/3,0,-Protrusion])
	PolyCyl(StrutBase[ID],StrutBase[OD],6);

	translate([0,0,BallOD/2 + BallPillar[LENGTH] – BallChordM]) // ball inset
	sphere(d=BallOD);

	translate([0,0,2*RGBBody.z + (BallPillar[LENGTH] – BallChordM) – RGBRecess]) // LED inset
	cube(RGBBody + [HoleWindage,HoleWindage,3*RGBBody.z],center=true); // XY clearance + huge height for E-Z cut

	translate([0,0,StrutBase[OD]/2]) // Neopixel recess
	PolyCyl(PixelPCB[OD],3*RGBBody.z,BallSides/2);

	for (m=[-1,1]) // RGBA wires through pillar
	rotate(m*StrutAngle)
	translate([0,0,StrutBase[OD]/2 + WireOD/2 + 0*Protrusion])
	cube([norm(StrutOC)/2,WireOD,WireOD],center=true);

	}
	}

	// Spider for single LED atop struts, with the ball
	// Aligned to struts at terminal end of battery on Y axis

	module Spider() {

	difference() {
	union() {
	for (j=[-1,1]) {
	translate([-StrutOC.x/2,j*StrutOC.y/2,StrutBase[OD]/2])
	rotate(180/StrutSides)
	sphere(d=StrutBase[OD]/cos(180/StrutSides),$fn=StrutSides);
	translate([-StrutOC.x/2,j*StrutOC.y/2,0])
	rotate(180/StrutSides)
	cylinder(d=StrutBase[OD],h=StrutBase[OD]/2,$fn=StrutSides);
	}

	translate([-StrutOC.x/2,0,StrutBase[OD]/4]) // connecting bars
	cube([StrutBase[OD]*cos(180/StrutSides),StrutOC.y,StrutBase[OD]/2],center=true);

	translate([-StrutOC.x/2,0,0]) // pillar for RGB LED and ball
	cylinder(d=BallPillar[OD],h=BallPillar[LENGTH],$fn=BallSides);
	}

	for (j=[-1,1]) // strut wires
	translate([-StrutOC.x/2,j*StrutOC.y/2,-Protrusion])
	rotate(0)
	PolyCyl(StrutBase[ID],StrutBase[OD]/2,6);

	translate([-StrutOC.x/2,0,0]) // wires through bars
	for (n=[-1,1])
	rotate(n*90)
	translate([StrutOC.x/3,0,-Protrusion])
	PolyCyl(StrutBase[ID],StrutBase[OD],6);

	translate([-StrutOC.x/2,0,-Protrusion]) // center hole for Neopixel
	rotate(180/6)
	PolyCyl(StrutBase[ID],StrutBase[OD],6);

	translate([-StrutOC.x/2,0,BallOD/2 + BallPillar[LENGTH] – BallChordM]) // ball inset
	sphere(d=BallOD);

	translate([-StrutOC.x/2,0,2*RGBBody.z + (BallPillar[LENGTH] – BallChordM) – RGBRecess]) // LED inset
	cube(RGBBody + [HoleWindage,HoleWindage,3*RGBBody.z],center=true); // XY clearance + huge height for E-Z cut

	translate([-StrutOC.x/2,0,StrutBase[OD]/2]) // Neopixel recess
	PolyCyl(PixelPCB[OD],3*RGBBody.z,BallSides/2);

	translate([-StrutOC.x/2,0,StrutBase[OD]/2 + WireOD/2 + 0*Protrusion]) // wire channels
	cube([WireOD,StrutOC.y/2,WireOD],center=true);

	}
	}

	//——————-
	// Build it!

	if (Layout == "Case")
	Case();

	if (Layout == "Lid")
	Lid();

	if (Layout == "RGBSpider") {
	RGBSpider();
	}

	if (Layout == "Spider") {
	Spider();
	}

	if (Layout == "Pins") {
	color("Silver",0.5)
	PinShape();
	PinAssembly();
	}

	if (Layout == "Fit") { // reveal pin assembly
	difference() {
	Case();

	translate([(CaseOffset.x – Protrusion),
	Contacts[1].y,
	Contacts[1].z])
	cube([(-CaseOffset.x + Protrusion),CaseSize.y,CaseSize.z]);

	translate([(CaseOffset.x – Protrusion),
	(CaseOffset.y – Protrusion),
	0])
	cube([(-CaseOffset.x + Protrusion),
	Contacts[0].y + Protrusion – CaseOffset.y,
	CaseSize.z]);
	}

	translate([0,0,BatterySize.z + Gap])
	Lid();

	color("Silver",0.15)
	PinAssembly();

	if (RGBCircuit) {
	translate([StrutOC.x/2,BatterySize.y/2,2*BatterySize.z])
	difference() {
	RGBSpider();
	rotate(180-StrutAngle)
	translate([0,0,-Protrusion])
	cube([norm(StrutOC),StrutBase[OD],2*BallPillar.z],center=false);
	}
	color("Green",0.35)
	translate([StrutOC.x/2,BatterySize.y/2,2*BatterySize.z + BallOD/2 + BallPillar[LENGTH] – BallChordM])
	sphere(d=BallOD);
	}
	else {
	difference() {
	translate([StrutOC.x/2,BatterySize.y/2,2*BatterySize.z])
	Spider();
	translate([-BallPillar[OD],BatterySize.y/2,2*BatterySize.z – Protrusion])
	cube([BallPillar[OD],StrutOC.y,2*BallPillar.z],center=false);
	}
	color("Green",0.35)
	translate([0,BatterySize.y/2,2*BatterySize.z + BallOD/2 + BallPillar[LENGTH] – BallChordM])
	sphere(d=BallOD);
	}
	}

	if (Layout == "Build") {
	rotate(90) {
	translate([-BatterySize.x/2,-BatterySize.y/2,BaseThick])
	Case();
	translate([-CaseSize.x + LidSize.x,-(LidSize.y/2 + LidOffset.y),0])
	Lid();
	if (RGBCircuit)
	translate([StrutOC.x + BatterySize.x/2,0,0])
	RGBSpider();
	else
	translate([StrutOC.x + BatterySize.x/2,0,0])
	Spider();
	}
	}

	if (Layout == "Show") {
	Case();
	translate([0,0,(BatterySize.z + Gap)])
	Lid();
	color("Silver",0.25)
	PinAssembly();
	if (RGBCircuit) {
	translate([StrutOC.x/2,BatterySize.y/2,2*BatterySize.z])
	RGBSpider();
	color("Green",0.35)
	translate([StrutOC.x/2,BatterySize.y/2,2*BatterySize.z + BallOD/2 + BallPillar[LENGTH] – BallChordM])
	sphere(d=BallOD);
	}
	else {
	translate([StrutOC.x/2,BatterySize.y/2,2*BatterySize.z])
	Spider();
	color("Green",0.35)
	translate([0,BatterySize.y/2,2*BatterySize.z + BallOD/2 + BallPillar[LENGTH] – BallChordM])
	sphere(d=BallOD);
	}
	}

view raw Astable Multivibrator Battery Holder.scad hosted with ❤ by GitHub

2019-01-17

Minilathe MT3 Spindle Collet Fitting

I’ve used the LMS set of inch-size MT3 spindle collets on occasion, but releasing them required an unseemly amount of drawbar battering. It recently occurred to me to check their fit in the spindle taper:

Minilathe – MT3 collet – taper test

Huh.

The only place they touch the spindle is right around the base, so it’s no wonder they clamp poorly and release grudgingly. I tried several others with the same result.

Cross-checking shows a much closer fit along the entire length of the dead center, so it’s not the spindle’s fault:

Minilathe – Dead Center – MT3 taper check

Stipulated: we’re not talking toolroom precision here

I set the collets on centers:

Minilathe – MT3 collet – drive setup

And proceeded to file away the offending section to move the clamping force closer to the business end of the collet:

Minilathe – MT3 collet – filed result

I did the small collets, the ones I’m most likely to need, and left the big ones for another rainy day.

They don’t have much clamping range and seem good only for exact-inch-size rods.

I should lay in a stock of ER16 and maybe ER32 collets for small stuff.

2019-01-16
Debossed Printed Legends

[Update: It seems I interchanged “em” and “de” throughout this post. ]

Up to this point, I’ve been labeling printed parts with emdebossed legends that look OK on the solid model:

Astable Multivibrator Battery Holder

Alas, the recessed letters become lost in their perimeter threads:

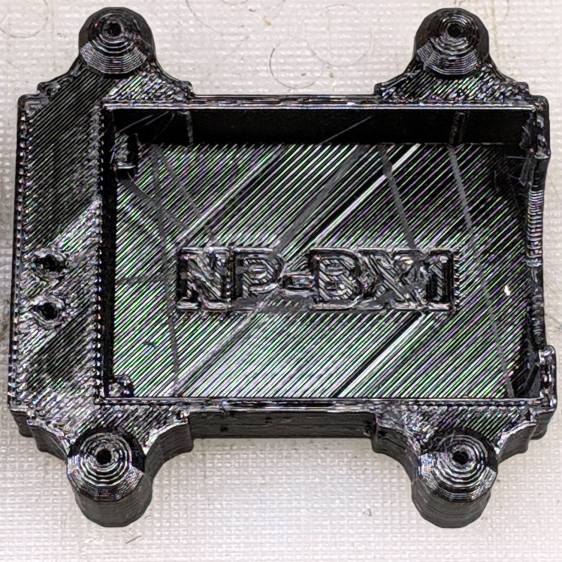

3D Printed Legend – Embossed

Raising the legend above the surface (“deembossing”) works reasonably well, but raised letters would interfere with sliding the battery into the holder and tend to get lost amid the surface infill pattern.

The blindingly obvious solution, after far too long, raises the letters above a frame embossed into the surface:

Astable Multivibrator Battery Holder – Legend Debossed

Which looks OK in the real world, too:

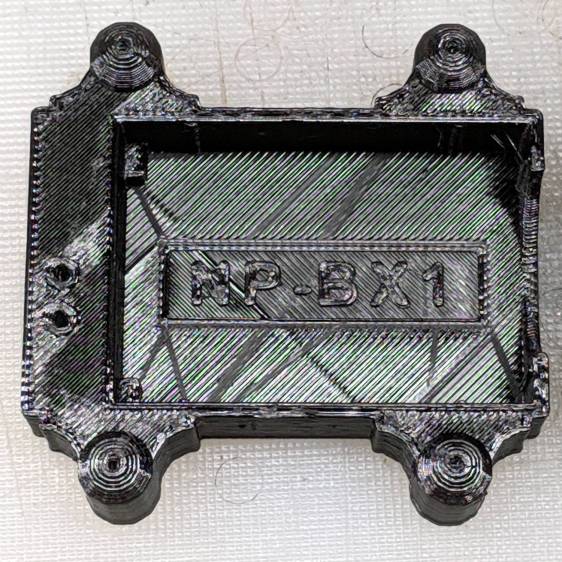

3D Printed Legend – Debossed

The frame is one thread deep and the legend is one thread tall, putting the letters flush with the surrounding surface and allowing the battery to slide smoothly.

The legend on the bottom surface shows even more improvement:

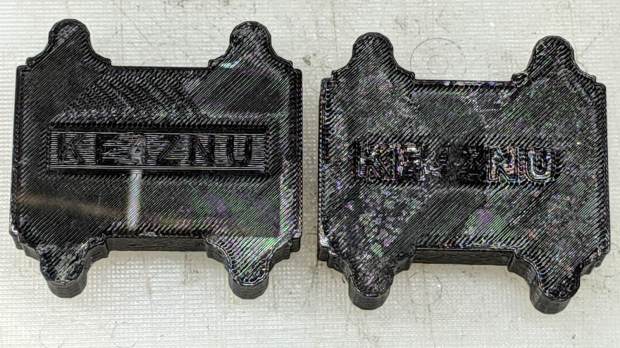

NP-BX1 battery holder – Raised vs Recessed Legend

An OpenSCAD program can’t get the size of a rendered text string, so the fixed-size frame must surround the largest possible text, which isn’t much of a problem for my simple needs.

2019-01-14
Astable Multivibrator: 2N7000 MOSFET First Light

Taping a cardboard support under the soldering fixture helped hold all the parts in place:

Astable – 2N7000 soldering

The struts fit neatly into an NP-BX1 battery holder and the circuit began blinking merrily:

Astable – 2N7000 assembled

My photography hand is weak …

The circuit schematic / layout resembles this:

LED Schematic – MOSFET transistors

The missing 1 MΩ resistor at the LED would serve as a physical support to tether the loose end of the 100 (-ish) Ω resistor, which desperately needed some stabilization under the LED spider.

The simulation says it should blink about every 4s:

Astable – 2N7000 buffered – true model

The 2N7000 MOSFETs use a SPICE model from the ~~Motorola~~ ON Semi downloads, although they behaved about the same way using the LTSpice 2N7002 model.

It really does blink every 4s:

Astable – 2N7000 overview

The LED pulse width should be about 50 ms:

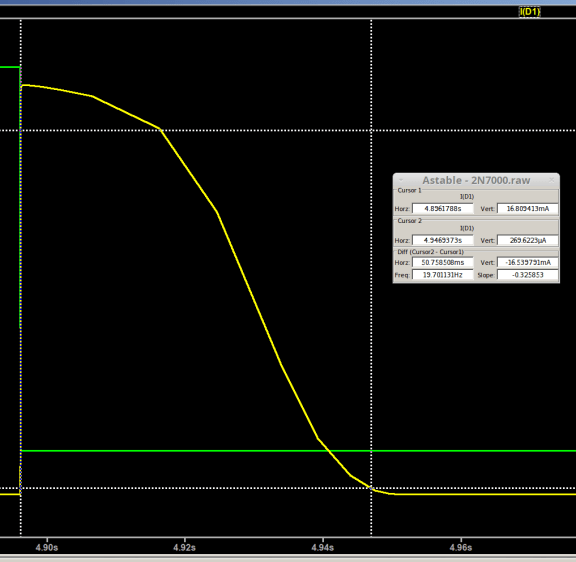

Astable – 2N7000 buffered – LED current – true model

The voltage at the bottom of the ballast resistor is directly proportional to the LED current:

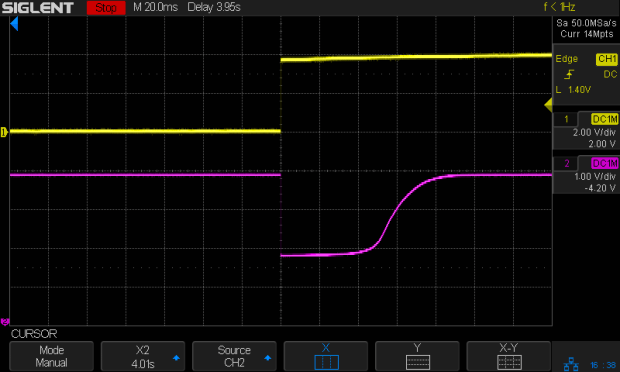

Astable – 2N7000 pulse detail

So the pulse is actually 80-ish ms, which is Close Enough™ for my purposes.

The key advantage here is making both the astable’s period and the blink’s duration (roughly) proportional to the component values, so I can tweak them with some confidence the results will come out more-or-less right.

I love it when a plan comes together!

2019-01-10
Astable Multivibrator: 2N7000 MOSFETs

Some poking around revealed an astable multivibrator using now-obsolescent ZVNL110A MOSFET transistors. The key idea seems to be large gate resistors putting the DC operating point exactly at the voltage required to hold each transistor in the linear region, pretty much guaranteeing the astable will eventually start up.

A bit of simulation suggests this variation ought to work:

Astable – 2N7000 buffered

Well, after the kickstarter in the lower left shorts the transistor for millisecond to enforce some asymmetry, whereoupon the simulation ticks along just fine.

The yellow trace shows the voltage across C2 ramping back and forth between ±1.3 V, with a period just over 4 s and almost exactly a 50% duty cycle: much better than the bipolar version, with sensible component values. As before, the cap sees both polarities, so an electrolytic cap isn’t appropriate.

The red trace is the drain voltage at M2 (presumably, “M for MOSFET”, rather than a plebeian “Q” or “T”), which is firmly at 0 V when it’s ON and ramps upward as R4 pulls C1 higher to turn it even more firmly OFF.

The green trace shows the LED current pulse when M2 turns ON at the end of each cycle. Rather than contort the astable into a very low duty cycle, I generate the pulse by dumping current through a smallish cap into the gate of M4. A few tens of milliseconds makes a perfectly serviceable blink and keeps the average current drain down around a milliamp or so.

In between, M3 buffers the astable’s output to deliver enough current to C4. Without the buffer, the cap draws enough current to mess with the oscillations; that’s how I got backed into this corner.

Figuring the LED at 20 mA for 50 ms, the astable at 10 µA, and the buffer at half of 40 µA, the average current of 1 mA comes entirely from the LED, so even a weak lithium camera battery should last a good long while.

If the low average drain ekes 1000 mA·h from the battery, the LED should blink for a month or two before the battery shuts down.

2019-01-08
