Tek Circuit Computer: Sawed Hairline Fixture

This is a fixture to hold a cursor for an Homage Tektronix Circuit Computer while a tiny circular saw blade cuts a narrow flat-bottomed trench:

Tek CC - sawed cursor - Sherline setup
Tek CC – sawed cursor – Sherline setup

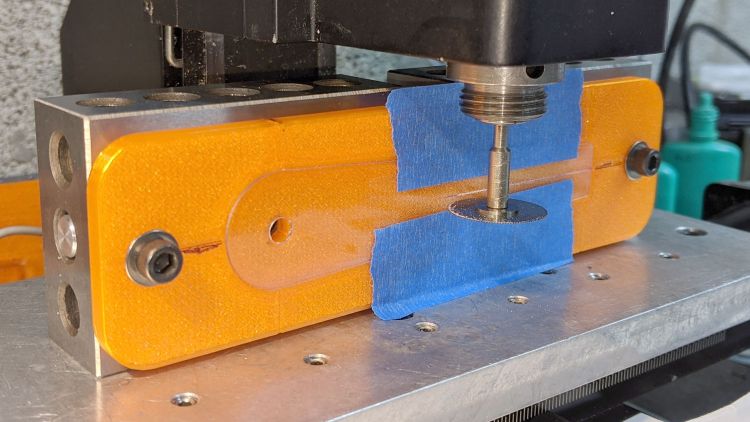

Each of the 123 blocks is held to the Sherline tooling plate with a 10-32 SHCS in a little aluminum pin, with another threaded pin for the screw holding the fixture on the side. The minimal top clearance provided some of the motivation behind making those pins in the first place; there’s no room for the usual threaded stud sticking out of the block with a handful of washers under the nut.

The fixture has locating slots (scribbled with black Sharpie) to touch off the spindle axis and the saw blade at the XZ origin at the pivot hole center. Touching off the saw blade on the cursor surface sets Y=0, although only a few teeth will go ting, so the saw must be spinning.

I cut the first slot under manual control to a depth of 0.3 mm on a scrap cursor with a grotty engraved hairline:

Tek CC - first sawed cursor - detail
Tek CC – first sawed cursor – detail

It looks better than I expected with some red lacquer crayon scribbled into it:

Tek CC - first sawed cursor - vs scribed
Tek CC – first sawed cursor – vs scribed

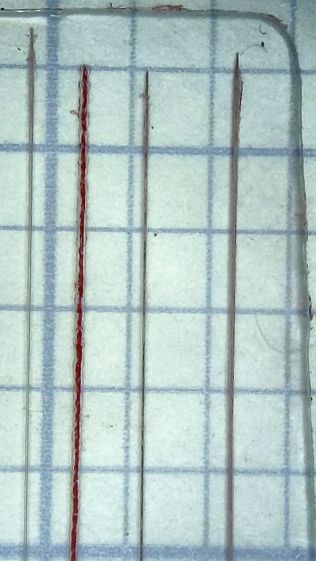

A few variations of speed and depth seem inconclusive, although they look more consistent and much smoother than the diamond-drag engraved line with red fill:

Tek CC - sawed cursor test - magnified
Tek CC – sawed cursor test – magnified

The saw produces a ramp at the entry and exit which I don’t like at all, but the cut is, overall, an improvement on the diamond point.

The OpenSCAD source code as a GitHub Gist:

// Sawing fixtures for Tek Circuit Computer cursor hairline
// Ed Nisley KE4ZNU Jan 2021
// Rotated 90° and screwed to 123 blocks for sawing
Layout = "Show"; // [Show, Build, Cursor]
Gap = 4.0;
/* [Hidden] */
ThreadThick = 0.25;
ThreadWidth = 0.40;
HoleWindage = 0.2;
Protrusion = 0.1; // make holes end cleanly
inch = 25.4;
function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);
module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes
Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
FixDia = Dia / cos(180/Sides);
cylinder(d=(FixDia + HoleWindage),h=Height,$fn=Sides);
}
//----------------------
// Dimensions
CursorHubOD = 1.0*inch; // must match SVG hub OD
CursorThick = 0.71; // including protective layers
HairlineMin = 48.4188; // extent of hairline
HairlineMax = 97.4250;
HairlineDepth = 0.20;
PocketDepth = 0.75*CursorThick; // half above surface for taping
PocketClear = 0.25; // E-Z insertion clearance
TableOC = [1.16*inch,1.16*inch]; // Sherline tooling plate grid
BlockOC = [(9/16)*inch,(9/16)*inch]; // 123 block hole grid
BlockOffset = [(3/8)*inch,(3/8)*inch]; // .. block edge to hole center
ScrewClear = 5.0; // … screw clearance
CursorOffset = [2*BlockOC.x,0,0]; // hub center relative to leftmost screw
FixtureGrid = [5*TableOC.x,0,0]; // size in Table grid units
Screws = [ // relative to leftmost screw
[0,0,0], // on table grid
CursorOffset, // on block grid
[FixtureGrid.x,0,0] // on table grid
];
echo(str("Screw centers: ",Screws));
CornerRad = 10.0; // corner radius
Fixture = [2*CornerRad + FixtureGrid.x,2*CornerRad + CursorHubOD,5.0];
echo(str("Fixture plate: ",Fixture));
//----------------------
// Import SVG of cursor outline
// Requires our CursorHubOD to match actual cut outline
// Hub center at origin
module CursorSVG(t=CursorThick,ofs=0.0) {
hr = CursorHubOD/2;
translate([-hr,-hr,0])
linear_extrude(height=t,convexity=3)
offset(r=ofs)
import(
file="/mnt/bulkdata/Project Files/Tektronix Circuit Computer/Firmware/TekCC-Cursor-Mark.svg",
center=false);
}
//----------------------
// Show-n-Tell cursor
module Cursor() {
difference() {
CursorSVG(CursorThick,0.0);
translate([0,0,-Protrusion])
rotate(180/6)
PolyCyl(ScrewClear,CursorThick + 2*Protrusion,6);
}
}
//----------------------
// Sawing fixture for cursor hairline
// Plate center at origin
module Fixture() {
difference() {
hull() // basic plate shape
for (i=[-1,1], j=[-1,1])
translate([i*(Fixture.x/2 - CornerRad),j*(Fixture.y/2 - CornerRad),0])
cylinder(r=CornerRad,h=Fixture.z,$fn=24);
translate([0,0,Fixture.z - ThreadThick/2 + Protrusion/2]) // will be Z=0 index
cube([2*Fixture.x,ThreadWidth,ThreadThick + Protrusion],center=true);
translate(-FixtureGrid/2) {
translate(CursorOffset + [0,0,Fixture.z - 2*PocketDepth])
difference() {
CursorSVG(2*PocketDepth + Protrusion,PocketClear);
CursorSVG(PocketDepth + Protrusion,-PocketClear);
}
translate([CursorOffset.x,0,Fixture.z - ThreadThick/2 + Protrusion/2]) // will be front X=0 index
cube([ThreadWidth,2*Fixture.y,ThreadThick + Protrusion],center=true);
translate([CursorOffset.x,Fixture.y/2 - ThreadThick/2 + Protrusion/2,0]) // will be top X=0 index
cube([ThreadWidth,ThreadThick + Protrusion,2*Fixture.z],center=true);
translate([CursorOffset.x + HairlineMin,0,Fixture.z - ThreadThick/2 + Protrusion/2]) // hairline min
cube([ThreadWidth,2*Fixture.y,ThreadThick + Protrusion],center=true);
translate([CursorOffset.x + HairlineMax,0,Fixture.z - ThreadThick/2 + Protrusion/2]) // hairline min
cube([ThreadWidth,2*Fixture.y,ThreadThick + Protrusion],center=true);
/*
# translate(CursorOffset + [0,0,Fixture.z - 2*ThreadThick]) { // alignment pips
for (x=[-20.0,130.0], y=[-30.0,0.0,30.0])
translate([x,y,0])
cylinder(d=4*ThreadWidth,h=1,$fn=6);
# for (x=[-30.0,130.0,150.0])
translate([x,0,0])
cylinder(d=4*ThreadWidth,h=1,$fn=6);
*/
for (pt=Screws)
translate(pt + [0,0,-Protrusion])
rotate(180/6)
PolyCyl(ScrewClear,Fixture.z + 2*Protrusion,6);
}
}
}
//----------------------
// Build it
if (Layout == "Cursor") {
Cursor();
}
if (Layout == "Show") {
rotate([0*90,0,0]) {
Fixture();
color("Green",0.3)
translate(-FixtureGrid/2 + CursorOffset + [0,0,Fixture.z + Gap])
Cursor();
}
}
if (Layout == "Build"){
// rotate(90)
Fixture();
}
