Making parts with mathematics

Debossed Printed Legends

[Update: It seems I interchanged “em” and “de” throughout this post. ]

Up to this point, I’ve been labeling printed parts with emdebossed legends that look OK on the solid model:

Astable Multivibrator Battery Holder

Alas, the recessed letters become lost in their perimeter threads:

3D Printed Legend – Embossed

Raising the legend above the surface (“deembossing”) works reasonably well, but raised letters would interfere with sliding the battery into the holder and tend to get lost amid the surface infill pattern.

The blindingly obvious solution, after far too long, raises the letters above a frame embossed into the surface:

Astable Multivibrator Battery Holder – Legend Debossed

Which looks OK in the real world, too:

3D Printed Legend – Debossed

The frame is one thread deep and the legend is one thread tall, putting the letters flush with the surrounding surface and allowing the battery to slide smoothly.

The legend on the bottom surface shows even more improvement:

NP-BX1 battery holder – Raised vs Recessed Legend

An OpenSCAD program can’t get the size of a rendered text string, so the fixed-size frame must surround the largest possible text, which isn’t much of a problem for my simple needs.

2019-01-14

Astable Multivibrator: NP-BX1 Base

Adapting the NP-BX1 battery holder to use SMT pogo pins worked well:

NP-BX1 Holder - SMT pogo pins — NP-BX1 Holder – SMT pogo pins

The next step is to add sockets for those 14 AWG wires:

NP-BX1 Battery Holder - Wire Posts - solid model — NP-BX1 Battery Holder – Wire Posts – solid model

Start by reaming / hand-drilling all the holes to their nominal size and cleaning out the pogo pin pocket.

Solder wires to the pogo pins and thread them through the holder and lid:

Astable - NP-BX1 holder - pogo pin soldering — Astable – NP-BX1 holder – pogo pin soldering

That’s nice, floppy silicone-insulated 24 AWG wire, which may be a bit too thick for this purpose.

The pogo pins will, ideally, seat with the end of the body flush at the holder wall. Make it so:

Astable - NP-BX1 holder - pogo pin protrusion — Astable – NP-BX1 holder – pogo pin protrusion

Dress the wires neatly into their pocket:

Astable - NP-BX1 holder - pogo pin wiring — Astable – NP-BX1 holder – pogo pin wiring

Butter the bottom of the lid with epoxy, clamp in place, set it up for curing, then fill the recess:

Astable - NP-BX1 base - curing — Astable – NP-BX1 base – curing

While it’s curing, make a soldering fixture for the 14 AWG wires:

Astable - drilling strut soldering fixture — Astable – drilling strut soldering fixture

The holes are on 5 mm centers, in the expectation other battery holders will need different spacing.

Solder it up and stick the wires into the base:

Astable - NP-BX1 base - detail — Astable – NP-BX1 base – detail

Jam a battery in and It Just Works™:

Astable - NP-BX1 3.8V - 20ma-div - cap V — Astable – NP-BX1 3.8V – 20ma-div – cap V

The traces:

Green = supply current at 20 mA/div
Yellow = LED driver transistor base voltage
Purple = other transistor collector voltage
White = base – collector voltage = capacitor voltage

The measurement setup was a bit of a hairball:

Astable - NP-BX1 base - current probe — Astable – NP-BX1 base – current probe

For completeness, here’s the schematic-and-layout diagram behind the circuitry:

Astable - NP-BX1 base - schematic — Astable – NP-BX1 base – schematic

I love it when a plan comes together!

The OpenSCAD source code as a GitHub Gist:

	// Holder for Sony NP-BX1 Li-Ion battery
	// Ed Nisley KE4ZNU January 2013
	// 2018-11-15 Adapted for wire leads from 1.5 mm test pins, added upright wire bases

	// Layout options

	Layout = "Fit"; // Show Build Fit Case Lid Pins

	//- Extrusion parameters – must match reality!
	// Print with +2 shells and 3 solid layers

	ThreadThick = 0.25;
	ThreadWidth = 0.35;

	HoleWindage = 0.2;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	Protrusion = 0.1; // make holes end cleanly

	inch = 25.4;

	BuildOffset = 3.0; // clearance for build layout

	Gap = 2.0; // separation for Fit parts

	//- Basic dimensions

	WallThick = 4*ThreadWidth; // holder sidewalls

	BaseThick = 6*ThreadThick; // bottom of holder to bottom of battery
	TopThick = 6*ThreadThick; // top of battery to top of holder


	//- Battery dimensions – rationalized from several samples
	// Coordinate origin at battery contact face with key openings below contacts

	Battery = [43.0,30.0,9.5]; // X = length, Y = width, Z = thickness

	Contacts = [[-0.75,6.0,6.2],[-0.75,16.0,6.2]]; // relative to battery edge, front, and bottom
	ContactOC = Contacts[1].y – Contacts[0].y;
	ContactCenter = Contacts[0].y + ContactOC/2;

	KeyBlocks = [[1.75,3.70,2.90],[1.75,3.60,2.90]]; // recesses in battery face set X position

	//- Pin dimensions

	ID = 0;
	OD = 1;
	LENGTH = 2;

	PinShank = [1.5,2.0,6.5]; // shank, flange, compressed length
	PinFlange = [1.5,2.0,0.5]; // flange, length included in PinShank
	PinTip = [0.9,0.9,2.5]; // extended spring-loaded tip

	PinChannel = PinFlange[LENGTH] + 0.5; // cut behind flange for solder overflow
	PinRecess = 3.0; // recess behind pin flange end for epoxy fill

	echo(str("Contact tip dia: ",PinTip[OD]));
	echo(str(" .. shank dia: ",PinShank[ID]));

	OverTravel = 0.5; // space beyond battery face at X origin

	//- Holder dimensions

	GuideRadius = ThreadWidth; // friction fit ridges
	GuideOffset = 7; // from compartment corners

	ThumbRadius = 10.0; // thumb opening at end of battery

	CornerRadius = 3*ThreadThick; // nice corner rounding

	CaseSize = [Battery.x + PinShank[LENGTH] + OverTravel + PinRecess + GuideRadius + WallThick,
	Battery.y + 2WallThick + 2GuideRadius,
	Battery.z + BaseThick + TopThick];

	CaseOffset = [-(PinShank[LENGTH] + OverTravel + PinRecess),-(WallThick + GuideRadius),0]; // position around battery

	LidOverhang = 2.0; // over top of battery for retention

	LidSize = [-CaseOffset.x + LidOverhang,CaseSize.y,TopThick];

	LidOffset = [0.0,CaseOffset.y,0];

	//- Wire struts

	StrutDia = 1.6; // AWG 14 = 1.6 mm
	StrutOC = 45;
	StrutSides = 3*4;

	StrutBase = [StrutDia,StrutDia + 4*WallThick,CaseSize.z – TopThick]; // ID = wire, OD=buildable

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);

	FixDia = Dia / cos(180/Sides);

	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}

	//——————-
	//– Guides for tighter friction fit

	module Guides() {
	translate([GuideOffset,-GuideRadius,0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([GuideOffset,(Battery.y + GuideRadius),0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([(Battery.x – GuideOffset),-GuideRadius,0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([(Battery.x – GuideOffset),(Battery.y + GuideRadius),0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([(Battery.x + GuideRadius),GuideOffset/2,0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([(Battery.x + GuideRadius),(Battery.y – GuideOffset/2),0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);

	}

	//– Contact pins
	// Rotated to put them in their natural oriention
	// Aligned to put tip base / end of shank at Overtravel limit

	module PinShape() {

	translate([-(PinShank[LENGTH] + OverTravel),0,0])
	rotate([0,90,0])
	rotate(180/6)
	union() {
	PolyCyl(PinTip[OD],PinShank[LENGTH] + PinTip[LENGTH],6);
	PolyCyl(PinShank[ID],PinShank[LENGTH] + Protrusion,6); // slight extension for clean cuts
	PolyCyl(PinFlange[OD],PinFlange[LENGTH],6);
	}
	}

	// Position pins to put end of shank at battery face
	// Does not include recess access into case

	module PinAssembly() {

	union() {
	for (p = Contacts)
	translate([0,p.y,p.z])
	PinShape();

	translate([-(PinShank[LENGTH] + OverTravel) + PinChannel/2, // solder space
	ContactCenter,
	Contacts[0].z])
	cube([PinChannel,(Contacts[1].y – Contacts[0].y),PinFlange[OD]],center=true);

	for (j=[-1,1]) // wire channels
	translate([-(PinShank[LENGTH] + OverTravel – PinChannel/2),
	j*ContactOC/4 + ContactCenter,
	Contacts[0].z – PinFlange[OD]/2])
	rotate(180/6)
	PolyCyl(PinFlange[OD],CaseSize.z,6);
	}
	}

	//– Case with origin at battery corner

	module Case() {

	difference() {

	union() {

	difference() {
	union() {
	translate([(CaseSize.x/2 + CaseOffset.x), // basic case shape
	(CaseSize.y/2 + CaseOffset.y),
	(CaseSize.z/2 – BaseThick)])
	hull()
	for (i=[-1,1], j=[-1,1], k=[-1,1])
	translate([i*(CaseSize.x/2 – CornerRadius),
	j*(CaseSize.y/2 – CornerRadius),
	k*(CaseSize.z/2 – CornerRadius)])
	sphere(r=CornerRadius/cos(180/8),$fn=8); // cos() fixes undersize spheres!

	hull() // wire strut bases
	for (j=[-1,1])
	translate([0,j*StrutOC/2 + Battery.y/2,-BaseThick])
	rotate(180/StrutSides)
	cylinder(d=StrutBase[OD],h=StrutBase[LENGTH],$fn=StrutSides);

	translate([0,Battery.y/2,StrutBase[LENGTH]/2 – BaseThick])
	cube([2*StrutBase[OD],StrutOC,StrutBase[LENGTH]],center=true);
	}

	translate([-OverTravel,-GuideRadius,0])
	cube([(Battery.x + GuideRadius + OverTravel),
	(Battery.y + 2*GuideRadius),
	(Battery.z + Protrusion)]); // battery space
	}

	Guides(); // improve friction fit

	translate([-OverTravel,-GuideRadius,0]) // battery keying blocks
	cube(KeyBlocks[0] + [OverTravel,GuideRadius,0],center=false);
	translate([-OverTravel,(Battery.y – KeyBlocks[1].y),0])
	cube(KeyBlocks[1] + [OverTravel,GuideRadius,0],center=false);

	}

	translate([2*CaseOffset.x, // battery top access
	(CaseOffset.y – Protrusion),
	Battery.z])
	cube([2CaseSize.x,(CaseSize.y + 2Protrusion),(TopThick + Protrusion)]);

	if (false)
	translate([(CaseOffset.x – Protrusion), // battery insertion allowance
	(CaseOffset.y – Protrusion),
	Battery.z])
	cube([(CaseSize.x + 2Protrusion),(CaseSize.y + 2Protrusion),(TopThick + Protrusion)]);

	for (j=[-1,1]) // strut wires
	translate([0,j*StrutOC/2 + Battery.y/2,-(BaseThick + Protrusion)])
	PolyCyl(StrutBase[ID],StrutBase[LENGTH] + 2*Protrusion,6);

	for (i=[-1,1], j=[-1,1])
	translate([iStrutBase[OD],jStrutOC/2 + Battery.y/2,-(BaseThick + Protrusion)])
	rotate(180/StrutSides)
	PolyCyl(StrutBase[OD],StrutBase[LENGTH] + 2*Protrusion,StrutSides);

	translate([(Battery.x – Protrusion), // remove thumb notch
	(CaseSize.y/2 + CaseOffset.y),
	(ThumbRadius)])
	rotate([90,0,0])
	rotate([0,90,0])
	cylinder(r=ThumbRadius,
	h=(WallThick + GuideRadius + 2*Protrusion),
	$fn=22);

	PinAssembly();

	translate([CaseOffset.x + PinRecess + Protrusion,(Contacts[1].y + Contacts[0].y)/2,Contacts[0].z])
	translate([-PinRecess,0,0])
	cube([2*PinRecess,
	(Contacts[1].y – Contacts[0].y + PinFlange[OD]),
	2*PinFlange[OD]],center=true);

	}

	}

	// Lid position offset to match case

	module Lid() {

	difference() {
	translate([-LidSize.x/2 + LidOffset.x + LidOverhang,LidSize.y/2 + LidOffset.y,0])
	difference() {
	hull()
	for (i=[-1,1], j=[-1,1], k=[-1,1])
	translate([i*(LidSize.x/2 – CornerRadius),
	j*(LidSize.y/2 – CornerRadius),
	k*(LidSize.z – CornerRadius)]) // double thickness for flat bottom
	sphere(r=CornerRadius,$fn=8);

	translate([0,0,-LidSize.z/2]) // remove bottom
	cube([(LidSize.x + 2Protrusion),(LidSize.y + 2Protrusion),LidSize.z],center=true);

	translate([LidSize.x/8,0,0])
	cube([LidSize.x/4,0.75LidSize.y,4ThreadThick],center=true); // epoxy recess
	}

	translate([0,0,-(Contacts[0].z + PinFlange[OD])]) // punch wire holes
	PinAssembly();
	}

	}


	//——————-
	// Build it!

	if (Layout == "Case")
	Case();

	if (Layout == "Lid")
	Lid();

	if (Layout == "Pins") {
	color("Silver",0.5)
	PinShape();
	PinAssembly();
	}

	if (Layout == "Show") { // reveal pin assembly
	difference() {
	Case();

	translate([(CaseOffset.x – Protrusion),
	Contacts[1].y,
	Contacts[1].z])
	cube([(-CaseOffset.x + Protrusion),
	CaseSize.y,
	(CaseSize.z – Contacts[0].z + Protrusion)]);

	translate([(CaseOffset.x – Protrusion),
	(CaseOffset.y – Protrusion),
	0])
	cube([(-CaseOffset.x + Protrusion),
	Contacts[0].y + Protrusion – CaseOffset.y,
	CaseSize.z]);
	}

	translate([0,0,Battery.z + Gap])
	Lid();

	color("Silver",0.15)
	PinAssembly();

	}

	if (Layout == "Build") {
	translate([-(CaseSize.x/2 + CaseOffset.x),-(CaseOffset.y – BuildOffset),BaseThick])
	Case();
	translate([CaseSize.x/2,-LidSize.x/2,0])
	rotate(90)
	Lid();
	}

	if (Layout == "Fit") {
	Case();
	translate([0,0,(Battery.z + Gap)])
	Lid();
	color("Silver",0.25)
	PinAssembly();
	}

view raw NP-BX1 Battery Holder – Wire Posts.scad hosted with ❤ by GitHub

2018-12-12

Vacuum Tube LEDs: 21HB5A on a Guilloche Platter

With the Joggy Thing running in LinuxCNC 2.7, touching XY off on the fixture was trivially easy:

LinuxCNC – Sherline Mill – Logitech Gamepad

The pips are 100 mm apart at (-50,-50) and (+50,50). Astonishingly, the laser aligner batteries are in fine shape.

I should have protected the platter before drilling all those holes:

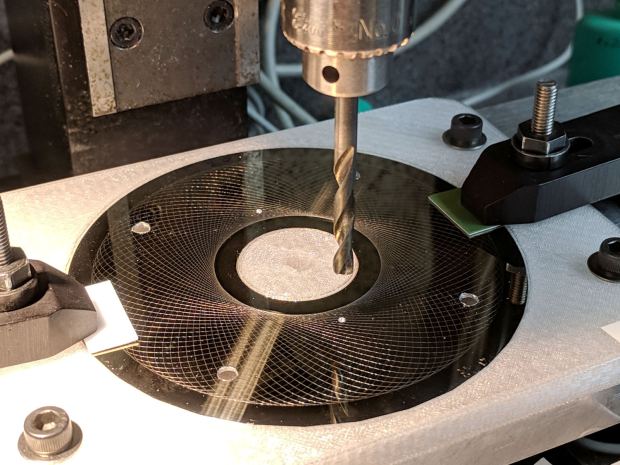

Guilloche platter – drilling

All’s well that ends well:

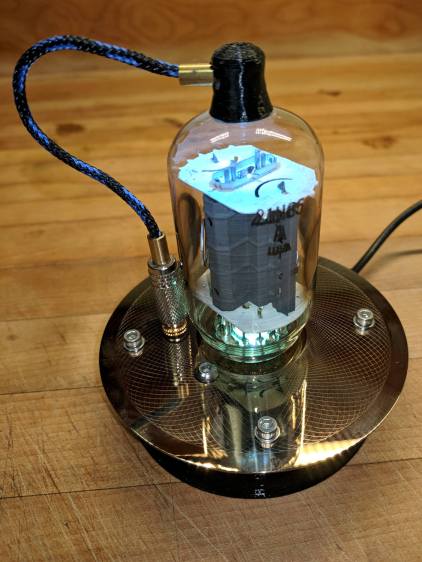

21HB5A – Guilloche platter

It looks even better in the dark, although you’d never know it from this picture:

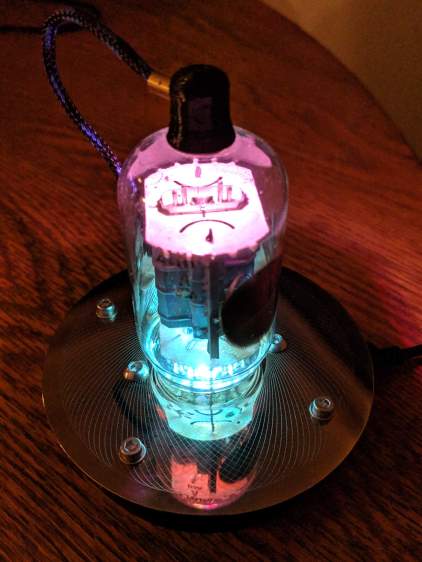

21HB5A – Guilloche platter – dark

I wish I could engrave those patterns on already-drilled platters, but dragging a diamond point into a hole can’t possibly end well. I could deploy the Tiny Sandblaster with a vinyl mask, if I had enough artistic eptitude to lay out a good-looking mask.

2018-11-23

LinuxCNC 2.7 vs. Logitech Joggy Thing

The old Atom running LinuxCNC for the Sherline finally stopped booting, so I popped the Optiplex 760 off the stack and did a live-USB trial run. The latency / jitter worked out around 25 µs, slightly worse than before, but still Good Enough, and the StepConf utility coerced the motors into working OK.

What didn’t work was the old Eagle-to-HAL code defining the Logitch Gamepad as a Joggy Thing to allow smooth joystick jog control. Well, stuff changes over the course of eight years, but, in this case, the fix turned out to be a one-liner: the probe_parport module isn’t needed nowadays.

With that out of the way, it runs fine:

LinuxCNC - Sherline Mill - Logitech Gamepad — LinuxCNC – Sherline Mill – Logitech Gamepad

The INI and HAL files defining the Sherline configuration as a GitHub Gist:

	# HAL config file automatically generated by Eagle-CAD ULP:
	# [/mnt/bulkdata/Project Files/eagle/ulp/hal-write-2.5.ulp]
	# (C) Martin Schoeneck.de 2008
	# Charalampos Alexopoulos 2011
	# Mods Ed Nisley KE4ZNU 2010 2013
	# Path [/mnt/bulkdata/Project Files/eagle/projects/LinuxCNC for M2/]
	# ProjectName [LinuxCNC Sherline Configuration]
	# File name [/mnt/bulkdata/Project Files/eagle/projects/LinuxCNC for M2/LinuxCNC Sherline Configuration.hal]
	# Created [11:17:21 17-Feb-2013]



	####################################################
	# Load realtime and userspace modules
	loadrt trivkins
	loadrt [EMCMOT]EMCMOT key=[EMCMOT]SHMEM_KEY num_joints=[TRAJ]AXES base_period_nsec=[EMCMOT]BASE_PERIOD servo_period_nsec=[EMCMOT]SERVO_PERIOD traj_period_nsec=[EMCMOT]SERVO_PERIOD
	# not needed in 2.7
	# loadrt probe_parport
	loadrt hal_parport cfg="[PARPORT]ADDRESS out"
	loadrt stepgen step_type=0,0,0,0
	loadrt pwmgen output_type=0
	loadusr -W hal_manualtoolchange
	loadusr -W hal_input -KA Dual
	loadrt logic count=1 personality=0x104
	loadrt constant count=13
	loadrt and2 count=17
	loadrt conv_float_s32 count=1
	loadrt flipflop count=4
	loadrt mux2 count=5
	loadrt mux4 count=1
	loadrt not count=8
	loadrt or2 count=14
	loadrt scale count=7
	loadrt timedelay count=1
	loadrt toggle count=1


	####################################################
	# Hook functions into threads
	addf stepgen.make-pulses base-thread
	addf pwmgen.make-pulses base-thread
	addf parport.0.read base-thread
	addf parport.0.write base-thread
	addf parport.0.reset base-thread
	addf logic.0 base-thread
	addf motion-command-handler servo-thread
	addf motion-controller servo-thread
	addf stepgen.update-freq servo-thread
	addf stepgen.capture-position servo-thread
	addf pwmgen.update servo-thread
	addf constant.0 servo-thread
	addf constant.1 servo-thread
	addf constant.2 servo-thread
	addf constant.3 servo-thread
	addf constant.4 servo-thread
	addf constant.5 servo-thread
	addf constant.6 servo-thread
	addf constant.7 servo-thread
	addf constant.8 servo-thread
	addf constant.9 servo-thread
	addf constant.10 servo-thread
	addf constant.11 servo-thread
	addf constant.12 servo-thread
	addf and2.0 servo-thread
	addf and2.1 servo-thread
	addf and2.2 servo-thread
	addf and2.3 servo-thread
	addf and2.4 servo-thread
	addf and2.5 servo-thread
	addf and2.6 servo-thread
	addf and2.7 servo-thread
	addf and2.8 servo-thread
	addf and2.9 servo-thread
	addf and2.10 servo-thread
	addf and2.11 servo-thread
	addf and2.12 servo-thread
	addf and2.13 servo-thread
	addf and2.14 servo-thread
	addf and2.15 servo-thread
	addf and2.16 servo-thread
	addf conv-float-s32.0 servo-thread
	addf toggle.0 servo-thread
	addf flipflop.0 servo-thread
	addf flipflop.1 servo-thread
	addf flipflop.2 servo-thread
	addf flipflop.3 servo-thread
	addf timedelay.0 servo-thread
	addf or2.0 servo-thread
	addf or2.1 servo-thread
	addf or2.2 servo-thread
	addf or2.3 servo-thread
	addf or2.4 servo-thread
	addf or2.5 servo-thread
	addf or2.6 servo-thread
	addf or2.7 servo-thread
	addf or2.8 servo-thread
	addf or2.9 servo-thread
	addf or2.10 servo-thread
	addf or2.11 servo-thread
	addf or2.12 servo-thread
	addf or2.13 servo-thread
	addf not.0 servo-thread
	addf not.1 servo-thread
	addf not.2 servo-thread
	addf not.3 servo-thread
	addf not.4 servo-thread
	addf not.5 servo-thread
	addf not.6 servo-thread
	addf not.7 servo-thread
	addf scale.0 servo-thread
	addf scale.1 servo-thread
	addf scale.2 servo-thread
	addf scale.3 servo-thread
	addf scale.4 servo-thread
	addf scale.5 servo-thread
	addf scale.6 servo-thread
	addf mux2.0 servo-thread
	addf mux4.0 servo-thread
	addf mux2.1 servo-thread
	addf mux2.2 servo-thread
	addf mux2.3 servo-thread
	addf mux2.4 servo-thread


	####################################################
	# Set parameters
	setp parport.0.reset-time [PARPORT]RESET_TIME
	setp stepgen.0.maxaccel [AXIS_0]STEPGEN_MAXACCEL
	setp stepgen.0.maxvel [AXIS_0]MAX_VELOCITY
	setp stepgen.0.dirhold [PARPORT]DIRHOLD
	setp stepgen.0.dirsetup [PARPORT]DIRSETUP
	setp stepgen.0.steplen [PARPORT]STEPLEN
	setp stepgen.0.stepspace [PARPORT]STEPSPACE
	setp stepgen.0.position-scale [AXIS_0]SCALE
	setp parport.0.pin-03-out-reset FALSE
	setp parport.0.pin-05-out-reset FALSE
	setp parport.0.pin-07-out-reset FALSE
	setp parport.0.pin-09-out-reset FALSE
	setp parport.0.pin-17-out-reset FALSE
	setp stepgen.1.maxaccel [AXIS_1]STEPGEN_MAXACCEL
	setp stepgen.1.maxvel [AXIS_1]MAX_VELOCITY
	setp stepgen.1.dirhold [PARPORT]DIRHOLD
	setp stepgen.1.dirsetup [PARPORT]DIRSETUP
	setp stepgen.1.steplen [PARPORT]STEPLEN
	setp stepgen.1.stepspace [PARPORT]STEPSPACE
	setp stepgen.1.position-scale [AXIS_1]SCALE
	setp stepgen.2.maxaccel [AXIS_2]STEPGEN_MAXACCEL
	setp stepgen.2.maxvel [AXIS_2]MAX_VELOCITY
	setp stepgen.2.dirhold [PARPORT]DIRHOLD
	setp stepgen.2.dirsetup [PARPORT]DIRSETUP
	setp stepgen.2.steplen [PARPORT]STEPLEN
	setp stepgen.2.stepspace [PARPORT]STEPSPACE
	setp stepgen.2.position-scale [AXIS_2]SCALE
	setp stepgen.3.maxaccel [AXIS_3]STEPGEN_MAXACCEL
	setp stepgen.3.maxvel [AXIS_3]MAX_VELOCITY
	setp stepgen.3.dirhold [PARPORT]DIRHOLD
	setp stepgen.3.dirsetup [PARPORT]DIRSETUP
	setp stepgen.3.steplen [PARPORT]STEPLEN
	setp stepgen.3.stepspace [PARPORT]STEPSPACE
	setp stepgen.3.position-scale [AXIS_3]SCALE
	setp parport.0.pin-04-out-invert TRUE
	setp parport.0.pin-06-out-invert TRUE


	####################################################
	# Set constants
	setp constant.0.value 0.1
	setp constant.1.value 20
	setp constant.2.value [TRAJ]MAX_LINEAR_VELOCITY
	setp constant.3.value [TRAJ]MAX_ANGULAR_VELOCITY
	setp constant.4.value 60
	setp constant.5.value 0.50
	setp constant.6.value 1.00
	setp constant.7.value 0.10
	setp constant.8.value 0.10
	setp constant.9.value 0.0
	setp constant.10.value -1.0
	setp constant.11.value 0.020
	setp constant.12.value 0.000


	####################################################
	# Connect Modules with nets
	net a-amp-enable logic.0.in-03 axis.3.amp-enable-out stepgen.3.enable
	net a-analog halui.jog.3.analog mux2.4.out
	net a-button-minus or2.0.in0 input.0.btn-joystick and2.7.in0
	net a-button-plus or2.0.in1 input.0.btn-thumb2 and2.8.in0
	net a-buttons-active or2.0.out or2.1.in0 or2.11.in1
	net a-direction parport.0.pin-08-out stepgen.3.dir
	net a-disable not.7.out and2.13.in1
	net a-enable or2.11.in0 flipflop.3.out not.7.in mux2.4.sel
	net a-jog input.0.abs-z-position mux2.4.in1
	net a-knob-active or2.9.out not.2.in and2.15.in1
	net a-knob-inactive not.2.out and2.14.in1
	net a-select and2.16.in0 and2.15.out
	net a-set flipflop.3.set and2.16.out
	net a-step parport.0.pin-09-out stepgen.3.step
	net all-amps-enabled logic.0.and parport.0.pin-17-out
	net angular_motion or2.11.out mux2.0.sel
	net any-buttons-active mux4.0.sel0 or2.12.out
	net axis-disabled-value constant.9.out mux2.1.in0 mux2.2.in0 mux2.3.in0 mux2.4.in0
	net az-buttons-active or2.1.out or2.12.in1 or2.13.in0
	net az-reset flipflop.2.reset and2.14.out flipflop.3.reset
	net button-crawl scale.4.out mux4.0.in3
	net button-fast scale.2.out mux4.0.in1 scale.4.in
	net estop-a and2.0.in0 input.0.btn-top2
	net estop-b and2.0.in1 input.0.btn-base
	net estop-out parport.0.pin-01-out iocontrol.0.emc-enable-in iocontrol.0.user-enable-out
	net homeswitches parport.0.pin-10-in-not axis.0.home-sw-in axis.1.home-sw-in axis.2.home-sw-in axis.3.home-sw-in
	net jog-crawl toggle.0.out mux4.0.sel1
	net jog-speed halui.jog-speed mux4.0.out
	net knob-crawl mux4.0.in2 scale.3.out
	net knob-fast mux4.0.in0 scale.1.out scale.3.in
	net manual-mode halui.mode.manual input.0.btn-base3
	net n_9 axis.0.motor-pos-cmd stepgen.0.position-cmd
	net n_11 axis.0.motor-pos-fb stepgen.0.position-fb
	net n_13 and2.0.out halui.estop.activate
	net n_14 or2.3.in0 input.0.btn-base5
	net n_15 or2.3.in1 input.0.btn-base6
	net n_16 toggle.0.in or2.3.out
	net n_17 conv-float-s32.0.out input.0.abs-x-flat input.0.abs-y-flat input.0.abs-z-flat input.0.abs-rz-flat
	net n_18 constant.1.out conv-float-s32.0.in
	net n_19 constant.4.out scale.0.gain
	net n_20 constant.5.out scale.1.gain
	net n_21 constant.6.out scale.2.gain
	net n_22 constant.7.out scale.3.gain
	net n_23 scale.4.gain constant.8.out
	net n_24 constant.0.out halui.jog-deadband
	net n_25 constant.2.out mux2.0.in0
	net n_26 mux2.0.in1 constant.3.out
	net n_34 axis.1.motor-pos-cmd stepgen.1.position-cmd
	net n_36 axis.1.motor-pos-fb stepgen.1.position-fb
	net n_42 or2.7.in0 input.0.abs-x-is-pos
	net n_43 or2.7.in1 input.0.abs-x-is-neg
	net n_44 or2.8.in0 input.0.abs-y-is-pos
	net n_45 or2.8.in1 input.0.abs-y-is-neg
	net n_46 or2.9.in0 input.0.abs-z-is-pos
	net n_47 or2.9.in1 input.0.abs-z-is-neg
	net n_48 or2.10.in0 input.0.abs-rz-is-pos
	net n_49 or2.10.in1 input.0.abs-rz-is-neg
	net n_51 constant.10.out scale.5.gain scale.6.gain
	net n_54 constant.11.out timedelay.0.on-delay
	net n_55 constant.12.out timedelay.0.off-delay
	net n_56 timedelay.0.out and2.1.in1 and2.2.in1 and2.4.in1 and2.3.in1 and2.5.in1 and2.6.in1 and2.8.in1 and2.7.in1
	net n_57 and2.1.out halui.jog.0.minus
	net n_58 and2.2.out halui.jog.0.plus
	net n_59 and2.3.out halui.jog.1.minus
	net n_60 halui.jog.1.plus and2.4.out
	net n_61 and2.5.out halui.jog.2.minus
	net n_62 and2.6.out halui.jog.2.plus
	net n_63 and2.7.out halui.jog.3.minus
	net n_64 and2.8.out halui.jog.3.plus
	net n_67 axis.2.motor-pos-cmd stepgen.2.position-cmd
	net n_69 axis.2.motor-pos-fb stepgen.2.position-fb
	net n_77 axis.3.motor-pos-cmd stepgen.3.position-cmd
	net n_79 axis.3.motor-pos-fb stepgen.3.position-fb
	net probe-in parport.0.pin-15-in-not motion.probe-input
	net program-resume halui.program.resume input.0.btn-base4
	net reset-estop input.0.btn-base2 halui.estop.reset
	net tool-change iocontrol.0.tool-change hal_manualtoolchange.change
	net tool-changed hal_manualtoolchange.changed iocontrol.0.tool-changed
	net tool-number iocontrol.0.tool-prep-number hal_manualtoolchange.number
	net tool-prepare-loopback iocontrol.0.tool-prepare iocontrol.0.tool-prepared
	net vel-per-minute scale.0.out scale.1.in scale.2.in
	net vel-per-second mux2.0.out scale.0.in
	net x-amp-enable logic.0.in-00 axis.0.amp-enable-out stepgen.0.enable
	net x-analog mux2.1.out halui.jog.0.analog
	net x-buttons-active or2.5.in0 or2.4.out
	net x-direction parport.0.pin-02-out stepgen.0.dir
	net x-disable not.4.out and2.12.in1
	net x-enable not.4.in flipflop.0.out mux2.1.sel
	net x-hat-minus or2.4.in1 input.0.abs-hat0x-is-neg and2.1.in0
	net x-hat-plus or2.4.in0 input.0.abs-hat0x-is-pos and2.2.in0
	net x-jog input.0.abs-x-position mux2.1.in1
	net x-knob-active or2.7.out not.0.in and2.9.in0
	net x-knob-inactive not.0.out and2.10.in0 and2.11.in0
	net x-set and2.9.out flipflop.0.set
	net x-step parport.0.pin-03-out stepgen.0.step
	net xy-buttons-active or2.5.out or2.12.in0 or2.13.in1
	net xy-reset flipflop.0.reset and2.10.out flipflop.1.reset
	net xyza-buttons-active or2.13.out timedelay.0.in
	net y-amp-enable logic.0.in-01 axis.1.amp-enable-out stepgen.1.enable
	net y-analog halui.jog.1.analog mux2.2.out
	net y-buttons-active or2.6.out or2.5.in1
	net y-direction parport.0.pin-04-out stepgen.1.dir
	net y-disable not.5.out and2.9.in1
	net y-enable flipflop.1.out not.5.in mux2.2.sel
	net y-hat-minus or2.6.in1 input.0.abs-hat0y-is-neg and2.4.in0
	net y-hat-plus or2.6.in0 input.0.abs-hat0y-is-pos and2.3.in0
	net y-jog input.0.abs-y-position scale.5.in
	net y-jog-reversed mux2.2.in1 scale.5.out
	net y-knob-active not.1.in or2.8.out and2.11.in1
	net y-knob-inactive not.1.out and2.10.in1
	net y-select and2.12.in0 and2.11.out
	net y-set flipflop.1.set and2.12.out
	net y-step parport.0.pin-05-out stepgen.1.step
	net z-amp-enable logic.0.in-02 axis.2.amp-enable-out stepgen.2.enable
	net z-analog mux2.3.out halui.jog.2.analog
	net z-button-minus or2.2.in0 input.0.btn-thumb and2.5.in0
	net z-button-plus or2.2.in1 input.0.btn-top and2.6.in0
	net z-buttons-active or2.2.out or2.1.in1
	net z-direction parport.0.pin-06-out stepgen.2.dir
	net z-disable not.6.out and2.16.in1
	net z-enable not.6.in flipflop.2.out mux2.3.sel
	net z-jog input.0.abs-rz-position scale.6.in
	net z-jog-reversed scale.6.out mux2.3.in1
	net z-knob-active not.3.in or2.10.out and2.13.in0
	net z-knob-inactive not.3.out and2.15.in0 and2.14.in0
	net z-set and2.13.out flipflop.2.set
	net z-step parport.0.pin-07-out stepgen.2.step

view raw Sherline.hal hosted with ❤ by GitHub

	# Ed Nisley – KE4ZNU
	# Just do not run stepconf ever again…

	[EMC]
	MACHINE = Sherline-XYZA
	DEBUG = 0
	RS274NGC_STARTUP_CODE = G21 G40 G49 G54 G80 G90 G92.1 G94 G97 G98

	[DISPLAY]
	DISPLAY = axis
	EDITOR = gedit
	GEOMETRY = AXYZ
	POSITION_OFFSET = RELATIVE
	POSITION_FEEDBACK = ACTUAL
	MAX_FEED_OVERRIDE = 3.0
	INTRO_GRAPHIC = /home/ed/linuxcnc/configs/Sherline-XYZA/Sherline.gif
	INTRO_TIME = 3
	PROGRAM_PREFIX = /mnt/bulkdata/
	#PROGRAM_PREFIX = /home/ed/linuxcnc/nc_files/
	#INCREMENTS = .1in .05in .01in .005in .001in .0005in .0001in
	INCREMENTS = 10 mm, 1 mm, 0.1 mm, 90 deg, 45 deg, 10 deg

	[FILTER]
	PROGRAM_EXTENSION = .py Python Script
	py = python

	[TASK]
	TASK = milltask
	CYCLE_TIME = 0.010

	[RS274NGC]
	PARAMETER_FILE = emc.var

	[EMCMOT]
	EMCMOT = motmod
	SHMEM_KEY = 111
	COMM_TIMEOUT = 1.0
	COMM_WAIT = 0.010
	BASE_PERIOD = 50000
	SERVO_PERIOD = 1000000

	[PARPORT]
	ADDRESS = 0x378
	RESET_TIME = 10000
	STEPLEN = 25000
	STEPSPACE = 25000
	DIRSETUP = 50000
	DIRHOLD = 50000

	[HAL]
	HALUI = halui
	HALFILE = Sherline.hal
	HALFILE = custom.hal
	POSTGUI_HALFILE = custom_postgui.hal

	[TRAJ]
	AXES = 4
	COORDINATES = X Y Z A
	MAX_ANGULAR_VELOCITY = 45.00
	DEFAULT_ANGULAR_VELOCITY = 36.0
	LINEAR_UNITS = inch
	ANGULAR_UNITS = degree
	CYCLE_TIME = 0.010
	DEFAULT_VELOCITY = 0.400
	MAX_LINEAR_VELOCITY = 0.400
	POSITION_FILE = lastposition.txt
	NO_FORCE_HOMING = 1

	[EMCIO]
	EMCIO = io
	CYCLE_TIME = 0.100
	TOOL_TABLE = Sherline.tbl
	TOOL_CHANGE_AT_G30 = 1

	[AXIS_0]
	TYPE = LINEAR
	MAX_VELOCITY = 0.400
	MAX_ACCELERATION = 5.0
	STEPGEN_MAXACCEL = 10.0
	SCALE = 16000.0
	FERROR = 0.05
	MIN_FERROR = 0.01
	MIN_LIMIT = -1.0
	MAX_LIMIT = 9.5
	BACKLASH = 0.003
	HOME_IS_SHARED = 1
	HOME_SEQUENCE = 1
	HOME_SEARCH_VEL = 0.3
	HOME_LATCH_VEL = 0.03
	HOME_FINAL_VEL = 0.4
	HOME_OFFSET = 9.1
	HOME = 5.25

	[AXIS_1]
	TYPE = LINEAR
	MAX_VELOCITY = 0.400
	MAX_ACCELERATION = 5.0
	STEPGEN_MAXACCEL = 10.0
	SCALE = 16000.0
	FERROR = 0.05
	MIN_FERROR = 0.01
	MIN_LIMIT = 0.00
	MAX_LIMIT = 5.10
	BACKLASH = 0.003
	HOME_IS_SHARED = 1
	HOME_SEQUENCE = 2
	HOME_SEARCH_VEL = 0.3
	HOME_LATCH_VEL = 0.03
	HOME_FINAL_VEL = 0.4
	HOME_OFFSET = 5.1
	HOME = 4.5

	[AXIS_2]
	TYPE = LINEAR
	MAX_VELOCITY = 0.333
	MAX_ACCELERATION = 3.0
	STEPGEN_MAXACCEL = 6.0
	SCALE = 16000.0
	FERROR = 0.05
	MIN_FERROR = 0.01
	MIN_LIMIT = 0.0
	MAX_LIMIT = 6.680
	BACKLASH = 0.005
	HOME_IS_SHARED = 1
	HOME_SEQUENCE = 0
	HOME_SEARCH_VEL = 0.150
	HOME_LATCH_VEL = 0.015
	HOME_FINAL_VEL = 0.33
	HOME_OFFSET = 6.680
	HOME = 6.500

	[AXIS_3]
	TYPE = ANGULAR
	###WRAPPED_ROTARY = 1
	MAX_VELOCITY = 40.0
	MAX_ACCELERATION = 250.0
	STEPGEN_MAXACCEL = 275.0
	SCALE = 160.0
	FERROR = 1
	MIN_FERROR = .25
	MIN_LIMIT = -999999999.9
	MAX_LIMIT = 999999999.9
	HOME_SEARCH_VEL = 0
	HOME_LATCH_VEL = 0
	HOME = 0.0

view raw Sherline.ini hosted with ❤ by GitHub

2018-11-22

MPCNC: Jogging Keypad for bCNC

The bCNC G-Code sender sends jogging commands to GRBL from an ordinary numeric keypad:

MPCNC – Jogging keypad

Unlike the keypads on my streaming radio players, this one requires no configuration at all, because bCNC regards it as just another keyboard input. The catch: you must select any screen element other than a text entry field to have bCNC recognize the keystrokes as “not text”.

You would get the same results from the numeric keys on the right side of a full-size / 104-key plank. I’m using a small “tenkeyless” keyboard, which means I can put the keypad wherever it’s easiest to reach while tweaking the MPCNC.

The ÷10 and ×10 keys along the top row alter the step size by factors of ten, which is pretty much what you need: jog to within a big step of the target, drop to the next lower decade, jog a few more times, maybe drop another decade, jog once, and you’re as close as you need to be with an MPCNC. The -1 and +1 keys aren’t as useful, at least to me: changing from 5 mm to 4 mm or 6 mm doesn’t make much difference.

Jogging to align the spindle (well, a pen or drag knife) with a target using the video camera works really well:

bCNC – Video align

GRBL and bCNC don’t do smooth jogging and the discrete steps aren’t as nifty as the Joggy Thing with LinuxCNC, but it gets the job done.

2018-10-18
MPCNC: Ground Shaft Pen Holder

Drilling a pair of holes into a length of ground steel shaft turned it into a holder for a Sakura Micron pen:

DW660 Pen Holder – printed plastic vs ground steel

The aluminum ring epoxied to the top keeps it from falling completely through the linear bearing.

The hole sizes are the nearest inch drills matching the pen’s hard metric sizes:

Ground 12 mm rod – Sakura pen drill diameters

While I was at the lathe, I turned another layer of epoxy on the printed holder down to a consistent 11.95+ OD. It fits the bearing nearly as well as the steel shaft, although it’s not quite as smooth.

The steel version weighs about 20 g with the pen, so it applies about the same downforce on the pen nib as the HP 7475A plotter. The force varies from about 19 g as the Z axis moves upward to 23 g as it move downward, so the stiction amounts to less than 10% of the weight:

DW660 Pen Holder – ground shaft

However, the more I ponder this setup, the less I like it.

When the Z-axis moves downward and the nib hits the paper, it must decelerate the weight of the pen + holder + ballast within a fraction of a millimeter, without crushing the nib. If the pen moves downward at 3000 mm/min = 50 mm/s, stopping in 0.3 mm requires an acceleration of 4.2 m/s² and a 20 g = 2/3 oz mass will apply 0.08 N = 0.3 oz to the nib. Seems survivable, but smashing the tip a few hundred times while drawing the legends can’t possibly be good for it.

Also, the tool length probe switch trips at 60 (-ish) g, which means the pen can’t activate the switch. Adding a manual latch seems absurd, but you can get used to anything if you do it enough.

2018-04-18
MPCNC: USB Camera Alignment

Adding a lock screw to the camera mount stabilized the camera-to-spindle offset enough to make calibration meaningful. Mark the spot directly under the camera:

bCNC – Camera – hot glue align

Then mark the spot directly under the spindle, perhaps by poking a small cutter into the tape, measure the XY distances between the two center points, and use bCNC’s camera registration process to set the camera offset.

With those numbers in place, switching to the tool view (the green button with the end mill to the right in the ribbon bar) puts the camera at the spindle location:

bCNC – Spindle – hot glue align

The view from outside shows the relation between those two pieces of tape:

MPCNC – USB camera-to-spindle alignment

Now I can align the camera view to a fixture position and be (reasonably) sure the spindle will automagically align to the same XY coordinate when I switch to the “tool” view. Seems to work well in preliminary tests, anyhow.

2018-03-29
