MPCNC: Jogging Keypad for bCNC

The bCNC G-Code sender sends jogging commands to GRBL from an ordinary numeric keypad:

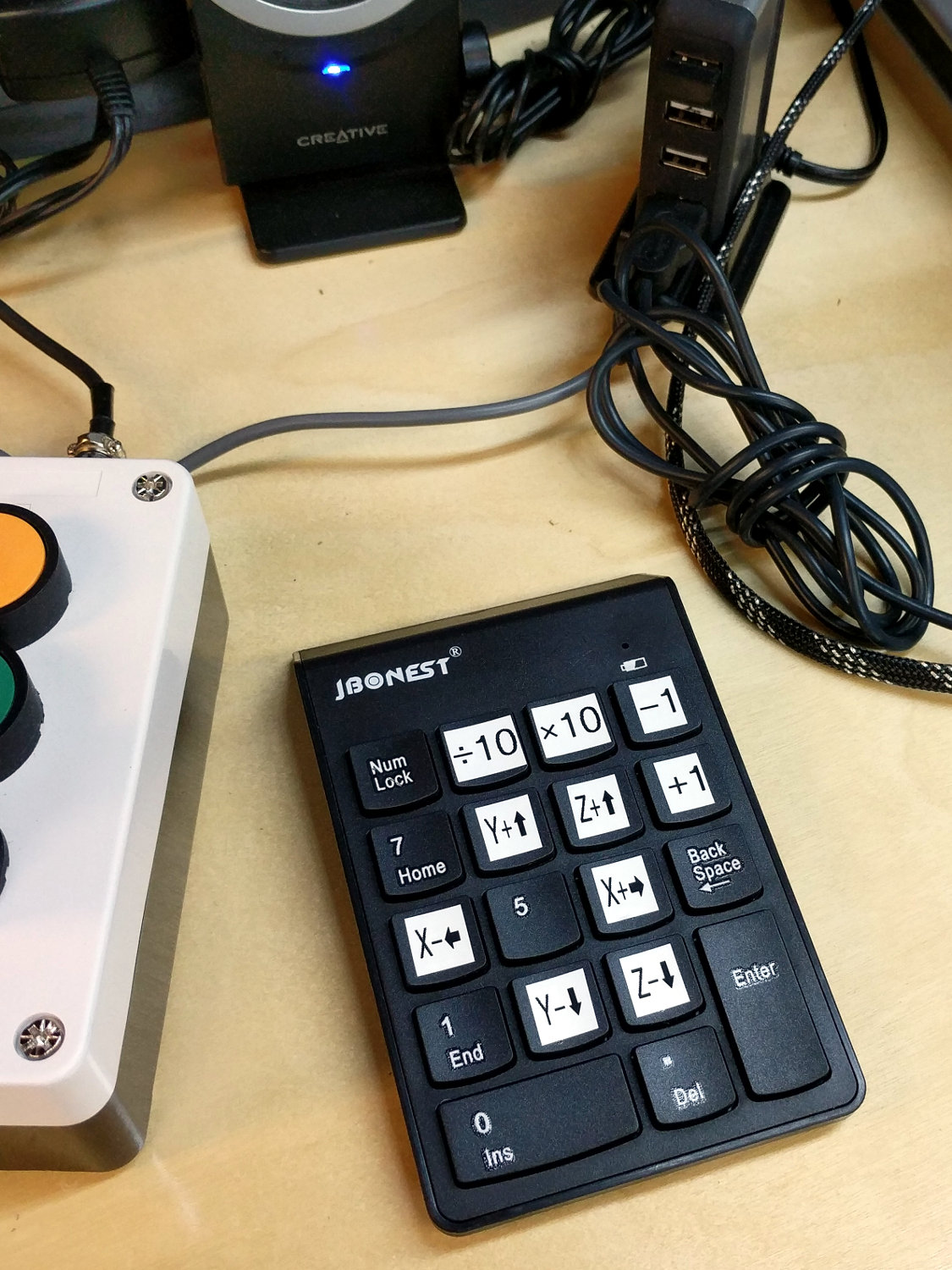

MPCNC - Jogging keypad

MPCNC – Jogging keypad

Unlike the keypads on my streaming radio players, this one requires no configuration at all, because bCNC regards it as just another keyboard input. The catch: you must select any screen element other than a text entry field to have bCNC recognize the keystrokes as “not text”.

You would get the same results from the numeric keys on the right side of a full-size / 104-key plank. I’m using a small “tenkeyless” keyboard, which means I can put the keypad wherever it’s easiest to reach while tweaking the MPCNC.

The ÷10 and ×10 keys along the top row alter the step size by factors of ten, which is pretty much what you need: jog to within a big step of the target, drop to the next lower decade, jog a few more times, maybe drop another decade, jog once, and you’re as close as you need to be with an MPCNC. The -1 and +1 keys aren’t as useful, at least to me: changing from 5 mm to 4 mm or 6 mm doesn’t make much difference.

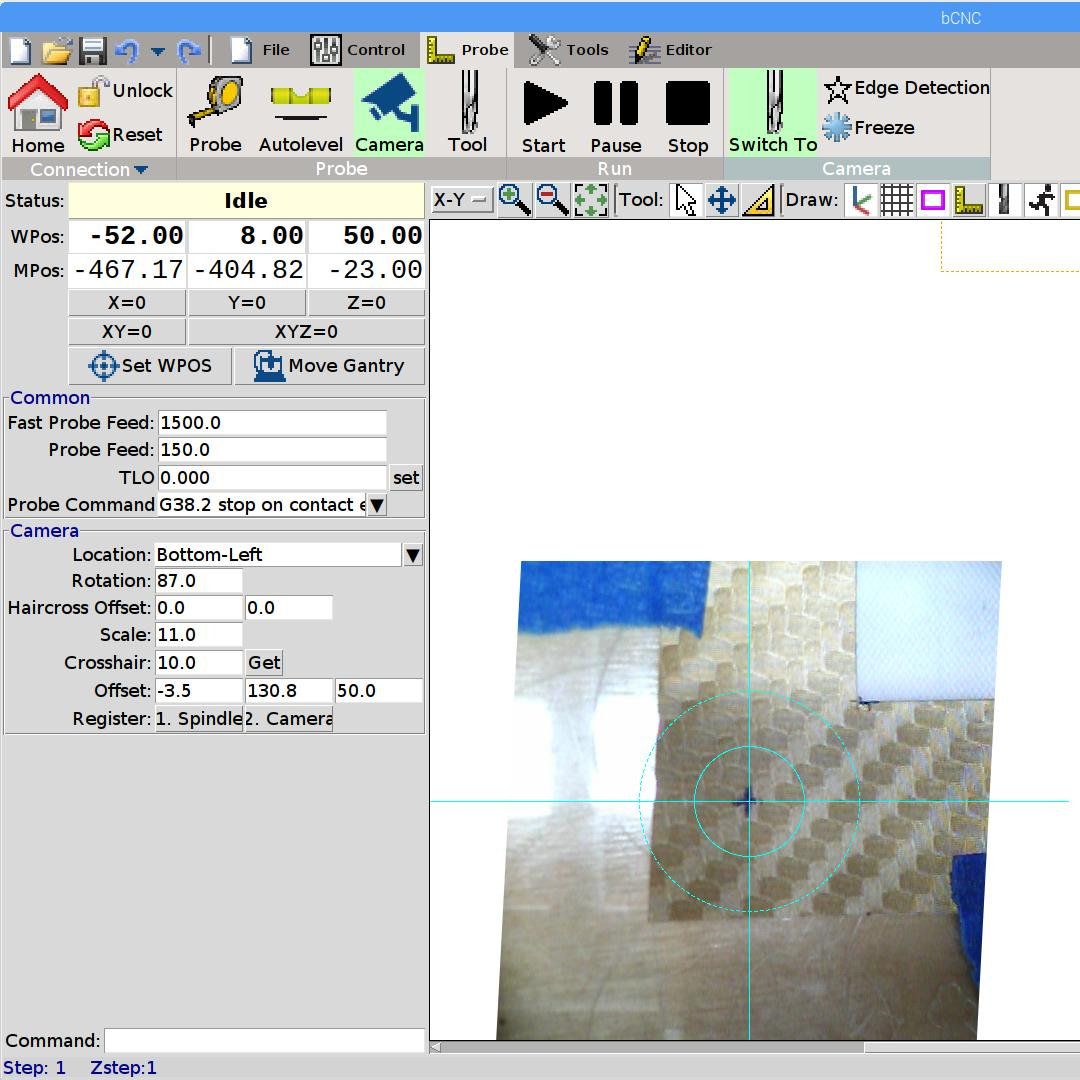

Jogging to align the spindle (well, a pen or drag knife) with a target using the video camera works really well:

bCNC - Video align

bCNC – Video align

GRBL and bCNC don’t do smooth jogging and the discrete steps aren’t as nifty as the Joggy Thing with LinuxCNC, but it gets the job done.

Advertisements

, ,

  1. #1 by Dave Filicicchia on 2018-10-22 - 22:15

    So is that just a USB webcam perfectly centered in the chuck?

  2. #3 by Dave Filicicchia on 2018-10-22 - 22:31

    I was also pleased to see the OpenSCAD code in this project. I have done at least a half dozen projects in OpenSCAD and had prints made at Shapeways.

    • #4 by Ed on 2018-10-23 - 09:25

      The MPCNC is definitely a light-duty / low-rigidity machine and you must choose projects with that in mind. I like it a lot!
