MPCNC Collet Pen Holder: LM12UU Edition

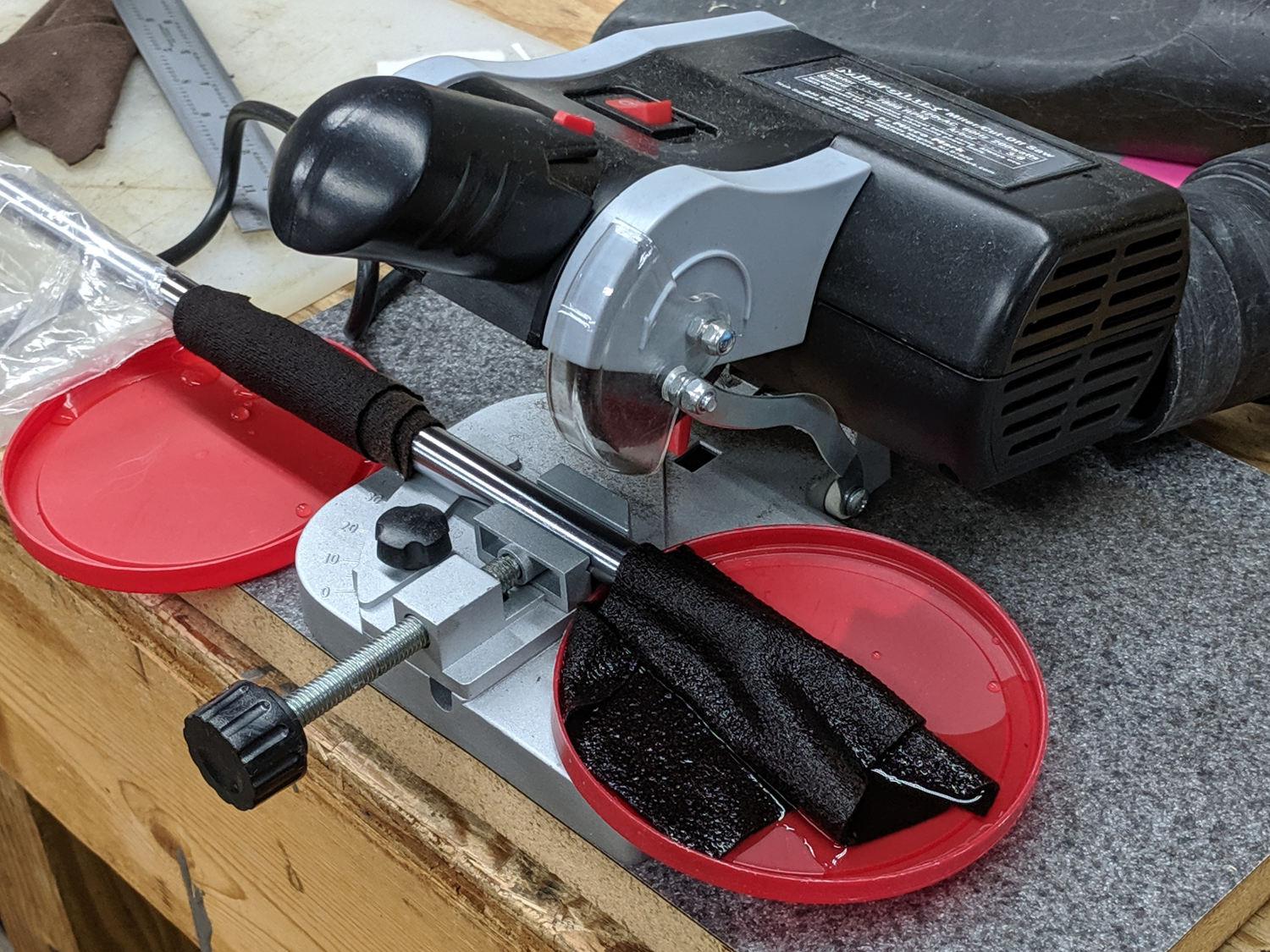

Encouraged by the smooth running of the LM12UU drag knife mount, I chopped off another length of 12 mm shaft:

LM12UU Collet Pen Holder - sawing shaft
LM12UU Collet Pen Holder – sawing shaft

The MicroMark Cut-off saw was barely up to the task; I must do something about its craptastic “vise”. In any event, the wet rags kept the shaft plenty cool and the ShopVac hose directly behind the motor sucked away all of the flying grit.

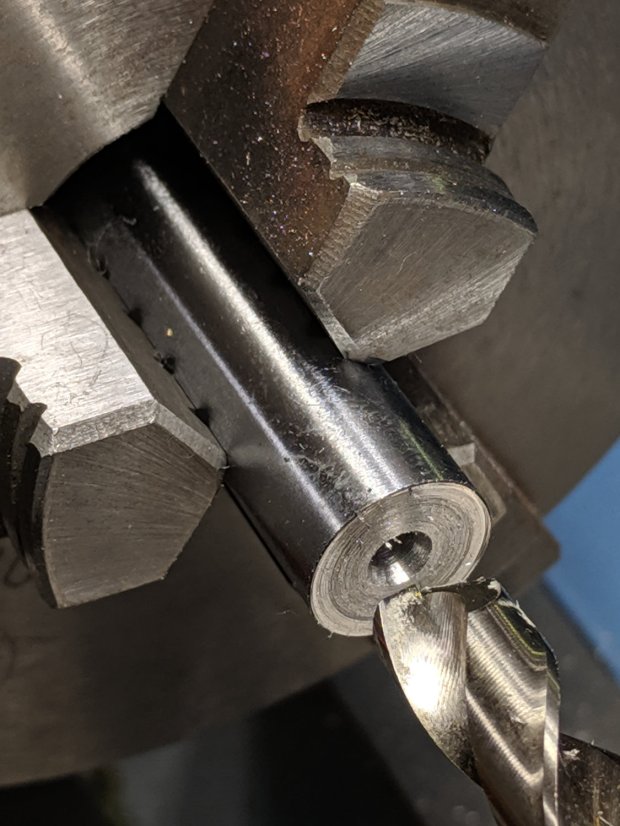

The reason I used an abrasive wheel: the shaft is case-hardened and the outer millimeter or two is hard enough to repel a carbide cutter:

LM12UU Collet Pen Holder - drilling shaft
LM12UU Collet Pen Holder – drilling shaft

Fortunately, the middle remains soft enough to drill a hole for the collet pen holder, which I turned down to a uniform 8 mm (-ish) diameter:

LM12UU Collet Pen Holder - turning collet body
LM12UU Collet Pen Holder – turning collet body

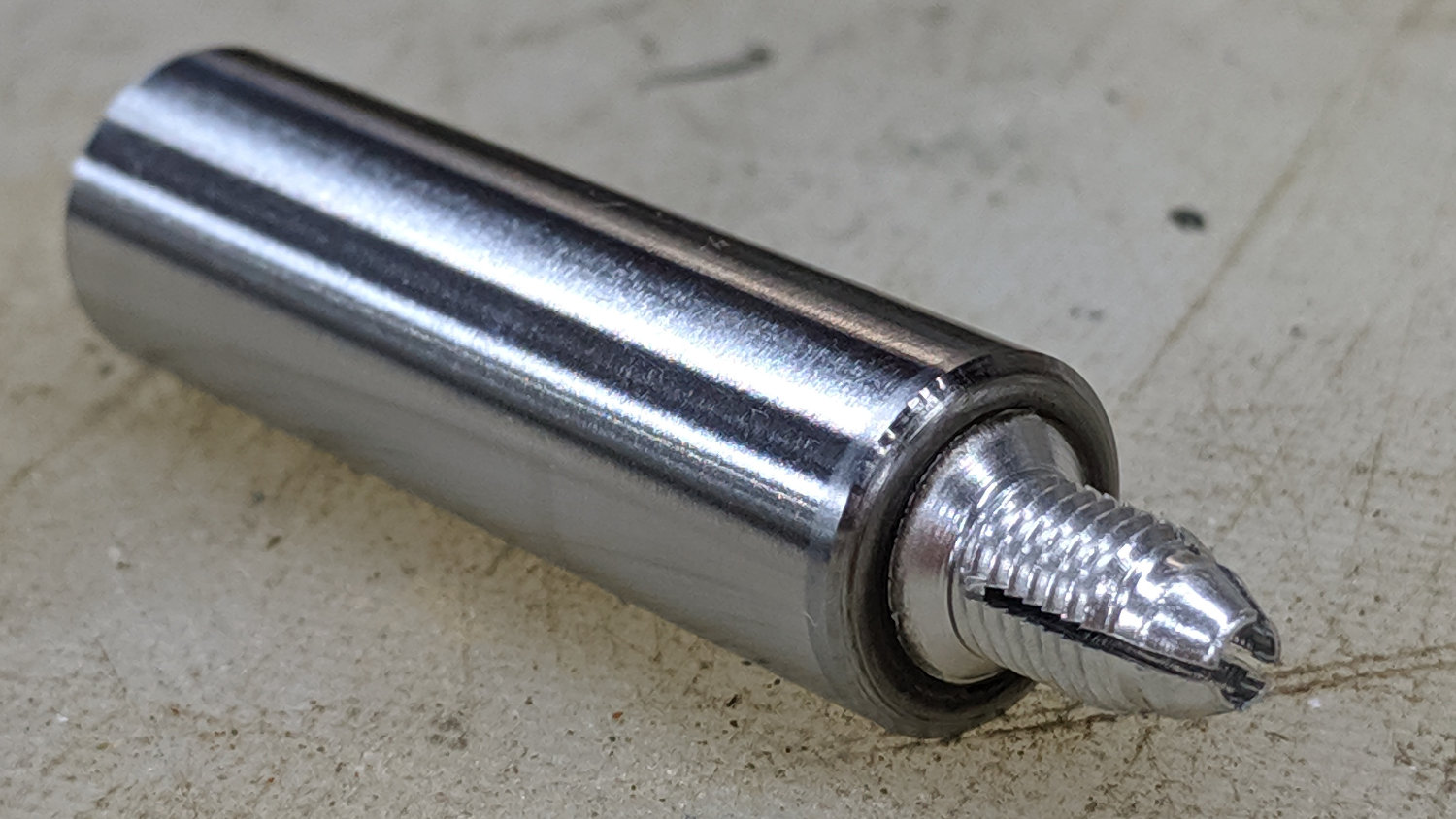

Slather JB Kwik epoxy along the threads, insert into the shaft, wipe off the excess, and looks almost like a Real Product:

LM12UU Collet Pen Holder - finished body
LM12UU Collet Pen Holder – finished body

The far end of the shaft recesses the collet a few millimeters to retain the spring around the pen body, which will also require a knurled ring around the outside so you (well, I) can tighten the collet around the pen tip.

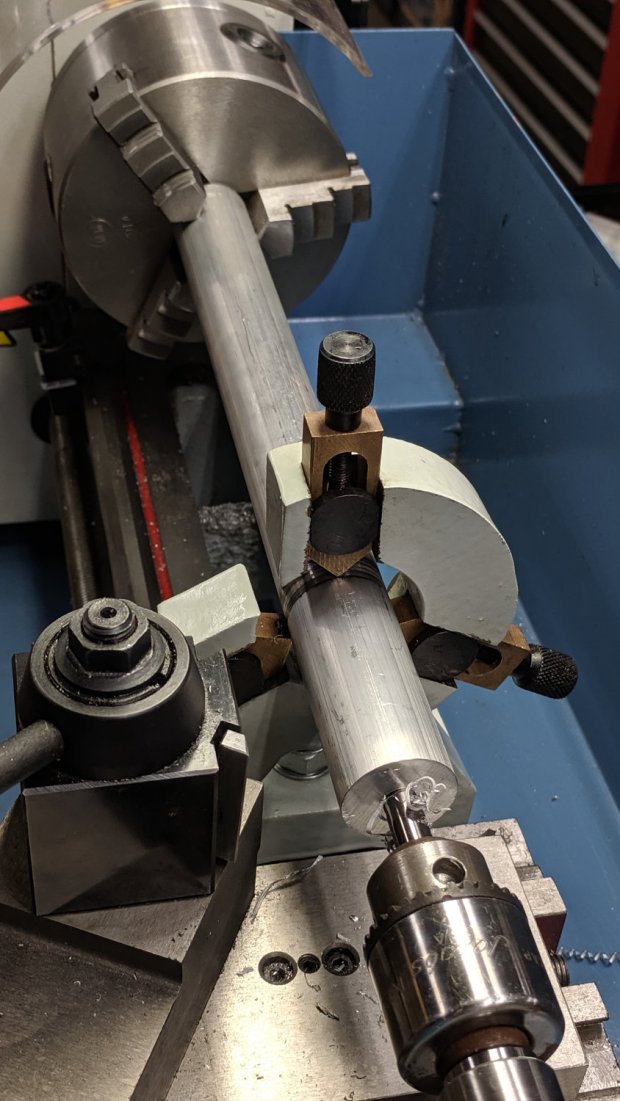

Start the ring by center-drilling an absurdly long aluminum rod in the steady rest:

M12UU Collet Pen Holder - center drilling
M12UU Collet Pen Holder – center drilling

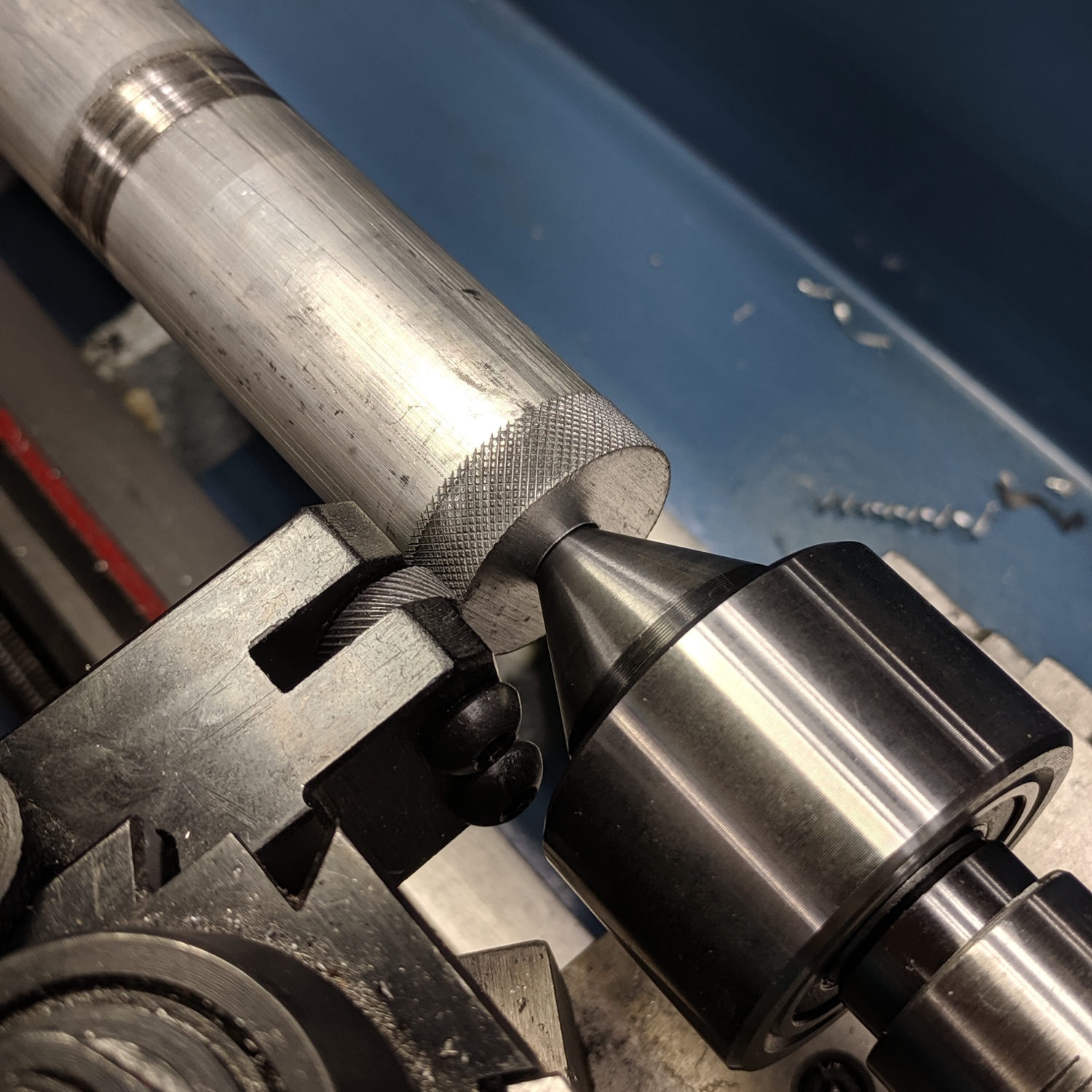

Although it’s not obvious, I cleaned up the OD before applying the knurling tool:

LM12UU Collet Pen Holder - knurling
LM12UU Collet Pen Holder – knurling

For some unknown reason, it seemed like a Good Idea to knurl without the steady rest, perhaps to avoid deepening the ring where the jaws slide, but Tiny Latheā„¢ definitely wasn’t up to the challenge. The knurling wheels aren’t quite concentric on their bores and their shafts have plenty of play, so I got to watch the big live center and tailstock wobbulate as the rod turned.

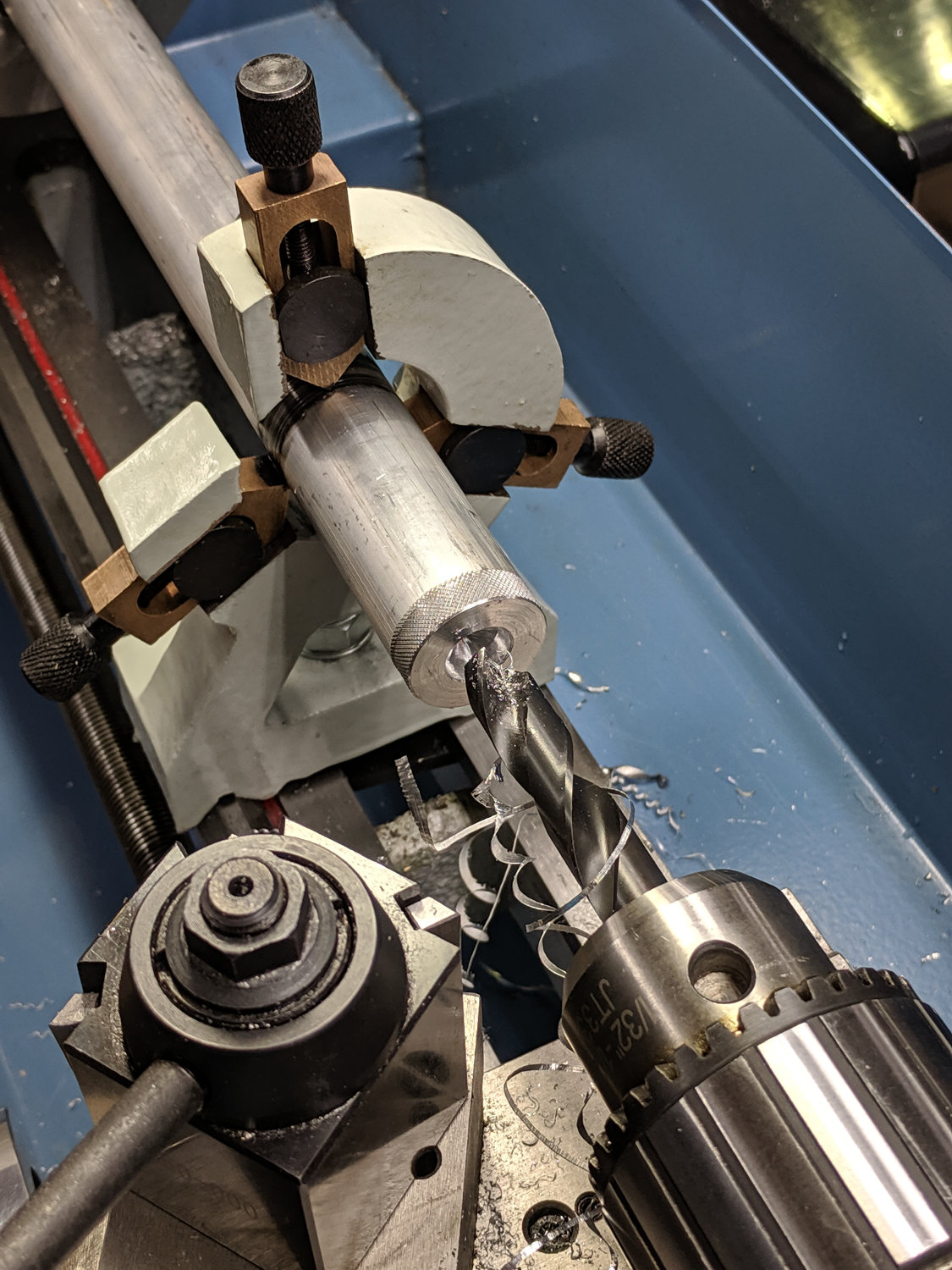

With the steady rest back in place, drill out the rod to match the shaft’s 12 mm OD:

LM12UU Collet Pen Holder - drilling shaft
LM12UU Collet Pen Holder – drilling shaft

All my “metric” drilling uses hard-inch drills approximating the metric dimensions, of course, because USA.

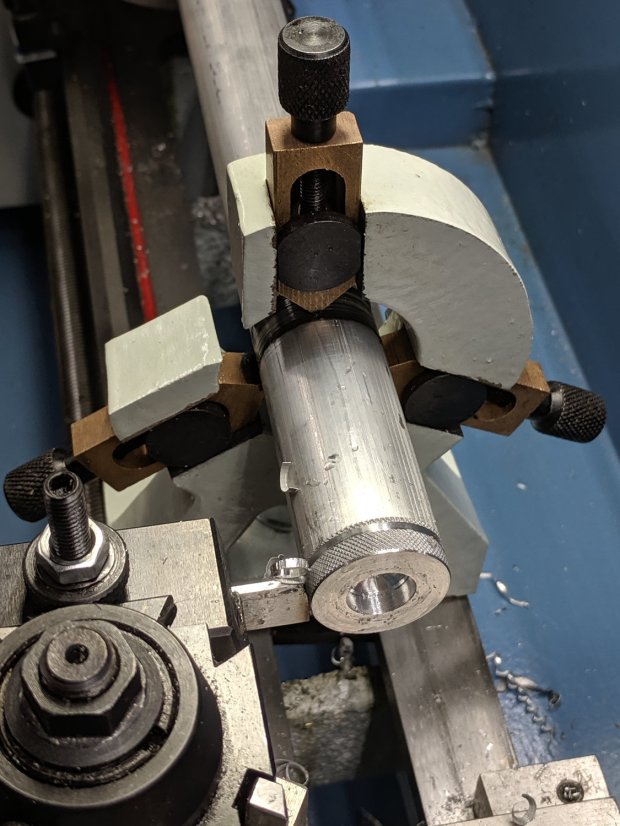

Clean up the ring face, file a chamfer on the edge, and part it off:

LM12UU Collet Pen Holder - parting ring
LM12UU Collet Pen Holder – parting ring

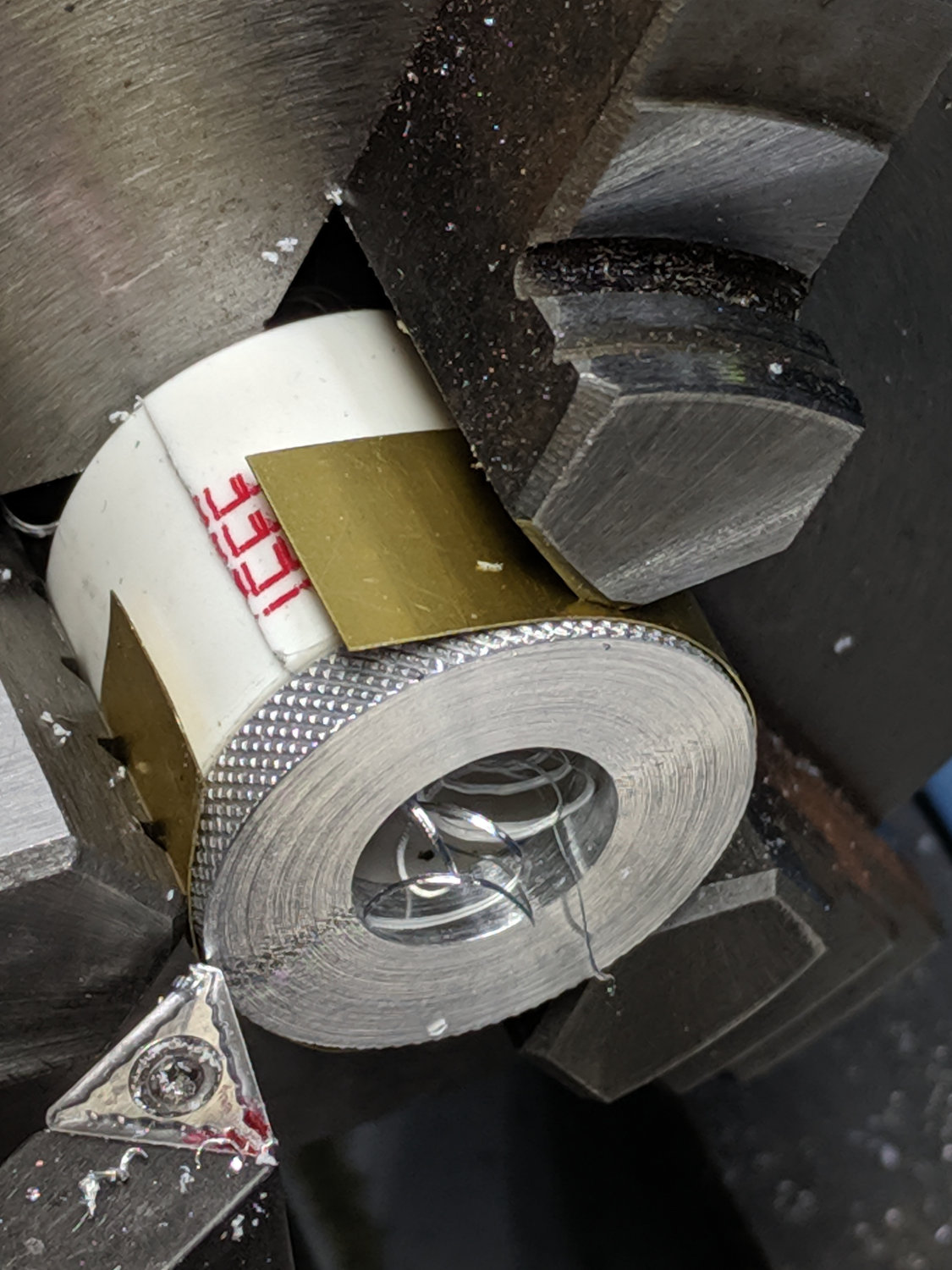

Turn some PVC pipe to a suitable length, slit one side so it can collapse to match the ring OD, wrap shimstock to protect those lovely knurls, and face off all the ugly:

LM12UU Collet Pen Holder - knurled ring facing
LM12UU Collet Pen Holder – knurled ring facing

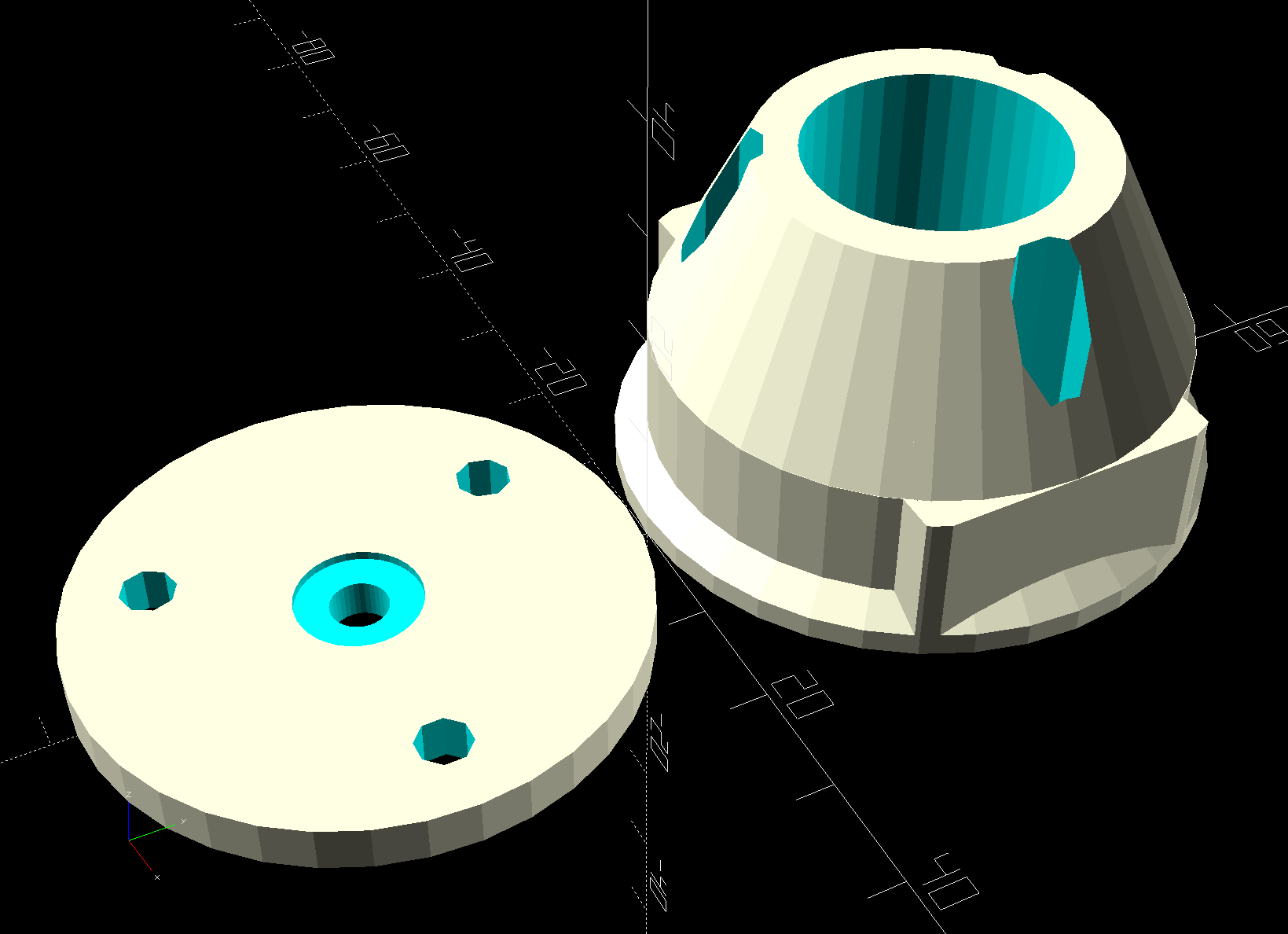

Tweak the drag knife’s solid model for a different spring from the collection and up the hole OD in the plate to clear the largest pen cartridge in the current collection:

Collet Holder - LM12UU - solid model
Collet Holder – LM12UU – solid model

Convince all the parts to fly in formation, then measure the spring rate:

LM12UU Collet Pen Holder - spring rate test
LM12UU Collet Pen Holder – spring rate test

Which works out to be 128 g + 54 g/mm:

LM12UU Collet Pen Holder - test plot - overview
LM12UU Collet Pen Holder – test plot – overview

I forgot the knurled ring must clear the screws and, ideally, the nyloc nuts. Which it does, after I carefully aligned each nut with a flat exactly tangent to the ring. Whew!

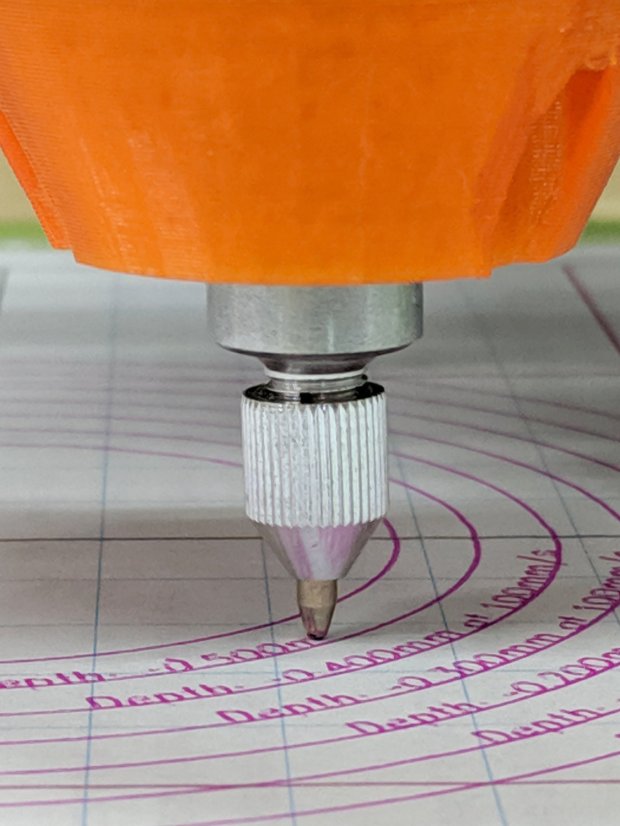

A closer look at the business end:

LM12UU Collet Pen Holder - test plot - detail
LM12UU Collet Pen Holder – test plot – detail

The shaft has 5 mm of travel, far more than enough for the MPCNC’s platform. Plotting at -1 mm applies 180 g of downforce; the test pattern shown above varies the depth from 0.0 mm in steps of -0.1 mm; anything beyond -0.2 mm gets plenty of ink.

Now I have a pen holder, a diamond scribe, and a drag knife with (almost) exactly the same “tool offset” from the alignment camera, thereby eliminating an opportunity to screw up.

The OpenSCAD source code as a GitHub Gist:

Advertisements

, ,

  1. #1 by RCPete on 2019-07-11 - 13:35

    eliminating an opportunity to screw up

    Is taunting Murphy really a good idea? [grin]

    • #2 by Ed on 2019-07-11 - 14:55

      Good point. The Principle of the Universal Conservation of Perversity says something even more awful will happen as a direct result of my preventing an origin error.

      Which is what happened yesterday. I tried engraving the label side of a scrap CD, only to (re)discover the brittleness of lacquer-over-aluminum. The diamond bit scribed about halfway around the perimeter and suddenly my world is covered in glitter. Including, of course, the sticky mat under the CD.

      Final score: Murphy 1, me -1. It’s a zero-sum game, at best.

  2. #3 by Vedran on 2019-07-12 - 14:19

    Quality shop time :)
    Where did the hardened shaft come from?

    • #4 by Ed on 2019-07-12 - 21:35

      I think eBay: it’s plain old RepRap-style 3D printer guide rail. Not particularly straight, of course, but close enough for my simple needs.
