MPCNC Diamond Engraver: LM3UU Bearings, First Pass

Gripping a diamond engraver in a collet chuck worked well enough, but the MPCNC’s pen holder lacks sufficient downforce and lateral stiffness. The bit has a chrome-ish plated 3 mm shank, so I tinkered up a mount for a pair of LM3UU linear bearings from the LM12UU drag knife holder:

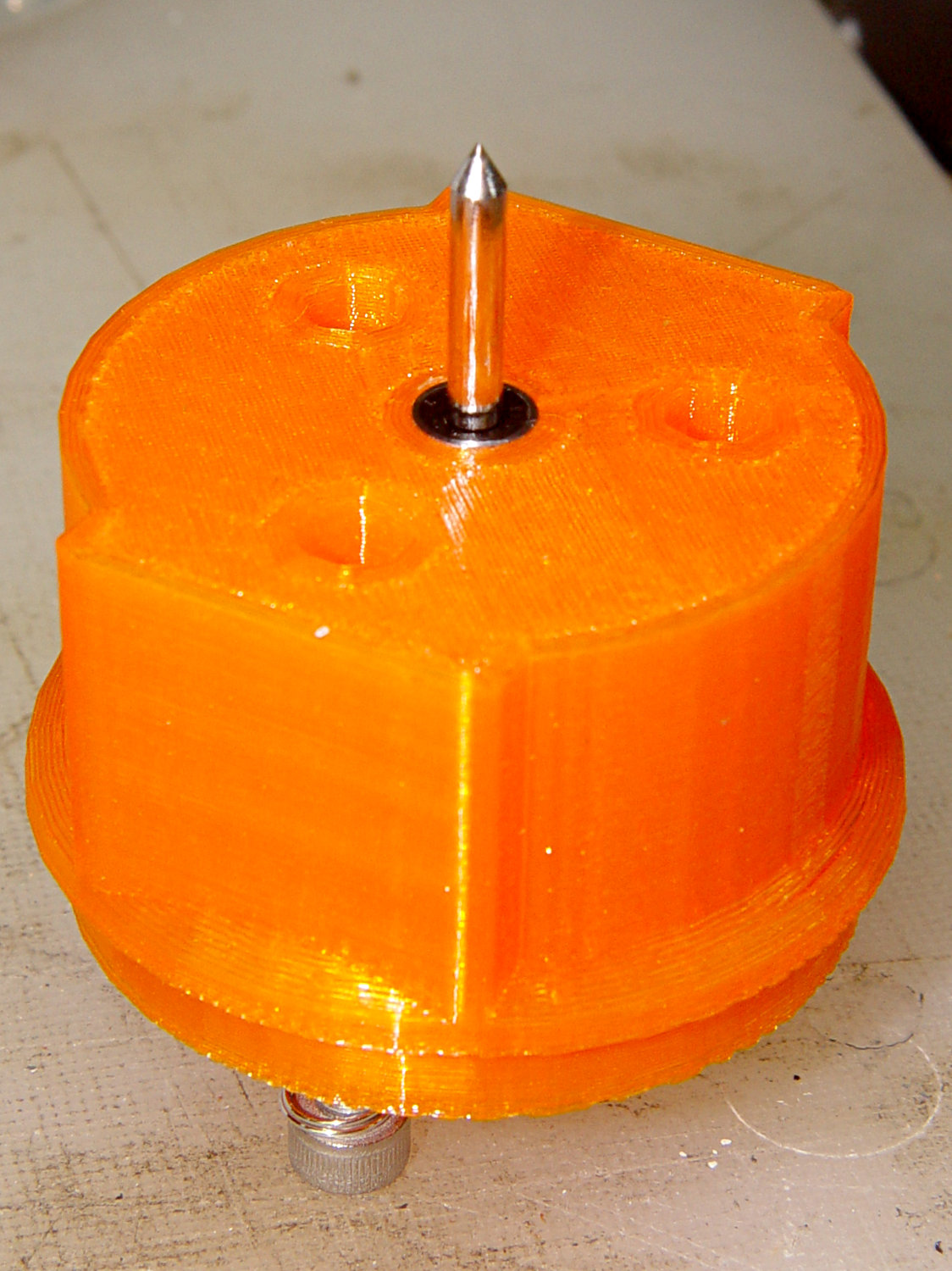

Diamond Scribe - LM3UU - Rev 1 - point view
Diamond Scribe – LM3UU – Rev 1 – point view

The shank isn’t exactly a precision part, but a few licks with a diamond file knocked off enough of the high spots so it slides reasonably well through the bearings. The bearing alignment is more critical than a simple 3D printed plastic part can provide, so a real version may need bearings in a metal shaft press-fit into the plastic; brute-forcing the bearings into alignment sufficed for now.

The butt end of the shank press-fits into a disk held down with three springs, similar to the LM12UU mount:

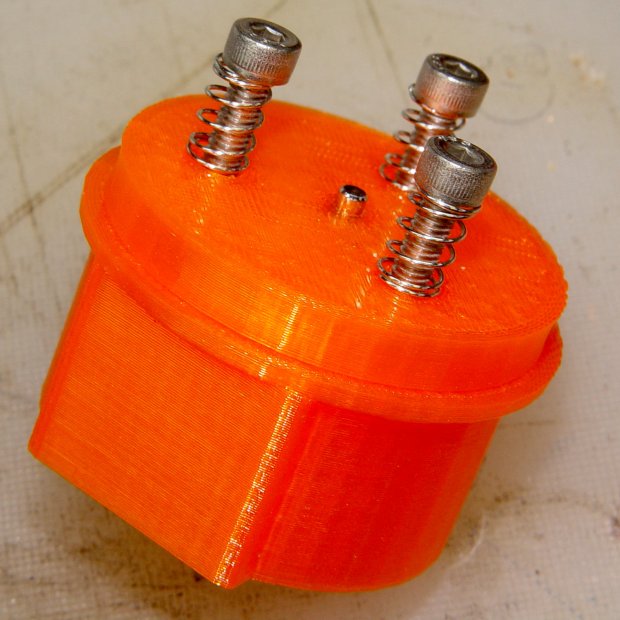

Diamond Scribe - LM3UU - Rev 1 - top view
Diamond Scribe – LM3UU – Rev 1 – top view

It draws Guilloché patterns just fine:

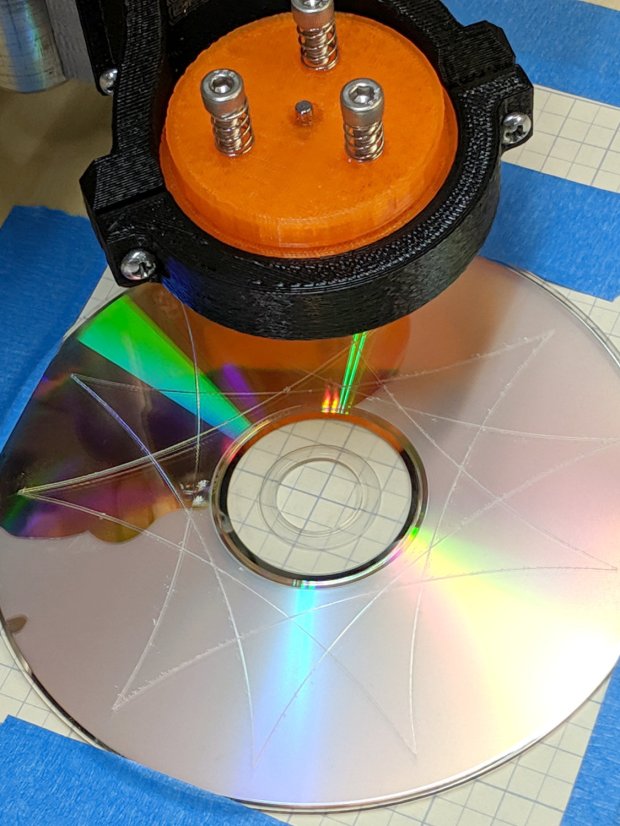

Diamond Scribe - LM3UU - Rev 1 - first light
Diamond Scribe – LM3UU – Rev 1 – first light

I don’t like how the spring-around-screw motion works, even if it’s OK for small excursions.
