Multimeter Probe Cable: FAIL

A reasonably good silicone-wire multimeter probe set arrived last spring and has worked well enough (I thought, anyhow) for the usual voltage measurements, but recently failed while measuring a small current. We all know how this will turn out, but the details may be of some interest.

Measuring the resistance from tip to plug located the fault to the black probe, after which I poked a pin through the insulation near the plug:

Multimeter probe - diagnosis

Multimeter probe – diagnosis

The two leads near the bottom go to my shiny Siglent bench multimeter. Despite their similarity to the failed probes, I’m pretty sure Siglent has better QC (well, mostly).

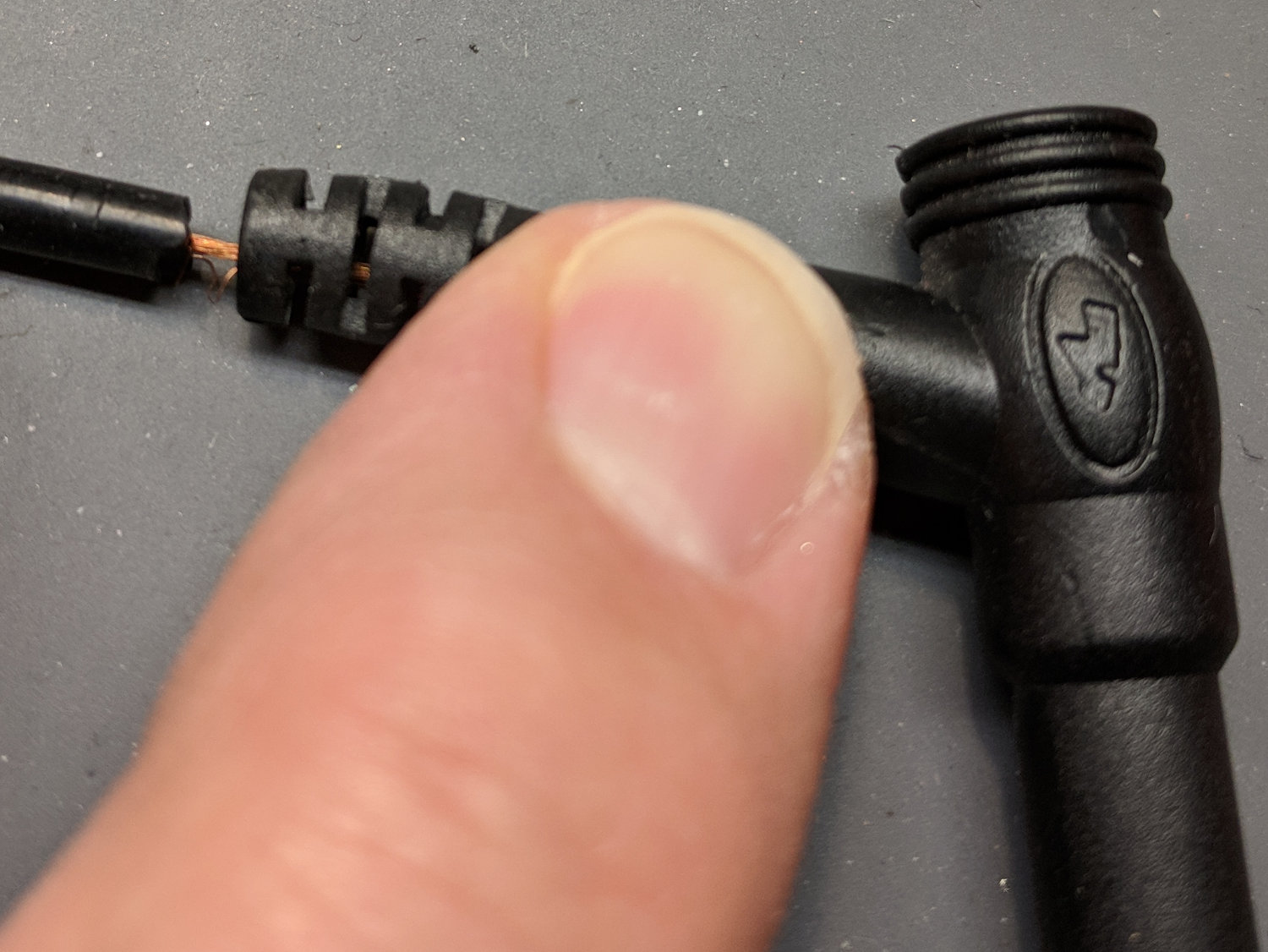

The probe’s resistance was near zero from the tip (offscreen to the left) to the pin and megohms from pin to plug (on the right). Figuring the wire worked loose, I pulled it away from the plug:

Multimeter probe - disassembly 1

Multimeter probe – disassembly 1

Huh.

Although I wouldn’t have trusted those probes anywhere near their alleged 1 kV rating, seeing that exposed copper-like substance was disconcerting.

Hacking off the strain relief bushing around the wire got closer to the fault:

Multimeter probe - disassembly 2

Multimeter probe – disassembly 2

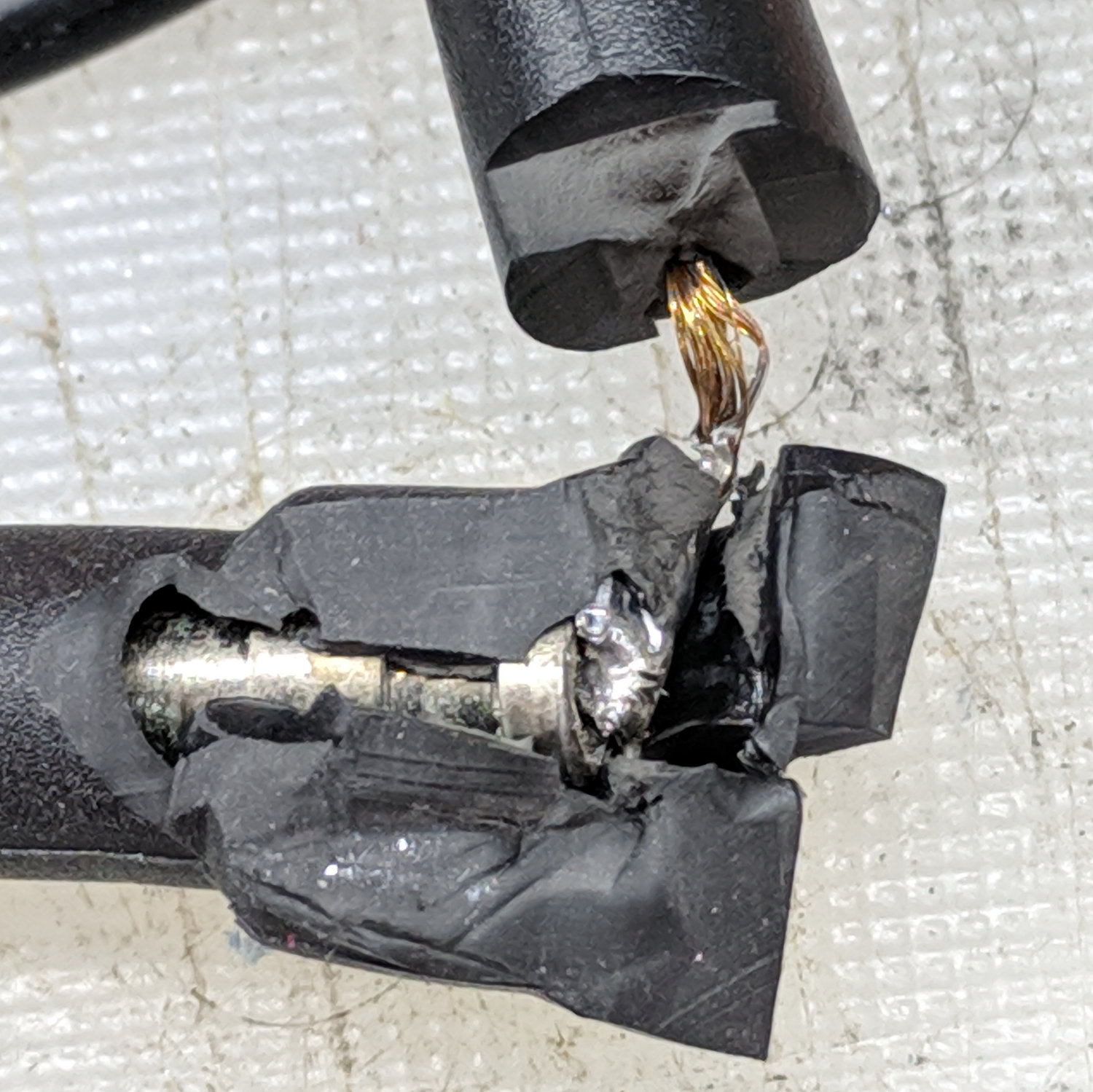

And, finally, the problem becomes obvious:

Multimeter probe - disassembly 3

Multimeter probe – disassembly 3

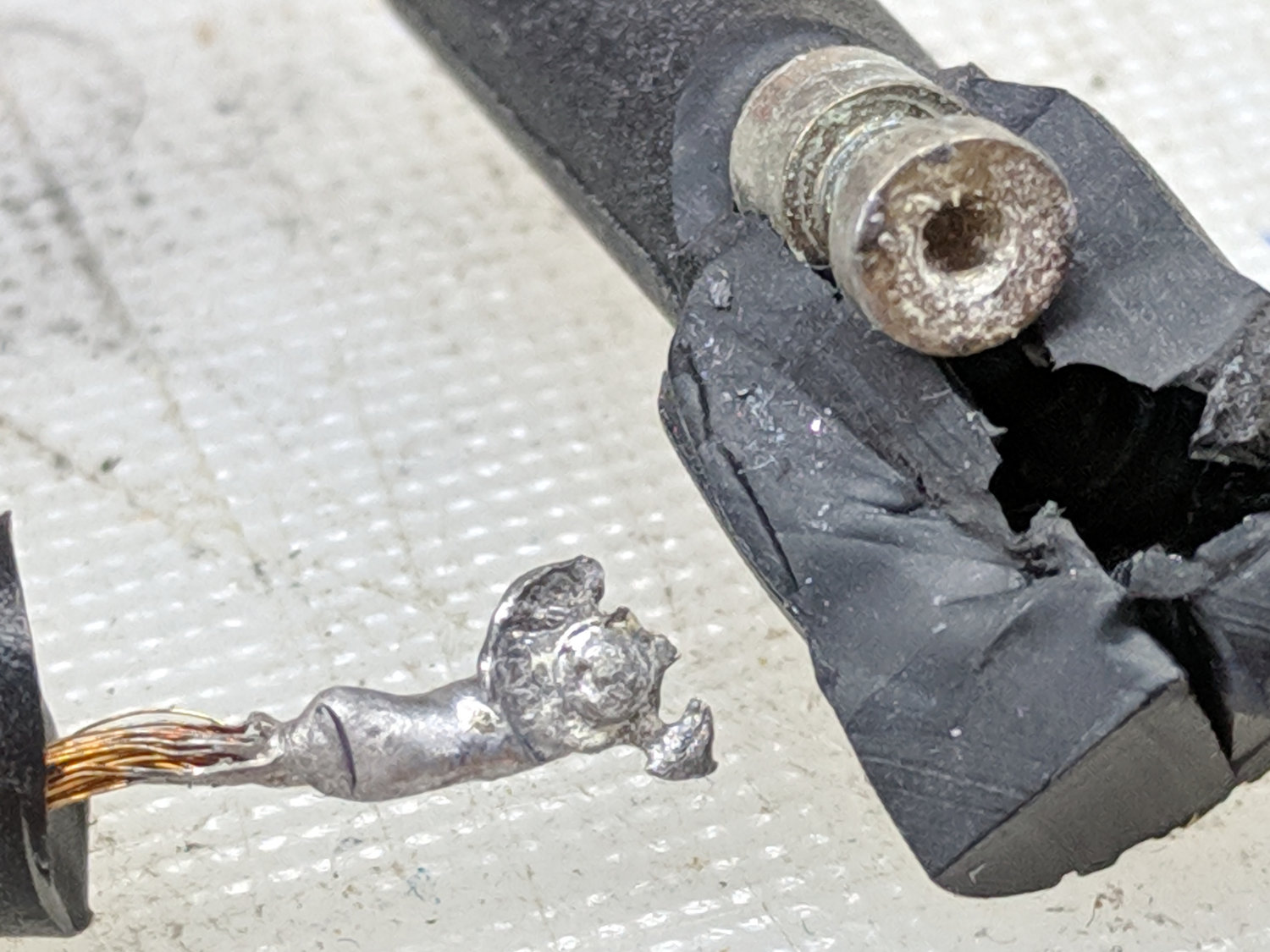

Yet Another Cold Solder Joint:

Multimeter probe - cold solder joint

Multimeter probe – cold solder joint

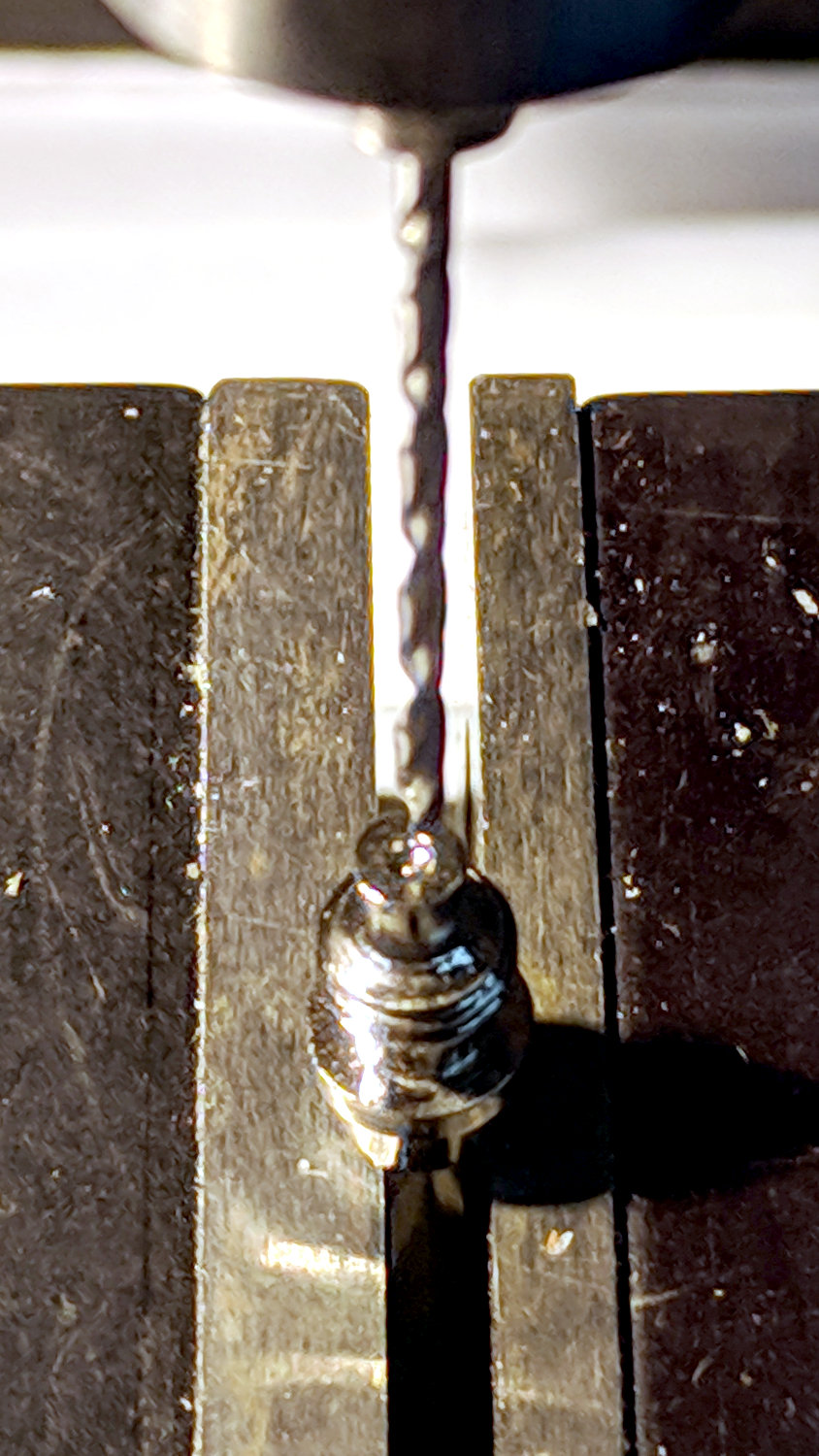

Pulling a black banana plug from the heap, I decided to drill a proper hole to anchor the wire:

Multimeter probe - drilling plug

Multimeter probe – drilling plug

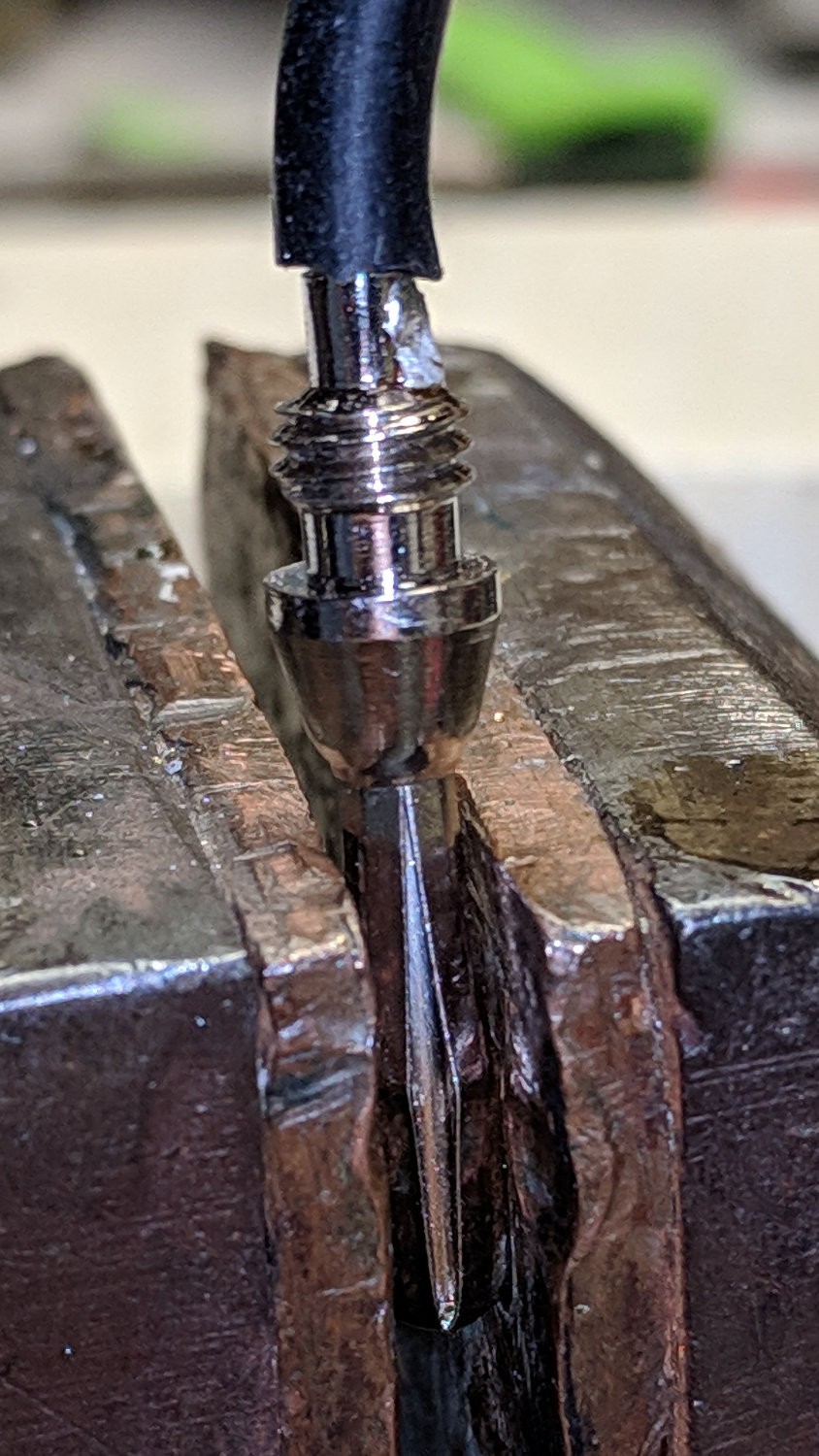

Which looked like this afterward:

Multimeter probe - soldered plug

Multimeter probe – soldered plug

And produced a strongly mismatched pair:

Multimeter probe - repaired

Multimeter probe – repaired

Ain’t it amazing how much fun you can have for a few bucks, all delivered by eBay? [sigh]
