Mis-Punched Scope Probe Hook

Back in the day, HP scope probes had a rugged music-wire hook on the tip:

HP scope probe tip

HP scope probe tip

These days, scope probe tips use ordinary sheet steel punched into a hook shape:

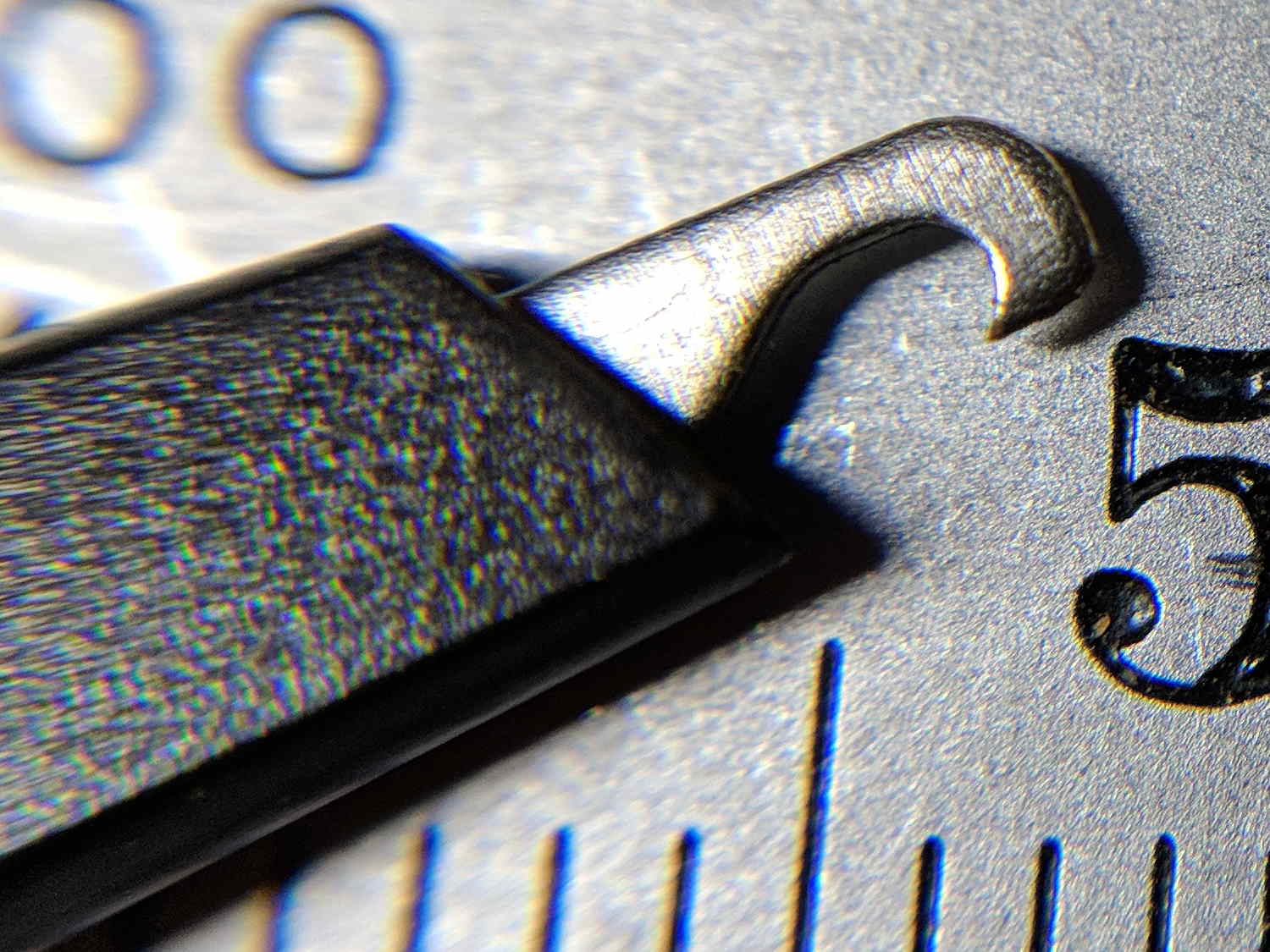

Siglent scope probe - good tip

Siglent scope probe – good tip

By sheer bad luck, the first probe out of the bag had a mis-punched end with no griptivity:

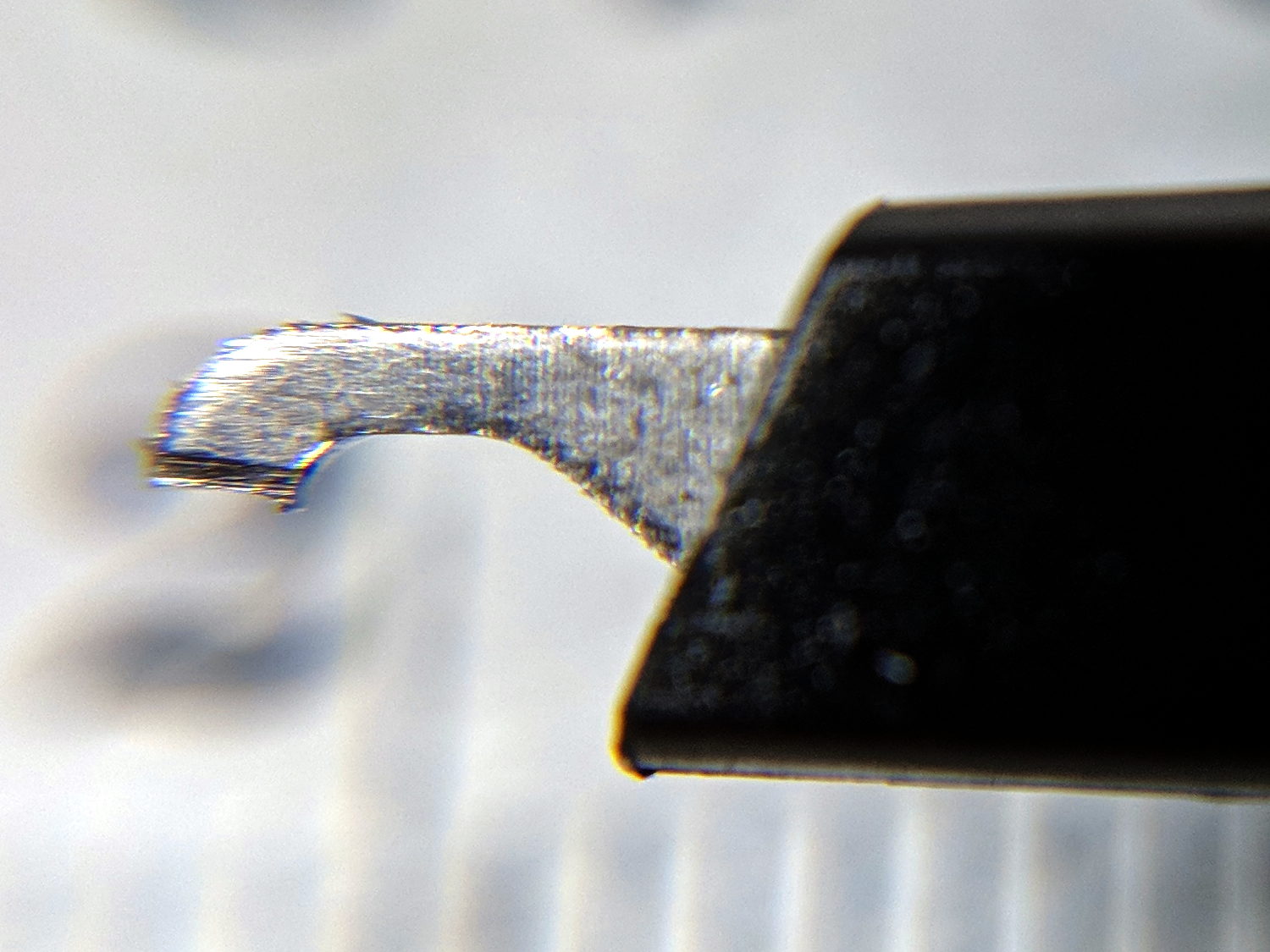

Siglent scope probe - mis-cut tip

Siglent scope probe – mis-cut tip

Dunno what happened, but it was definitely sheared off in the factory.

After I finally recognized the problem, I shaped a crude hook with a safe-edge needle file and continued the mission:

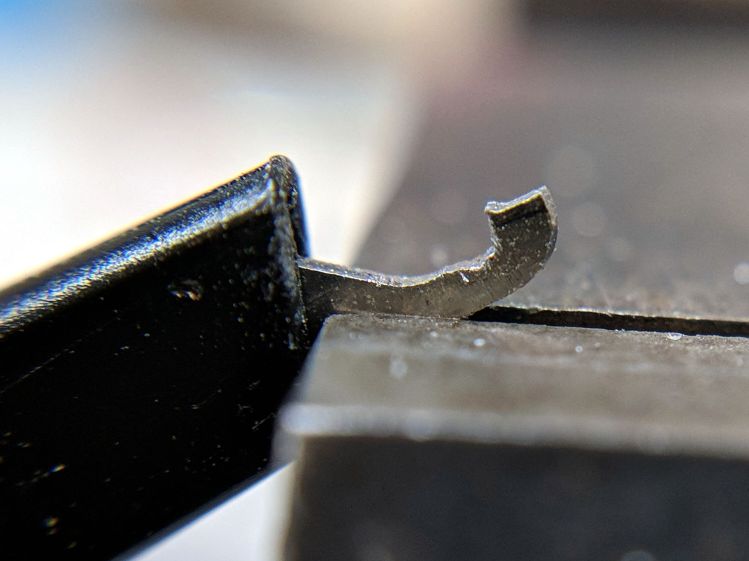

Siglent scope probe - filed tip

Siglent scope probe – filed tip

A quick note to Siglent put a replacement probe tip in the mail, so it’s all good.

Advertisements

  1. #1 by david on 2018-04-24 - 16:30

    Sheer bad luck or shear bad luck? :)

    • #2 by Ed on 2018-04-24 - 21:01

      Well played, sir!
