Astable Multivibrator: RGB LED Circuitry First Light

It lights up just like it should:

Astable RGB LED – green phase

In colors:

Astable RGB LED – red phase

The blue LED works, too, but I didn’t catch any of those blinks.

The spider should be done in black PETG, just like the battery holder, but I didn’t realize which filament was running until too late. Even the blue LED lights up the orange spider just fine!

The circuitry behind (well, below) the RGB LED Radome consists of three copies of the original multivibrator, with mirror image layouts to match the wire struts:

RGB LED Schematic – NPN transistors

The solder joints adhere to exactly none of the usual good practices:

Astable RGB LED – assembled

The simulation matches the actual blink times reasonably well:

Astable – 2N2222 cap voltages

It’s unpleasantly frenetic in real life. The next version must have much much longer time constants.

Unfortunately, the simulation also confirms my suspicion that I’ve been abusing the electrolytic capacitors with reverse-polarity waveforms. I suspect it doesn’t really matter too much, as the maximum voltage in either direction remains under a volt at very low currents, but it’s the principle of the thing.

Soooo, lengthening the time constants by increasing the capacitances seems like a Bad Idea.

Alas, increasing the resistors by an order of magnitude won’t work, either, because (despite appearances) the whole thing sits right on the hairy edge of not working. As the battery discharges toward its 2.5 V cutoff level, the currents drop and the circuitry becomes increasingly sensitive to touch. After a day or two, one of the LEDs will jam solidly on, while the others continue to blink merrily away. Removing and reinstalling the battery will sometimes resume proper operation, but it’s definitely not stable enough for production use.

Which makes a MOSFET astable multivibrator seem like a Good Idea.

One could achieve the same visible result with a few cents of microcontroller and a dab of software, but most of the charm comes from its analog nature and all those visible components.

2018-12-31
Transistor Pricing

You can find anything on eBay (clicky for more dots):

ZVNL110A MOSFET – kilobuck eBay pricing

The key information:

ZVNL110A MOSFET – kilobuck eBay pricing – detail

For that price, I’d expect in-person hand delivery.

Stipulated: ZVNL110A MOSFETs aren’t in production and we’re buying from diminishing inventory, but (as of late December 2018) they’re still available for under a buck apiece in small quantities.

It could be a pricing algorithm corner case, a money laundering scheme, or just a typo that could happen to anyone. As the news sites put it, the seller did not respond in time for this posting …

2018-12-30

Astable Multivibrator: RGB LED and Radome Spider

Well, a spider with half the proper leg count:

RGB LED - radome test — RGB LED – radome test

One could argue the LED spider has an unusually large abdomen, but I’m not going there.

The solid model looks the same way:

Astable Multivibrator Battery Holder - RGB LED Spider - radome — Astable Multivibrator Battery Holder – RGB LED Spider – radome

And, yes, those are eye protection caps over the four wire struts, most useful during construction while maneuvering the radome into position.

For reasons unknown to me, they’re called “Pirhana” LEDs:

I trimmed off half of each pin, soldered on 28 AWG color-coded silicone wires, threaded wires through openings, then rammed the LED package into the recess so it sits just below the radome’s curve. The dent matching the ball comes from the chord equation, as always, and looks pretty good.

The radome is, of course, a one-star ping pong ball from the usual big box retailer’s sporting goods section. The stamped logo sits at a random position with respect to the ball’s interior structure (visible when lit, as in the top picture), so I erased it with a fine-grit sanding sponge. Hollow plastic golf balls might work just as well, with an even more interesting surface texture.

The source code includes a cutaway look at the printed parts to verify their innards:

Astable Multivibrator Battery Holder - RGB LED Spider - fit view — Astable Multivibrator Battery Holder – RGB LED Spider – fit view

The OpenSCAD source code as a GitHub Gist:

	// Holder for Li-Ion battery packs
	// Ed Nisley KE4ZNU January 2013
	// 2018-11-15 Adapted for 1.5 mm pogo pins, battery data table
	// 2018-12 RGB LED spider, general cleanups

	/* [Layout options] */

	BatteryName = "NP-BX1"; // [NP-BX1,NB-5L,NB-6L]

	RGBCircuit = true; // false = 1 strut pair, true = 2 pairs

	Layout = "Case"; // [Build,Show,Fit,Case,Lid,Pins,RGBSpider]

	/* [Extrusion parameters] – must match reality! */
	// Print with +2 shells and 3 solid layers

	ThreadThick = 0.25;
	ThreadWidth = 0.40;

	HoleWindage = 0.2;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);
	function IntegerLessMultiple(Size,Unit) = Unit * floor(Size / Unit);

	Protrusion = 0.1; // make holes end cleanly

	/* [Hidden] */

	inch = 25.4;

	BuildOffset = 3.0; // clearance for build layout

	Gap = 2.0; // separation for Fit parts

	//- Basic dimensions

	WallThick = 4*ThreadWidth; // holder sidewalls

	BaseThick = 6*ThreadThick; // bottom of holder to bottom of battery
	TopThick = 6*ThreadThick; // top of battery to top of holder

	//- Battery dimensions – rationalized from several samples
	// Coordinate origin at battery corner with contacts, key openings downward

	T_NAME = 0; // Name must fit recess, so don't get loquacious
	T_SIZE = 1;
	T_CONTACTS = 2;
	T_KEYS = 3;

	BatteryData = [
	["NP-BX1",[43.0,30.0,9.5],[[-0.75,6.0,6.2],[-0.75,16.0,6.2]],[[1.70,3.70,2.90],[1.70,3.60,2.90]]],
	["NB-5L", [45.0,32.0,8.0],[[-0.82,4.5,3.5],[-0.82,11.0,3.5]],[[2.2,0.75,2.0],[2.2,2.8,2.0]]],
	["NB-6L",[42.5,35.5,7.0],[[-0.85,5.50,3.05],[-0.85,11.90,3.05]],[[2.0,0.70,2.8],[2.0,2.00,2.8]]],
	];

	echo(str("Battery: ",BatteryName));

	BatteryIndex = search([BatteryName],BatteryData,1,0)[0];
	echo(str(" Index: ",BatteryIndex));

	BatterySize = BatteryData[BatteryIndex][T_SIZE]; // X = length, Y = width, Z = thickness
	echo(str(" Size: ",BatterySize));

	Contacts = BatteryData[BatteryIndex][T_CONTACTS]; // relative to battery edge, front, and bottom
	echo(str(" Contacts: ",Contacts));

	ContactOC = Contacts[1].y – Contacts[0].y; // + and – terminals for pogo pin contacts
	ContactCenter = Contacts[0].y + ContactOC/2;

	KeyBlocks = BatteryData[BatteryIndex][T_KEYS]; // recesses in battery face set X position
	echo(str(" Keys: ",KeyBlocks));

	//- Pin dimensions

	ID = 0;
	OD = 1;
	LENGTH = 2;

	PinShank = [1.5,2.0,6.5]; // shank, flange, compressed length
	PinFlange = [1.5,2.0,0.5]; // flange, length included in PinShank
	PinTip = [0.9,0.9,2.5]; // extended spring-loaded tip

	WireOD = 1.7; // wiring from pins to circuitry

	PinChannel = WireOD; // cut behind flange for solder overflow
	PinRecess = 3.0; // recess behind pin flange end for epoxy fill

	echo(str("Contact tip dia: ",PinTip[OD]));
	echo(str(" .. shank dia: ",PinShank[ID]));

	OverTravel = 0.5; // space beyond battery face at X origin

	//- Holder dimensions

	GuideRadius = ThreadWidth; // friction fit ridges
	GuideOffset = 7; // from compartment corners

	LidOverhang = 2.0; // atop of battery for retention
	LidClearance = LidOverhang * (BatterySize.z/BatterySize.x); // … clearance above battery for tilting
	echo(str("Lid clearance: ",LidClearance));

	CaseSize = [BatterySize.x + PinShank[LENGTH] + OverTravel + PinRecess + GuideRadius + WallThick,
	BatterySize.y + 2WallThick + 2GuideRadius,
	BatterySize.z + BaseThick + TopThick + LidClearance];
	echo(str("Case size: ",CaseSize));

	CaseOffset = [-(PinShank[LENGTH] + OverTravel + PinRecess),-(WallThick + GuideRadius),0]; // position around battery

	ThumbRadius = 10.0; // thumb opening at end of battery

	CornerRadius = 3*ThreadThick; // nice corner rounding

	LidSize = [-CaseOffset.x + LidOverhang,CaseSize.y,TopThick];

	LidOffset = [0.0,CaseOffset.y,0];

	//- Wire struts

	StrutDia = 1.6; // AWG 14 = 1.6 mm
	StrutSides = 3*4;

	StrutBase = [StrutDia,StrutDia + 4*WallThick,CaseSize.z – TopThick]; // ID = wire, OD = buildable

	//StrutOC = [IntegerLessMultiple(BatterySize.x – StrutBase[OD],5.0), // set easy OC wire spacing
	// IntegerMultiple(CaseSize.y + StrutBase[OD],5.0)];
	StrutOC = [IntegerLessMultiple(CaseSize.x – 2CornerRadius -2StrutBase[OD],5.0),
	IntegerMultiple(CaseSize.y + StrutBase[OD],5.0)];

	StrutOffset = [CaseSize.x/2 + CaseOffset.x,BatterySize.y/2]; // from case centerlines

	StrutAngle = atan(StrutOC.y/StrutOC.x);

	echo(str("Strut OC: ",StrutOC));

	//- RGB LED

	RGBBody = [8.0,8.0,5.0]; // Z = body height

	RGBPin = 5.0; // pin length
	RGBPinsOC = [5.0,5.0]; // pin layout

	RGBRecess = RGBBody.z + RGBPin/2; // maximum LED recess depth

	BallOD = 40.0; // radome sphere
	BallSides = 4*StrutSides; // nice number of sides

	BallPillar = [norm([RGBBody.x,RGBBody.y]),
	norm([RGBBody.x,RGBBody.y]) + 4*WallThick,
	StrutBase[OD] + RGBBody.z];
	BallChordM = BallOD/2 – sqrt(pow(BallOD/2,2) – (pow(BallPillar[OD],2))/4);
	echo(str("Ball chord depth: ",BallChordM));

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);

	FixDia = Dia / cos(180/Sides);

	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}

	//——————-
	//– Guides for tighter friction fit

	module Guides() {
	translate([GuideOffset,-GuideRadius,0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([GuideOffset,(BatterySize.y + GuideRadius),0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([(BatterySize.x – GuideOffset),-GuideRadius,0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([(BatterySize.x – GuideOffset),(BatterySize.y + GuideRadius),0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([(BatterySize.x + GuideRadius),GuideOffset/2,0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([(BatterySize.x + GuideRadius),(BatterySize.y – GuideOffset/2),0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);

	}

	//– Contact pins
	// Rotated to put them in their natural oriention
	// Aligned to put tip base / end of shank at Overtravel limit

	module PinShape() {

	translate([-(PinShank[LENGTH] + OverTravel),0,0])
	rotate([0,90,0])
	rotate(180/6)
	union() {
	PolyCyl(PinTip[OD],PinShank[LENGTH] + PinTip[LENGTH],6);
	PolyCyl(PinShank[ID],PinShank[LENGTH] + Protrusion,6); // slight extension for clean cuts
	PolyCyl(PinFlange[OD],PinFlange[LENGTH],6);
	}
	}

	// Position pins to put end of shank at battery face
	// Does not include recess access into case

	module PinAssembly() {

	union() {
	for (p = Contacts)
	translate([0,p.y,p.z])
	PinShape();

	translate([-(PinShank[LENGTH] + OverTravel) + PinChannel/2, // solder space
	ContactCenter,
	Contacts[0].z])
	cube([PinChannel,
	(Contacts[1].y – Contacts[0].y + PinFlange[OD]),
	PinFlange[OD]],center=true);

	for (j=[-1,1]) // wire channels
	translate([-(PinShank[LENGTH] + OverTravel – PinChannel/2),
	j*ContactOC/4 + ContactCenter,
	Contacts[0].z – PinFlange[OD]/2])
	rotate(180/6)
	PolyCyl(WireOD,CaseSize.z,6);
	}
	}

	//– Case with origin at battery corner

	module Case() {

	difference() {

	union() {

	difference() {
	union() {
	translate([(CaseSize.x/2 + CaseOffset.x), // basic case shape
	(CaseSize.y/2 + CaseOffset.y),
	(CaseSize.z/2 – BaseThick)])
	hull()
	for (i=[-1,1], j=[-1,1], k=[-1,1])
	translate([i*(CaseSize.x/2 – CornerRadius),
	j*(CaseSize.y/2 – CornerRadius),
	k*(CaseSize.z/2 – CornerRadius)])
	sphere(r=CornerRadius/cos(180/8),$fn=8); // cos() fixes undersize spheres!

	for (i= RGBCircuit ? [-1,1] : -1) { // strut bases
	hull()
	for (j=[-1,1])
	translate([iStrutOC.x/2 + StrutOffset.x,jStrutOC.y/2 + StrutOffset.y,-BaseThick])
	rotate(180/StrutSides)
	cylinder(d=StrutBase[OD],h=StrutBase[LENGTH],$fn=StrutSides);

	translate([i*StrutOC.x/2 + StrutOffset.x,StrutOffset.y,StrutBase[LENGTH]/2 – BaseThick])
	cube([2*StrutBase[OD],StrutOC.y,StrutBase[LENGTH]],center=true); // blocks for fairing

	for (j=[-1,1]) // hemisphere caps
	translate([i*StrutOC.x/2 + StrutOffset.x,
	j*StrutOC.y/2 + StrutOffset.y,
	StrutBase[LENGTH] – BaseThick])
	rotate(180/StrutSides)
	sphere(d=StrutBase[OD]/cos(180/StrutSides),$fn=StrutSides);

	}
	}

	translate([-OverTravel,-GuideRadius,0])
	cube([(BatterySize.x + GuideRadius + OverTravel),
	(BatterySize.y + 2*GuideRadius),
	(BatterySize.z + LidClearance + Protrusion)]); // battery space

	translate([BatterySize.x/2,BatterySize.y/2,0]) // recess around battery name
	cube([0.8BatterySize.x,8,2ThreadThick],center=true);
	}

	Guides(); // improve friction fit

	translate([-OverTravel,-GuideRadius,0]) // battery keying blocks
	cube(KeyBlocks[0] + [OverTravel,GuideRadius,0],center=false);
	translate([-OverTravel,(BatterySize.y – KeyBlocks[1].y),0])
	cube(KeyBlocks[1] + [OverTravel,GuideRadius,0],center=false);

	translate([BatterySize.x/2,BatterySize.y/2,-ThreadThick]) // battery name!
	linear_extrude(height=2*ThreadThick,convexity=10)
	text(text=BatteryName,size=5,spacing=1.20,font="Arial:style:Bold",halign="center",valign="center");


	}

	translate([2*CaseOffset.x, // battery top access
	(CaseOffset.y – Protrusion),
	BatterySize.z + LidClearance])
	cube([2CaseSize.x,(CaseSize.y + 2Protrusion),2*TopThick]);

	for (i2 = RGBCircuit ? [-1,1] : -1) { // strut wire holes and fairing
	for (j=[-1,1])
	translate([i2StrutOC.x/2 + StrutOffset.x,jStrutOC.y/2 + StrutOffset.y,0])
	rotate(180/StrutSides)
	PolyCyl(StrutBase[ID],2*StrutBase[LENGTH],StrutSides);

	for (i=[-1,1], j=[-1,1])
	translate([iStrutBase[OD] + (i2StrutOC.x/2 + StrutOffset.x),
	j*StrutOC.y/2 + StrutOffset.y,
	-(BaseThick + Protrusion)])
	rotate(180/StrutSides)
	PolyCyl(StrutBase[OD],StrutBase[LENGTH] + 2*Protrusion,StrutSides);
	}

	translate([(BatterySize.x – Protrusion), // remove thumb notch
	(CaseSize.y/2 + CaseOffset.y),
	(ThumbRadius)])
	rotate([90,0,0])
	rotate([0,90,0])
	cylinder(r=ThumbRadius,
	h=(WallThick + GuideRadius + 2*Protrusion),
	$fn=22);

	PinAssembly(); // pins and wiring

	translate([CaseOffset.x + PinRecess + Protrusion,(Contacts[1].y + Contacts[0].y)/2,Contacts[0].z])
	translate([-PinRecess,0,0])
	cube([2*PinRecess,
	(Contacts[1].y – Contacts[0].y + PinFlange[OD]/cos(180/6) + 2*HoleWindage),
	2*PinFlange[OD]],center=true); // pin insertion hole

	translate([CaseOffset.x/2 + BatterySize.x/2,BatterySize.y/2,-(BaseThick + Protrusion)])
	linear_extrude(height=2*ThreadThick + Protrusion,convexity=10)
	mirror([0,1,0])
	text(text="KE4ZNU",size=6,spacing=1.20,font="Arial:style:Bold",halign="center",valign="center");
	}

	}

	// Lid position offset to match case

	module Lid() {

	difference() {
	translate([-LidSize.x/2 + LidOffset.x + LidOverhang,LidSize.y/2 + LidOffset.y,0])
	difference() {
	hull()
	for (i=[-1,1], j=[-1,1], k=[-1,1])
	translate([i*(LidSize.x/2 – CornerRadius),
	j*(LidSize.y/2 – CornerRadius),
	k*(LidSize.z – CornerRadius)]) // double thickness for flat bottom
	sphere(r=CornerRadius,$fn=8);

	translate([0,0,-LidSize.z/2]) // remove bottom
	cube([(LidSize.x + 2Protrusion),(LidSize.y + 2Protrusion),LidSize.z],center=true);

	translate([LidSize.x/8,0,0])
	cube([LidSize.x/4,0.75LidSize.y,4ThreadThick],center=true); // epoxy recess
	}

	translate([0,0,-(Contacts[0].z + PinFlange[OD])]) // punch wire holes
	PinAssembly();
	}

	}

	// Spider for RGB LED + radome atop vertical struts

	module RGBSpider() {

	difference() {
	union() {
	for (i=[-1,1], j=[-1,1]) {
	translate([iStrutOC.x/2,jStrutOC.y/2,StrutBase[OD]/2])
	rotate(180/StrutSides) // doesn't quite match crosspieces; close enough
	sphere(d=StrutBase[OD]/cos(180/StrutSides),$fn=StrutSides);
	translate([iStrutOC.x/2,jStrutOC.y/2,0])
	rotate(180/StrutSides)
	cylinder(d=StrutBase[OD],h=StrutBase[OD]/2,$fn=StrutSides);
	}

	for (m=[-1,1]) // connecting bars
	rotate(m*StrutAngle)
	translate([0,0,StrutBase[OD]/4])
	cube([norm(StrutOC),StrutBase[OD],StrutBase[OD]/2],center=true);

	translate([0,0,0]) // pillar for RGB LED and ball
	cylinder(d=BallPillar[OD],h=BallPillar[LENGTH],$fn=BallSides);
	}

	for (i=[-1,1], j=[-1,1]) // strut wires
	translate([iStrutOC.x/2,jStrutOC.y/2,-Protrusion])
	rotate(0)
	PolyCyl(StrutBase[ID],StrutBase[OD]/2,6);

	for (m=[-1,1], n=[0,1]) // RGBA wires through bars
	rotate(mStrutAngle + n180)
	translate([StrutOC.x/3,0,-Protrusion])
	PolyCyl(StrutBase[ID],StrutBase[OD],6);

	# translate([0,0,BallOD/2 + BallPillar[LENGTH] – BallChordM]) // ball inset
	sphere(d=BallOD);

	translate([0,0,2*RGBBody.z + (BallPillar[LENGTH] – BallChordM) – RGBRecess]) // LED inset
	cube(RGBBody + [HoleWindage,HoleWindage,3*RGBBody.z],center=true); // XY clearance + huge height for E-Z cut

	for (m=[-1,1]) // RGBA wires through pillar
	rotate(m*StrutAngle)
	translate([0,0,StrutBase[OD]/2 + WireOD/2 + 0*Protrusion])
	cube([norm(StrutOC)/2,WireOD,WireOD],center=true);

	}
	}

	//——————-
	// Build it!

	if (Layout == "Case")
	Case();

	if (Layout == "Lid")
	Lid();

	if (Layout == "RGBSpider") {
	RGBSpider();
	}

	if (Layout == "Pins") {
	color("Silver",0.5)
	PinShape();
	PinAssembly();
	}

	if (Layout == "Show") { // reveal pin assembly
	difference() {
	Case();

	translate([(CaseOffset.x – Protrusion),
	Contacts[1].y,
	Contacts[1].z])
	cube([(-CaseOffset.x + Protrusion),CaseSize.y,CaseSize.z]);

	translate([(CaseOffset.x – Protrusion),
	(CaseOffset.y – Protrusion),
	0])
	cube([(-CaseOffset.x + Protrusion),
	Contacts[0].y + Protrusion – CaseOffset.y,
	CaseSize.z]);
	}

	translate([0,0,BatterySize.z + Gap])
	Lid();

	color("Silver",0.15)
	PinAssembly();

	if (RGBCircuit)
	translate([StrutOC.x/2,BatterySize.y/2,2*BatterySize.z])
	difference() {
	RGBSpider();
	rotate(180-StrutAngle)
	translate([0,0,-Protrusion])
	cube([norm(StrutOC),StrutBase[OD],2*BallPillar.z],center=false);
	}

	}

	if (Layout == "Build") {
	translate([-BatterySize.x/2,-BatterySize.y/2,BaseThick])
	Case();
	translate([-CaseSize.x + LidSize.x,-(LidSize.y/2 + LidOffset.y),0])
	Lid();
	if (RGBCircuit)
	translate([StrutOC.x + BatterySize.x/2,0,0])
	RGBSpider();
	}

	if (Layout == "Fit") {
	Case();
	translate([0,0,(BatterySize.z + Gap)])
	Lid();
	color("Silver",0.25)
	PinAssembly();
	if (RGBCircuit)
	translate([StrutOC.x/2,BatterySize.y/2,2*BatterySize.z])
	RGBSpider();
	}

view raw Astable Multivibrator Battery Holder.scad hosted with ❤ by GitHub

The original doodles give useful dimensions, plus some details not withstanding the test of time:

RGB LED Radome Spider - doodles — RGB LED Radome Spider – doodles

The actual center-to-center distances for the wire posts come from the battery dimensions, rounded up or down as appropriate, to the nearest multiple of 5 mm, so those are just serving suggestions.

2018-12-28

Astable Multivibrator: RGB LED Strut Fixture

One cannot (or, perhaps, should not attempt to) solder parts to 14 AWG wires seated in a 3D printed battery holder base, so I cleaned up the edges of two polycarbonate scraps:

RGB LED Strut Fixture – flycutting setup

Then drilled holes to match the strut positions:

RGB LED Strut Fixture – drilling

The holes fit snippets of the original wire insulation, because, after all, polycarbonate is a thermoplastic, too.

Stretch some copper wire to straighten and work-harden it, add insulation snippets, then maneuver everything in place:

RGB LED Strut Fixture – assembled

I definitely need a third (and maybe a fourth) hand to hold each part, the solder, and the iron, but at least the wires won’t walk away in the middle of the process.

2018-12-27
Shoe Lace Ferrules

A new pair of shoes arrived with extravagantly long laces requiring shortening. Years ago, I found heatshrink tubing completely unequal to the task, so I deployed Real Metal:

Shoelaces with crimped ferrules

The ferrules come from a kit of such things, minus their plastic strain relief:

Ferrule terminals – hex crimper

That’s a fancy hexagonal crimper for round-ish results. If you have a square terminal block, you should use the square crimper that comes with the kit.

Worked perfectly and produced immediate customer satisfaction.

2018-12-26

Astable Multivibrator: Battery Base for RGB LED

Collecting the battery dimensions into a table should make it easier to generate new holders for astable multivibrators:

//- Battery dimensions - rationalized from several samples
//  Coordinate origin at battery end with contacts, key openings downward

T_NAME = 0;
T_SIZE = 1;
T_CONTACTS = 2;
T_KEYS = 3;

BatteryData = [
  ["NP-BX1",[43.0,30.0,9.5],[[-0.75,6.0,6.2],[-0.75,16.0,6.2]],[[1.70,3.70,2.90],[1.70,3.60,2.90]]],
  ["NB-5L", [45.0,32.0,8.0],[[-0.82,4.5,3.5],[-0.82,11.0,3.5]],[[2.2,0.75,2.0],[2.2,2.8,2.0]]],
  ["NB-6L",[42.5,35.5,7.0],[[-0.85,5.50,3.05],[-0.85,11.90,3.05]],[[2.0,0.70,2.8],[2.0,2.00,2.8]]],
];

echo(str("Battery: ",BatteryName));

BatteryIndex = search([BatteryName],BatteryData,1,0)[0];
echo(str(" Index: ",BatteryIndex));

BatterySize = BatteryData[BatteryIndex][T_SIZE];          // X = length, Y = width, Z = thickness
echo(str(" Size: ",BatterySize));

Contacts = BatteryData[BatteryIndex][T_CONTACTS];         // relative to battery edge, front, and bottom
echo(str(" Contacts: ",Contacts));

ContactOC = Contacts[1].y - Contacts[0].y;                // + and - terminals for pogo pin contacts
ContactCenter = Contacts[0].y + ContactOC/2;

KeyBlocks = BatteryData[BatteryIndex][T_KEYS];            // recesses in battery face set X position
echo(str(" Keys: ",KeyBlocks));

A new boolean, RGBCircuit, adds a second pair of wire strut bases and punches holes in them:

Which looks about like you’d expect in real life:

Astable - NP-BX1 RGB holder — Astable – NP-BX1 RGB holder

The lettering, of course, doesn’t come through clearly, but it suffices as a hint for which battery to use.

The four vertical struts will support three astable multivibrators, each driving one color of a common-anode RGB LED. It remains to be seen if there’s enough room for all the parts along the sides of the battery pack.

The OpenSCAD source code as a GitHub Gist:

	// Holder for Li-Ion battery packs
	// Ed Nisley KE4ZNU January 2013
	// 2018-11-15 Adapted for 1.5 mm pogo pins, battery data table

	/* [Layout options] */

	BatteryName = "NP-BX1"; // [NP-BX1,NB-5L,NB-6L]

	RGBCircuit = true; // false = 1 strut pair, true = 2 pairs

	Layout = "Show"; // [Build,Show,Fit,Case,Lid,Pins]

	/* [Extrusion parameters] – must match reality! */
	// Print with +2 shells and 3 solid layers

	ThreadThick = 0.25;
	ThreadWidth = 0.40;

	HoleWindage = 0.2;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	Protrusion = 0.1; // make holes end cleanly

	/* [Hidden] */

	inch = 25.4;

	BuildOffset = 3.0; // clearance for build layout

	Gap = 2.0; // separation for Fit parts

	//- Basic dimensions

	WallThick = 4*ThreadWidth; // holder sidewalls

	BaseThick = 6*ThreadThick; // bottom of holder to bottom of battery
	TopThick = 6*ThreadThick; // top of battery to top of holder

	//- Battery dimensions – rationalized from several samples
	// Coordinate origin at battery end with contacts, key openings downward

	T_NAME = 0;
	T_SIZE = 1;
	T_CONTACTS = 2;
	T_KEYS = 3;

	BatteryData = [
	["NP-BX1",[43.0,30.0,9.5],[[-0.75,6.0,6.2],[-0.75,16.0,6.2]],[[1.70,3.70,2.90],[1.70,3.60,2.90]]],
	["NB-5L", [45.0,32.0,8.0],[[-0.82,4.5,3.5],[-0.82,11.0,3.5]],[[2.2,0.75,2.0],[2.2,2.8,2.0]]],
	["NB-6L",[42.5,35.5,7.0],[[-0.85,5.50,3.05],[-0.85,11.90,3.05]],[[2.0,0.70,2.8],[2.0,2.00,2.8]]],
	];

	echo(str("Battery: ",BatteryName));

	BatteryIndex = search([BatteryName],BatteryData,1,0)[0];
	echo(str(" Index: ",BatteryIndex));

	BatterySize = BatteryData[BatteryIndex][T_SIZE]; // X = length, Y = width, Z = thickness
	echo(str(" Size: ",BatterySize));

	Contacts = BatteryData[BatteryIndex][T_CONTACTS]; // relative to battery edge, front, and bottom
	echo(str(" Contacts: ",Contacts));

	ContactOC = Contacts[1].y – Contacts[0].y; // + and – terminals for pogo pin contacts
	ContactCenter = Contacts[0].y + ContactOC/2;

	KeyBlocks = BatteryData[BatteryIndex][T_KEYS]; // recesses in battery face set X position
	echo(str(" Keys: ",KeyBlocks));

	//- Pin dimensions

	ID = 0;
	OD = 1;
	LENGTH = 2;

	PinShank = [1.5,2.0,6.5]; // shank, flange, compressed length
	PinFlange = [1.5,2.0,0.5]; // flange, length included in PinShank
	PinTip = [0.9,0.9,2.5]; // extended spring-loaded tip

	WireOD = 1.7; // wiring from pins to circuitry

	PinChannel = WireOD; // cut behind flange for solder overflow
	PinRecess = 3.0; // recess behind pin flange end for epoxy fill

	echo(str("Contact tip dia: ",PinTip[OD]));
	echo(str(" .. shank dia: ",PinShank[ID]));

	OverTravel = 0.5; // space beyond battery face at X origin

	//- Holder dimensions

	GuideRadius = ThreadWidth; // friction fit ridges
	GuideOffset = 7; // from compartment corners

	LidOverhang = 2.0; // atop of battery for retention
	LidClearance = LidOverhang * (BatterySize.z/BatterySize.x); // … clearance above battery for tilting
	echo(str("Lid clearance: ",LidClearance));

	CaseSize = [BatterySize.x + PinShank[LENGTH] + OverTravel + PinRecess + GuideRadius + WallThick,
	BatterySize.y + 2WallThick + 2GuideRadius,
	BatterySize.z + BaseThick + TopThick + LidClearance];
	echo(str("Case size: ",CaseSize));

	CaseOffset = [-(PinShank[LENGTH] + OverTravel + PinRecess),-(WallThick + GuideRadius),0]; // position around battery

	ThumbRadius = 10.0; // thumb opening at end of battery

	CornerRadius = 3*ThreadThick; // nice corner rounding

	LidSize = [-CaseOffset.x + LidOverhang,CaseSize.y,TopThick];

	LidOffset = [0.0,CaseOffset.y,0];

	//- Wire struts

	StrutDia = 1.6; // AWG 14 = 1.6 mm
	StrutSides = 3*4;

	StrutBase = [StrutDia,StrutDia + 4*WallThick,CaseSize.z – TopThick]; // ID = wire, OD = buildable

	StrutOC = IntegerMultiple(CaseSize.y + StrutBase[OD],5.0); // set easy OC wire spacing
	echo(str("Strut OC: ",StrutOC));


	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);

	FixDia = Dia / cos(180/Sides);

	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}

	//——————-
	//– Guides for tighter friction fit

	module Guides() {
	translate([GuideOffset,-GuideRadius,0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([GuideOffset,(BatterySize.y + GuideRadius),0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([(BatterySize.x – GuideOffset),-GuideRadius,0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([(BatterySize.x – GuideOffset),(BatterySize.y + GuideRadius),0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([(BatterySize.x + GuideRadius),GuideOffset/2,0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);
	translate([(BatterySize.x + GuideRadius),(BatterySize.y – GuideOffset/2),0])
	PolyCyl(2*GuideRadius,(BatterySize.z – Protrusion),4);

	}

	//– Contact pins
	// Rotated to put them in their natural oriention
	// Aligned to put tip base / end of shank at Overtravel limit

	module PinShape() {

	translate([-(PinShank[LENGTH] + OverTravel),0,0])
	rotate([0,90,0])
	rotate(180/6)
	union() {
	PolyCyl(PinTip[OD],PinShank[LENGTH] + PinTip[LENGTH],6);
	PolyCyl(PinShank[ID],PinShank[LENGTH] + Protrusion,6); // slight extension for clean cuts
	PolyCyl(PinFlange[OD],PinFlange[LENGTH],6);
	}
	}

	// Position pins to put end of shank at battery face
	// Does not include recess access into case

	module PinAssembly() {

	union() {
	for (p = Contacts)
	translate([0,p.y,p.z])
	PinShape();

	translate([-(PinShank[LENGTH] + OverTravel) + PinChannel/2, // solder space
	ContactCenter,
	Contacts[0].z])
	cube([PinChannel,
	(Contacts[1].y – Contacts[0].y + PinFlange[OD]),
	PinFlange[OD]],center=true);

	for (j=[-1,1]) // wire channels
	translate([-(PinShank[LENGTH] + OverTravel – PinChannel/2),
	j*ContactOC/4 + ContactCenter,
	Contacts[0].z – PinFlange[OD]/2])
	rotate(180/6)
	PolyCyl(WireOD,CaseSize.z,6);
	}
	}

	//– Case with origin at battery corner

	module Case() {

	difference() {

	union() {

	difference() {
	union() {
	translate([(CaseSize.x/2 + CaseOffset.x), // basic case shape
	(CaseSize.y/2 + CaseOffset.y),
	(CaseSize.z/2 – BaseThick)])
	hull()
	for (i=[-1,1], j=[-1,1], k=[-1,1])
	translate([i*(CaseSize.x/2 – CornerRadius),
	j*(CaseSize.y/2 – CornerRadius),
	k*(CaseSize.z/2 – CornerRadius)])
	sphere(r=CornerRadius/cos(180/8),$fn=8); // cos() fixes undersize spheres!

	for (i=[0,RGBCircuit ? 1 : 0]) { // add strut bases
	hull()
	for (j=[-1,1])
	translate([i(BatterySize.x – StrutBase[OD]),jStrutOC/2 + BatterySize.y/2,-BaseThick])
	rotate(180/StrutSides)
	cylinder(d=StrutBase[OD],h=StrutBase[LENGTH],$fn=StrutSides);

	translate([i*(BatterySize.x – StrutBase[OD]),BatterySize.y/2,StrutBase[LENGTH]/2 – BaseThick])
	cube([2*StrutBase[OD],StrutOC,StrutBase[LENGTH]],center=true);
	}
	}

	translate([-OverTravel,-GuideRadius,0])
	cube([(BatterySize.x + GuideRadius + OverTravel),
	(BatterySize.y + 2*GuideRadius),
	(BatterySize.z + LidClearance + Protrusion)]); // battery space
	}

	Guides(); // improve friction fit

	translate([-OverTravel,-GuideRadius,0]) // battery keying blocks
	cube(KeyBlocks[0] + [OverTravel,GuideRadius,0],center=false);
	translate([-OverTravel,(BatterySize.y – KeyBlocks[1].y),0])
	cube(KeyBlocks[1] + [OverTravel,GuideRadius,0],center=false);

	}

	translate([2*CaseOffset.x, // battery top access
	(CaseOffset.y – Protrusion),
	BatterySize.z + LidClearance])
	cube([2CaseSize.x,(CaseSize.y + 2Protrusion),2*TopThick]);

	for (i2=[0,RGBCircuit ? 1 : 0]) { // strut wire holes and fairing
	for (j=[-1,1])
	translate([i2(BatterySize.x – StrutBase[OD]),jStrutOC/2 + BatterySize.y/2,0])
	PolyCyl(StrutBase[ID],StrutBase[LENGTH],6);

	for (i=[-1,1], j=[-1,1])
	translate([iStrutBase[OD] + (i2(BatterySize.x – StrutBase[OD])),
	j*StrutOC/2 + BatterySize.y/2,
	-(BaseThick + Protrusion)])
	rotate(180/StrutSides)
	PolyCyl(StrutBase[OD],StrutBase[LENGTH] + 2*Protrusion,StrutSides);
	}

	translate([(BatterySize.x – Protrusion), // remove thumb notch
	(CaseSize.y/2 + CaseOffset.y),
	(ThumbRadius)])
	rotate([90,0,0])
	rotate([0,90,0])
	cylinder(r=ThumbRadius,
	h=(WallThick + GuideRadius + 2*Protrusion),
	$fn=22);

	PinAssembly(); // pins and wiring

	translate([CaseOffset.x + PinRecess + Protrusion,(Contacts[1].y + Contacts[0].y)/2,Contacts[0].z])
	translate([-PinRecess,0,0])
	cube([2*PinRecess,
	(Contacts[1].y – Contacts[0].y + PinFlange[OD]/cos(180/6) + 2*HoleWindage),
	2*PinFlange[OD]],center=true); // pin insertion hole

	LineSpace = 7.0;
	translate([BatterySize.x/2,CaseSize.y/2,-ThreadThick])
	linear_extrude(height=2*ThreadThick,convexity=10)
	text(text=BatteryName,size=5,spacing=1.20,font="Arial:style:Bold",halign="center",valign="center");

	translate([BatterySize.x/2,CaseSize.y/2,-(BaseThick + Protrusion)])
	linear_extrude(height=ThreadThick + Protrusion,convexity=10)
	mirror([0,1,0])
	text(text="KE4ZNU",size=6,spacing=1.20,font="Arial:style:Bold",halign="center",valign="center");
	}

	}

	// Lid position offset to match case

	module Lid() {

	difference() {
	translate([-LidSize.x/2 + LidOffset.x + LidOverhang,LidSize.y/2 + LidOffset.y,0])
	difference() {
	hull()
	for (i=[-1,1], j=[-1,1], k=[-1,1])
	translate([i*(LidSize.x/2 – CornerRadius),
	j*(LidSize.y/2 – CornerRadius),
	k*(LidSize.z – CornerRadius)]) // double thickness for flat bottom
	sphere(r=CornerRadius,$fn=8);

	translate([0,0,-LidSize.z/2]) // remove bottom
	cube([(LidSize.x + 2Protrusion),(LidSize.y + 2Protrusion),LidSize.z],center=true);

	translate([LidSize.x/8,0,0])
	cube([LidSize.x/4,0.75LidSize.y,4ThreadThick],center=true); // epoxy recess
	}

	translate([0,0,-(Contacts[0].z + PinFlange[OD])]) // punch wire holes
	PinAssembly();
	}

	}


	//——————-
	// Build it!

	if (Layout == "Case")
	Case();

	if (Layout == "Lid")
	Lid();

	if (Layout == "Pins") {
	color("Silver",0.5)
	PinShape();
	PinAssembly();
	}

	if (Layout == "Show") { // reveal pin assembly
	difference() {
	Case();

	translate([(CaseOffset.x – Protrusion),
	Contacts[1].y,
	Contacts[1].z])
	cube([(-CaseOffset.x + Protrusion),
	CaseSize.y,
	(CaseSize.z – Contacts[0].z + Protrusion)]);

	translate([(CaseOffset.x – Protrusion),
	(CaseOffset.y – Protrusion),
	0])
	cube([(-CaseOffset.x + Protrusion),
	Contacts[0].y + Protrusion – CaseOffset.y,
	CaseSize.z]);
	}

	translate([0,0,BatterySize.z + Gap])
	Lid();

	color("Silver",0.15)
	PinAssembly();

	}

	if (Layout == "Build") {
	translate([-(CaseSize.x/2 + CaseOffset.x),-(CaseOffset.y – BuildOffset),BaseThick])
	Case();
	translate([CaseSize.x/2,-LidSize.x,0])
	rotate(90)
	Lid();
	}

	if (Layout == "Fit") {
	Case();
	translate([0,0,(BatterySize.z + Gap)])
	Lid();
	color("Silver",0.25)
	PinAssembly();
	}

view raw Astable Multivibrator Battery Holder.scad hosted with ❤ by GitHub

2018-12-21

Dell Laptop Battery Teardown

The defunct 18650 lithium cell I used for the DSO150 power supplyprompted me to crack open a battery from a long-gone Dell laptop to see if any of its cells were in better condition:

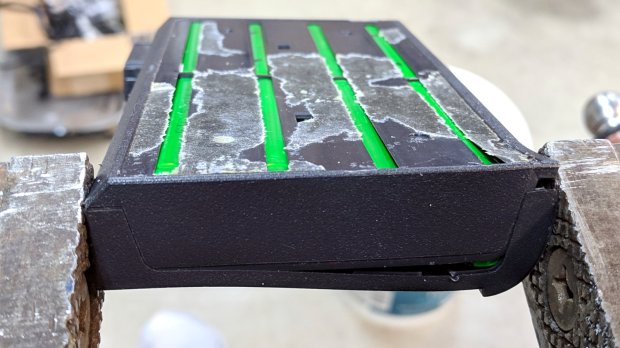

Dell laptop battery – case cracking

Yup, gently crushing it in a vise splits the case enough to work the Designated Prydriver around the joint, a process considerably simplified by the knowledge the case isn’t going back together again.

Prying the top off reveals the cells and their connections:

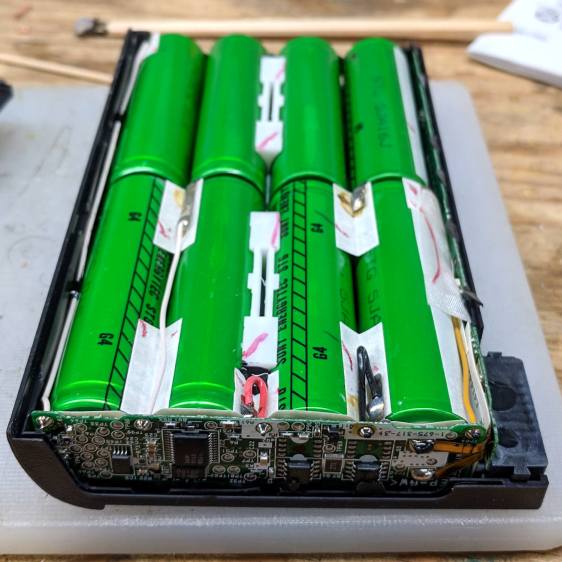

Dell laptop battery – circuitry

One of the cells had corroded, accounting for the pack’s failure:

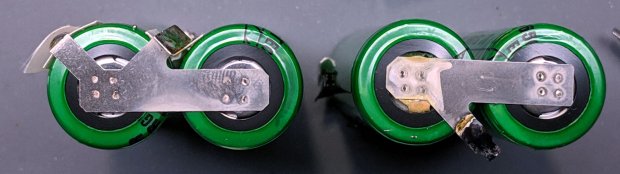

Dell laptop battery – corroded cell

The others were undamaged, but had self-discharged down to about 1.5 V over the course of several years and refused to charge.

The moral may be to tear the pack apart as soon as it fails, a point always easier to recognize in retrospect.

So I taped the packs to prevent shorts and tossed them into the recycle box.

2018-12-20
