Modifying a 2.5 mm Collet Pen Holder for a 3 mm Diamond Engraver

Of course, the diamond engraving points have a 3 mm shaft that doesn’t fit in the 2.5 mm Collet Pen Holder, but making a hole bigger isn’t much of a problem …

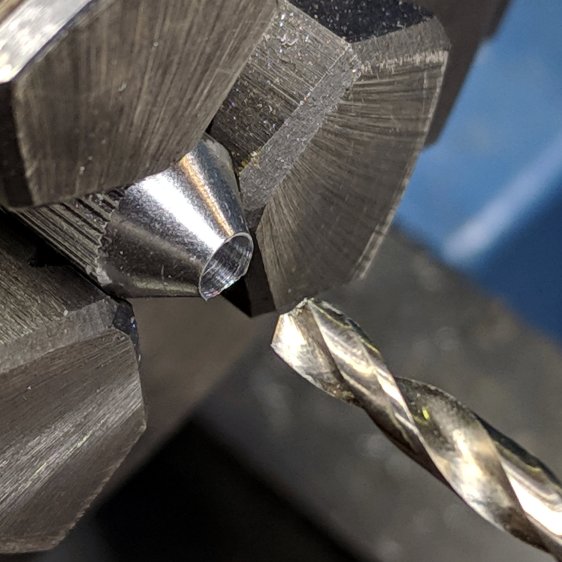

Start by drilling out the collet closer nut:

Collet Holder - closer nut drilling

Collet Holder – closer nut drilling

The hole didn’t start out on center and I didn’t improve it in the least. A touch of the lathe bit and a little file work eased off the razor edge around the snout.

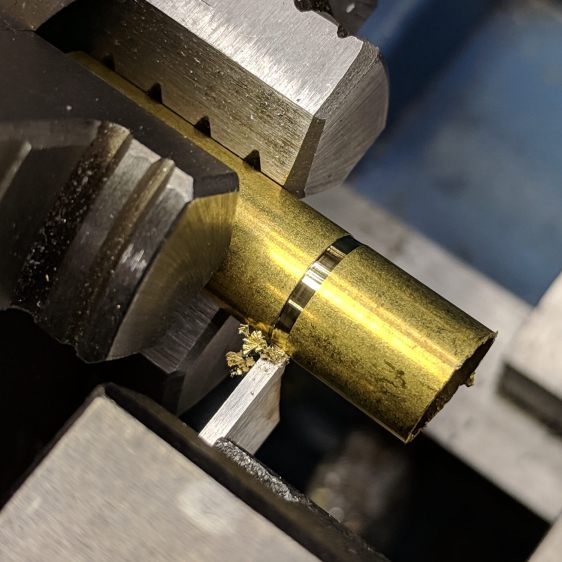

The knurled ridges at the top are larger than the threaded body, which requires a shim around the threads to fit them into the lathe chuck. Start by cutting a slightly larger ID brass tube to the length of the threaded section:

Collet Holder - brass shim cutoff

Collet Holder – brass shim cutoff

I finally got a Round Tuit and ground opposing angles on the cutoff tool ends, so I can choose which side of the cut goes through first. In this case, the left side cuts cleanly and the scrap end carries the thinned slot into the chip tray.

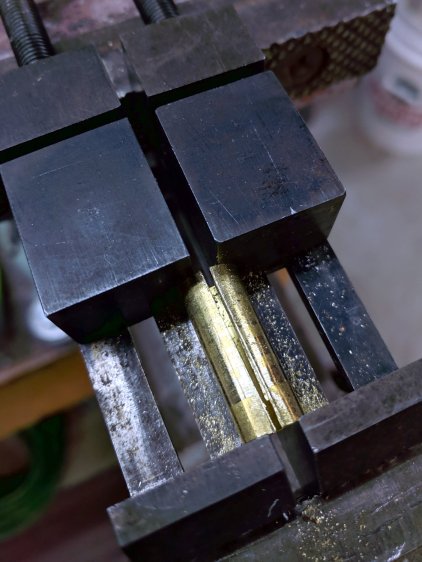

Grab the tube in a pair of machinist vises and hacksaw a slot:

Collet Holder - brass shim slitting

Collet Holder – brass shim slitting

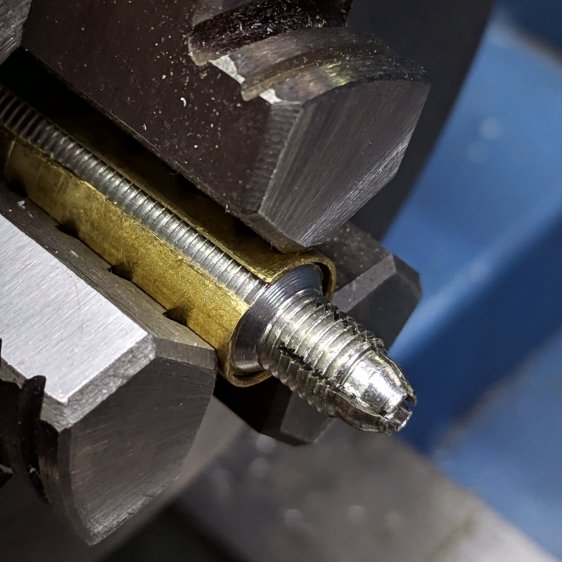

Apply a nibbler to embiggen the slot enough to leave an opening when it’s squashed around the threads:

Collet Holder - brass shim around threads

Collet Holder – brass shim around threads

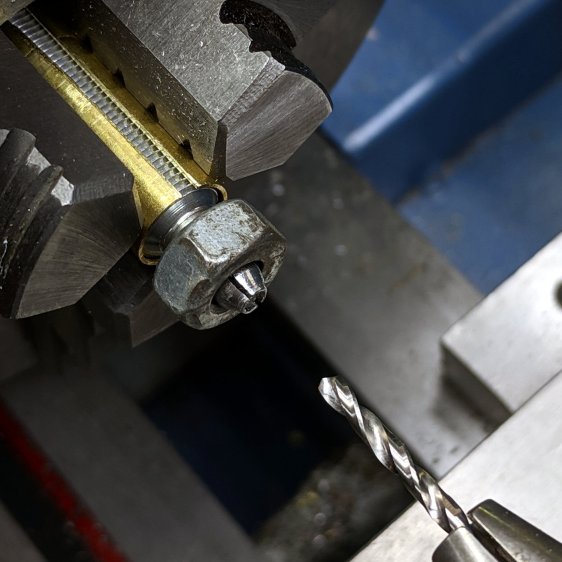

Put a nut on the collet threads in an attempt to keep them neatly lined up while drilling:

Collet Holder - collet drilling

Collet Holder – collet drilling

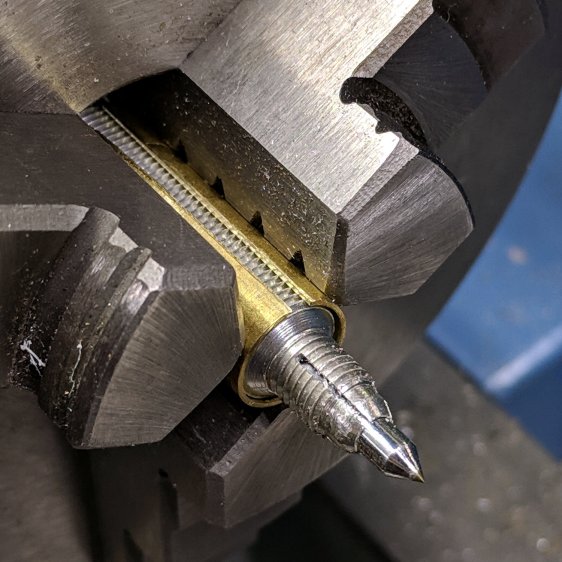

Drill the hole to a bit over 3 mm in small steps, because it’s not the most stable setup you’ve ever used. Eventually, the diamond point just slips right in:

Collet Holder - 3 mm scribe test fit

Collet Holder – 3 mm scribe test fit

Reassemble in reverse order and It Just Works:

Collet Holder - finished

Collet Holder – finished

Now, to scratch up some acrylic!

Advertisements

, ,

  1. #1 by Vedran on 2018-11-06 - 11:33

    Lesser man would probably turn down the engraving bit shaft :)

    • #2 by Ed on 2018-11-06 - 11:58

      Thought about that, realized I couldn’t possibly keep the thing concentric, took the easy way out!

  2. #3 by Vedran on 2018-11-06 - 14:07

    Why does it need to be concentric? It’s not a rotating tool, is it? Any runout would just end up as a little offset.

    • #4 by Ed on 2018-11-07 - 10:11

      As part of this adventure, I discovered rotating diamond engraving tools, but this ain’t one of them, so concentricity doesn’t really matter. I don’t know what kind of holder I’ll end up with, either, so I’m surely being too fussy.

      But I do know this: if I turned it down, the point would snap ten seconds into the first engraving run, whereupon I’d have to turn down the other tool. By embiggening the collet, I can feed it a steady stream of standard diamond tools!

  3. #5 by Vedran on 2018-11-07 - 14:22

    Makes sense… I was reasoning diamond tool vs plastic equals indestructible, but now you pointed it out, a video of me stupidly snapping a 90° carbide chamfer tool replays in my mind in 4k quality :)

    • #6 by Ed on 2018-11-07 - 15:36

      I’m mildly surprised the thing remains un-dropped after a week; I know it would maneuver around the carpet scrap I’m standing on and hit the floor diamond-end downward.
