Amateur Radio, Electronics Workbench

60 kHz Preamp: Filtering and Rebiasing

The LT1920 instrumentation amplifier now sports two silver-mica caps on its inputs as a differential-mode input filter cutting back strong RF signals (clicky for more dots):

60 kHz Preamp Schematic - DM filter inst amp - BP filter rebias - 2017-09-22
60 kHz Preamp Schematic – DM filter inst amp – BP filter rebias – 2017-09-22

In principle, a DM filter should eliminate RF rectification from out-of-band signals, although I think the attic is quiet enough to not need any help. The caps form a simple RC LP filter rolling off at 5.490 kΩ × 150 pF → 193 kHz, high enough above the 60 kHz signal to not make much difference down there.

The silver-mica caps come from the Big Box o’ Caps, which contained an envelope with a few large 150 pF ±1% caps and a bag stuffed with similar 147 pF ±1% caps. Mixed in with the latter were some smaller 147 pF caps (*) of no particular tolerance (perhaps 5%), from which I neurotically matched a pair to 0.05 pF without too much effort. Doesn’t matter, given the other tolerances and suchlike, but it was amusing.

I’d inadvertently grounded the cold end of the 330 Ω input resistor in the LM353 bandpass filter, now properly tied at the Vcc/2 virtual ground to take the DC load off the LT1920 output: a 100 nF cap (27 Ω at 60 kHz) stores the bias level without messing up the filter shape.

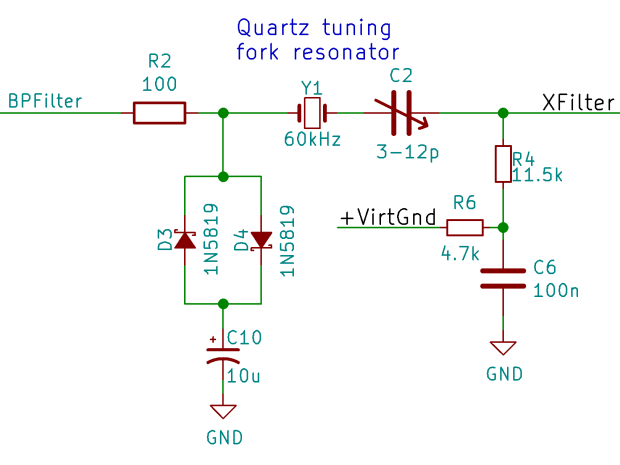

A similar cap rebiases the protected resonator at the LT1010 buffer input:

60 kHz Preamp Schematic - protected resonator - output rebias - 2017-09-22
60 kHz Preamp Schematic – protected resonator – output rebias – 2017-09-22

The new caps aren’t all that visible and the resonator vanishes in the clutter:

60 kHz Preamp - protected resonator filter - overview
60 kHz Preamp – protected resonator filter – overview

Next: find out how well it works!

(*) Yes, there were two envelopes between 150 pF and 147 pF:

Silver-mica caps
Silver-mica caps

Electronics Workbench, Oddities

60 kHz Preamp: Power LED Resistor Oops

I eventually noticed the yellow LED indicating +24 V input from the power supply (previously, a noisy wall wart) was dark. Poking around revealed I’d inadvertently installed a 1 kΩ ballast resistor:

LF Preamp - burned power-on LED resistor
LF Preamp – burned power-on LED resistor

A 1/4 W resistor can’t dissipate half a watt for very long, as shown by the discolored circuit board around the leads and the faint smell of electrical death in the area.

I swapped in a 3.3 kΩ resistor, the yellow LED lit up for a few seconds, then went dark again. This time, the LED was dead; apparently, it’d been overstressed for long enough to fail. I can’t be too annoyed.

Unfortunately, replacing the LED required removing the entire housing with all three LEDs, chopping off the defunct block, reinstalling the attenuated block with the two green LEDs, installing a similar red LED, and finally installing a nice 3.3 kΩ half-watt resistor:

Power LED - Red with 0.5 W resistor
Power LED – Red with 0.5 W resistor

So it goes …

Amateur Radio, Electronics Workbench, Software

LF DDS Sine Generator With 0.1 Hz Steps

Gutting the crystal tester program and grafting a simple joystick interface onto the corpse produces an LF sine wave generator with 0.10 Hz steps:

FG085 vs AD9850 DDS frequencies
FG085 vs AD9850 DDS frequencies

The FG085 function generator shows 60000 Hz and the AD9850 shows 60001.58 Hz, but they’re running at exactly the same frequency:

DDS 1.58 FG085 0.0
DDS 1.58 FG085 0.0

I trust the AD9850 readout, because I just finished zero-beating it against the GPS-locked 10 MHz frequency reference: it’s dead on. The scope’s frequency measurement is clearly out of its depth at this resolution.

The “user interface” doesn’t amount to much. The DDS starts at 60.000 kHz, as defined by a program constant. Push the joystick left-right to step by 0.1 Hz (actually, multiples of 0.0291 Hz, so either 0.087 or 0.116 Hz, whichever makes the answer come out closer to the next multiple of 0.1 Hz). Push it up-down to step by 1.0 Hz (insert similar handwaving here). Push the button inward to reset to 60.000 kHz.

The OLED displays the frequency (in big digits), the output of the log amplifier (which isn’t hooked up here) in dB (over 4 μV), the DDS clock oscillator temperature, and a few lines of static prompting. The camera shutter blanked the last line, which should read “Button = reset”.

There’s no amplitude adjustment, other than the DDS current-control twiddlepot and the buffer amp’s gain-setting jumpers, but I (think I can) gimmick up an adequate inductive kicker for the fake preamp antenna circuit.

Not much to look at, but now I can (manually) probe the frequency response of the 60 kHz preamp with sufficient resolution to figure out if / how the tuning fork resonator filter behaves.

The Arduino source code as a GitHub Gist:

// Sine wave generator
// Ed Nisley - KE4ZNU
// 2017-09-20
#include <avr/pgmspace.h>
#include <U8g2lib.h>
#include <U8x8lib.h>
#include <Adafruit_MCP4725.h>
//---------------------
// Pin locations
#define PIN_SYNC 5
#define PIN_CX_SHORT 6
#define PIN_DDS_RESET 7
#define PIN_DDS_LATCH 8
#define PIN_HEARTBEAT 9
#define PIN_LOG_AMP A0
#define PIN_JOYBUTTTON A1
#define PIN_JOY_Y A2
#define PIN_JOY_X A3
// SPI & I2C use hardware support: these pins are predetermined
#define PIN_SS 10
#define PIN_MOSI 11
#define PIN_MISO 12
#define PIN_SCK 13
#define PIN_IIC_SDA A4
#define PIN_IIC_SCL A5
// IIC Hardware addresses
// OLED library uses its default address
#define LM75_ADDR 0x48
#define SH1106_ADDR 0x70
#define MCP4725_ADDR 0x60
// Useful constants
#define GIGA 1000000000LL
#define MEGA 1000000LL
#define KILO 1000LL
#define ONE_FX (1LL << 32)
#define CALFREQ (10LL * MEGA * ONE_FX)
// Structures for 64-bit fixed point numbers
// Low word = fractional part
// High word = integer part
struct ll_fx {
uint32_t low; // fractional part
uint32_t high; // integer part
};
union ll_u {
uint64_t fx_64;
struct ll_fx fx_32;
};
// Define semi-constant values
union ll_u CenterFreq = {(60000 - 0) * ONE_FX}; // center of scan
//union ll_u CenterFreq = {(32768 - 2) * ONE_FX}; // center of scan
#define NOMINAL_OSC ((125 * MEGA) * ONE_FX)
union ll_u Oscillator = {NOMINAL_OSC}; // oscillator frequency
int16_t OscOffset = 287; // offset from NOMINAL_OSC at room-ish temperature
// Coefficients for oscillator offset as function of temperature
#define TC_SQUARE ((1340 * ONE_FX) / 1000)
#define TC_LINEAR ((-1474 * ONE_FX) / 10)
#define TC_INTERCEPT ((3415 * ONE_FX) )
// Frequency range & step size
uint16_t TestWidth = 5*2; // width must be an even integer
union ll_u StepSize = {ONE_FX / 10}; // 0.1 Hz is smallest practical decimal step
union ll_u NomFreq, ActualFreq; // displayed vs actual DDS frequency
union ll_u TestFreq;
// Global variables of interest to everyone
union ll_u CtPerHz; // will be 2^32 / oscillator
union ll_u HzPerCt; // will be oscillator / 2^32
char Buffer[10+1+10+1]; // string buffer for fixed point number conversions
union ll_u Temperature; // read from LM75A
// Hardware library variables
U8X8_SH1106_128X64_NONAME_HW_I2C u8x8(U8X8_PIN_NONE);
//U8X8_SH1106_128X64_NONAME_4W_HW_SPI u8x8(PIN_DISP_SEL, PIN_DISP_DC , PIN_DISP_RST);
//U8X8_SH1106_128X64_NONAME_4W_SW_SPI u8x8(PIN_SCK, PIN_MOSI, PIN_DISP_SEL, PIN_DISP_DC , PIN_DISP_RST);
#define DAC_WR false
#define DAC_WR_EEP true
#define DAC_BITS 12
#define DAC_MAX 0x0fff
Adafruit_MCP4725 XAxisDAC; // I²C DAC for X axis output
uint32_t XAxisValue; // DAC parameter uses 32 bits
union ll_u LogAmpdB; // computed dB value
// Timekeeping
#define HEARTBEAT_MS 3000
unsigned long MillisNow,MillisThen;
//-----------
// Useful functions
// Pin twiddling
void TogglePin(char bitpin) {
digitalWrite(bitpin,!digitalRead(bitpin)); // toggle the bit based on previous output
}
void PulsePin(char bitpin) {
TogglePin(bitpin);
TogglePin(bitpin);
}
// These may need debouncing in some circuits
void WaitButtonDown() {
word ai;
do {
ai = analogRead(PIN_JOYBUTTTON);
} while (ai > 600);
}
void WaitButtonUp() {
word ai;
do {
ai = analogRead(PIN_JOYBUTTTON);
} while (ai < 400);
}
void WaitButton() {
Serial.print(F("Waiting for button:"));
WaitButtonDown();
delay(10);
WaitButtonUp();
delay(100);
Serial.println(F(" done"));
}
// Hardware-assisted SPI I/O
void EnableSPI(void) {
digitalWrite(PIN_SS,HIGH); // set SPI into Master mode
SPCR |= 1 << SPE;
}
void DisableSPI(void) {
SPCR &= ~(1 << SPE);
}
void WaitSPIF(void) {
while (! (SPSR & (1 << SPIF))) {
// TogglePin(PIN_HEARTBEAT);
// TogglePin(PIN_HEARTBEAT);
continue;
}
}
byte SendRecSPI(byte Dbyte) { // send one byte, get another in exchange
SPDR = Dbyte;
WaitSPIF();
return SPDR; // SPIF will be cleared
}
//--------------
// DDS module
void EnableDDS(void) {
digitalWrite(PIN_DDS_LATCH,LOW); // ensure proper startup
digitalWrite(PIN_DDS_RESET,HIGH); // minimum reset pulse 40 ns, not a problem
digitalWrite(PIN_DDS_RESET,LOW);
delayMicroseconds(1); // max latency 100 ns, not a problem
DisableSPI(); // allow manual control of outputs
digitalWrite(PIN_SCK,LOW); // ensure clean SCK pulse
PulsePin(PIN_SCK); // ... to latch hardwired config bits
PulsePin(PIN_DDS_LATCH); // load hardwired config bits = begin serial mode
EnableSPI(); // turn on hardware SPI controls
SendRecSPI(0x00); // shift in serial config bits
PulsePin(PIN_DDS_LATCH); // load serial config bits
}
// Write delta phase count to DDS
// This comes from the integer part of a 64-bit scaled value
void WriteDDS(uint32_t DeltaPhase) {
SendRecSPI((byte)DeltaPhase); // low-order byte first
SendRecSPI((byte)(DeltaPhase >> 8));
SendRecSPI((byte)(DeltaPhase >> 16));
SendRecSPI((byte)(DeltaPhase >> 24));
SendRecSPI(0x00); // 5 MSBs = phase = 0, 3 LSBs must be zero
PulsePin(PIN_DDS_LATCH); // write data to DDS
}
//--------------
// Log amp module
#define LOG_AMP_SAMPLES 10
#define LOG_AMP_DELAYMS 10
uint64_t ReadLogAmp() {
union ll_u LogAmpRaw;
LogAmpRaw.fx_64 = 0;
for (byte i=0; i<LOG_AMP_SAMPLES; i++) {
LogAmpRaw.fx_32.high += analogRead(PIN_LOG_AMP);
delay(LOG_AMP_DELAYMS);
}
LogAmpRaw.fx_64 /= LOG_AMP_SAMPLES; // figure average from totally ad-hoc number of samples
LogAmpRaw.fx_64 *= 5; // convert from ADC counts to voltage at 5 V/1024 counts
LogAmpRaw.fx_64 /= 1024;
LogAmpRaw.fx_64 /= 24; // convert from voltage to dBV at 24 mV/dBV
LogAmpRaw.fx_64 *= 1000;
return LogAmpRaw.fx_64;
}
//-----------
// Read LM75A and convert to signed fixed point
// Returns signed value in something otherwise used as unsigned
// Blithely ignores most IIC error conditions
int64_t GetTemperature() {
union ll_u Temp;
Wire.requestFrom(LM75_ADDR,2);
if (Wire.available() == 2) {
Temp.fx_32.high = Wire.read();
Temp.fx_32.low = (uint32_t)Wire.read() << 24;
if (Temp.fx_32.high & 0x00000080L) { // propagate - sign
Temp.fx_32.high |= 0xffffff00L;
}
}
else {
Temp.fx_64 = 256 * ONE_FX; // in-band error flagging: 256 C
}
return Temp.fx_64;
}
//-----------
// Compute frequency offset from oscillator temperature
// This is an ordinary signed integer
// Because 1 Hz resolution at 125 MHz is Good Enough
int16_t ComputeOffset() {
union ll_u Temperature;
union ll_u T1;
Temperature.fx_64 = GetTemperature();
T1.fx_64 = TC_SQUARE;
if (TC_SQUARE) // skip multiply for linear fit
T1.fx_64 = MultiplyFixedPt(T1,Temperature);
T1.fx_64 += TC_LINEAR;
T1.fx_64 = MultiplyFixedPt(T1,Temperature);
T1.fx_64 += TC_INTERCEPT;
PrintFixedPtRounded(Buffer,Temperature,3);
printf("Offset: %d at %s C\n",(int16_t)T1.fx_32.high,Buffer);
return (int16_t)(T1.fx_32.high); // extract integer part
}
//-----------
// Zero-beat oscillator to 10 MHz GPS-locked reference
void ZeroBeat() {
union ll_u TempFreq,TempCount;
printf("Zero beat DDS oscillator against GPS\n");
TempFreq.fx_64 = CALFREQ;
u8x8.clearDisplay();
byte ln = 0;
u8x8.drawString(0,ln++,"10 MHz Zero Beat");
u8x8.drawString(0,ln++," <- Jog -> ");
u8x8.drawString(0,ln++," ^ recalc ");
u8x8.drawString(0,ln++," Button = set ");
int32_t OldOffset = -OscOffset; // ensure first update
while (analogRead(PIN_JOYBUTTTON) > 500) {
TogglePin(PIN_HEARTBEAT); // show we got here
int ai = analogRead(PIN_JOY_Y) - 512; // totally ad-hoc axes
if (ai < -100) {
OscOffset += 1;
}
else if (ai > 100) {
OscOffset -= 1;
}
ai = analogRead(PIN_JOY_X) - 512;
if (ai < -100) {
OscOffset = ComputeOffset();
}
if (OscOffset != OldOffset) {
ln = 5;
sprintf(Buffer,"Offset %9d",OscOffset);
u8x8.drawString(0,ln,Buffer);
CalcOscillator(OscOffset); // recalculate constants
TempCount.fx_64 = MultiplyFixedPt(TempFreq,CtPerHz); // recalculate delta phase count
WriteDDS(TempCount.fx_32.high); // DDS output should be exactly 10 MHz
OldOffset = OscOffset;
}
Temperature.fx_64 = GetTemperature();
PrintFixedPtRounded(Buffer,Temperature,3);
ln = 7;
u8x8.drawString(0,ln,"DDS Temp");
u8x8.drawString(16-strlen(Buffer),ln,Buffer);
delay(100);
}
printf("Oscillator offset: %d at %s C\n",OscOffset,Buffer);
WaitButtonUp();
u8x8.clearDisplay();
}
//-----------
// Round scaled fixed point to specific number of decimal places: 0 through 8
// You should display the value with only Decimals characters beyond the point
// Must calculate rounding value as separate variable to avoid mystery error
uint64_t RoundFixedPt(union ll_u TheNumber,unsigned Decimals) {
union ll_u Rnd;
Rnd.fx_64 = (ONE_FX >> 1) / (pow(10LL,Decimals)); // that's 0.5 / number of places
TheNumber.fx_64 = TheNumber.fx_64 + Rnd.fx_64;
return TheNumber.fx_64;
}
//-----------
// Multiply two unsigned scaled fixed point numbers without overflowing a 64 bit value
// Perforce, the product of the two integer parts mut be < 2^32
uint64_t MultiplyFixedPt(union ll_u Mcand, union ll_u Mplier) {
union ll_u Result;
Result.fx_64 = ((uint64_t)Mcand.fx_32.high * (uint64_t)Mplier.fx_32.high) << 32; // integer parts (clear fract)
Result.fx_64 += ((uint64_t)Mcand.fx_32.low * (uint64_t)Mplier.fx_32.low) >> 32; // fraction parts (always < 1)
Result.fx_64 += (uint64_t)Mcand.fx_32.high * (uint64_t)Mplier.fx_32.low; // cross products
Result.fx_64 += (uint64_t)Mcand.fx_32.low * (uint64_t)Mplier.fx_32.high;
return Result.fx_64;
}
//-----------
// Long long print-to-buffer helpers
// Assumes little-Endian layout
void PrintHexLL(char *pBuffer,union ll_u FixedPt) {
sprintf(pBuffer,"%08lx %08lx",FixedPt.fx_32.high,FixedPt.fx_32.low);
}
// converts all 9 decimal digits of fraction, which should suffice
void PrintFractionLL(char *pBuffer,union ll_u FixedPt) {
union ll_u Fraction;
Fraction.fx_64 = FixedPt.fx_32.low; // copy 32 fraction bits, high order = 0
Fraction.fx_64 *= GIGA; // times 10^9 for conversion
Fraction.fx_64 >>= 32; // align integer part in low long
sprintf(pBuffer,"%09lu",Fraction.fx_32.low); // convert low long to decimal
}
void PrintIntegerLL(char *pBuffer,union ll_u FixedPt) {
sprintf(pBuffer,"%lu",FixedPt.fx_32.high);
}
void PrintFixedPt(char *pBuffer,union ll_u FixedPt) {
PrintIntegerLL(pBuffer,FixedPt); // do the integer part
pBuffer += strlen(pBuffer); // aim pointer beyond integer
*pBuffer++ = '.'; // drop in the decimal point, tick pointer
PrintFractionLL(pBuffer,FixedPt);
}
void PrintFixedPtRounded(char *pBuffer,union ll_u FixedPt,unsigned Decimals) {
char *pDecPt;
FixedPt.fx_64 = RoundFixedPt(FixedPt,Decimals);
PrintIntegerLL(pBuffer,FixedPt); // do the integer part
pBuffer += strlen(pBuffer); // aim pointer beyond integer
pDecPt = pBuffer; // save the point location
*pBuffer++ = '.'; // drop in the decimal point, tick pointer
PrintFractionLL(pBuffer,FixedPt); // do the fraction
if (Decimals == 0)
*pDecPt = 0; // 0 places means discard the decimal point
else
*(pDecPt + Decimals + 1) = 0; // truncate string to leave . and Decimals chars
}
//-----------
// Calculate useful "constants" from oscillator info
void CalcOscillator(int16_t Offset) {
Oscillator.fx_64 = NOMINAL_OSC + (Offset * ONE_FX); // offset may be negative, It Just Works
HzPerCt.fx_32.low = Oscillator.fx_32.high; // divide oscillator by 2^32 with simple shifting
HzPerCt.fx_32.high = 0;
CtPerHz.fx_64 = -1; // Compute (2^32 - 1) / oscillator
CtPerHz.fx_64 /= (uint64_t)Oscillator.fx_32.high; // remove 2^32 scale factor from divisor
}
//-----------
//-- Helper routine for printf()
int s_putc(char c, FILE *t) {
Serial.write(c);
}
//-----------
void setup () {
union ll_u TempFreq,TempCount;
pinMode(PIN_HEARTBEAT,OUTPUT);
digitalWrite(PIN_HEARTBEAT,LOW); // show we got here
pinMode(PIN_SYNC,OUTPUT);
digitalWrite(PIN_SYNC,LOW);
Serial.begin (115200);
fdevopen(&s_putc,0); // set up serial output for printf()
Serial.println (F("60 kHz Sine Generator"));
Serial.println (F("Ed Nisley - KE4ZNU - September 2017\n"));
// DDS module controls
pinMode(PIN_DDS_LATCH,OUTPUT);
digitalWrite(PIN_DDS_LATCH,LOW);
pinMode(PIN_DDS_RESET,OUTPUT);
digitalWrite(PIN_DDS_RESET,HIGH);
// Light up the display
Serial.println("Initialize OLED");
u8x8.begin();
u8x8.setFont(u8x8_font_artossans8_r);
// u8x8.setPowerSave(0);
u8x8.setFont(u8x8_font_pxplusibmcga_f);
u8x8.draw2x2String(0,0,"Sine Gen");
u8x8.drawString(0,3,"Ed Nisley");
u8x8.drawString(0,4," KE4ZNU");
u8x8.drawString(0,5,"2017-09-20");
u8x8.drawString(0,6,"Press Button ...");
// configure SPI hardware
pinMode(PIN_SS,OUTPUT); // set up manual controls
digitalWrite(PIN_SS,HIGH);
pinMode(PIN_SCK,OUTPUT);
digitalWrite(PIN_SCK,LOW);
pinMode(PIN_MOSI,OUTPUT);
digitalWrite(PIN_MOSI,LOW);
pinMode(PIN_MISO,INPUT_PULLUP);
SPCR = B00110000; // Auto SPI: no int, disabled, LSB first, master, + edge, leading, f/4
SPSR = B00000000; // not double data rate
TogglePin(PIN_HEARTBEAT); // show we got here
// Set up X axis DAC output
XAxisDAC.begin(MCP4725_ADDR); // start up MCP4725 DAC at Sparkfun address
// XAxisDAC.setVoltage(0,DAC_WR_EEP); // do this once per DAC to set power-on at 0 V
XAxisDAC.setVoltage(0,DAC_WR); // force 0 V after a reset without a power cycle
// LM75A temperature sensor requires no setup!
// External capacitor in test fixture
// Turn relay off to keep the heat down
pinMode(PIN_CX_SHORT,OUTPUT);
digitalWrite(PIN_CX_SHORT,LOW);
// Frequencies
PrintFixedPtRounded(Buffer,CenterFreq,1);
printf("Center freq: %s Hz\n",Buffer);
NomFreq = CenterFreq;
// Wake up and load the DDS
OscOffset = ComputeOffset();
CalcOscillator(OscOffset);
Serial.print("\nStarting DDS: ");
TempFreq.fx_64 = CALFREQ;
TempCount.fx_64 = MultiplyFixedPt(TempFreq,CtPerHz);
EnableDDS();
WriteDDS(TempCount.fx_32.high);
Serial.println("running\n");
WaitButton(); // pause until button release
u8x8.setPowerSave(0);
u8x8.clearDisplay();
Serial.println("\nStartup done\n");
MillisThen = millis();
ZeroBeat(); // compensate for oscillator clock offset
TempCount.fx_64 = MultiplyFixedPt(NomFreq,CtPerHz); // set up initial frequency
WriteDDS(TempCount.fx_32.high);
u8x8.drawString(0,5," <- Jog -> ");
u8x8.drawString(0,6," ^ 1 Hz v ");
u8x8.drawString(0,7," Button = reset ");
}
//-----------
void loop () {
byte ln;
union ll_u DDSCount;
TestFreq = NomFreq; // assume no change
if (analogRead(PIN_JOYBUTTTON) > 500) { // button unpushed?
int ai = analogRead(PIN_JOY_Y) - 512; // X axis = left-right
if (ai < -100)
TestFreq.fx_64 = NomFreq.fx_64 + StepSize.fx_64;
else if (ai > 100)
TestFreq.fx_64 = NomFreq.fx_64 - StepSize.fx_64;
else {
ai = analogRead(PIN_JOY_X) - 512; // Y axis = up-down
if (ai < -100)
TestFreq.fx_64 = NomFreq.fx_64 + ONE_FX;
else if (ai > 100)
TestFreq.fx_64 = NomFreq.fx_64 - ONE_FX;
}
}
else
TestFreq = CenterFreq; // reset on button push
DDSCount.fx_64 = MultiplyFixedPt(TestFreq,CtPerHz); // compute DDS delta phase
DDSCount.fx_32.low = 0; // truncate count to integer
ActualFreq.fx_64 = MultiplyFixedPt(DDSCount,HzPerCt);
if (TestFreq.fx_64 != NomFreq.fx_64) { // avoid writing same value
WriteDDS(DDSCount.fx_32.high);
NomFreq = TestFreq; // set up new value
}
ln = 0;
PrintFixedPtRounded(Buffer,ActualFreq,2); // display actual frequency
u8x8.draw2x2String(0,ln,Buffer);
ln = 3;
LogAmpdB.fx_64 = ReadLogAmp(); // show current response
PrintFixedPtRounded(Buffer,LogAmpdB,1);
u8x8.drawString(0,ln,"Response");
u8x8.drawString(16-strlen(Buffer),ln++,Buffer);
Temperature.fx_64 = GetTemperature(); // and temperature
PrintFixedPtRounded(Buffer,Temperature,3);
u8x8.drawString(0,ln,"DDS Temp");
u8x8.drawString(16-strlen(Buffer),ln++,Buffer);
delay(100);
}
view raw SineGenerator.ino hosted with ❤ by GitHub

Amateur Radio, Electronics Workbench

60 kHz Preamp: Power Supply Noise

This took entirely too long to figure out:

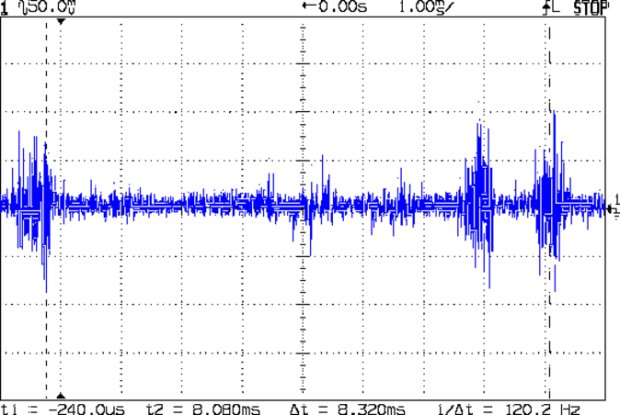

Ground noise - 24 VDC wall wart - probe on gnd lug
Ground noise – 24 VDC wall wart – probe on gnd lug

That’s with the scope probe ground clip connected to the wall wart coax connector barrel and the scope probe tip on the ground clip. It’s not the noise on the 24 VDC supply, it’s the noise injected into the ground connection!

Huh. Makes it tough to sort out low-level signals, it does indeed.

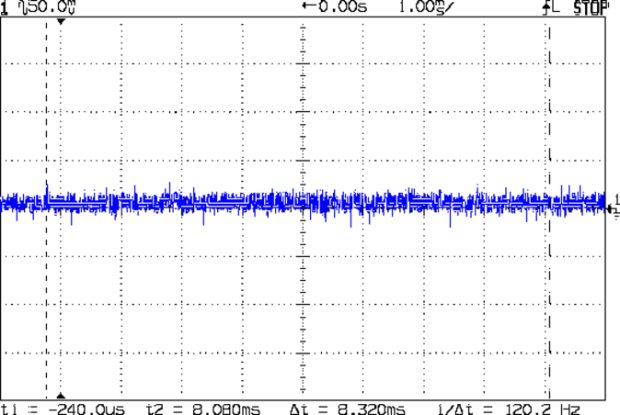

Consider one of my bench power supplies at 24 V:

Ground noise - bench supply 24 V - probe on gnd lug
Ground noise – bench supply 24 V – probe on gnd lug

Nice & quiet, the way power should be. One might quibble about the residual noise, but at least it’s not blasting out horrific bursts at 120 Hz.

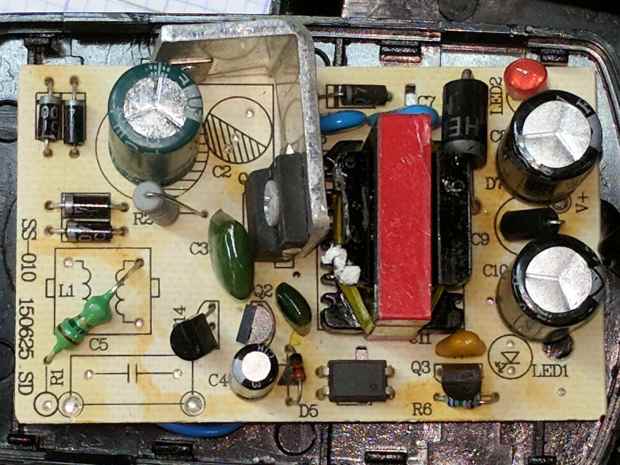

For completeness, the PCB inside the offending SMAKN 24 V wall wart:

SMAKN 24 VDC wart - PCB
SMAKN 24 VDC wart – PCB

“High Quality Commercial Grade” my aching eyeballs.

[Update: Edits based on eagle-eyed observations in the comments. ]

Not as many missing components as I expected, though, if the truth be told. The missing transformer common-mode choke seems odd and, AFAICT, the resistor inductor angling out from the R1 callout doesn’t connect to anything, connects directly to the AC line because  C5 is missing and the pad joining them doesn’t go anywhere else it replaces the jumper (?) to the bottom-left pad and the missing parts. The red LED in the upper right isn’t visible through the black case, although it might serve as a voltage regulator.

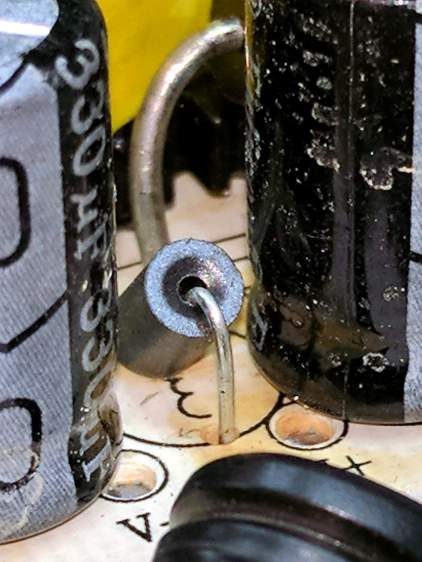

Over on the far right, beyond the transformer and between the two capacitor cans, is a component marked C9 with an oddly angled part. Seen from the other end, it’s a ferrite bead:

SMAKN 24 VDC wart - output ferrite
SMAKN 24 VDC wart – output ferrite

I don’t know why that spot has an inductor symbol with a capacitor part callout.

The other side of the PCB looks clean:

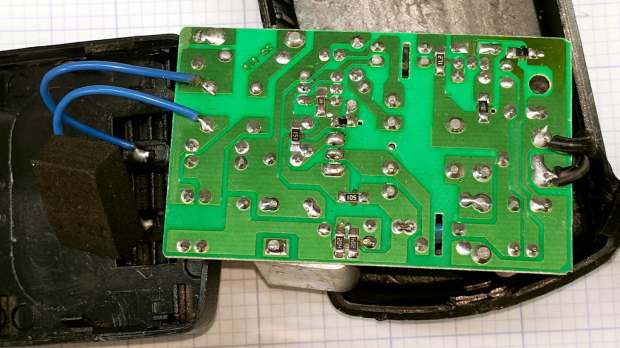

SMAKN 24 VDC wart - PCB solder side
SMAKN 24 VDC wart – PCB solder side

It’ll probably serve well in a noise-tolerant application, maybe an LED power supply.

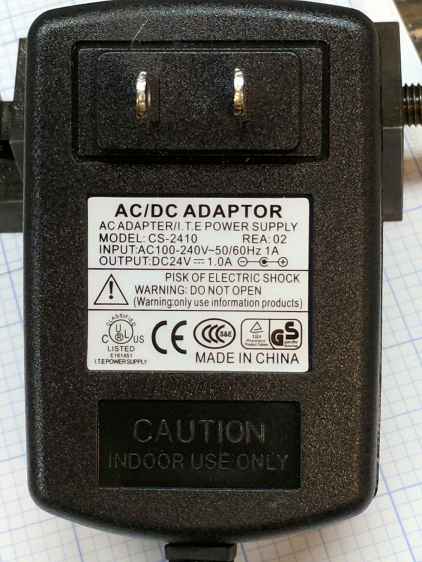

As pointed out in the comments, there’s a UL mark:

SMAKN 24 VDC wart - label
SMAKN 24 VDC wart – label

Not sure what I’ll replace it with, although a small 24 V power supply brick may suffice.

Electronics Workbench

60 kHz Preamp: Tuning Fork Resonator Protection

Limiting the resonator drive to about 1 μW in the face of wildly varying RF from the antenna (or the occasional finger fumble) requires brute force. A nose-to-tail pair of Schottky diodes seems to do the trick:

Tuning Fork Resonator Filter - protection and biasing
Tuning Fork Resonator Filter – protection and biasing

The 100 Ω resistor blunts the drive from the LM353 op amp (implementing a bandpass filter) when the signal peaks exceed 200-ish mV in either direction from the Vcc/2 bias stored in the 10 μF cap.

The 11.5 kΩ resistor downstream of the resonator isolates it from the Vcc/2 bias, with the 100 nF cap sinkholing the signal and the 4.7 kΩ resistor preventing feedback into the bias supply. The cap looks like 26 Ω at 60 kHz, so the feedback runs -52 dB from the output and the bias supply knocks it down a bit more. The preceding amps apply 40-ish dB of gain from the antenna terminals, so the loop gain looks OK.

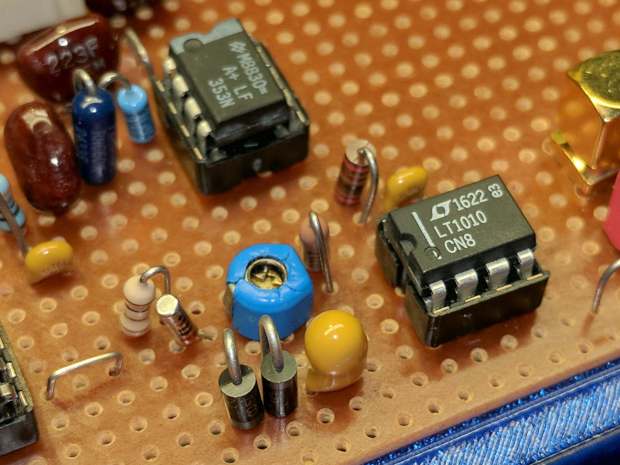

It’s another few components on the board:

LF Crystal Tester - resonator protection
LF Crystal Tester – resonator protection

The blue twiddlecap should allow pulling the tuning fork’s series resonance upward to exactly 60 kHz.

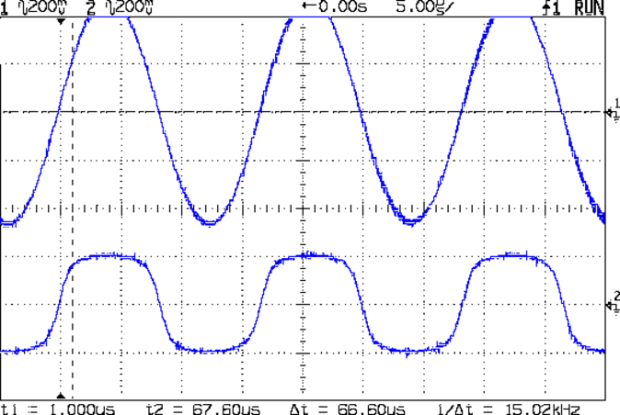

Applying way too much signal to the antenna terminals in order to get 1 Vpp from the LM353 shows the limiter in action:

BP and Xtal filter out - 10.0 v sine 10 Meg xfmr
BP and Xtal filter out – 10.0 v sine 10 Meg xfmr

The resonator sees no more than 200 mV in either direction from the bias level, so it’s all good.

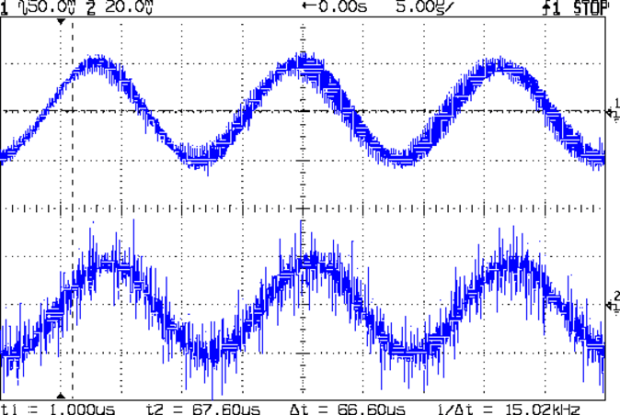

On the low end, the diodes have no effect:

BP and Xtal filter out - 1.1 v sine 10 Meg xfmr
BP and Xtal filter out – 1.1 v sine 10 Meg xfmr

Pay no attention to all that noise.

My first thought was to put the diodes across the resonator, a Bad Idea: straight up, doesn’t work. The 1N5819 datasheet shows they have about 300 pF of junction capacitance at zero bias and a pair of ’em will swamp the resonator’s internal 0.8 pF parallel capacitance and punch it out of the circuit.

Photography & Images, Science

Mystery Eggs on Glass

An array of tiny eggs appeared on the outside of our bedroom window:

Insect eggs on glass - 2017-09-17
Insect eggs on glass – 2017-09-17

The patch measures 12 mm across and 14 mm tall. From across the room, it looks like a smudge, but it consists of hundreds of eggs, each on a tiny stalk glued to the glass:

IMG_20170919 vs 0917- Insect eggs on glass
IMG_20170919 vs 0917- Insect eggs on glass

The bottom image is two days later than the top one, both are scaled to about the same size and contrast. The critters look about the same, although I think the lines have more prominent ripples or bumps.

We have no idea what they’ll turn into, but they certainly look like they have two eyes and wings …
