Bike Rack Tray Holder: Small Version

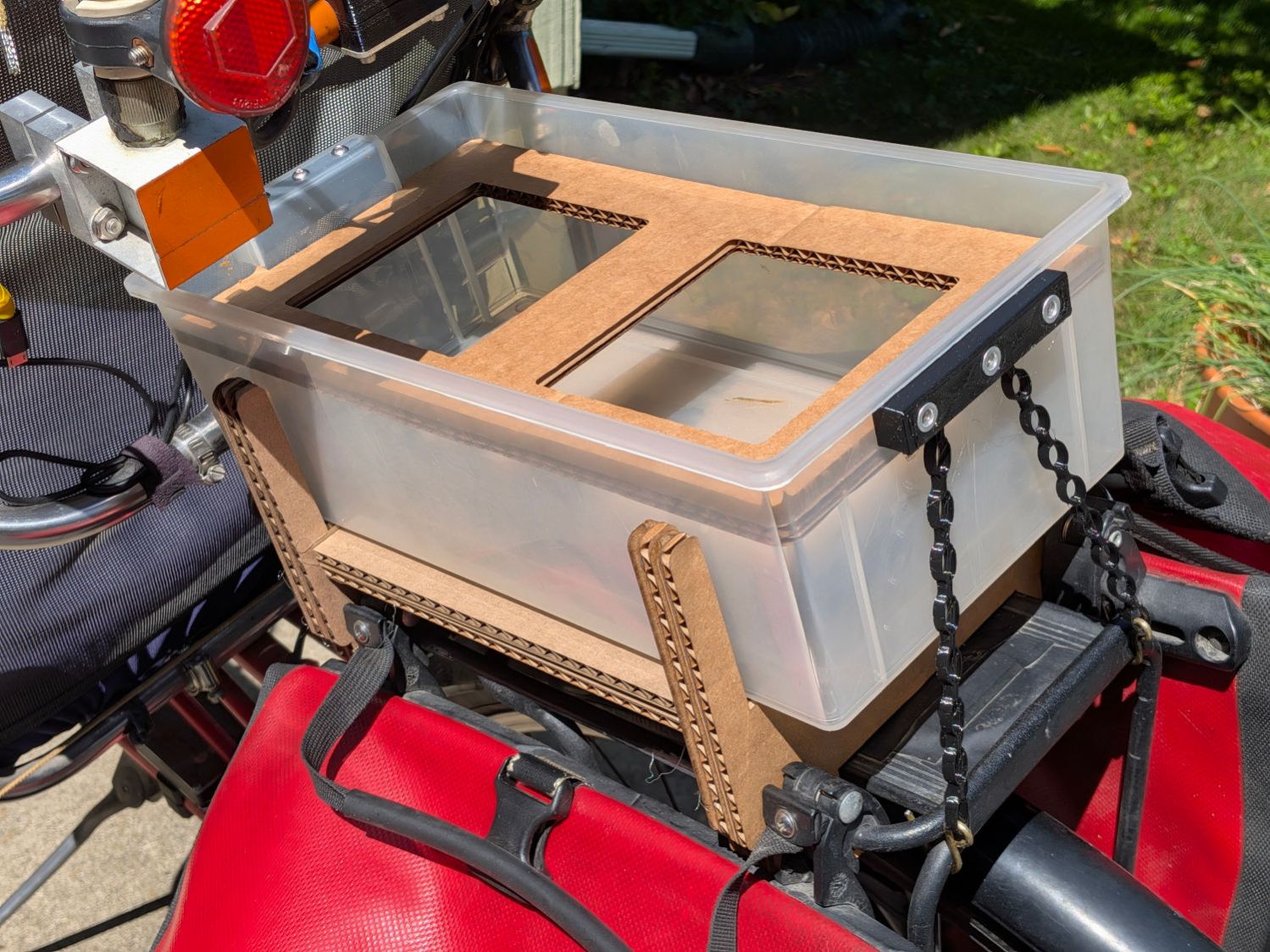

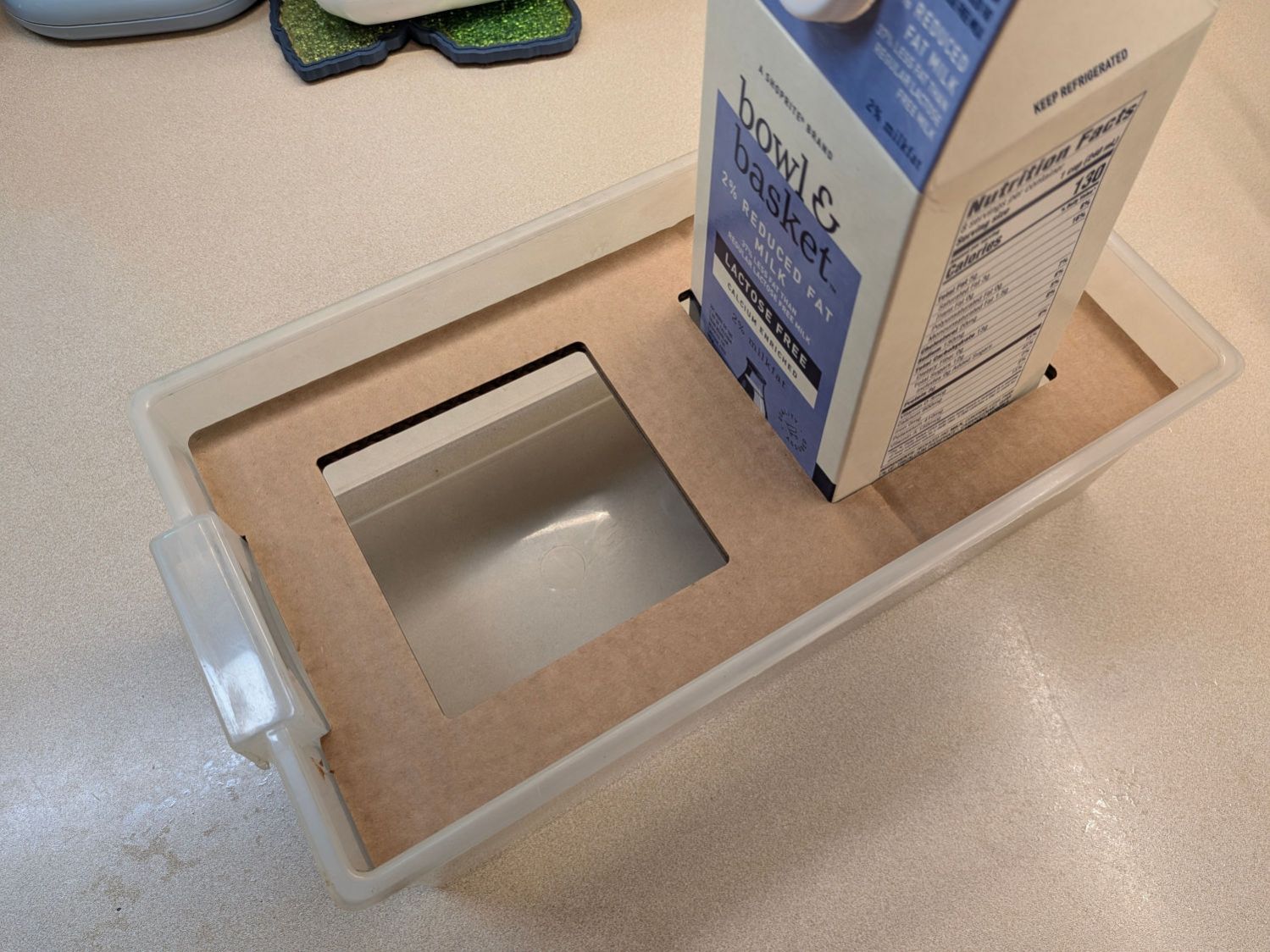

Mary wanted to haul seedlings started in half-gallon milk bottles to their destination and I figured they shouldn’t slide around while being transported:

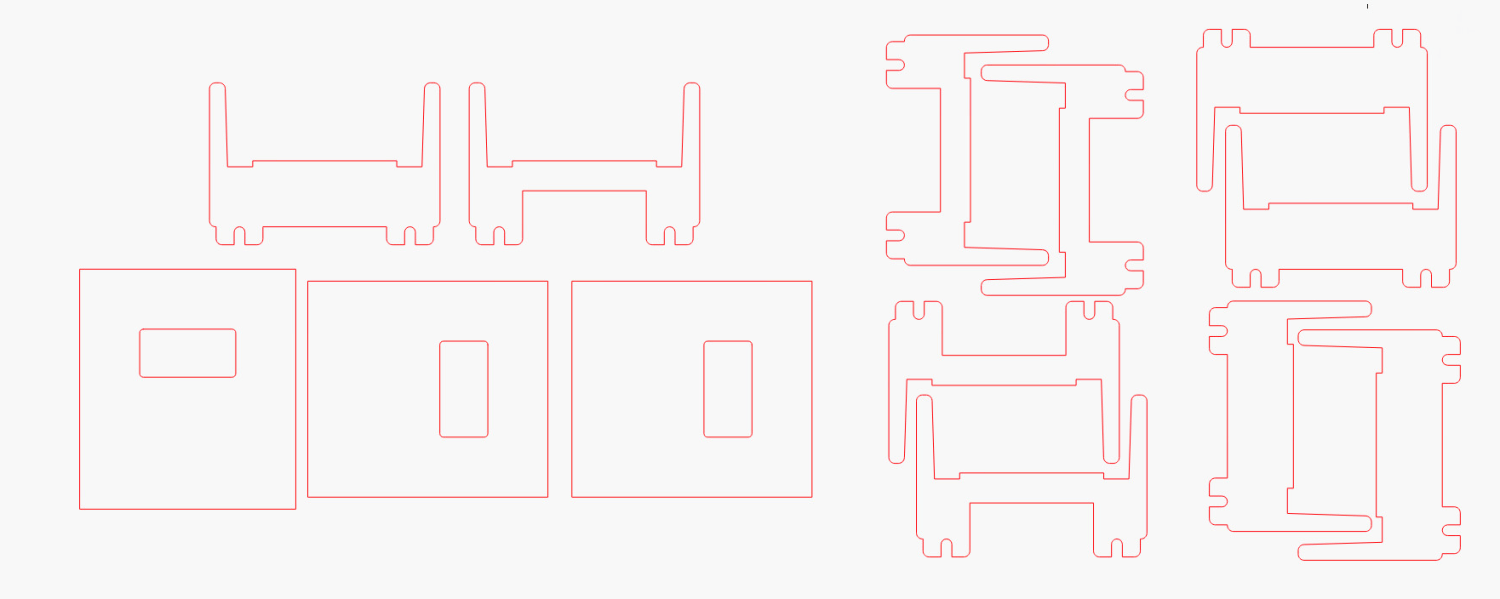

That’s a half-width drawer from the same salvaged collection that produced the Bike Rack Tray Holder and a few minutes with LightBurn adapted the wider cardboard bike rack mount to fit the narrower drawer:

Basically, use Node Edit to delete the horizontal lines, move the sides inward by half the difference of the drawer widths, then draw a few short lines to close the gaps.

Hot-melt gluing four layers of cardboard with crossed corrugations, plus three flat bottom layers, got it done:

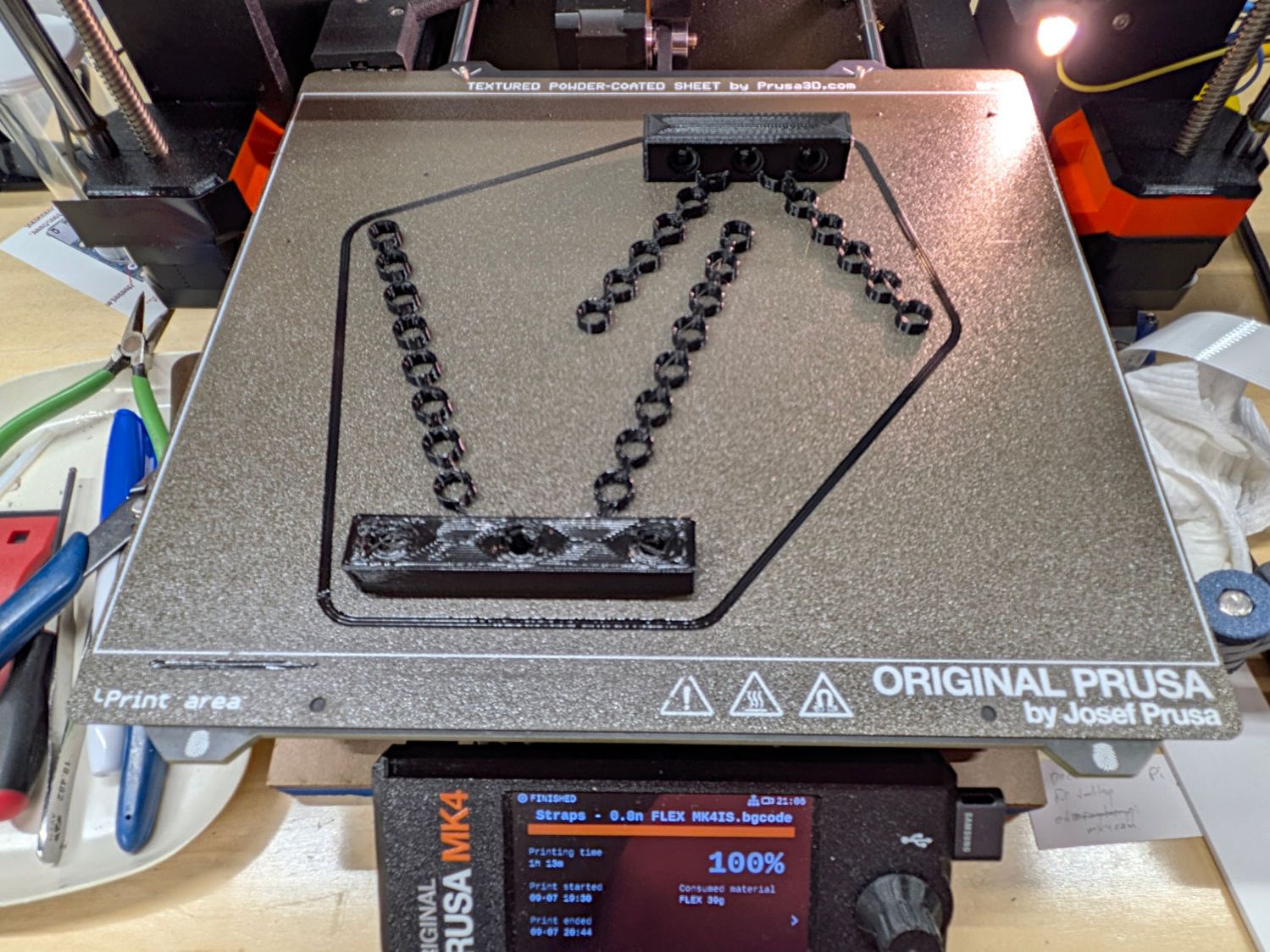

Those are the same stretchy TPU straps, with an additional link on each rear chain to compensate for the slightly higher block mount and a slightly narrower front block to fit in the slightly narrower drawer handle:

Of course, the only way to know what didn’t fit was to make a pair of the original ones, try them on for size, then adapt the OpenSCAD code accordingly.

That was surprisingly easy …
