CNC 3018XL: Arduino + Protoneer CNC

If the truth be known, I wanted to do this as soon as I discovered the CAMtool V3.3 board hardwired the DRV8825 PCBs in 1:32 microstep mode:

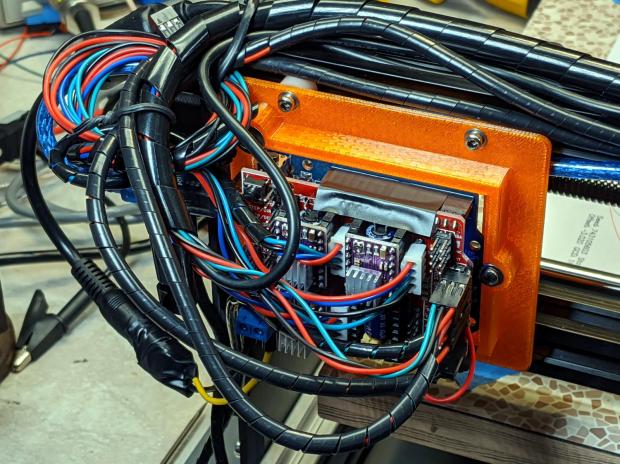

CNC 3018XL - Protoneer atop Arduino - installed
CNC 3018XL – Protoneer atop Arduino – installed

The Protoneer CNC board has jumpers, so selecting 1:8 microstep mode is no big deal.

As before, I epoxied another row of pins along the I/O header for Makerbot-style endstops:

Protoneer endstop power mod
Protoneer endstop power mod

I’ll probably regret not adding pins along the entire row, but, unlike the MPCNC, the CNC 3018XL won’t ever have hard limit switches. I plugged the Run-Hold switch LEDs into an unused +5 V pin and moved on.

I modified the DRV8825 driver PCBs for fast decay mode:

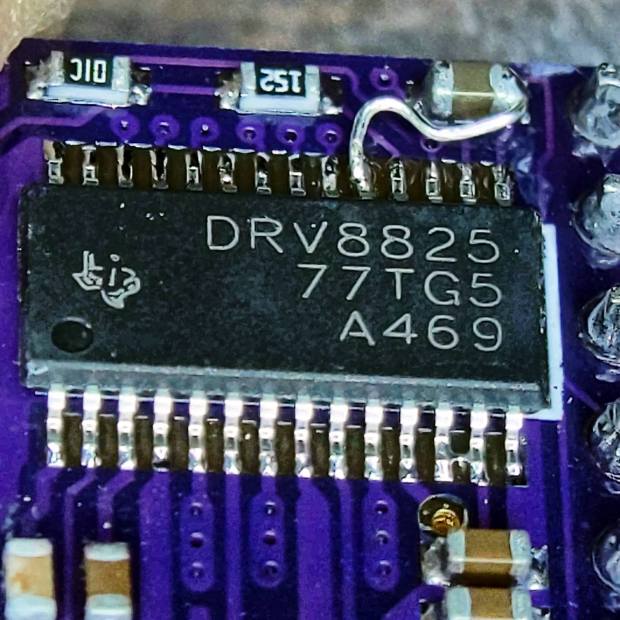

DRV8825 PCB - Fast Decay Mode wire
DRV8825 PCB – Fast Decay Mode wire

Then set the current to a bit over 1 A:

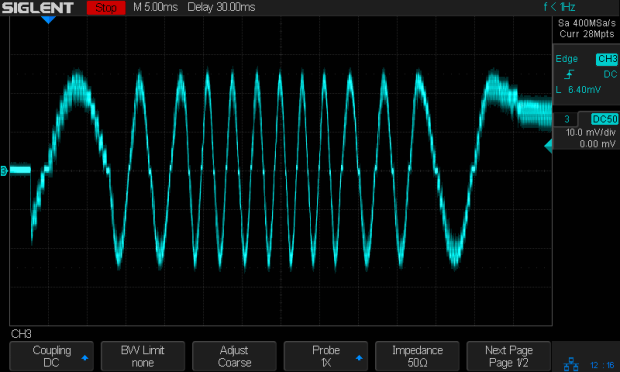

3018XL - Protoneer setup - Z 1 mm
3018XL – Protoneer setup – Z 1 mm

Six hours later I hauled the once-again-functional CNC 3018XL to my presentation for the ACM:

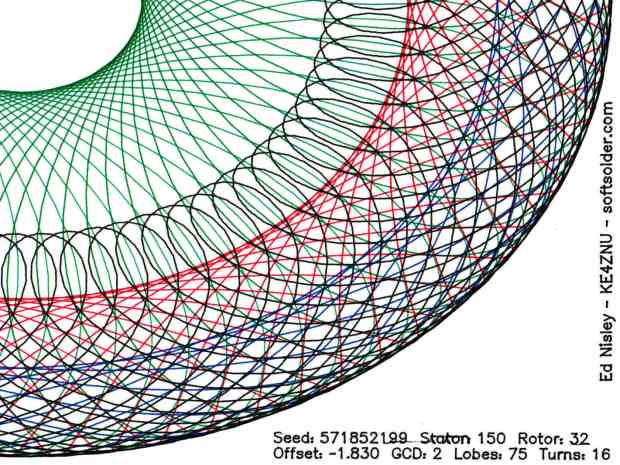

Spirograph - intricate sample plot - detail
Spirograph – intricate sample plot – detail

Memo to Self: Time to get another Prontoneer board …

, , , ,
