Cheap WS2812 LEDs: Test Fixture Mount

Mounting the ungainly WS2812 LED test fixture seemed like a Good Idea to keep the electricity out of the usual conductive litter:

WS2812 array test fixture - rear
WS2812 array test fixture – rear

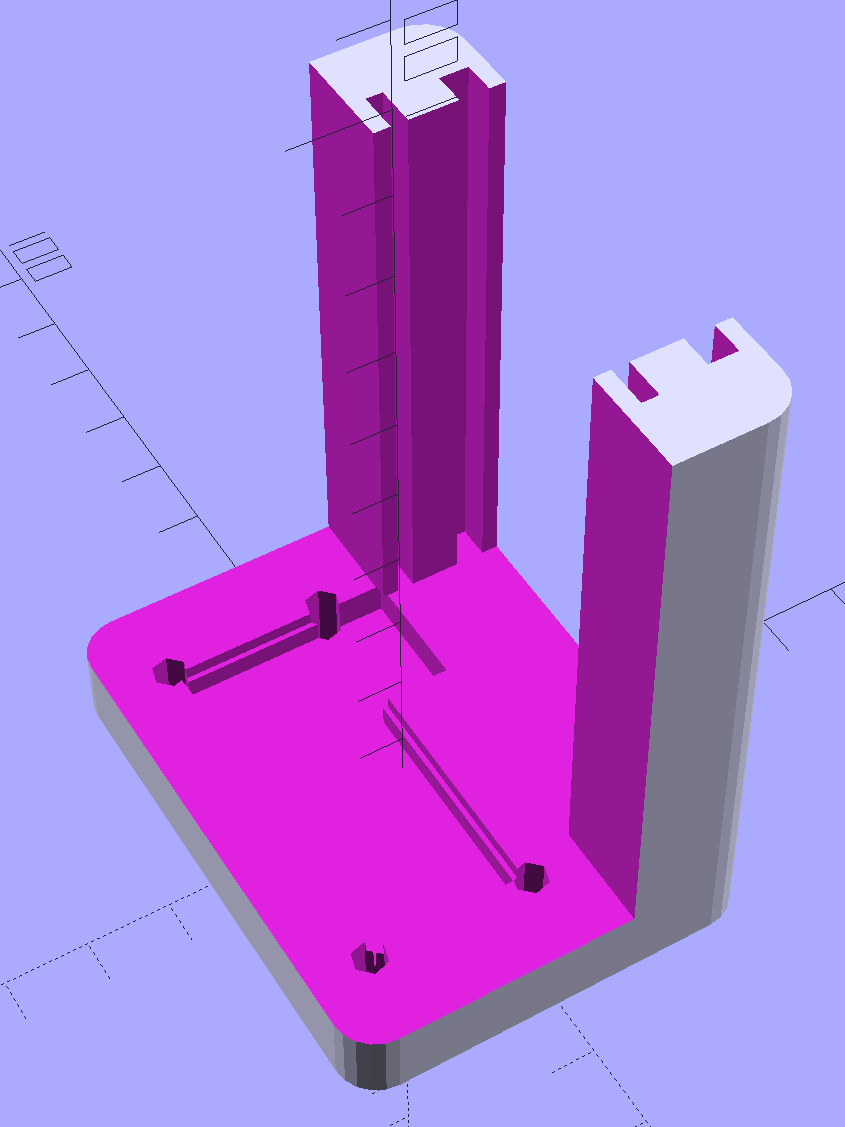

The solid model shows more details:

LED Test Fixture - solid model
LED Test Fixture – solid model

The power wires along the array edges slide into the rear (thinner) slot, with enough friction from a few gentle bends to hold the whole mess in place.

The knockoff Arduino Nano rests on the recessed ledge in the pit, with M2 screws and washers at the corners holding it down (the PCB’s built-in holes might work with 1 mm or 0-90 screws, but that’s just crazy talk). I soldered the power wires directly to the coaxial jack pins under the PCB; they snake out to the LEDs through the little trench. There should be another cutout around the USB connector for in-situ programming, although the existing code works fine.

The front (wider) slot holds a piece of translucent white acrylic to diffuse the light:

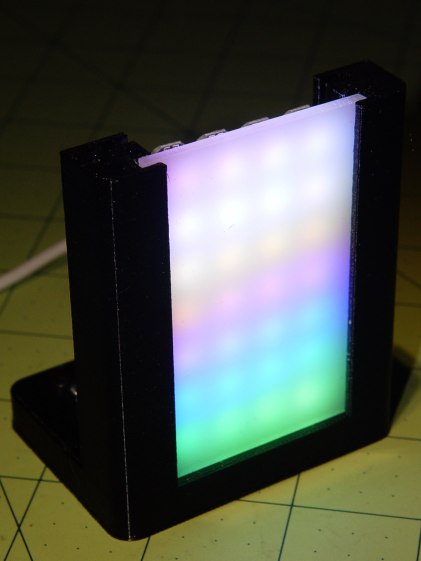

WS2812 array test fixture - front flash
WS2812 array test fixture – front flash

It’s painfully bright: a few layers of neutral density filter would be appropriate for a desk toy.

The array runs hot enough at MaxPWM = 255 to produce a gentle upward breeze.

It looks even better without the flash:

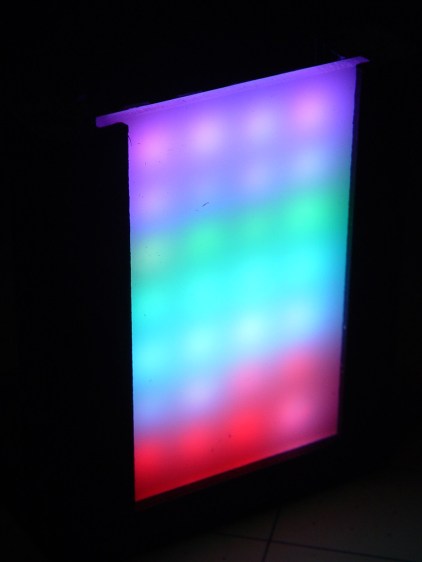

WS2812 array test fixture - front dark
WS2812 array test fixture – front dark

You’ll find many easier ways to get RGB LED panels, but that’s not the point here; I’m waiting for these things to die an unnatural death.

The OpenSCAD source code as a GitHub Gist:

// LED Test Fixture
// Ed Nisley KE4ZNU - February 2017
ClampFlange = true;
Channel = false;
//- Extrusion parameters - must match reality!
ThreadThick = 0.25;
ThreadWidth = 0.40;
function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);
Protrusion = 0.1;
HoleWindage = 0.2;
//- Screw sizes
ID = 0;
OD = 1;
LENGTH = 2;
Insert = [2.8,3.5,4.0]; // M2 threaded insert
ScrewOD = 2.0;
WasherOD = 5.0;
//- Component sizes
PCBSize = [18.0,43.5,1.6]; // microcontroller PCB
PCBClear = 2*[ThreadWidth,ThreadWidth,0]; // clearance around board
PCBShelf = [ThreadWidth,ThreadWidth,0]; // shelf under perimeter
PCBCavity = PCBSize - PCBShelf + [0,0,2.5]; // support shelf around bottom parts
LEDPanel = [70,40,4.0]; // lying flat, LEDs upward
LEDWire = [LEDPanel[0],LEDPanel[1] + 2*5.0,2.0]; // power wires along sides
Diffuser = [LEDPanel[0],LEDPanel[1] + 2*4.0,3.5];
echo(str("Diffuser panel: ",Diffuser));
WallThick = 8.0;
BaseThick = 3*ThreadThick + Insert[LENGTH] + PCBCavity[2];
Block = [3*WallThick + PCBSize[0] + LEDPanel[2] + Diffuser[2],
2*WallThick + IntegerMultiple(max(PCBSize[1],LEDWire[1]),5),
BaseThick + LEDPanel[0]];
echo(str("Block: ",Block));
CornerRadius = 5.0;
NumSides = 4*5;
//- Adjust hole diameter to make the size come out right
module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes
Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
FixDia = Dia / cos(180/Sides);
cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
}
//- Build it
difference() {
hull() // main block with rounded corners
for (i=[-1,1], j=[-1,1])
translate([i*(Block[0]/2 - CornerRadius),j*(Block[1]/2 - CornerRadius),,0])
cylinder(r=CornerRadius,h=Block[2],$fn=NumSides);
translate([2*WallThick + PCBSize[0] - Block[0],
0,
(Block[2]/2 + BaseThick)])
cube(Block + [0,2*Protrusion,0],center=true); // cut out over PCB
translate([WallThick + (PCBSize + PCBClear)[0]/2 - Block[0]/2,
0,
0]) {
translate([0,0,(BaseThick + (Protrusion - PCBSize[2])/2)])
cube(PCBSize + PCBClear + [0,0,Protrusion],center=true); // PCB recess
translate([0,0,(BaseThick + (Protrusion - PCBCavity[2])/2)])
cube(PCBCavity + [0,0,Protrusion],center=true); // cavity under PCB
translate([PCBSize[0]/2 + WallThick/2 - Protrusion/2,PCBSize[1]/2 - 15/2,BaseThick - PCBCavity[2]/2 + Protrusion/2])
cube([WallThick + PCBShelf[0] + Protrusion,
15,PCBCavity[2] + Protrusion],center=true); // wiring cutout
for (i=[-1,1], j=[-1,1]) // screw inserts
translate([i*(PCBSize[0] + ScrewOD)/2,j*(PCBSize[1] + ScrewOD)/2,-Protrusion])
rotate(180/(2*6))
PolyCyl(Insert[OD],BaseThick + 2*Protrusion,6);
}
resize([2*Block[0],0,LEDPanel[0] + Protrusion]) // LED panel outline
translate([0,0,BaseThick])
rotate([0,-90,0])
translate([(LEDPanel[0] + Protrusion)/2,0,0])
cube(LEDPanel + [Protrusion,0,0],center=true);
translate([-Block[0]/2 + 2*WallThick + PCBSize[0] + LEDWire[2]/2 + 5*ThreadWidth,
0,BaseThick]) // LED wiring recess
rotate([0,-90,0])
translate([(LEDWire[0] + Protrusion)/2,0,0])
cube(LEDWire + [Protrusion,0,0],center=true);
translate([Block[0]/2 - Diffuser[2]/2 - 5*ThreadWidth,0,BaseThick]) // diffuser
rotate([0,-90,0])
translate([(Diffuser[0] + Protrusion)/2,0,0])
cube(Diffuser + [Protrusion,0,0],center=true);
}
view raw WS2812 LED Array Test Fixture.scad hosted with ❤ by GitHub
