[Edit: The SK2812 in the title and elsewhere should be SK6812. If I change the title, then all the other links break. So it goes.]

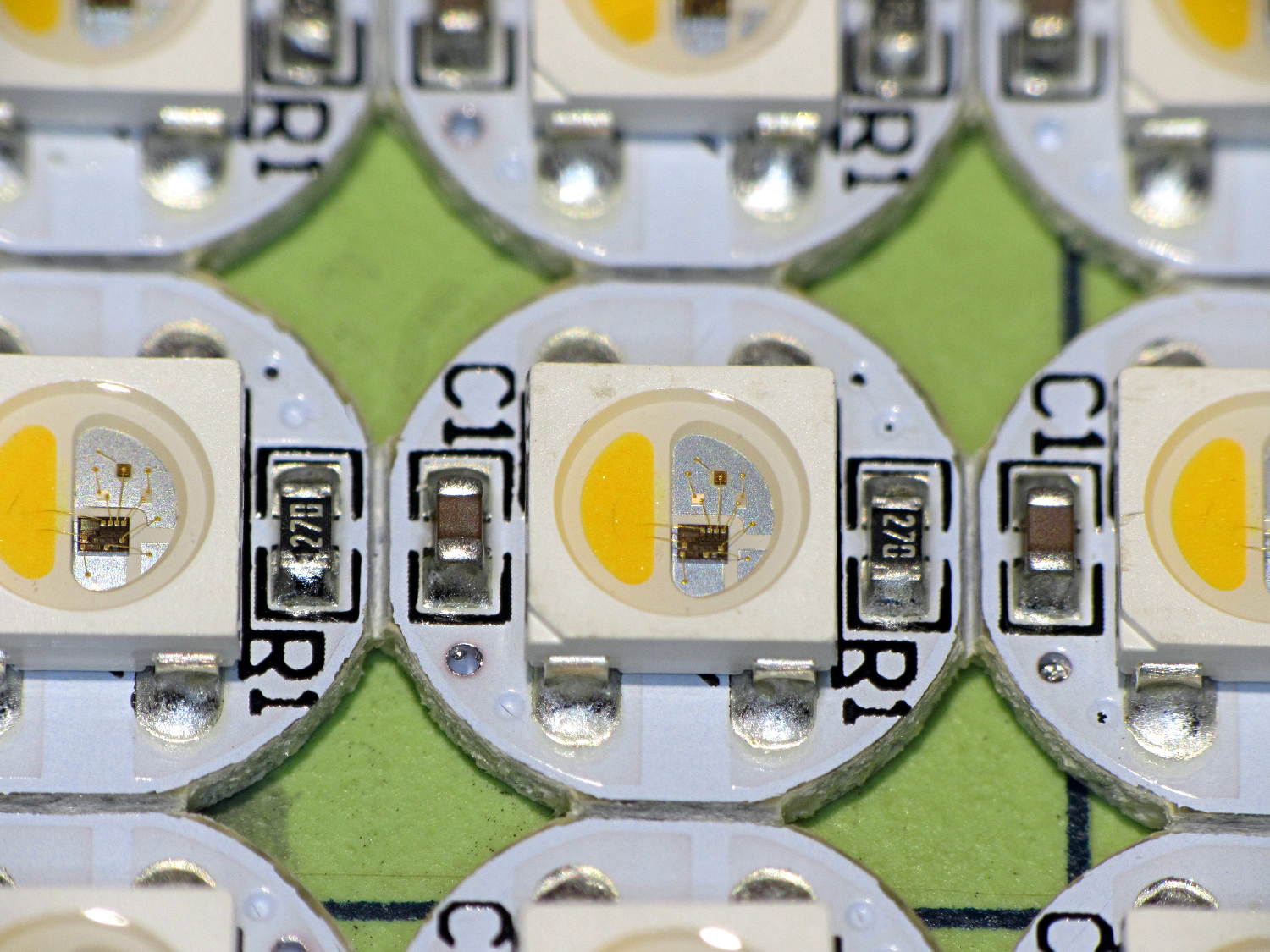

An envelope of RGBW LEDs, allegedly with SK6812 controllers, arrived from halfway around the planet:
The yellow phosphor sauce poured atop the blue LED on the left that makes it glow white leaves the upper loop of two wire bonds sticking out, but I can’t fault ’em for that. The overall build quality looks better than the ill-fated WS2812 LEDs, although it’s hard to tell by looking.
I conjured a test stand from the vasty digital deep by tweaking the WS2812 mount:

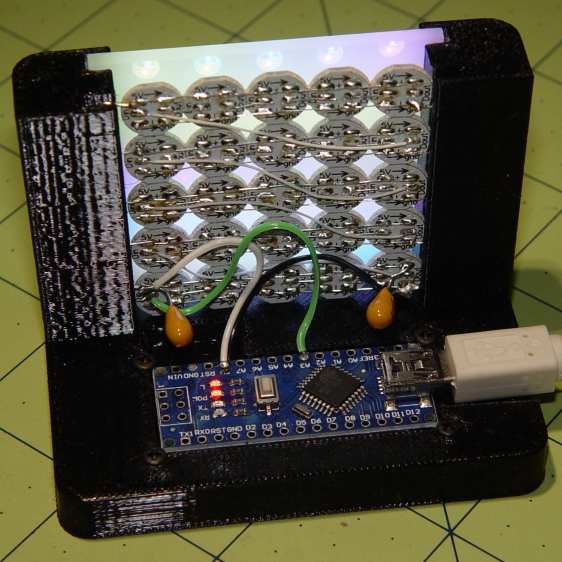

Wiring up a 5×5 panel went as before:
The array test code adds another pixel channel and runs another raised sine wave with another random period, accomplished without much hackage.

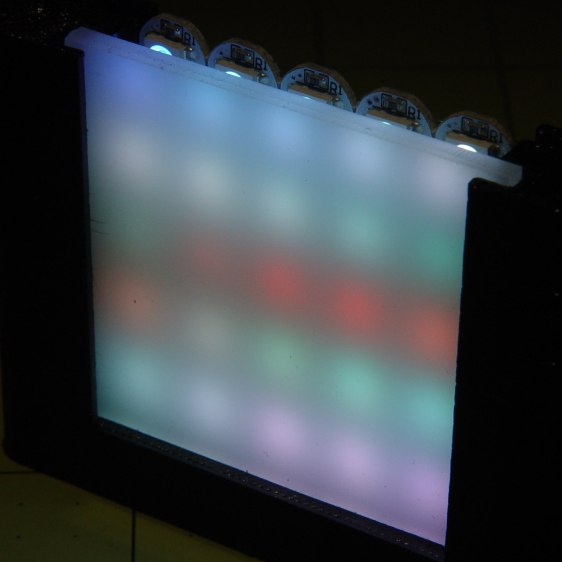

With the warm-white LED at full throttle (MaxPWM = 255), the panel tends toward the pallid end of HSV space:

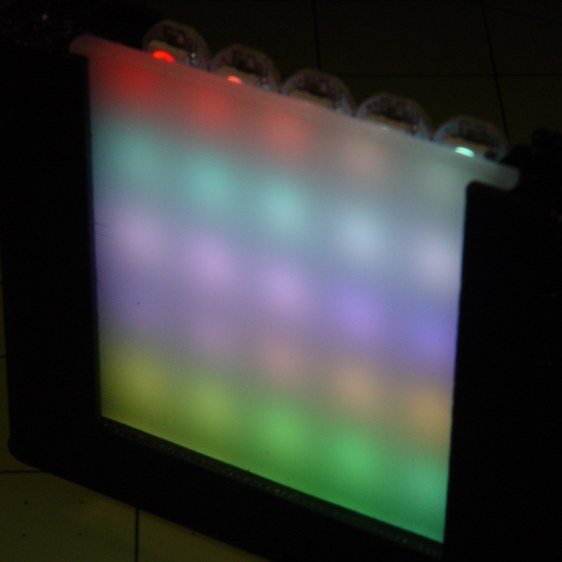

Dialing the white MaxPWM back to 32 crisps things a bit:
Of course, the RGBW data stream isn’t compatible with the RGB data stream, so vacuum tubes with SK6812 chips require a slightly different driver and I can’t mix the two chips on a single tube.
The Arduino source code as a GitHub Gist:
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| // SK6812 RGBW LED array exerciser | |
| // Ed Nisley - KE4ANU - February 2017 | |
| #include <Adafruit_NeoPixel.h> | |
| //---------- | |
| // Pin assignments | |
| const byte PIN_NEO = A3; // DO - data out to first Neopixel | |
| const byte PIN_HEARTBEAT = 13; // DO - Arduino LED | |
| //---------- | |
| // Constants | |
| #define UPDATEINTERVAL 20ul | |
| const unsigned long UpdateMS = UPDATEINTERVAL - 1ul; // update LEDs only this many ms apart minus loop() overhead | |
| // number of steps per cycle, before applying prime factors | |
| #define RESOLUTION 100 | |
| // phase difference between LEDs for slowest color | |
| #define BASEPHASE (PI/16.0) | |
| // LEDs in each row | |
| #define NUMCOLS 5 | |
| // number of rows | |
| #define NUMROWS 5 | |
| #define NUMPIXELS (NUMCOLS * NUMROWS) | |
| #define PINDEX(row,col) (row*NUMCOLS + col) | |
| //---------- | |
| // Globals | |
| // instantiate the Neopixel buffer array | |
| Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUMPIXELS, PIN_NEO, NEO_GRBW + NEO_KHZ800); | |
| uint32_t FullWhite = strip.Color(255,255,255,255); | |
| uint32_t FullOff = strip.Color(0,0,0,0); | |
| struct pixcolor_t { | |
| byte Prime; | |
| unsigned int NumSteps; | |
| unsigned int Step; | |
| float StepSize; | |
| float TubePhase; | |
| byte MaxPWM; | |
| }; | |
| // colors in each LED | |
| enum pixcolors {RED, GREEN, BLUE, WHITE, PIXELSIZE}; | |
| struct pixcolor_t Pixels[PIXELSIZE]; // all the data for each pixel color intensity | |
| unsigned long MillisNow; | |
| unsigned long MillisThen; | |
| //-- Figure PWM based on current state | |
| byte StepColor(byte Color, float Phi) { | |
| byte Value; | |
| Value = (Pixels[Color].MaxPWM / 2.0) * (1.0 + sin(Pixels[Color].Step * Pixels[Color].StepSize + Phi)); | |
| // Value = (Value) ? Value : Pixels[Color].MaxPWM; // flash at dimmest points | |
| // printf("C: %d Phi: %d Value: %d\r\n",Color,(int)(Phi*180.0/PI),Value); | |
| return Value; | |
| } | |
| //-- Helper routine for printf() | |
| int s_putc(char c, FILE *t) { | |
| Serial.write(c); | |
| } | |
| //------------------ | |
| // Set the mood | |
| void setup() { | |
| pinMode(PIN_HEARTBEAT,OUTPUT); | |
| digitalWrite(PIN_HEARTBEAT,LOW); // show we arrived | |
| Serial.begin(57600); | |
| fdevopen(&s_putc,0); // set up serial output for printf() | |
| printf("WS2812 / SK6812 array exerciser\r\nEd Nisley - KE4ZNU - February 2017\r\n"); | |
| /// set up Neopixels | |
| strip.begin(); | |
| strip.show(); | |
| // lamp test: run a brilliant white dot along the length of the strip | |
| printf("Lamp test: walking white\r\n"); | |
| strip.setPixelColor(0,FullWhite); | |
| strip.show(); | |
| delay(250); | |
| for (int i=1; i<NUMPIXELS; i++) { | |
| digitalWrite(PIN_HEARTBEAT,HIGH); | |
| strip.setPixelColor(i-1,FullOff); | |
| strip.setPixelColor(i,FullWhite); | |
| strip.show(); | |
| digitalWrite(PIN_HEARTBEAT,LOW); | |
| delay(250); | |
| } | |
| strip.setPixelColor(NUMPIXELS - 1,FullOff); | |
| strip.show(); | |
| delay(250); | |
| // fill the array, row by row | |
| printf(" ... fill\r\n"); | |
| for (int i=NUMROWS-1; i>=0; i--) { // for each row | |
| digitalWrite(PIN_HEARTBEAT,HIGH); | |
| for (int j=NUMCOLS-1; j>=0 ; j--) { | |
| strip.setPixelColor(PINDEX(i,j),FullWhite); | |
| strip.show(); | |
| delay(100); | |
| } | |
| digitalWrite(PIN_HEARTBEAT,LOW); | |
| } | |
| // clear to black, column by column | |
| printf(" ... clear\r\n"); | |
| for (int j=NUMCOLS-1; j>=0; j--) { // for each column | |
| digitalWrite(PIN_HEARTBEAT,HIGH); | |
| for (int i=NUMROWS-1; i>=0; i--) { | |
| strip.setPixelColor(PINDEX(i,j),FullOff); | |
| strip.show(); | |
| delay(100); | |
| } | |
| digitalWrite(PIN_HEARTBEAT,LOW); | |
| } | |
| delay(1000); | |
| // set up the color generators | |
| MillisNow = MillisThen = millis(); | |
| printf("First random number: %ld\r\n",random(10)); | |
| Pixels[RED].Prime = 3; | |
| Pixels[GREEN].Prime = 5; | |
| Pixels[BLUE].Prime = 7; | |
| Pixels[WHITE].Prime = 11; | |
| printf("Primes: (%d,%d,%d,%d)\r\n", | |
| Pixels[RED].Prime,Pixels[GREEN].Prime,Pixels[BLUE].Prime,Pixels[WHITE].Prime); | |
| unsigned int PixelSteps = (unsigned int) ((BASEPHASE / TWO_PI) * | |
| RESOLUTION * (unsigned int) max(max(max(Pixels[RED].Prime,Pixels[GREEN].Prime),Pixels[BLUE].Prime),Pixels[WHITE].Prime)); | |
| printf("Pixel phase offset: %d deg = %d steps\r\n",(int)(BASEPHASE*(360.0/TWO_PI)),PixelSteps); | |
| Pixels[RED].MaxPWM = 255; | |
| Pixels[GREEN].MaxPWM = 255; | |
| Pixels[BLUE].MaxPWM = 255; | |
| Pixels[WHITE].MaxPWM = 32; | |
| for (byte c=0; c < PIXELSIZE; c++) { | |
| Pixels[c].NumSteps = RESOLUTION * (unsigned int) Pixels[c].Prime; | |
| Pixels[c].Step = (3*Pixels[c].NumSteps)/4; | |
| Pixels[c].StepSize = TWO_PI / Pixels[c].NumSteps; // in radians per step | |
| Pixels[c].TubePhase = PixelSteps * Pixels[c].StepSize; // radians per tube | |
| printf("c: %d Steps: %5d Init: %5d",c,Pixels[c].NumSteps,Pixels[c].Step); | |
| printf(" PWM: %3d Phi %3d deg\r\n",Pixels[c].MaxPWM,(int)(Pixels[c].TubePhase*(360.0/TWO_PI))); | |
| } | |
| } | |
| //------------------ | |
| // Run the mood | |
| void loop() { | |
| MillisNow = millis(); | |
| if ((MillisNow - MillisThen) > UpdateMS) { | |
| digitalWrite(PIN_HEARTBEAT,HIGH); | |
| unsigned int AllSteps = 0; | |
| for (byte c=0; c < PIXELSIZE; c++) { // step to next increment in each color | |
| if (++Pixels[c].Step >= Pixels[c].NumSteps) { | |
| Pixels[c].Step = 0; | |
| printf("Color %d steps %5d at %8ld delta %ld ms\r\n",c,Pixels[c].NumSteps,MillisNow,(MillisNow - MillisThen)); | |
| } | |
| AllSteps += Pixels[c].Step; // will be zero only when all wrap at once | |
| } | |
| if (0 == AllSteps) { | |
| printf("Grand cycle at: %ld\r\n",MillisNow); | |
| } | |
| for (int k=0; k < NUMPIXELS; k++) { // for each pixel | |
| byte Value[PIXELSIZE]; | |
| for (byte c=0; c < PIXELSIZE; c++) { // ... for each color | |
| Value[c] = StepColor(c,-k*Pixels[c].TubePhase); // figure new PWM value | |
| // Value[c] = (c == RED && Value[c] == 0) ? Pixels[c].MaxPWM : Value[c]; // flash highlight for tracking | |
| } | |
| uint32_t UniColor = strip.Color(Value[RED],Value[GREEN],Value[BLUE],Value[WHITE]); | |
| strip.setPixelColor(k,UniColor); | |
| } | |
| strip.show(); | |
| MillisThen = MillisNow; | |
| digitalWrite(PIN_HEARTBEAT,LOW); | |
| } | |
| } |
The Smell of Molten Projects in the Morning
When and how did you start using printf() with arduino?
I have no idea where or when I learned This One Simple Trick, but …
Add this:
int s_putc(char c, FILE *t) {Serial.write(c);
}
Then do this:
Serial.begin(57600);
fdevopen(&s_putc,0);
And then
printf()Just Works!
