Astable Multivibrator: NP-BX1 Base

Adapting the NP-BX1 battery holder to use SMT pogo pins worked well:

NP-BX1 Holder - SMT pogo pins — NP-BX1 Holder – SMT pogo pins

The next step is to add sockets for those 14 AWG wires:

NP-BX1 Battery Holder - Wire Posts - solid model — NP-BX1 Battery Holder – Wire Posts – solid model

Start by reaming / hand-drilling all the holes to their nominal size and cleaning out the pogo pin pocket.

Solder wires to the pogo pins and thread them through the holder and lid:

Astable - NP-BX1 holder - pogo pin soldering — Astable – NP-BX1 holder – pogo pin soldering

That’s nice, floppy silicone-insulated 24 AWG wire, which may be a bit too thick for this purpose.

The pogo pins will, ideally, seat with the end of the body flush at the holder wall. Make it so:

Astable - NP-BX1 holder - pogo pin protrusion — Astable – NP-BX1 holder – pogo pin protrusion

Dress the wires neatly into their pocket:

Astable - NP-BX1 holder - pogo pin wiring — Astable – NP-BX1 holder – pogo pin wiring

Butter the bottom of the lid with epoxy, clamp in place, set it up for curing, then fill the recess:

Astable - NP-BX1 base - curing — Astable – NP-BX1 base – curing

While it’s curing, make a soldering fixture for the 14 AWG wires:

Astable - drilling strut soldering fixture — Astable – drilling strut soldering fixture

The holes are on 5 mm centers, in the expectation other battery holders will need different spacing.

Solder it up and stick the wires into the base:

Astable - NP-BX1 base - detail — Astable – NP-BX1 base – detail

Jam a battery in and It Just Works™:

Astable - NP-BX1 3.8V - 20ma-div - cap V — Astable – NP-BX1 3.8V – 20ma-div – cap V

The traces:

Green = supply current at 20 mA/div
Yellow = LED driver transistor base voltage
Purple = other transistor collector voltage
White = base – collector voltage = capacitor voltage

The measurement setup was a bit of a hairball:

Astable - NP-BX1 base - current probe — Astable – NP-BX1 base – current probe

For completeness, here’s the schematic-and-layout diagram behind the circuitry:

Astable - NP-BX1 base - schematic — Astable – NP-BX1 base – schematic

I love it when a plan comes together!

The OpenSCAD source code as a GitHub Gist:

	// Holder for Sony NP-BX1 Li-Ion battery
	// Ed Nisley KE4ZNU January 2013
	// 2018-11-15 Adapted for wire leads from 1.5 mm test pins, added upright wire bases

	// Layout options

	Layout = "Fit"; // Show Build Fit Case Lid Pins

	//- Extrusion parameters – must match reality!
	// Print with +2 shells and 3 solid layers

	ThreadThick = 0.25;
	ThreadWidth = 0.35;

	HoleWindage = 0.2;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	Protrusion = 0.1; // make holes end cleanly

	inch = 25.4;

	BuildOffset = 3.0; // clearance for build layout

	Gap = 2.0; // separation for Fit parts

	//- Basic dimensions

	WallThick = 4*ThreadWidth; // holder sidewalls

	BaseThick = 6*ThreadThick; // bottom of holder to bottom of battery
	TopThick = 6*ThreadThick; // top of battery to top of holder


	//- Battery dimensions – rationalized from several samples
	// Coordinate origin at battery contact face with key openings below contacts

	Battery = [43.0,30.0,9.5]; // X = length, Y = width, Z = thickness

	Contacts = [[-0.75,6.0,6.2],[-0.75,16.0,6.2]]; // relative to battery edge, front, and bottom
	ContactOC = Contacts[1].y – Contacts[0].y;
	ContactCenter = Contacts[0].y + ContactOC/2;

	KeyBlocks = [[1.75,3.70,2.90],[1.75,3.60,2.90]]; // recesses in battery face set X position

	//- Pin dimensions

	ID = 0;
	OD = 1;
	LENGTH = 2;

	PinShank = [1.5,2.0,6.5]; // shank, flange, compressed length
	PinFlange = [1.5,2.0,0.5]; // flange, length included in PinShank
	PinTip = [0.9,0.9,2.5]; // extended spring-loaded tip

	PinChannel = PinFlange[LENGTH] + 0.5; // cut behind flange for solder overflow
	PinRecess = 3.0; // recess behind pin flange end for epoxy fill

	echo(str("Contact tip dia: ",PinTip[OD]));
	echo(str(" .. shank dia: ",PinShank[ID]));

	OverTravel = 0.5; // space beyond battery face at X origin

	//- Holder dimensions

	GuideRadius = ThreadWidth; // friction fit ridges
	GuideOffset = 7; // from compartment corners

	ThumbRadius = 10.0; // thumb opening at end of battery

	CornerRadius = 3*ThreadThick; // nice corner rounding

	CaseSize = [Battery.x + PinShank[LENGTH] + OverTravel + PinRecess + GuideRadius + WallThick,
	Battery.y + 2WallThick + 2GuideRadius,
	Battery.z + BaseThick + TopThick];

	CaseOffset = [-(PinShank[LENGTH] + OverTravel + PinRecess),-(WallThick + GuideRadius),0]; // position around battery

	LidOverhang = 2.0; // over top of battery for retention

	LidSize = [-CaseOffset.x + LidOverhang,CaseSize.y,TopThick];

	LidOffset = [0.0,CaseOffset.y,0];

	//- Wire struts

	StrutDia = 1.6; // AWG 14 = 1.6 mm
	StrutOC = 45;
	StrutSides = 3*4;

	StrutBase = [StrutDia,StrutDia + 4*WallThick,CaseSize.z – TopThick]; // ID = wire, OD=buildable

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);

	FixDia = Dia / cos(180/Sides);

	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}

	//——————-
	//– Guides for tighter friction fit

	module Guides() {
	translate([GuideOffset,-GuideRadius,0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([GuideOffset,(Battery.y + GuideRadius),0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([(Battery.x – GuideOffset),-GuideRadius,0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([(Battery.x – GuideOffset),(Battery.y + GuideRadius),0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([(Battery.x + GuideRadius),GuideOffset/2,0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([(Battery.x + GuideRadius),(Battery.y – GuideOffset/2),0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);

	}

	//– Contact pins
	// Rotated to put them in their natural oriention
	// Aligned to put tip base / end of shank at Overtravel limit

	module PinShape() {

	translate([-(PinShank[LENGTH] + OverTravel),0,0])
	rotate([0,90,0])
	rotate(180/6)
	union() {
	PolyCyl(PinTip[OD],PinShank[LENGTH] + PinTip[LENGTH],6);
	PolyCyl(PinShank[ID],PinShank[LENGTH] + Protrusion,6); // slight extension for clean cuts
	PolyCyl(PinFlange[OD],PinFlange[LENGTH],6);
	}
	}

	// Position pins to put end of shank at battery face
	// Does not include recess access into case

	module PinAssembly() {

	union() {
	for (p = Contacts)
	translate([0,p.y,p.z])
	PinShape();

	translate([-(PinShank[LENGTH] + OverTravel) + PinChannel/2, // solder space
	ContactCenter,
	Contacts[0].z])
	cube([PinChannel,(Contacts[1].y – Contacts[0].y),PinFlange[OD]],center=true);

	for (j=[-1,1]) // wire channels
	translate([-(PinShank[LENGTH] + OverTravel – PinChannel/2),
	j*ContactOC/4 + ContactCenter,
	Contacts[0].z – PinFlange[OD]/2])
	rotate(180/6)
	PolyCyl(PinFlange[OD],CaseSize.z,6);
	}
	}

	//– Case with origin at battery corner

	module Case() {

	difference() {

	union() {

	difference() {
	union() {
	translate([(CaseSize.x/2 + CaseOffset.x), // basic case shape
	(CaseSize.y/2 + CaseOffset.y),
	(CaseSize.z/2 – BaseThick)])
	hull()
	for (i=[-1,1], j=[-1,1], k=[-1,1])
	translate([i*(CaseSize.x/2 – CornerRadius),
	j*(CaseSize.y/2 – CornerRadius),
	k*(CaseSize.z/2 – CornerRadius)])
	sphere(r=CornerRadius/cos(180/8),$fn=8); // cos() fixes undersize spheres!

	hull() // wire strut bases
	for (j=[-1,1])
	translate([0,j*StrutOC/2 + Battery.y/2,-BaseThick])
	rotate(180/StrutSides)
	cylinder(d=StrutBase[OD],h=StrutBase[LENGTH],$fn=StrutSides);

	translate([0,Battery.y/2,StrutBase[LENGTH]/2 – BaseThick])
	cube([2*StrutBase[OD],StrutOC,StrutBase[LENGTH]],center=true);
	}

	translate([-OverTravel,-GuideRadius,0])
	cube([(Battery.x + GuideRadius + OverTravel),
	(Battery.y + 2*GuideRadius),
	(Battery.z + Protrusion)]); // battery space
	}

	Guides(); // improve friction fit

	translate([-OverTravel,-GuideRadius,0]) // battery keying blocks
	cube(KeyBlocks[0] + [OverTravel,GuideRadius,0],center=false);
	translate([-OverTravel,(Battery.y – KeyBlocks[1].y),0])
	cube(KeyBlocks[1] + [OverTravel,GuideRadius,0],center=false);

	}

	translate([2*CaseOffset.x, // battery top access
	(CaseOffset.y – Protrusion),
	Battery.z])
	cube([2CaseSize.x,(CaseSize.y + 2Protrusion),(TopThick + Protrusion)]);

	if (false)
	translate([(CaseOffset.x – Protrusion), // battery insertion allowance
	(CaseOffset.y – Protrusion),
	Battery.z])
	cube([(CaseSize.x + 2Protrusion),(CaseSize.y + 2Protrusion),(TopThick + Protrusion)]);

	for (j=[-1,1]) // strut wires
	translate([0,j*StrutOC/2 + Battery.y/2,-(BaseThick + Protrusion)])
	PolyCyl(StrutBase[ID],StrutBase[LENGTH] + 2*Protrusion,6);

	for (i=[-1,1], j=[-1,1])
	translate([iStrutBase[OD],jStrutOC/2 + Battery.y/2,-(BaseThick + Protrusion)])
	rotate(180/StrutSides)
	PolyCyl(StrutBase[OD],StrutBase[LENGTH] + 2*Protrusion,StrutSides);

	translate([(Battery.x – Protrusion), // remove thumb notch
	(CaseSize.y/2 + CaseOffset.y),
	(ThumbRadius)])
	rotate([90,0,0])
	rotate([0,90,0])
	cylinder(r=ThumbRadius,
	h=(WallThick + GuideRadius + 2*Protrusion),
	$fn=22);

	PinAssembly();

	translate([CaseOffset.x + PinRecess + Protrusion,(Contacts[1].y + Contacts[0].y)/2,Contacts[0].z])
	translate([-PinRecess,0,0])
	cube([2*PinRecess,
	(Contacts[1].y – Contacts[0].y + PinFlange[OD]),
	2*PinFlange[OD]],center=true);

	}

	}

	// Lid position offset to match case

	module Lid() {

	difference() {
	translate([-LidSize.x/2 + LidOffset.x + LidOverhang,LidSize.y/2 + LidOffset.y,0])
	difference() {
	hull()
	for (i=[-1,1], j=[-1,1], k=[-1,1])
	translate([i*(LidSize.x/2 – CornerRadius),
	j*(LidSize.y/2 – CornerRadius),
	k*(LidSize.z – CornerRadius)]) // double thickness for flat bottom
	sphere(r=CornerRadius,$fn=8);

	translate([0,0,-LidSize.z/2]) // remove bottom
	cube([(LidSize.x + 2Protrusion),(LidSize.y + 2Protrusion),LidSize.z],center=true);

	translate([LidSize.x/8,0,0])
	cube([LidSize.x/4,0.75LidSize.y,4ThreadThick],center=true); // epoxy recess
	}

	translate([0,0,-(Contacts[0].z + PinFlange[OD])]) // punch wire holes
	PinAssembly();
	}

	}


	//——————-
	// Build it!

	if (Layout == "Case")
	Case();

	if (Layout == "Lid")
	Lid();

	if (Layout == "Pins") {
	color("Silver",0.5)
	PinShape();
	PinAssembly();
	}

	if (Layout == "Show") { // reveal pin assembly
	difference() {
	Case();

	translate([(CaseOffset.x – Protrusion),
	Contacts[1].y,
	Contacts[1].z])
	cube([(-CaseOffset.x + Protrusion),
	CaseSize.y,
	(CaseSize.z – Contacts[0].z + Protrusion)]);

	translate([(CaseOffset.x – Protrusion),
	(CaseOffset.y – Protrusion),
	0])
	cube([(-CaseOffset.x + Protrusion),
	Contacts[0].y + Protrusion – CaseOffset.y,
	CaseSize.z]);
	}

	translate([0,0,Battery.z + Gap])
	Lid();

	color("Silver",0.15)
	PinAssembly();

	}

	if (Layout == "Build") {
	translate([-(CaseSize.x/2 + CaseOffset.x),-(CaseOffset.y – BuildOffset),BaseThick])
	Case();
	translate([CaseSize.x/2,-LidSize.x/2,0])
	rotate(90)
	Lid();
	}

	if (Layout == "Fit") {
	Case();
	translate([0,0,(Battery.z + Gap)])
	Lid();
	color("Silver",0.25)
	PinAssembly();
	}

view raw NP-BX1 Battery Holder – Wire Posts.scad hosted with ❤ by GitHub

2018-12-12

Six Gallon Can Lid Adapter to Platform Bird Feeder

A House Finch suffering from Finch Eye Disease prompted me to sterilize our feeder, which meant providing a temporary feeder to keep the birds flying. Having an abundance of lids from six gallon plastic cans / buckets, this made sense:

Can Lid Feeder - installed — Can Lid Feeder – installed

Which required an adapter betwixt pole and lid:

Can Lid Feeder - assembled — Can Lid Feeder – assembled

Which requires a bit of solid modeling:

Can Lid Platform Feeder Mount - solid model - bottom — Can Lid Platform Feeder Mount – solid model – bottom

The lids have a central boss, presumably for stiffening, so the model includes a suitable recess:

Can Lid Platform Feeder Mount - solid model - support structure — Can Lid Platform Feeder Mount – solid model – support structure

As usual, automatically generated support fills the entire recess, so I designed a minimal support structure into the model and cracked it out with very little effort:

Can Lid Feeder - support structure — Can Lid Feeder – support structure

The tangle off to the right comes from a bridge layer with a hole in the middle, which never works well even with support:

Can Lid Platform Feeder Mount - Slic3r - bridge layer — Can Lid Platform Feeder Mount – Slic3r – bridge layer

Didn’t bother the birds in the least, though, so it’s all good.

I loves me my 3D printer …

The OpenSCAD source code as a GitHub Gist:

	// Adapter from steel pole to 5 gallon plastic can lid
	// Turns the lid into a improvised platform feeder
	// Ed Nisley – KE4ZNU – 2018-11

	Layout = "Build"; // Show Build

	ThreadThick = 0.25;
	ThreadWidth = 0.40;

	HoleWindage = 0.2;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	Protrusion = 0.1; // make holes end cleanly

	// Sizes

	ID = 0;
	OD = 1;
	LENGTH = 2;

	Wall = 10; // minimum thickness or width for anything

	Boss = [15,50,9]; // central boss on lie
	Flange = [50,110,Boss[LENGTH] + Wall];

	echo(Boss);
	echo(Flange);

	Pole = [(23.5 + 4*HoleWindage),26,45]; // small end of steel pole

	Screw = [5.0,8.0,25.0]; // 5 mm or 10-32
	ScrewOC = 80; // lid mounting screws
	NumScrews = 3;

	NumSides = NumScrews24;
	$fn = NumSides;

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
	FixDia = Dia / cos(180/Sides);
	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}

	//———————-
	// Build it

	module Bracket() {

	difference() {

	union() {
	rotate(180/(NumSides/2)) {
	cylinder(d=Flange[OD],h=Flange[LENGTH],$fn=NumSides/2); // fewer sides is OK
	cylinder(d=Pole[OD] + 2*Wall,h=Pole[LENGTH] + Flange[LENGTH],$fn=NumSides/2);
	}
	}

	translate([0,0,-Protrusion])
	rotate(180/NumSides)
	cylinder(d=Boss[OD],h=Boss[LENGTH] + Protrusion,$fn=NumSides);

	translate([0,0,-Protrusion])
	rotate(180/NumSides)
	cylinder(d=Pole[ID],h=2*(Pole[LENGTH] + Flange[LENGTH]),$fn=NumSides);

	for (i=[0:NumScrews-1])
	rotate(i*(360/NumScrews))
	translate([ScrewOC/2,0,-Protrusion])
	PolyCyl(Screw[ID],2*Flange[LENGTH],6);
	}

	}

	module Support() {

	NumRibs = NumSides/2;
	Rib = [0.95(Boss[OD] – Pole[ID])/2,2ThreadWidth,Boss[LENGTH] – ThreadThick];

	color("Yellow") {
	for (i=[0:NumRibs-1]) {
	a = i*360/NumRibs;
	rotate(a)
	translate([Pole[ID]/2 + Rib.x/2,0,Rib.z/2])
	cube(Rib,center=true);
	}
	rotate(180/NumSides)
	difference() {
	cylinder(d=Pole[ID] + 10ThreadWidth,h=1ThreadThick,$fn=NumSides);
	translate([0,0,-Protrusion])
	cylinder(d=Pole[ID],h=Rib.z + 2*Protrusion,$fn=NumSides);
	}
	}

	}

	if (Layout == "Show")
	Bracket();

	if (Layout == "Build") {
	Bracket();
	Support();
	}

view raw Can Lid Platform Feeder Mount.scad hosted with ❤ by GitHub

2018-12-11

JYE Tech DSO150 Oscilloscope: Battery Power
With the DSO150 scope running, I printed Geoff’s DSO150 case + battery holder from Thingiverse, added a few bits & pieces from the heap, and came up with a completely portable scope:

DSO150 battery hack – first light

The only scope mod consists of embedding a JST-ish connector in the back panel:

DSO150 battery hack – rear panel connector

Then soldering it to the battery pads and applying generous hot-melt glue blobs:

DSO150 battery hack – PCB power

Add a scrap 18650 Li-Ion cell, a regulated boost converter, and a switch:

DSO150 battery hack – interior

The switch is directly below the DSO150 BNC connector to get a little protection for its handle, which would otherwise stick out in harm’s way. This being an afterthought, I drilled the switch hole, rather than modify the solid model.

Some testing with a bench supply showed that the DSO150 will not operate correctly from the voltages produced by a pair of lithium cells, despite what you’d think from looking at the case. Below 8 V, the internally generated negative supply becomes larger than the positive supply, so the 0 V point isn’t properly centered and the scope loses headroom for large signals; monitoring the internal 3.3 V test signal makes the problem painfully obvious.

More color commentary from my summary email:
- Combining a case from Thingiverse with a Li-Ion cell and a regulated boost converter produces a portable scope.
- The PCB has provision for battery input, so I drilled / filed a square hole for a teeny JST-ish connector on the back panel, secured it with a blob of hot melt glue, and globbed the wires onto the PCB battery pads.
- The boost converter draws about 400 mA from the cell, so a 2500-ish mA·h cell should last Long Enough™. This is a scrap cell from the recycle box and gave out after maybe four hours.
- It idles at 8 mA, so I drilled a hole in the back of the case for a toggle switch disconnecting the battery; you’d want the hole in the solid model. Perhaps a better converter would have lower idle current; you’d never be able to tell from the eBay descriptions.
- Aaaaand it switches around 200 kHz under load, just barely beyond the scope bandwidth. It doesn’t add much noise to the signal, at least with a 50 Ω terminator jammed in the BNC, but the square-wave “cal” output looks awful at 50 mV/div; a real scope shows even more noise. I assume the noise comes directly from the logic supply; with luck, the DSO150’s analog circuitry has Good Enough™ filtering.
- Which might not matter for logic-level and moderate analog signals, of course, which is the whole point of the DSO150.
- Conspicuous by their absence: a Li-Ion cell protection PCB and any way to recharge the poor thing …
I’ve occasionally wanted a portable scope and now I have one!
2018-12-05

Sony NP-BX1 Battery Holder: SMT Pogo Pin Contacts

The original camera battery test fixtures used contact pins conjured from hulking gold-plated connector pins and coil springs:

Canon NB-6L holder - contact pin detail — Canon NB-6L holder – contact pin detail

The Sony HDR-AS30V camera chewed up and spat out a handful of batteries, all tested in the NP-BX1 test fixture:

NP-BX1 Holder - show layout — NP-BX1 Holder – show layout

Nowadays, SMT pogo pins produce a much more compact holder, so I figured I could put all those batteries to good use:

That’s the long-suffering astable multivibrator, still soldered to its CR123A holder.

Obviously, the battery holder should grow ears to anchor the 14 AWG copper posts and would look better in black PETG:

NP-BX1 Battery Holder - 1.5mm pins - solid model — NP-BX1 Battery Holder – 1.5mm pins – solid model

The battery lead wires get soldered to the ends of the pogo pins and are recessed into the slot in the end of the fixture. I used clear epoxy to anchor everything in place.

Fits perfectly and works fine!

The OpenSCAD source code as a GitHub Gist:

	// Holder for Sony NP-BX1 Li-Ion battery
	// Ed Nisley KE4ZNU January 2013
	// 2018-11-15 Adapted for wire leads from 1.5 mm test pins, added upright wire bases

	// Layout options

	Layout = "Show"; // Show Build Fit Case Lid Pins

	//- Extrusion parameters – must match reality!
	// Print with +2 shells and 3 solid layers

	ThreadThick = 0.25;
	ThreadWidth = 0.35;

	HoleWindage = 0.2;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	Protrusion = 0.1; // make holes end cleanly

	inch = 25.4;

	BuildOffset = 3.0; // clearance for build layout

	Gap = 2.0; // separation for Fit parts

	//- Battery dimensions – rationalized from several samples
	// Coordinate origin at battery contact face with key openings below contacts

	Battery = [43.0,30.0,9.5]; // X = length, Y = width, Z = thickness

	Contacts = [[-0.75,6.0,6.2],[-0.75,16.0,6.2]]; // relative to battery edge, front, and bottom

	KeyBlocks = [[1.75,3.70,2.90],[1.75,3.60,2.90]]; // recesses in battery face set X position

	//- Pin dimensions

	ID = 0;
	OD = 1;
	LENGTH = 2;

	PinShank = [1.5,2.0,6.5]; // shank, flange, compressed length
	PinFlange = [1.5,2.0,0.5]; // flange, length included in PinShank
	PinTip = [0.9,0.9,2.5]; // extended spring-loaded tip

	PinChannel = PinFlange[LENGTH] + 0.5; // cut behind flange for solder overflow
	PinRecess = 3.0; // recess behind pin flange end for epoxy fill


	echo(str("Contact tip dia: ",PinTip[OD]));
	echo(str(" .. shank dia: ",PinShank[ID]));

	OverTravel = 0.5; // space beyond battery face at X origin

	//- Holder dimensions

	GuideRadius = ThreadWidth; // friction fit ridges
	GuideOffset = 7; // from compartment corners
	WallThick = 4*ThreadWidth; // holder sidewalls

	BaseThick = 6*ThreadThick; // bottom of holder to bottom of battery
	TopThick = 6*ThreadThick; // top of battery to top of holder

	ThumbRadius = 10.0; // thumb opening at end of battery

	CornerRadius = 3*ThreadThick; // nice corner rounding

	CaseSize = [Battery.x + PinShank[LENGTH] + OverTravel + PinRecess + GuideRadius + WallThick,
	Battery.y + 2WallThick + 2GuideRadius,
	Battery.z + BaseThick + TopThick];

	CaseOffset = [-(PinShank[LENGTH] + OverTravel + PinRecess),-(WallThick + GuideRadius),0]; // position around battery

	LidOverhang = 2.0; // over top of battery for retention

	LidSize = [-CaseOffset.x + LidOverhang,CaseSize.y,TopThick];

	LidOffset = [0.0,CaseOffset.y,0];

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);

	FixDia = Dia / cos(180/Sides);

	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}

	//——————-
	//– Guides for tighter friction fit

	module Guides() {
	translate([GuideOffset,-GuideRadius,0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([GuideOffset,(Battery.y + GuideRadius),0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([(Battery.x – GuideOffset),-GuideRadius,0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([(Battery.x – GuideOffset),(Battery.y + GuideRadius),0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([(Battery.x + GuideRadius),GuideOffset/2,0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);
	translate([(Battery.x + GuideRadius),(Battery.y – GuideOffset/2),0])
	PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4);

	}

	//– Contact pins
	// Rotated to put them in their natural oriention
	// Aligned to put tip base / end of shank at Overtravel limit

	module PinShape() {

	translate([-(PinShank[LENGTH] + OverTravel),0,0])
	rotate([0,90,0])
	rotate(180/6)
	union() {
	PolyCyl(PinTip[OD],PinShank[LENGTH] + PinTip[LENGTH],6);
	PolyCyl(PinShank[ID],PinShank[LENGTH] + Protrusion,6); // slight extension for clean cuts
	PolyCyl(PinFlange[OD],PinFlange[LENGTH],6);
	}
	}

	// Position pins to put end of shank at battery face
	// Add wire exit channel between pins
	// Does not include recess access

	module PinAssembly() {

	union() {
	for (p = Contacts)
	translate([0,p.y,p.z])
	PinShape();
	translate([-(PinShank[LENGTH] + OverTravel) + PinChannel/2,
	(Contacts[1].y + Contacts[0].y)/2,
	Contacts[0].z])
	cube([PinChannel,(Contacts[1].y – Contacts[0].y),PinFlange[OD]],center=true);
	}
	}

	//– Case with origin at battery corner

	module Case() {

	difference() {

	union() {

	difference() {

	translate([(CaseSize.x/2 + CaseOffset.x), // basic case shape
	(CaseSize.y/2 + CaseOffset.y),
	(CaseSize.z/2 – BaseThick)])
	hull()
	for (i=[-1,1], j=[-1,1], k=[-1,1])
	translate([i*(CaseSize.x/2 – CornerRadius),
	j*(CaseSize.y/2 – CornerRadius),
	k*(CaseSize.z/2 – CornerRadius)])
	sphere(r=CornerRadius,$fn=8);

	translate([-OverTravel,-GuideRadius,0])
	cube([(Battery.x + GuideRadius + OverTravel),
	(Battery.y + 2*GuideRadius),
	(Battery.z + Protrusion)]); // battery space
	}

	Guides(); // improve friction fit

	translate([-OverTravel,-GuideRadius,0]) // battery keying blocks
	cube(KeyBlocks[0] + [OverTravel,GuideRadius,0],center=false);
	translate([-OverTravel,(Battery.y – KeyBlocks[1].y),0])
	cube(KeyBlocks[1] + [OverTravel,GuideRadius,0],center=false);

	}

	translate([(-OverTravel), // battery top access
	(CaseOffset.y – Protrusion),
	Battery.z])
	cube([CaseSize.x,(CaseSize.y + 2*Protrusion),(TopThick + Protrusion)]);

	translate([(CaseOffset.x – Protrusion), // battery insertion allowance
	(CaseOffset.y – Protrusion),
	Battery.z])
	cube([(CaseSize.x + 2Protrusion),(CaseSize.y + 2Protrusion),(TopThick + Protrusion)]);


	translate([(Battery.x – Protrusion), // remove thumb notch
	(CaseSize.y/2 + CaseOffset.y),
	(ThumbRadius)])
	rotate([90,0,0])
	rotate([0,90,0])
	cylinder(r=ThumbRadius,
	h=(WallThick + GuideRadius + 2*Protrusion),
	$fn=22);

	PinAssembly();

	translate([CaseOffset.x + PinRecess/2 + Protrusion/2,(Contacts[1].y + Contacts[0].y)/2,Contacts[0].z])
	cube([PinRecess + Protrusion,
	(Contacts[1].y – Contacts[0].y + PinFlange[OD]),
	2*PinFlange[OD]],center=true);

	}

	}

	// Lid position offset to match case

	module Lid() {

	translate([-LidSize.x/2 + LidOffset.x + LidOverhang,LidSize.y/2 + LidOffset.y,0])
	difference() {
	hull()
	for (i=[-1,1], j=[-1,1], k=[-1,1])
	translate([i*(LidSize.x/2 – CornerRadius),
	j*(LidSize.y/2 – CornerRadius),
	k*(LidSize.z – CornerRadius)]) // double thickness for flat bottom
	sphere(r=CornerRadius,$fn=8);

	translate([0,0,-LidSize.z/2])
	cube([(LidSize.x + 2Protrusion),(LidSize.y + 2Protrusion),LidSize.z],center=true);

	cube([LidSize.x/4,0.75LidSize.y,4ThreadThick],center=true); // epoxy recess
	}

	}


	//——————-
	// Build it!

	if (Layout == "Case")
	Case();

	if (Layout == "Lid")
	Lid();

	if (Layout == "Pins") {
	color("Silver",0.5)
	PinShape();
	PinAssembly();
	}

	if (Layout == "Show") { // reveal pin assembly
	difference() {
	Case();

	translate([(CaseOffset.x – Protrusion),
	Contacts[1].y,
	Contacts[1].z])
	cube([(-CaseOffset.x + Protrusion),
	CaseSize.y,
	(CaseSize.z – Contacts[0].z + Protrusion)]);

	translate([(CaseOffset.x – Protrusion),
	(CaseOffset.y – Protrusion),
	0])
	cube([(-CaseOffset.x + Protrusion),
	Contacts[0].y + Protrusion – CaseOffset.y,
	CaseSize.z]);
	}

	color("Silver",0.15)
	PinAssembly();

	translate([0,0,Battery.z + Gap])
	Lid();
	}

	if (Layout == "Build") {
	translate([-(CaseSize.x/2 + CaseOffset.x),-(CaseOffset.y – BuildOffset),BaseThick])
	Case();
	translate([CaseSize.y/2,(CaseOffset.x/2 – BuildOffset),0])
	rotate([0,0,90])
	Lid();
	}

	if (Layout == "Fit") {
	Case();
	translate([0,0,(Battery.z + Gap)])
	Lid();
	color("Silver",0.25)
	PinAssembly();

	}

view raw NP-BX1 Battery Holder – 1.5mm pins.scad hosted with ❤ by GitHub

2018-11-29

Makergear M2 V4 Nozzle: More Silicone!

A Makergear forum discussion on PETG hair and the prevention thereof prompted me to take a look at the silicone coating I’d applied to the nozzle:

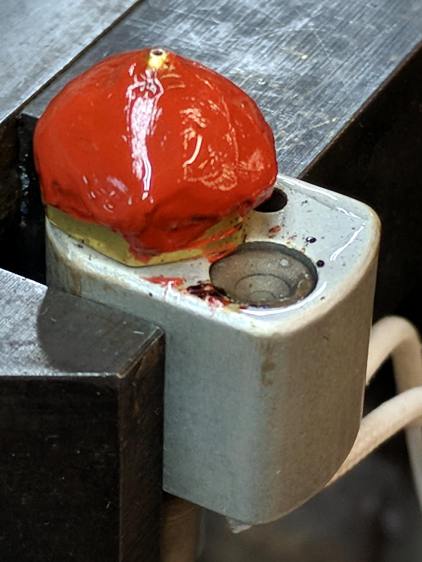

M2 – nozzle silicone – applied

That was ten months ago. This is now:

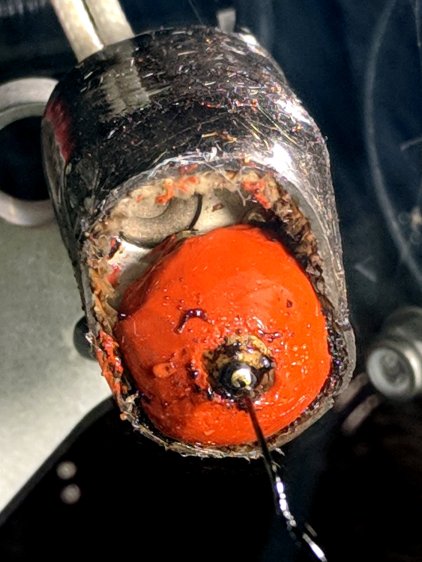

M2 Nozzle – worn silicone coat

The camera sees the nozzle in a mirror laid flat on the platform, making the image less crisp than a direct view.

So the silicone seems a bit worn around the tip, has acquired a few firmly adhered globs, and definitely isn’t as shiny.

Rather than (try to) peel it off and reapply a new coating, I picked off the globs, cleaned around the nozzle, and slobbered a thin layer atop the existing silicone:

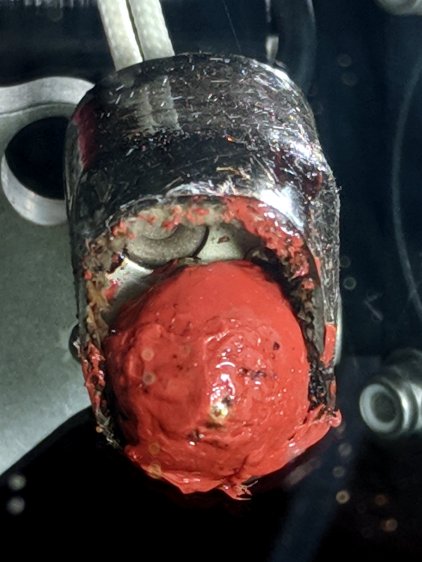

M2 Nozzle – more silicone

Extruding a few millimeters of filament pushed the film off the nozzle opening and it now works as well as it ever did.

2018-11-28
Kindle Fire Picture Frame: Side Block
A steel frame that Came With The House™ emerged from a hidden corner and, instants before tossing it in the recycle heap, I realized it had excellent upcycling potential:

Kindle Fire Picture Frame – Test Run

Stipulated: I need better pictures for not-so-techie audiences.

Anyhow, my long-disused Kindle Fire fits perfectly into the welded-on clips, with just enough room for a right-angle USB cable, and Photo Frame Slideshow Premium does exactly what’s necessary to show pictures from internal storage with no network connection.

All I needed was a small block holding the Kindle against the far side of the frame:

Kindle Frame – side blocks

A strip of double-stick carpet tape holds the block onto the frame. To extract the Kindle, should the need arise, slide it upward to clear the bottom clips, rotate it rearward, and out it comes.

Getting a good block required three tries, because the basement has cooled off enough to trigger Marlin’s Thermal Runaway protection for the M2’s platform heater. A test fit after the first failure showed the long leg was 1 mm too wide and, after the second failure, I reduced the fan threshold to 15 s and the minimum layer time to 5 s, producing the third block without incident.

The platform heater runs at 40 V and I considered bumping it to 43 V for a 15% power boost, but it has no trouble keeping up when the fan isn’t blowing chilly basement air across its surface.

The OpenSCAD source code, such as it is, doesn’t deserve its own GitHub Gist:
```
// Block to hold Kindle in a picture frame mount
// Ed Nisley - KE4ZNU
// November 2018

Protrusion = 0.1;

difference() {

  cube([18,44,10]);
  translate([-Protrusion,-Protrusion,-Protrusion])
    cube([18-4 + Protrusion,44-10 + Protrusion,10 + 2*Protrusion]);

}
```
2018-11-19

Kenmore Progressive Vacuum Tool Adapters: Third Failure

The adapter for an old Electrolux crevice tool (not the dust brush) snapped at the usual stress concentration after about three years:

Crevice tool adapter - broken vs PVC pipe — Crevice tool adapter – broken vs PVC pipe

The lower adapter is the new version, made from a length of 1 inch PVC pipe (that’s the ID, kinda-sorta) epoxied into a revised Kenmore adapter fitting.

The original OpenSCAD model provided the taper dimensions:

Electrolux Crevice Tool Adapter - PVC taper doodles — Electrolux Crevice Tool Adapter – PVC taper doodles

The taper isn’t quite as critical as it seems, because the crevice tool is an ancient molded plastic part, but a smidge over half a degree seemed like a good target.

Start by boring out the pipe ID until it’s Big Enough (or, equally, the walls aren’t Scary Thin) at 28 mm:

Crevice tool adapter - boring PVC — Crevice tool adapter – boring PVC

Alas, the mini-lathe’s craptastic compound has 2° graduations:

So I set the angle using a somewhat less craptastic protractor and angle gauge:

Crevice tool adapter - compound angle — Crevice tool adapter – compound angle

The little wedge of daylight near the gauge pivot is the difference between the normal perpendicular-to-the-spindle axis setting and half-a-degree-ish.

Turning PVC produces remarkably tenacious swarf:

Crevice tool adapter - PVC swarf — Crevice tool adapter – PVC swarf

The gash along the top comes from a utility knife; just pulling the swarf off didn’t work well at all.

The column of figures down the right side of the doodles shows successive approximations to the target angle, mostly achieved by percussive adjustment, eventually converging to about the right taper with the proper dimensions.

Cutting off the finished product with the (newly angled) cutoff bit:

Crevice tool adapter - cutoff — Crevice tool adapter – cutoff

And then It Just Worked™.

The OpenSCAD source code for all the adapters as a GitHub Gist:

	// Kenmore vacuum cleaner nozzle adapters
	// Ed Nisley KE4ZNU November 2015 and ongoing

	// Layout options

	Layout = "CrevicePipe"; // MaleFitting CoilWand FloorBrush
	// CreviceTool Crevice Pipe ScrubbyTool LuxBrush DustBrush

	//- Extrusion parameters must match reality!
	// Print with +1 shells and 3 solid layers

	ThreadThick = 0.25;
	ThreadWidth = 0.40;

	HoleWindage = 0.2;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	Protrusion = 0.1; // make holes end cleanly

	//———————-
	// Dimensions

	ID1 = 0; // for tapered tubes
	ID2 = 1;
	OD1 = 2;
	OD2 = 3;
	LENGTH = 4;

	OEMTube = [35.0,35.0,41.7,40.5,30.0]; // main fitting tube
	EndStop = [OEMTube[ID1],OEMTube[ID2],47.5,47.5,6.5]; // flange at end of main tube

	FittingOAL = OEMTube[LENGTH] + EndStop[LENGTH];

	$fn = 12*4;

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
	FixDia = Dia / cos(180/Sides);
	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}


	//——————-
	// Male fitting on end of Kenmore tools
	// This slides into the end of the handle or wand and latches firmly in place

	module MaleFitting() {

	Latch = [40,11.5,5.0]; // rectangle latch opening
	EntryAngle = 45; // latch entry ramp
	EntrySides = 16;
	EntryHeight = 15.0; // lower edge on inside of fitting

	KeyRadius = 1.0;

	translate([0,0,6.5])
	difference() {
	union() {
	cylinder(d1=OEMTube[OD1],d2=OEMTube[OD2],h=OEMTube[LENGTH]); // main tube

	hull() // insertion guide
	for (i=[-(6.0/2 – KeyRadius),(6.0/2 – KeyRadius)],
	j=[-(28.0/2 – KeyRadius),(28.0/2 – KeyRadius)],
	k=[-(26.0/2 – KeyRadius),(26.0/2 – KeyRadius)])
	translate([(i – (OEMTube[ID1]/2 + OEMTube[OD1]/2)/2 + 6.0/2),j,(k + 26.0/2 – 1.0)])
	sphere(r=KeyRadius,$fn=8);

	translate([0,0,-EndStop[LENGTH]]) // wand tube butts against this
	cylinder(d=EndStop[OD1],h=EndStop[LENGTH] + Protrusion);
	}

	translate([0,0,-OEMTube[LENGTH]]) // main bore
	cylinder(d=OEMTube[ID1],h=2OEMTube[LENGTH] + 2Protrusion);

	translate([0,-11.5/2,23.0 – 5.0]) // latch opening
	cube(Latch);

	translate([OEMTube[ID1]/2 + EntryHeight/tan(90-EntryAngle),0,0]) // latch ramp
	translate([(Latch[1]/cos(180/EntrySides))cos(EntryAngle)/2,0,(Latch[1]/cos(180/EntrySides))sin(EntryAngle)/2])
	rotate([0,-EntryAngle,0])
	intersection() {
	rotate(180/EntrySides)
	PolyCyl(Latch[1],Latch[0],EntrySides);
	translate([-(2*Latch[0])/2,0,-Protrusion])
	cube(2*Latch[0],center=true);
	}
	}
	}

	//——————-
	// Refrigerator evaporator coil wand

	module CoilWand() {

	union() {
	translate([0,0,50.0])
	rotate([180,0,0])
	difference() {
	cylinder(d1=EndStop[OD1],d2=42.0,h=50.0);
	translate([0,0,-Protrusion])
	cylinder(d1=35.0,d2=35.8,h=100);
	}
	translate([0,0,50.0 – Protrusion])
	MaleFitting();
	}
	}


	//——————-
	// Samsung floor brush

	module FloorBrush() {

	union() {
	translate([0,0,60.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=32.4,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=32.4,d2=30.7,h=50.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=28.0,d2=24.0,h=100);
	}
	translate([0,0,60.0 – Protrusion])
	MaleFitting();
	}
	}

	//——————-
	// Crevice tool

	module CreviceTool() {

	union() {
	translate([0,0,60.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=32.0,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=32.0,d2=30.4,h=50.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=28.0,d2=24.0,h=100);
	}
	translate([0,0,60.0 – Protrusion])
	MaleFitting();
	}
	}


	//——————-
	// Crevice tool
	// Hacked for 1 inch Schedule 40 PVC pipe stiffening tube

	module CrevicePipe() {

	PipeOD = 33.5;

	union() {
	translate([0,0,10.0])
	rotate([180,0,0])
	difference() {
	cylinder(d1=EndStop[OD1],d2=PipeOD+28ThreadWidth,h=10.0);
	translate([0,0,-Protrusion])
	cylinder(d=PipeOD,h=100);
	}
	translate([0,0,10.0])
	MaleFitting();
	}
	}


	//——————-
	// Mystery brush

	module ScrubbyTool() {

	union() {
	translate([0,0,60.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=31.8,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=31.8,d2=31.0,h=50.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=26.0,d2=24.0,h=100);
	}
	translate([0,0,60.0 – Protrusion])
	MaleFitting();
	}
	}

	//——————-
	// eBay horsehair dusting brush
	// Hacked for 3/4" Schedule 40 PVC stiffening tube
	// eBay: 30.0 32.0 30.0
	// Shopvac: 30.3 31.0 25.0
	// Must build snout down with brim to avoid support

	module DustBrush() {

	PipeOD = 27.0; // stiffening pipe
	Snout = [0,0, 31.0, 30.3, 25.0];
	TaperLength = 10.0; // transition cone from fitting to snout

	union() {
	translate([0,0,Snout[LENGTH] + TaperLength])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=Snout[OD1],h=TaperLength);
	translate([0,0,TaperLength – Protrusion])
	cylinder(d1=Snout[OD1],d2=Snout[OD2],h=Snout[LENGTH] + Protrusion);
	}
	translate([0,0,-Protrusion]) // 3/4 inch Sch 40 PVC
	PolyCyl(PipeOD,100);
	}
	translate([0,0,Snout[LENGTH] + TaperLength – Protrusion])
	MaleFitting();
	}
	}


	//——————-
	// Electrolux brush ball

	module LuxBrush() {

	union() {
	translate([0,0,30.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=30.8,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=30.8,d2=30.0,h=20.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=25.0,d2=23.0,h=30 + 2*Protrusion);
	}
	translate([0,0,30.0 – Protrusion])
	MaleFitting();
	}
	}



	//———————-
	// Build it!

	if (Layout == "MaleFitting")
	MaleFitting();

	if (Layout == "CoilWand")
	CoilWand();

	if (Layout == "FloorBrush")
	FloorBrush();

	if (Layout == "CreviceTool")
	CreviceTool();

	if (Layout == "CrevicePipe")
	CrevicePipe();

	if (Layout == "DustBrush")
	DustBrush();

	if (Layout == "ScrubbyTool")
	ScrubbyTool();

	if (Layout == "LuxBrush")
	LuxBrush();

view raw Kenmore Wand Bushings.scad hosted with ❤ by GitHub

2018-11-08

Tag: M2

Astable Multivibrator: NP-BX1 Base

Six Gallon Can Lid Adapter to Platform Bird Feeder

JYE Tech DSO150 Oscilloscope: Battery Power

Sony NP-BX1 Battery Holder: SMT Pogo Pin Contacts

Makergear M2 V4 Nozzle: More Silicone!

Kindle Fire Picture Frame: Side Block

Kenmore Progressive Vacuum Tool Adapters: Third Failure
