Extract some victims from a square foot of glass tiles:
Wire an old WS2812 breakout board (the new ones are much larger) to an Arduino Nano running the Nissan Fog Lamp firmware:
Aaaand it looks like this might actually work:

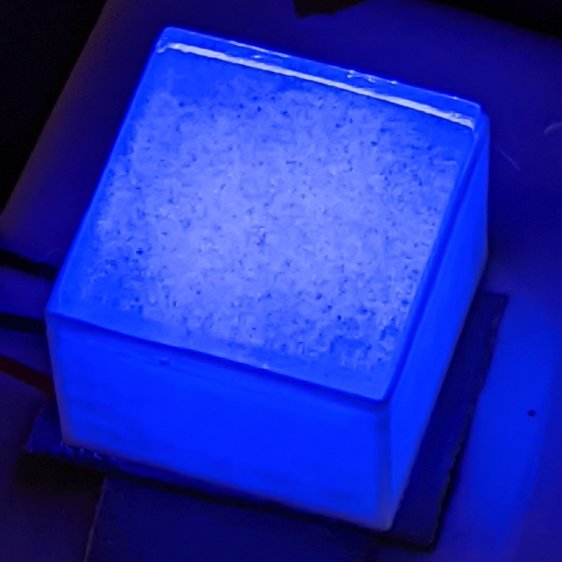

The WS2812 “beam” illuminates the 25 mm square tile without too much vignetting at about 15 mm.
The bottom tile is white-ish, the top is gray-ish, and they look different enough to justify using only one color in each array:

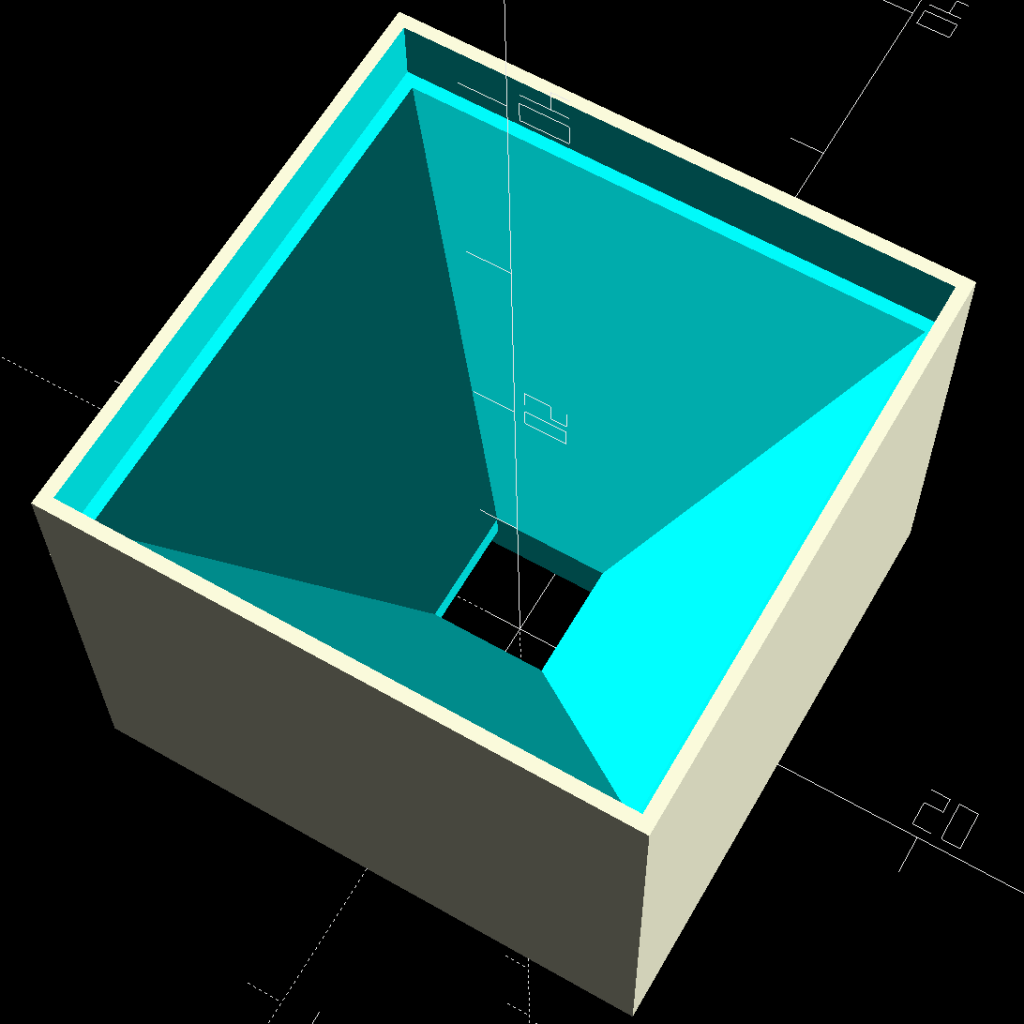

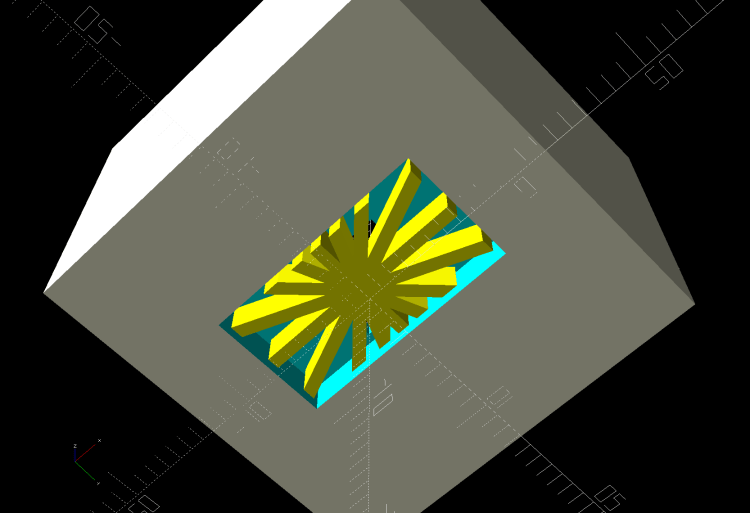

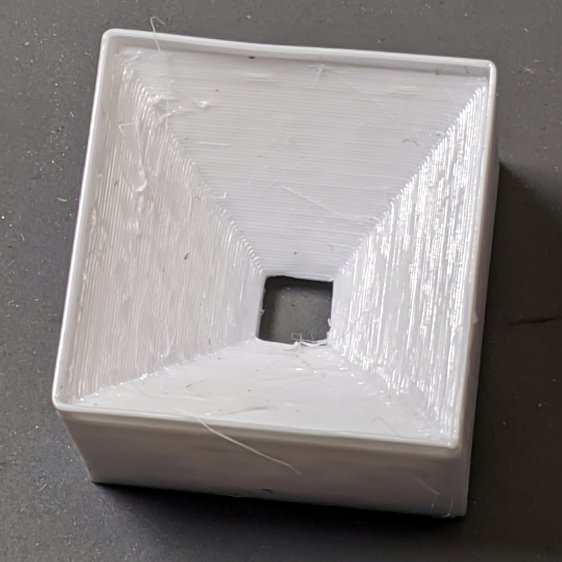

Now, for some solid modeling …

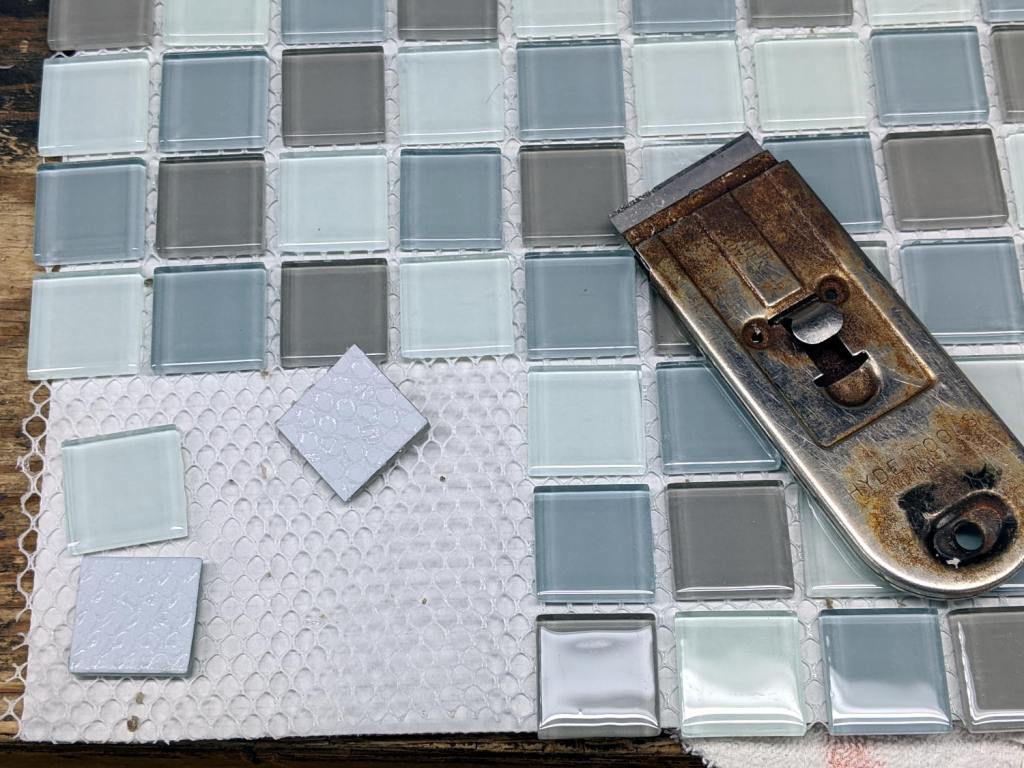

A sheet of cheap-on-closeout glass tiles emerged from the back of the Basement Laboratory workbench:
They’re intended for bathroom / kitchen backsplash panels and suchlike, rather than floors. Surprisingly, the white frit backing is diffuse, translucent, and lights up nicely with a backlight, although I lack sufficient hands for a convincing picture.
One can, with some effort, peel the tiles from their foot-square backing mesh, which leaves them covered with the resolutely sticky adhesive:
Applying the razor scraper removes most of the gum, xylene removes most of the remainder, and what’s left isn’t visible through the frit.
They’re 25 mm square and 4 mm thick, with sufficient edge imperfections to require half a millimeter of clearance on all sides
Sixteen pixels would make an adequate display:
Now, if only I could find the matching Round Tuit™ on the bench.

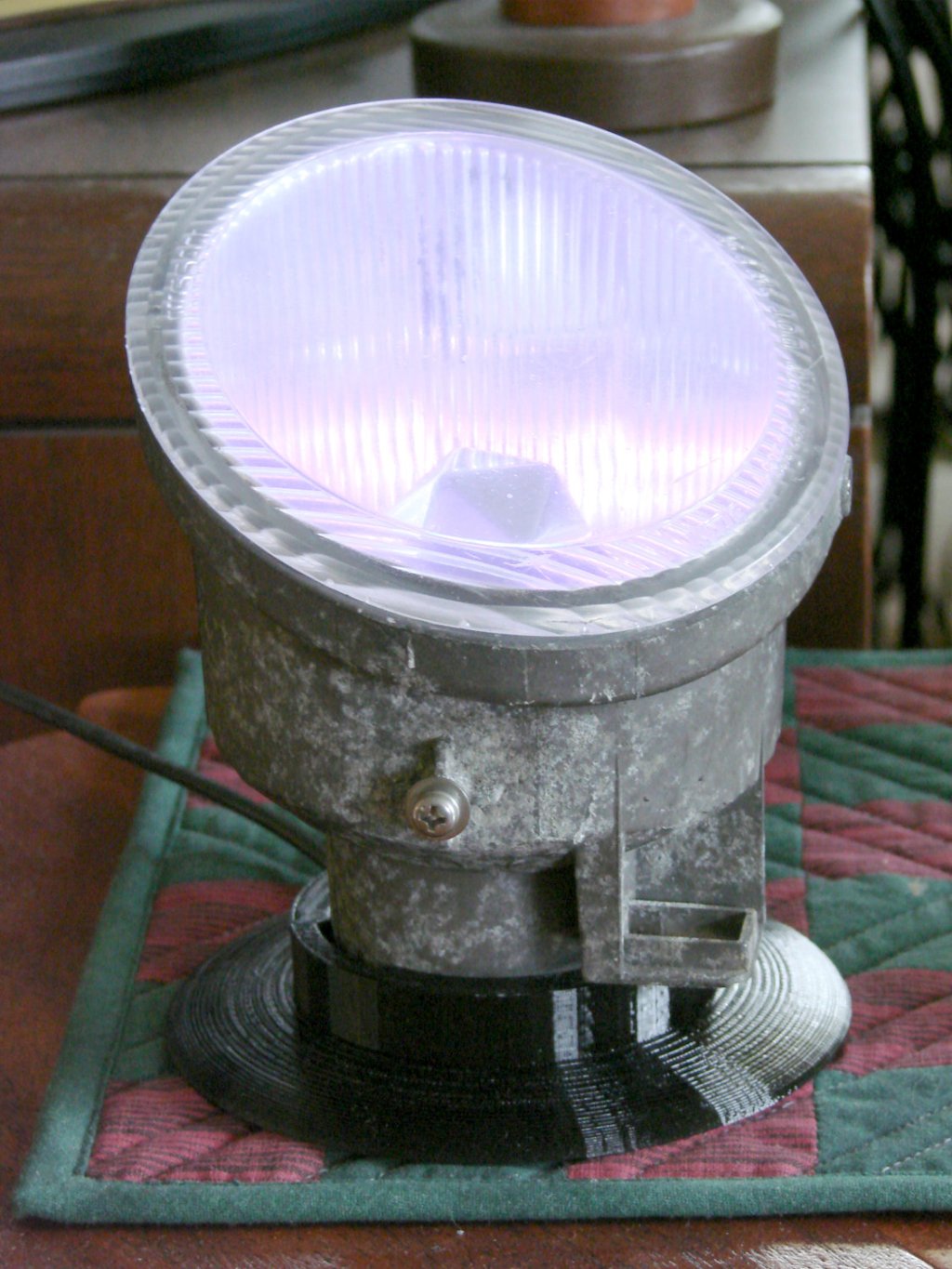

The upcycled Nissan fog lamp now has a desk stand:
A knockoff Arduino Pro Mini atop a strip of foam tape drives the WS2812 RGB LEDs:
Next time, I’ll cut the wires another inch longer.
The firmware is a tidied-up version of the vacuum tube code, minus cruft, plus fixes, and generally better at doing what it does. The Pro Mini lacks a USB output, so this came from the same code running on a Nano:
14:44:04.169 -> Algorithmic Art
14:44:04.169 -> RGB WS2812
14:44:04.169 -> Ed Nisley - KE4ZNU - April 2020
14:44:04.169 -> Lamp test: flash full-on colors
14:44:04.169 -> color: 00ff0000
14:44:05.165 -> color: 0000ff00
14:44:06.160 -> color: 000000ff
14:44:07.155 -> color: 00ffffff
14:44:08.151 -> color: 00000000
14:44:09.180 -> Random seed: da98f7f6
14:44:09.180 -> Primes: 7 19 3
14:44:09.180 -> Super cycle length: 199500 steps
14:44:09.180 -> Inter-pixel phase: 1 deg = 26 steps
14:44:09.180 -> c: 0 Steps: 3500 Init: 1538 Phase: 2 deg PWM: 255
14:44:09.180 -> c: 1 Steps: 9500 Init: 7623 Phase: 0 deg PWM: 255
14:44:09.213 -> c: 2 Steps: 1500 Init: 1299 Phase: 6 deg PWM: 255
14:44:19.265 -> Color 2 steps 1500 at 15101 ms 50 TS 201
14:45:34.293 -> Color 2 steps 1500 at 90136 ms 50 TS 1701
14:45:43.085 -> Color 1 steps 9500 at 98940 ms 50 TS 1877
14:45:47.332 -> Color 0 steps 3500 at 103192 ms 50 TS 1962
14:46:49.324 -> Color 2 steps 1500 at 165170 ms 50 TS 3201
… much snippage …
17:26:52.896 -> Color 2 steps 1500 at 9769584 ms 50 TS 195201
17:28:07.926 -> Color 2 steps 1500 at 9844618 ms 50 TS 196701
17:29:11.000 -> Color 0 steps 3500 at 9907697 ms 50 TS 197962
17:29:22.974 -> Color 2 steps 1500 at 9919653 ms 50 TS 198201
17:30:27.941 -> Supercycle end, setting new color values
17:30:27.941 -> Primes: 17 7 3
17:30:27.941 -> Super cycle length: 178500 steps
17:30:27.941 -> Inter-pixel phase: 1 deg = 23 steps
17:30:27.941 -> c: 0 Steps: 8500 Init: 5415 Phase: 0 deg PWM: 255
17:30:27.974 -> c: 1 Steps: 3500 Init: 3131 Phase: 2 deg PWM: 255
17:30:27.974 -> c: 2 Steps: 1500 Init: 420 Phase: 5 deg PWM: 255
17:30:46.394 -> Color 1 steps 3500 at 10003091 ms 50 TS 369
17:31:21.964 -> Color 2 steps 1500 at 10038658 ms 50 TS 1080 The “Super cycle length” is the number of 50 ms steps until the colors start repeating, something over an hour in that sample. When the code reaches the end of the supercycle, it picks another set of three prime numbers, reinitializes the color settings, and away it goes.
The fog light looks pretty in action:
The four LEDs don’t produce the same light pattern as the halogen filament and they’re distinctly visible when you squint against the glare:
The shadow on the right comes from the larger hood support strut, the shadow on the left is the narrower strut, and the two other gaps show the beam angle gaps between the LEDs.
You’ll see plenty of residual sandpaper scratches on the lens: my surface (re)finishing hand is weak.
The LED beamwidth is so broad the “bulb” position inside the reflector doesn’t make much difference, particularly as it must, at most, wash a wall and ceiling at close range:
All in all, a much-needed dose of Quality Shop Time.
The Arduino source code as a GitHub Gist:
| // Neopixel Algorithmic Art | |
| // W2812 RGB Neopixel version | |
| // Ed Nisley - KE4ZNU | |
| #include <Adafruit_NeoPixel.h> | |
| #include <Entropy.h> | |
| //---------- | |
| // Pin assignments | |
| const byte PIN_NEO = A3; // DO - data out to first Neopixel | |
| const byte PIN_HEARTBEAT = 13; // DO - Arduino LED | |
| #define PIN_MORSE 12 | |
| //---------- | |
| // Constants | |
| // number of pixels | |
| #define PIXELS 4 | |
| // lag between adjacent pixels in degrees of slowest period | |
| #define PIXELPHASE 1 | |
| // update LEDs only this many ms apart (minus loop() overhead) | |
| #define UPDATEINTERVAL 50ul | |
| #define UPDATEMS (UPDATEINTERVAL - 0ul) | |
| // number of steps per cycle, before applying prime factors | |
| #define RESOLUTION 500 | |
| //---------- | |
| // Globals | |
| Adafruit_NeoPixel strip = Adafruit_NeoPixel(PIXELS, PIN_NEO, NEO_GRB + NEO_KHZ800); | |
| uint32_t FullWhite = strip.Color(255,255,255); | |
| uint32_t FullOff = strip.Color(0,0,0); | |
| uint32_t MorseColor; | |
| struct pixcolor_t { | |
| unsigned int Prime; | |
| unsigned int NumSteps; | |
| unsigned int Step; | |
| float StepSize; | |
| float Phase; | |
| byte MaxPWM; | |
| }; | |
| unsigned long int TotalSteps; | |
| unsigned long int SuperCycleSteps; | |
| byte PrimeList[] = {3,5,7,11,13,17,19,29}; // small primes = faster changes | |
| // colors in each LED and their count | |
| enum pixcolors {RED, GREEN, BLUE, PIXELSIZE}; | |
| struct pixcolor_t Pixel[PIXELSIZE]; // all the data for each pixel color intensity | |
| uint32_t UniColor; | |
| unsigned long int MillisNow; | |
| unsigned long int MillisThen; | |
| //-- Select three unique primes for the color generator function | |
| // Then compute all the step parameters based on those values | |
| void SetColorGenerators(void) { | |
| Pixel[RED].Prime = PrimeList[random(sizeof(PrimeList))]; | |
| do { | |
| Pixel[GREEN].Prime = PrimeList[random(sizeof(PrimeList))]; | |
| } while (Pixel[RED].Prime == Pixel[GREEN].Prime); | |
| do { | |
| Pixel[BLUE].Prime = PrimeList[random(sizeof(PrimeList))]; | |
| } while (Pixel[BLUE].Prime == Pixel[RED].Prime || | |
| Pixel[BLUE].Prime == Pixel[GREEN].Prime); | |
| if (false) { | |
| Pixel[RED].Prime = 1; | |
| Pixel[GREEN].Prime = 3; | |
| Pixel[BLUE].Prime = 5; | |
| } | |
| printf("Primes: %d %d %d\r\n",Pixel[RED].Prime,Pixel[GREEN].Prime,Pixel[BLUE].Prime); | |
| TotalSteps = 0; | |
| SuperCycleSteps = RESOLUTION; | |
| for (byte c = 0; c < PIXELSIZE; c++) { | |
| SuperCycleSteps *= Pixel[c].Prime; | |
| } | |
| printf(" Super cycle length: %lu steps\r\n",SuperCycleSteps); | |
| Pixel[RED].MaxPWM = 255; | |
| Pixel[GREEN].MaxPWM = 255; | |
| Pixel[BLUE].MaxPWM = 255; | |
| unsigned int PhaseSteps = (unsigned int) ((PIXELPHASE / 360.0) * | |
| RESOLUTION * (unsigned int) max(max(Pixel[RED].Prime,Pixel[GREEN].Prime),Pixel[BLUE].Prime)); | |
| printf("Inter-pixel phase: %d deg = %d steps\r\n",(int)PIXELPHASE,PhaseSteps); | |
| for (byte c = 0; c < PIXELSIZE; c++) { | |
| Pixel[c].NumSteps = RESOLUTION * Pixel[c].Prime; // steps per cycle | |
| Pixel[c].StepSize = TWO_PI / Pixel[c].NumSteps; // radians per step | |
| Pixel[c].Step = random(Pixel[c].NumSteps); // current step | |
| Pixel[c].Phase = PhaseSteps * Pixel[c].StepSize; // phase in radians for this color | |
| printf(" c: %d Steps: %5d Init: %5d Phase: %3d deg",c,Pixel[c].NumSteps,Pixel[c].Step,(int)(Pixel[c].Phase * 360.0 / TWO_PI)); | |
| printf(" PWM: %d\r\n",Pixel[c].MaxPWM); | |
| } | |
| } | |
| //-- Helper routine for printf() | |
| int s_putc(char c, FILE *t) { | |
| Serial.write(c); | |
| } | |
| //------------------ | |
| // Set the mood | |
| void setup() { | |
| pinMode(PIN_HEARTBEAT,OUTPUT); | |
| digitalWrite(PIN_HEARTBEAT,LOW); // show we arrived | |
| Serial.begin(57600); | |
| fdevopen(&s_putc,0); // set up serial output for printf() | |
| printf("Algorithmic Art\r\n RGB WS2812\r\nEd Nisley - KE4ZNU - April 2020\r\n"); | |
| Entropy.initialize(); // start up entropy collector | |
| // set up pixels | |
| strip.begin(); | |
| strip.show(); | |
| // lamp test: a brilliant white flash | |
| printf("Lamp test: flash full-on colors\r\n"); | |
| uint32_t FullRGB = strip.Color(255,255,255); | |
| uint32_t FullR = strip.Color(255,0,0); | |
| uint32_t FullG = strip.Color(0,255,0); | |
| uint32_t FullB = strip.Color(0,0,255); | |
| uint32_t FullOff = strip.Color(0,0,0); | |
| uint32_t TestColors[] = {FullR,FullG,FullB,FullRGB,FullOff}; | |
| for (byte i = 0; i < sizeof(TestColors)/sizeof(uint32_t) ; i++) { | |
| printf(" color: %08lx\r\n",TestColors[i]); | |
| for (int p=0; p < strip.numPixels(); p++) { | |
| strip.setPixelColor(p,TestColors[i]); | |
| } | |
| strip.show(); | |
| delay(1000); | |
| } | |
| // get an actual random number | |
| uint32_t rn = Entropy.random(); | |
| printf("Random seed: %08lx\r\n",rn); | |
| randomSeed(rn); | |
| // set up the color generators | |
| SetColorGenerators(); | |
| MillisNow = MillisThen = millis(); | |
| } | |
| //------------------ | |
| // Run the mood | |
| void loop() { | |
| MillisNow = millis(); | |
| if ((MillisNow - MillisThen) >= UPDATEMS) { // time for another step? | |
| digitalWrite(PIN_HEARTBEAT,HIGH); | |
| TotalSteps++; | |
| strip.show(); // send out precomputed colors | |
| for (byte c = 0; c < PIXELSIZE; c++) { // compute next increment for each color | |
| if (++Pixel[c].Step >= Pixel[c].NumSteps) { | |
| Pixel[c].Step = 0; | |
| printf("Color %-5d steps %-5d at %-8ld ms %-8ld TS %-8lu\r\n", | |
| c,Pixel[c].NumSteps,MillisNow,(MillisNow - MillisThen),TotalSteps); | |
| } | |
| } | |
| // If all cycles have completed, reset the color generators | |
| if (TotalSteps >= SuperCycleSteps) { | |
| printf("Supercycle end, setting new color values\r\n"); | |
| SetColorGenerators(); | |
| } | |
| for (int p = 0; p < strip.numPixels(); p++) { // for each pixel | |
| byte Value[PIXELSIZE]; | |
| for (byte c=0; c < PIXELSIZE; c++) { // compute new colors | |
| Value[c] = (Pixel[c].MaxPWM / 2.0) * (1.0 + sin(Pixel[c].Step * Pixel[c].StepSize - p*Pixel[c].Phase)); | |
| } | |
| UniColor = strip.Color(Value[RED],Value[GREEN],Value[BLUE]); | |
| strip.setPixelColor(p,UniColor); | |
| } | |
| MillisThen = MillisNow; | |
| digitalWrite(PIN_HEARTBEAT,LOW); | |
| } | |
| } |
The Nissan fog lamp looks pretty good pointing at the ceiling:
I briefly considered sandblasting the shell to knock back the corrosion, but came to my senses: this is art!
The shell has a bayonet mount intended for the cable connector, but a bout of solid modeling produced a matching twist-lock desk stand:
The locking dogs overhang little enough, relative to their diameter, to let the thing build without internal supports. Took about three hours without any intervention at all.
The little hole matches up with the slot on the bottom holding a USB cable bringing power from a wall charger:
It’s a knockoff Arduino Pro Mini without the USB interface found on a Nano, so the USB data wires don’t connect to anything.
The base might look better under a layer of (black?) epoxy, although I’m definitely a fan of those brutalist 3D printed striations.
The OpenSCAD source code as a GitHub Gist:
| // Nissan Fog Light Base | |
| // Ed Nisley KE4ZNU 2020-04-20 | |
| /* [Hidden] */ | |
| ThreadThick = 0.25; | |
| ThreadWidth = 0.40; | |
| HoleWindage = 0.2; | |
| function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit); | |
| Protrusion = 0.1; // make holes end cleanly | |
| //---------------------- | |
| // Dimensions | |
| ID = 0; | |
| OD = 1; | |
| LENGTH = 2; | |
| /* [Fog Light] */ | |
| ShellBase = [49.0,55.0,10.0]; | |
| Dog = [55.0,60.0,7.0]; | |
| DogWidth = 21.0; | |
| DogAngle = atan(DogWidth / ShellBase[ID]); | |
| echo(str("Dog angle: ",DogAngle)); | |
| ReflectorOD = 90.0; | |
| LensOD = 110.0; | |
| LensAngle = -90; // peak relative to dogs | |
| WallThick = 4.0; | |
| BaseThick = 2*WallThick; | |
| CableOD = 3.5; | |
| $fn = 3*4*5; | |
| //------------------- | |
| // Useful shapes | |
| module Dogs(h=Dog[LENGTH]) { | |
| translate([0,0,h/2]) | |
| intersection() { | |
| cube([Dog[OD],DogWidth,h],center=true); | |
| cylinder(d=Dog[OD],h=h,center=true); | |
| } | |
| } | |
| //------------------- | |
| // Build it | |
| difference() { | |
| union() { | |
| cylinder(d=(Dog[OD] + 2*WallThick),h=(BaseThick + ShellBase[LENGTH])); | |
| intersection() { | |
| resize([0,0,2*BaseThick]) | |
| sphere(d=LensOD); | |
| translate([0,0,BaseThick/2]) | |
| cube([2*LensOD,2*ReflectorOD,BaseThick],center=true); | |
| } | |
| } | |
| translate([0,0,BaseThick]) | |
| cylinder(d=ShellBase[OD],h=ShellBase[LENGTH] + Protrusion); | |
| translate([0,0,BaseThick]) { | |
| Dogs(); | |
| rotate(1.5*DogAngle) | |
| Dogs(); | |
| rotate(2*DogAngle) | |
| Dogs(2*ShellBase[LENGTH]); | |
| } | |
| rotate(LensAngle) | |
| translate([0.75*ShellBase[ID]/2,0,-Protrusion]) { | |
| cylinder(d=CableOD,h=2*BaseThick,$fn=8); | |
| translate([LensOD/2,0,CableOD/2]) | |
| cube([LensOD,CableOD,CableOD + Protrusion],center=true); | |
| } | |
| translate([31,0,ThreadThick-Protrusion]) | |
| cube([23.0,55.0,2*ThreadThick],center=true); | |
| } | |
| linear_extrude(height=2*ThreadWidth + Protrusion) { | |
| translate([32,0,-Protrusion]) | |
| rotate(-90) mirror([1,0,0]) | |
| text(text="Ed Nisley",size=6,font="Arial:style:Bold",halign="center"); | |
| translate([23,0,-Protrusion]) | |
| rotate(-90) mirror([1,0,0]) | |
| text(text="softsolder.com",size=5,font="Arial:style:Bold",halign="center"); | |
| } |
If the truth be known, I wanted to do this as soon as I discovered the CAMtool V3.3 board hardwired the DRV8825 PCBs in 1:32 microstep mode:
The Protoneer CNC board has jumpers, so selecting 1:8 microstep mode is no big deal.
As before, I epoxied another row of pins along the I/O header for Makerbot-style endstops:
I’ll probably regret not adding pins along the entire row, but, unlike the MPCNC, the CNC 3018XL won’t ever have hard limit switches. I plugged the Run-Hold switch LEDs into an unused +5 V pin and moved on.
I modified the DRV8825 driver PCBs for fast decay mode:
Then set the current to a bit over 1 A:
Six hours later I hauled the once-again-functional CNC 3018XL to my presentation for the ACM:
Memo to Self: Time to get another Prontoneer board …
As is my custom, the day before showtime I talked my way through a final full-up dress rehearsal, with the HP 7475A plotter and the CNC 3018XL running their demo plots. As if to justify my attention to detail, the 3018 refused to home, with its X axis motor grinding in a manner suggesting something had gone terribly wrong with its driver.
OK, I can fix that™.
Turn off the power, verify the leadscrew turns smoothly by hand, check all the connections & connectors, then pull the DRV8825 PCB to see if anything looks obviously wrong. It didn’t, so I carefully re-plugged the driver and moved the whole affair to the Electronics Workbench for further study.
I turned on the scope and Tek current probes, then turned on the 3018 power supplies, whereupon a great cloud of Magic Smoke emerged from the CAMtool board and filled the Basement Laboratory with the acrid smell of Electrical Death.
It seems I carefully and meticulously re-plugged the DRV8825 PCB into its socket exactly one pin too high, which, among other Bad Things, connects the +24 V motor power supply to the driver GND pin.
Obviously, this did not end well:
The fuse, put under considerable stress, vented smoke & debris in all directions across the board; note the jets above the white motor connector. Surprisingly, the 1 kΩ resistor just below it is in fine shape, as is the rather blackened electrolytic cap.
The fuse measures the same 150-ish mΩ as the fuses in the other two axes, but I doubt it’s actually a fuse any more.
Astonishingly, the Arduino clone on the board worked fine, so I could extract the GRBL configuration.
Memo to Self: Never plug things in with your head upside down!
The vacuum tube LED firmware subtracts the minimum value from the RGB channels of the SK6812 RGBW LEDs and displays it in the white channel, thereby reducing the PWM value of the RGB LEDs by their common “white” component. The main benefit is reducing the overall power by about two LEDs. More or less, kinda sorta.
I tweaked the SK6812 test fixture firmware to show how several variations of the basic RGB colors appear:
for (int col=0; col < NUMCOLS ; col++) { // for each column
byte Value[PIXELSIZE]; // figure first row colors
for (byte p=0; p < PIXELSIZE; p++) { // ... for each color in pixel
Value[p] = StepColor(p,-col*Pixels[p].TubePhase);
}
// just RGB
int row = 0;
uint32_t UniColor = strip.Color(Value[RED],Value[GREEN],Value[BLUE],0);
strip.setPixelColor(col + NUMCOLS*row++,UniColor);
byte MinWhite = min(min(Value[RED],Value[GREEN]),Value[BLUE]);
// only common white
UniColor = strip.Color(0,0,0,MinWhite);
strip.setPixelColor(col + NUMCOLS*row++,UniColor);
// RGB minus common white + white
UniColor = strip.Color(Value[RED]-MinWhite,Value[GREEN]-MinWhite,Value[BLUE]-MinWhite,MinWhite);
strip.setPixelColor(col + NUMCOLS*row++,UniColor);
// RGB minus common white
UniColor = strip.Color(Value[RED]-MinWhite,Value[GREEN]-MinWhite,Value[BLUE]-MinWhite,0);
strip.setPixelColor(col + NUMCOLS*row++,UniColor);
// inverse RGB
UniColor = strip.Color(255 - Value[RED],255 - Value[GREEN],255 - Value[BLUE],0);
strip.setPixelColor(col + NUMCOLS*row++,UniColor);Which looks like this:
The pure RGB colors appear along the bottom row, with the variations proceeding upward to the inverse RGB in the top row. The dust specks show it’s actually in focus.
The color variations seem easier to see without the diffuser:
The white LEDs are obviously “warm white”, which seems not to make much difference.
Putting a jumper from D2 to the adjacent (on an Nano, anyway) ground pin selects the original pattern, removing the jumper displays the modified pattern:
For whatever it’s worth, those LEDs have been running at full throttle for two years with zero failures!
The Arduino source code as a GitHub Gist:
| // SK6812 RGBW LED array exerciser | |
| // Ed Nisley - KE4ANU - February 2017 | |
| // 2020-01-25 add row-by-row color modifications | |
| #include <Adafruit_NeoPixel.h> | |
| //---------- | |
| // Pin assignments | |
| const byte PIN_NEO = A3; // DO - data out to first Neopixel | |
| const byte PIN_HEARTBEAT = 13; // DO - Arduino LED | |
| const byte PIN_SELECT = 2; // DI - pattern select input | |
| //---------- | |
| // Constants | |
| #define UPDATEINTERVAL 20ul | |
| const unsigned long UpdateMS = UPDATEINTERVAL - 1ul; // update LEDs only this many ms apart minus loop() overhead | |
| // number of steps per cycle, before applying prime factors | |
| #define RESOLUTION 100 | |
| // phase difference between LEDs for slowest color | |
| #define BASEPHASE (PI/16.0) | |
| // LEDs in each row | |
| #define NUMCOLS 5 | |
| // number of rows | |
| #define NUMROWS 5 | |
| #define NUMPIXELS (NUMCOLS * NUMROWS) | |
| #define PINDEX(row,col) (row*NUMCOLS + col) | |
| //---------- | |
| // Globals | |
| // instantiate the Neopixel buffer array | |
| Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUMPIXELS, PIN_NEO, NEO_GRBW + NEO_KHZ800); | |
| uint32_t FullWhite = strip.Color(255,255,255,255); | |
| uint32_t FullOff = strip.Color(0,0,0,0); | |
| struct pixcolor_t { | |
| byte Prime; | |
| unsigned int NumSteps; | |
| unsigned int Step; | |
| float StepSize; | |
| float TubePhase; | |
| byte MaxPWM; | |
| }; | |
| // colors in each LED | |
| enum pixcolors {RED, GREEN, BLUE, WHITE, PIXELSIZE}; | |
| struct pixcolor_t Pixels[PIXELSIZE]; // all the data for each pixel color intensity | |
| unsigned long MillisNow; | |
| unsigned long MillisThen; | |
| //-- Figure PWM based on current state | |
| byte StepColor(byte Color, float Phi) { | |
| byte Value; | |
| Value = (Pixels[Color].MaxPWM / 2.0) * (1.0 + sin(Pixels[Color].Step * Pixels[Color].StepSize + Phi)); | |
| // Value = (Value) ? Value : Pixels[Color].MaxPWM; // flash at dimmest points | |
| // printf("C: %d Phi: %d Value: %d\r\n",Color,(int)(Phi*180.0/PI),Value); | |
| return Value; | |
| } | |
| //-- Helper routine for printf() | |
| int s_putc(char c, FILE *t) { | |
| Serial.write(c); | |
| } | |
| //------------------ | |
| // Set the mood | |
| void setup() { | |
| pinMode(PIN_HEARTBEAT,OUTPUT); | |
| digitalWrite(PIN_HEARTBEAT,LOW); // show we arrived | |
| pinMode(PIN_SELECT,INPUT_PULLUP); | |
| Serial.begin(57600); | |
| fdevopen(&s_putc,0); // set up serial output for printf() | |
| printf("WS2812 / SK6812 array exerciser\r\nEd Nisley - KE4ZNU - February 2017\r\n"); | |
| /// set up Neopixels | |
| strip.begin(); | |
| strip.show(); | |
| // lamp test: run a brilliant white dot along the length of the strip | |
| printf("Lamp test: walking white\r\n"); | |
| strip.setPixelColor(0,FullWhite); | |
| strip.show(); | |
| delay(250); | |
| for (int i=1; i<NUMPIXELS; i++) { | |
| digitalWrite(PIN_HEARTBEAT,HIGH); | |
| strip.setPixelColor(i-1,FullOff); | |
| strip.setPixelColor(i,FullWhite); | |
| strip.show(); | |
| digitalWrite(PIN_HEARTBEAT,LOW); | |
| delay(250); | |
| } | |
| strip.setPixelColor(NUMPIXELS - 1,FullOff); | |
| strip.show(); | |
| delay(250); | |
| // fill the array, row by row | |
| printf(" ... fill\r\n"); | |
| for (int i=NUMROWS-1; i>=0; i--) { // for each row | |
| digitalWrite(PIN_HEARTBEAT,HIGH); | |
| for (int j=NUMCOLS-1; j>=0 ; j--) { | |
| strip.setPixelColor(PINDEX(i,j),FullWhite); | |
| strip.show(); | |
| delay(100); | |
| } | |
| digitalWrite(PIN_HEARTBEAT,LOW); | |
| } | |
| // clear to black, column by column | |
| printf(" ... clear\r\n"); | |
| for (int j=NUMCOLS-1; j>=0; j--) { // for each column | |
| digitalWrite(PIN_HEARTBEAT,HIGH); | |
| for (int i=NUMROWS-1; i>=0; i--) { | |
| strip.setPixelColor(PINDEX(i,j),FullOff); | |
| strip.show(); | |
| delay(100); | |
| } | |
| digitalWrite(PIN_HEARTBEAT,LOW); | |
| } | |
| delay(1000); | |
| // set up the color generators | |
| MillisNow = MillisThen = millis(); | |
| printf("First random number: %ld\r\n",random(10)); | |
| Pixels[RED].Prime = 3; | |
| Pixels[GREEN].Prime = 5; | |
| Pixels[BLUE].Prime = 7; | |
| Pixels[WHITE].Prime = 11; | |
| printf("Primes: (%d,%d,%d,%d)\r\n", | |
| Pixels[RED].Prime,Pixels[GREEN].Prime,Pixels[BLUE].Prime,Pixels[WHITE].Prime); | |
| unsigned int PixelSteps = (unsigned int) ((BASEPHASE / TWO_PI) * | |
| RESOLUTION * (unsigned int) max(max(max(Pixels[RED].Prime,Pixels[GREEN].Prime),Pixels[BLUE].Prime),Pixels[WHITE].Prime)); | |
| printf("Pixel phase offset: %d deg = %d steps\r\n",(int)(BASEPHASE*(360.0/TWO_PI)),PixelSteps); | |
| Pixels[RED].MaxPWM = 255; | |
| Pixels[GREEN].MaxPWM = 255; | |
| Pixels[BLUE].MaxPWM = 255; | |
| Pixels[WHITE].MaxPWM = 32; | |
| for (byte c=0; c < PIXELSIZE; c++) { | |
| Pixels[c].NumSteps = RESOLUTION * (unsigned int) Pixels[c].Prime; | |
| Pixels[c].Step = (3*Pixels[c].NumSteps)/4; | |
| Pixels[c].StepSize = TWO_PI / Pixels[c].NumSteps; // in radians per step | |
| Pixels[c].TubePhase = PixelSteps * Pixels[c].StepSize; // radians per tube | |
| printf("c: %d Steps: %5d Init: %5d",c,Pixels[c].NumSteps,Pixels[c].Step); | |
| printf(" PWM: %3d Phi %3d deg\r\n",Pixels[c].MaxPWM,(int)(Pixels[c].TubePhase*(360.0/TWO_PI))); | |
| } | |
| } | |
| //------------------ | |
| // Run the mood | |
| void loop() { | |
| MillisNow = millis(); | |
| if ((MillisNow - MillisThen) > UpdateMS) { | |
| digitalWrite(PIN_HEARTBEAT,HIGH); | |
| unsigned int AllSteps = 0; | |
| for (byte c=0; c < PIXELSIZE; c++) { // step to next increment in each color | |
| if (++Pixels[c].Step >= Pixels[c].NumSteps) { | |
| Pixels[c].Step = 0; | |
| printf("Color %d steps %5d at %8ld delta %ld ms\r\n",c,Pixels[c].NumSteps,MillisNow,(MillisNow - MillisThen)); | |
| } | |
| AllSteps += Pixels[c].Step; // will be zero only when all wrap at once | |
| } | |
| if (0 == AllSteps) { | |
| printf("Grand cycle at: %ld\r\n",MillisNow); | |
| } | |
| if (digitalRead(PIN_SELECT)) { | |
| for (int col=0; col < NUMCOLS ; col++) { // for each column | |
| byte Value[PIXELSIZE]; // figure first row colors | |
| for (byte p=0; p < PIXELSIZE; p++) { // ... for each color in pixel | |
| Value[p] = StepColor(p,-col*Pixels[p].TubePhase); | |
| } | |
| // just RGB | |
| int row = 0; | |
| uint32_t UniColor = strip.Color(Value[RED],Value[GREEN],Value[BLUE],0); | |
| strip.setPixelColor(col + NUMCOLS*row++,UniColor); | |
| byte MinWhite = min(min(Value[RED],Value[GREEN]),Value[BLUE]); | |
| // only common white | |
| UniColor = strip.Color(0,0,0,MinWhite); | |
| strip.setPixelColor(col + NUMCOLS*row++,UniColor); | |
| // RGB minus common white + white | |
| UniColor = strip.Color(Value[RED]-MinWhite,Value[GREEN]-MinWhite,Value[BLUE]-MinWhite,MinWhite); | |
| strip.setPixelColor(col + NUMCOLS*row++,UniColor); | |
| // RGB minus common white | |
| UniColor = strip.Color(Value[RED]-MinWhite,Value[GREEN]-MinWhite,Value[BLUE]-MinWhite,0); | |
| strip.setPixelColor(col + NUMCOLS*row++,UniColor); | |
| // inverse RGB | |
| UniColor = strip.Color(255 - Value[RED],255 - Value[GREEN],255 - Value[BLUE],0); | |
| strip.setPixelColor(col + NUMCOLS*row++,UniColor); | |
| } | |
| } | |
| else { | |
| for (int k=0; k < NUMPIXELS; k++) { // for each pixel | |
| byte Value[PIXELSIZE]; | |
| for (byte c=0; c < PIXELSIZE; c++) { // ... for each color | |
| Value[c] = StepColor(c,-k*Pixels[c].TubePhase); // figure new PWM value | |
| // Value[c] = (c == RED && Value[c] == 0) ? Pixels[c].MaxPWM : Value[c]; // flash highlight for tracking | |
| } | |
| uint32_t UniColor = strip.Color(Value[RED],Value[GREEN],Value[BLUE],Value[WHITE]); | |
| strip.setPixelColor(k,UniColor); | |
| } | |
| } | |
| strip.show(); | |
| MillisThen = MillisNow; | |
| digitalWrite(PIN_HEARTBEAT,LOW); | |
| } | |
| } |
The Smell of Molten Projects in the Morning
