Laser-cut Window Screen

Having just cleaned a bunch of gunk out of the bottom of the worm bin, we decided to try a layer of window screen to keep both gunk and worms out of the sump.

A roll of window screen Came With The House™, minus label or provenance, that felt like some sort of plastic, perhaps with a glass core.

The bin has a 19-¼ inch = 488 mm ID with 10 thin support struts around the perimeter. Laying out a circle and cutting it accurately by hand seemed like a chore, even though the screen cut easily with ordinary scissors.

The diameter just barely fit on the laser’s 700×500 mm platform, so I laid it out in LightBurn:

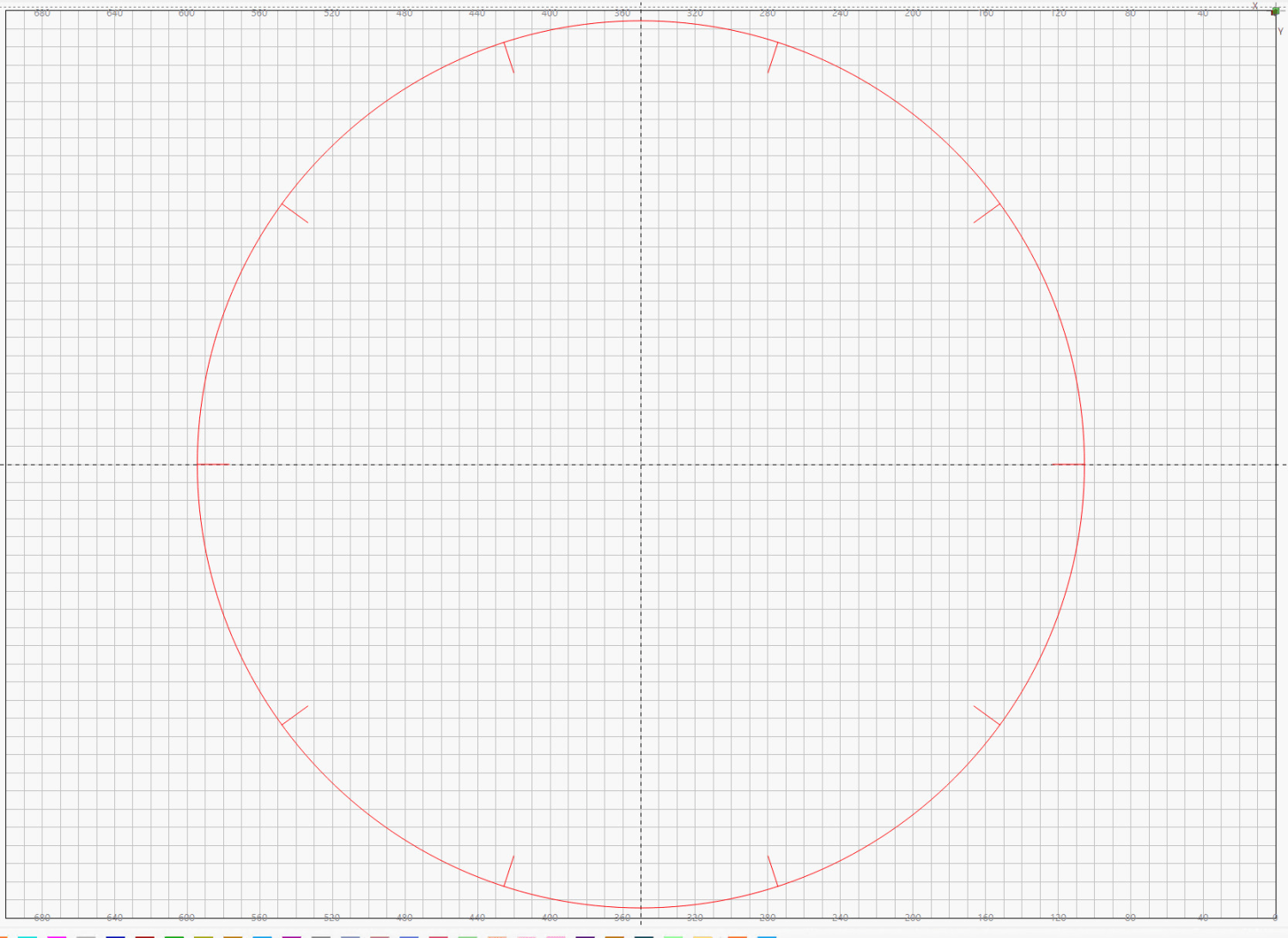

Laser-cut window screen - LightBurn layout
Laser-cut window screen – LightBurn layout

For lack of anything smarter, I applied the same setting as for the faucet gasket material (30 mm/s at 25% of 60 W) and Fired The Laser.

As far as I could tell while the laser was trundling around the circle, absolutely nothing happened other than maybe burning off a coating with a little discoloration on either side of the path.

However, the circle lifted out with zero drama:

Laser-cut window screen
Laser-cut window screen

And was a perfect fit in the worm bin.

Color me surprised!

I have no pictures of the happy results, as all this happened in the few minutes between “We should try a screen”, dropping the cut screen in place, and reassembling the bin.

I think the screen would cut just as well with a higher speed. If the screen works and we need another, I’ll run a few tests first.
