Hand Shower Mounting Bracket

For reasons not relevant here, a hand shower will come in mmm handy for a while in a month or two. The threads on its plastic diverter valve pretty nearly match those on the 70 year old iron pipe in the front bathroom, although the original brass shower head may have been installed by John Henry the Steel-Drivin’ Man.

In any event, you’re supposed to drill two screw holes in the wall for the holder, which is just not happening. Instead, scan the bottom of the holder and blow out the contrast for the next step:

Hand Shower bracket - scan
Hand Shower bracket – scan

Yes, those holes are off-center in their molded bosses. They’re centered in their front recesses and I cannot imagine how, in this day and age of CAD everything, a designer could misalign the front and the back, but there it is.

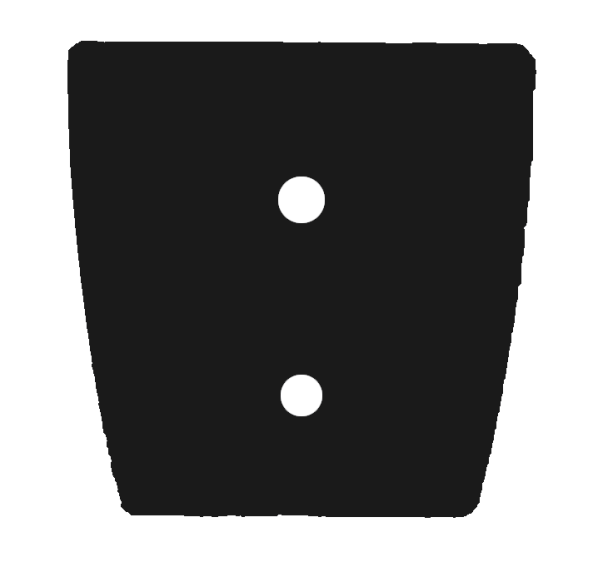

A little cleanup produces a reasonable mask:

Hand Shower bracket - mask
Hand Shower bracket – mask

The holes are centered in the outline, as you’d expect.

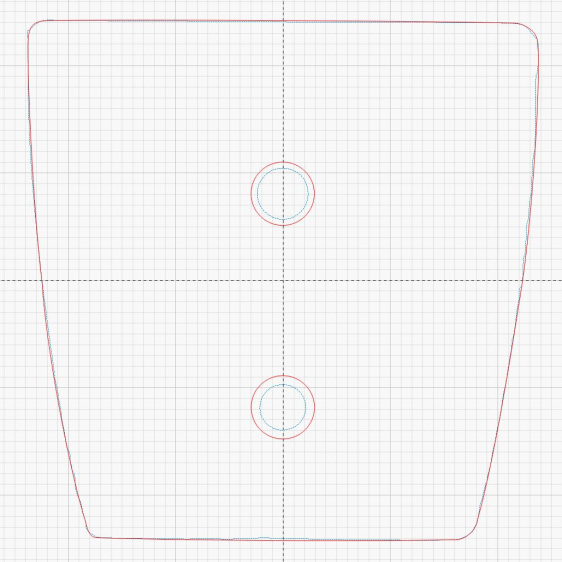

Import it into LightBurn, trace the perimeters, put those vectors on a tooling layer, and hand-draw a much simpler / smoother outline on the cutting layer. One of the vintage acrylic sheets is 1/4 inch thick, just enough for the shortest M4 brass inserts, so wrap the holes around the inserts:

Hand Shower bracket – LB layout

Some acrylic adhesive goops the inserts in place, although I’m not convinced it has enough pull strength in those slick holes:

Hand Shower bracket - mounting plate
Hand Shower bracket – mounting plate

When if it fails, I’ll rebuild the plate with an engraved ring around the back of each hole, along the lines of the earrings, and epoxy the inserts in place.

Double-sided foam tape will eventually stick the holder to the tile above the tub, but finding the proper location requires UX research.
