Huion H610Pro (V2) Tablet vs. Ubuntu 18.04

Given the hassle involved with getting my ancient Wacom Graphire3 tablet working with various Linux versions, I was unsurprised to find a Huion H610Pro (V2) tablet (*) didn’t quite work out of the box.

Good old lsusb showed the tablet’s USB info:

lsusb
Bus 002 Device 002: ID 8087:0024 Intel Corp. Integrated Rate Matching Hub
Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 004: ID 248a:ff0f
Bus 001 Device 007: ID 058f:9410 Alcor Micro Corp. Keyboard
Bus 001 Device 006: ID 047d:1020 Kensington Expert Mouse Trackball
Bus 001 Device 005: ID 046d:c508 Logitech, Inc. Cordless Trackball
Bus 001 Device 003: ID 0451:2046 Texas Instruments, Inc. TUSB2046 Hub
Bus 001 Device 002: ID 8087:0024 Intel Corp. Integrated Rate Matching Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 004 Device 006: ID 05e3:0748 Genesys Logic, Inc.
Bus 004 Device 005: ID 0480:a202 Toshiba America Inc Canvio Basics HDD
Bus 004 Device 004: ID 0bda:0411 Realtek Semiconductor Corp.
Bus 004 Device 003: ID 0451:8041 Texas Instruments, Inc.
Bus 004 Device 002: ID 0bda:0411 Realtek Semiconductor Corp.
Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 003 Device 006: ID 256c:006d
Bus 003 Device 004: ID 0bda:5411 Realtek Semiconductor Corp.
Bus 003 Device 003: ID 0451:8043 Texas Instruments, Inc.
Bus 003 Device 002: ID 0bda:5411 Realtek Semiconductor Corp.
Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

Yes, the space normally occupied by the product description is blank. The first blank description comes from a generic wireless keypad’s USB receiver; the 0x248a Vendor ID claims be Maxxter, a step down from the usual Logitech ID rip, and its 0xff0f Device ID looks bogus to me, too.

The 0x256c Vendor ID isn’t in the online databases yet, but some grepping found it in /lib/udev/rules.d/65-libwacom.rules:

# Huion H610 Pro
ENV{ID_BUS}=="usb", ENV{ID_VENDOR_ID}=="256c", ENV{ID_MODEL_ID}=="006e",  ENV{ID_INPUT}="1", ENV{ID_INPUT_JOYSTICK}="", ENV{ID_INPUT_TABLET}="1"
ATTRS{name}=="* Pad", ENV{ID_BUS}=="usb", ENV{ID_VENDOR_ID}=="256c", ENV{ID_MODEL_ID}=="006e",  ENV{ID_INPUT_TABLET_PAD}="1"
# Huion H610 Pro
ENV{ID_BUS}=="usb", ENV{ID_VENDOR_ID}=="256c", ENV{ID_MODEL_ID}=="006e",  ENV{ID_INPUT}="1", ENV{ID_INPUT_JOYSTICK}="", ENV{ID_INPUT_TABLET}="1"
ATTRS{name}=="* Pad", ENV{ID_BUS}=="usb", ENV{ID_VENDOR_ID}=="256c", ENV{ID_MODEL_ID}=="006e",  ENV{ID_INPUT_TABLET_PAD}="1"

Note, however, that the Device ID is 0x006e, where the upgraded V2 tablet is 0x006d; I have no idea why the number goes down as the version goes up. Change all instances of the former to the latter.

Even though the Wacom driver can apparently handle the older H610Pro, the V2 tablet’s buttons were missing in action.

The solution seems come from the Digimend project, although it also expects the 0x006e Device ID, and as is usually the case, installing the latest & greatest version, hot from GitHub, did the trick.

For this first pass, I didn’t use DKMS, which this post will remind me to do after the next kernel upgrade.

A reboot settled all the drivers into place, after which:

xsetwacom --list
HUION Huion Tablet Pen stylus   	id: 10	type: STYLUS
HUION Huion Tablet Pad pad      	id: 11	type: PAD

Yes, it’s “Tablet Pad pad” and capitalization is important.

For my simple needs, confining the stylus cursor to the landscape monitor makes sense. Adding this to ~/.config/startup.sh did the same thing as similar invocations for the Wacom:

xsetwacom --verbose set "HUION Huion Tablet Pen stylus" MapToOutput "DP-1"

The various buttons still need configuration, although that’s in the nature of fine tuning. The top three buttons are 1, 2, 3, with the rest tagging along at 8 through 12. They take trendy gray-on-black labeling to an absurd limit:

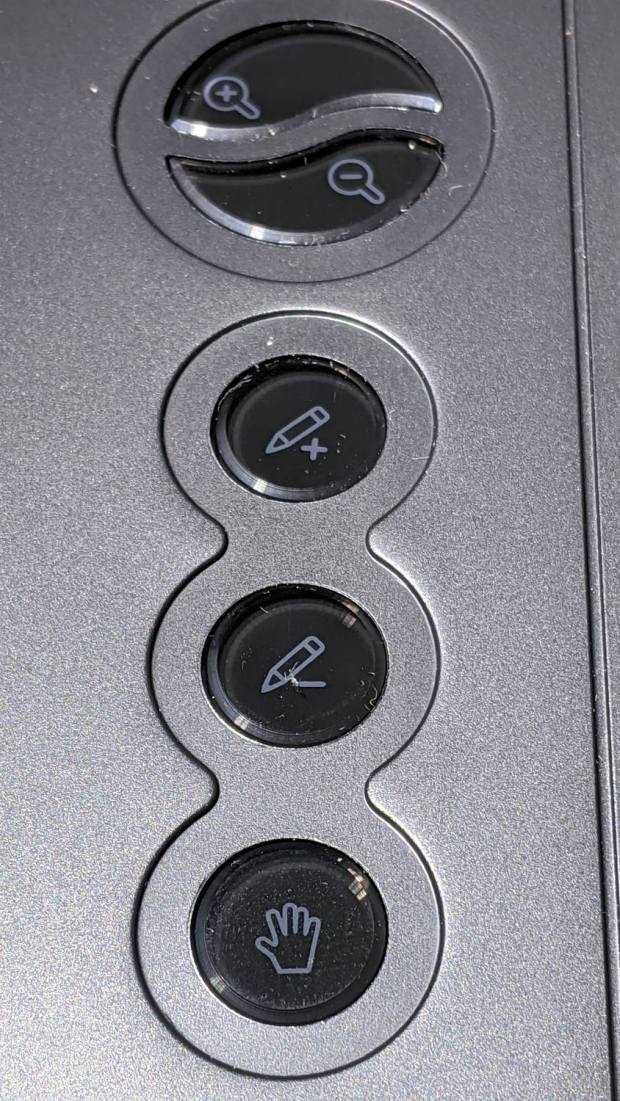

Huion H610Pro V2 - embedded gray-on-black buttons
Huion H610Pro V2 – embedded gray-on-black buttons

That’s with intense overhead lighting shining into the buttons and lighting up the lower-surface iconography. In normal light, they’re shiny black disks with invisible legends and, no, they’re not backlit.

The overall button-tweaking syntax:

xsetwacom set "HUION Huion Tablet Pad pad" button 12 key whatever

Where whatever comes from the list in /usr/include/X11/keysymdef.h, per the doc in man xsetwacom and a list of possibilities from:

xsetwacom --list modifiers  "HUION Huion Tablet Pad pad"

For example, this causes the bottom button to spit out a question mark:

xsetwacom set "HUION Huion Tablet Pad pad" button 12 key shift /

It’s not obvious changing the buttons from their default button numbers to anything else makes any sense; just tweaking individual programs to map those numbers into useful actions should work better.

(*) It has a “battery-free” stylus which, to my way of thinking, is a major selling point.

,
