Rubber Soaker Hose Repair

A soaker hose leaped under a descending garden fork and accumulated a nasty gash:

Soaker Hose Splice - gashed
Soaker Hose Splice – gashed

Mary deployed a spare and continued the mission, while I pondered how to fix such an odd shape.

For lack of anything smarter, I decided to put a form-fitting clamp around the hose, with silicone caulk buttered around the gash to (ideally) slow down any leakage:

Soaker Hose Splice - Solid Model - Assembled
Soaker Hose Splice – Solid Model – Assembled

As usual, some doodling got the solid model started:

Soaker Hose Splice - Dimension doodle 1
Soaker Hose Splice – Dimension doodle 1

A hose formed from chopped rubber doesn’t really have consistent dimensions, so I set up the model to spit out small test pieces:

Soaker Hose Splice - Test Fit - Slic3r
Soaker Hose Splice – Test Fit – Slic3r

Lots and lots of test pieces:

Soaker Hose Splice - test pieces
Soaker Hose Splice – test pieces

Each iteration produced a better fit, although the dimensions never really converged:

Soaker Hose Splice - Dimension doodle 2
Soaker Hose Splice – Dimension doodle 2

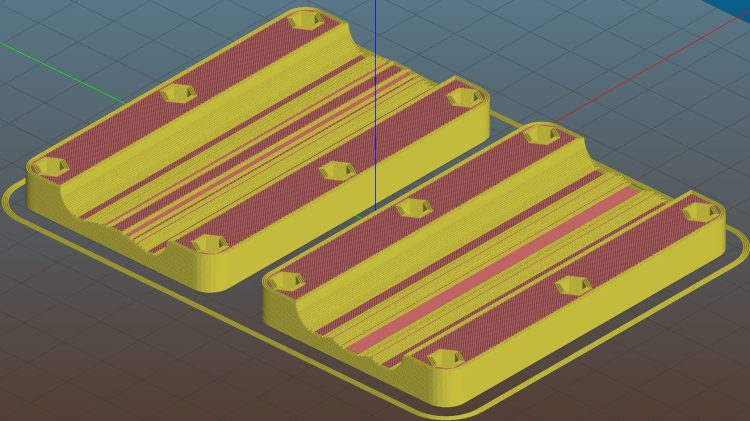

The overall model looks about like you’d expect:

Soaker Hose Splice - Complete - Slic3r
Soaker Hose Splice – Complete – Slic3r

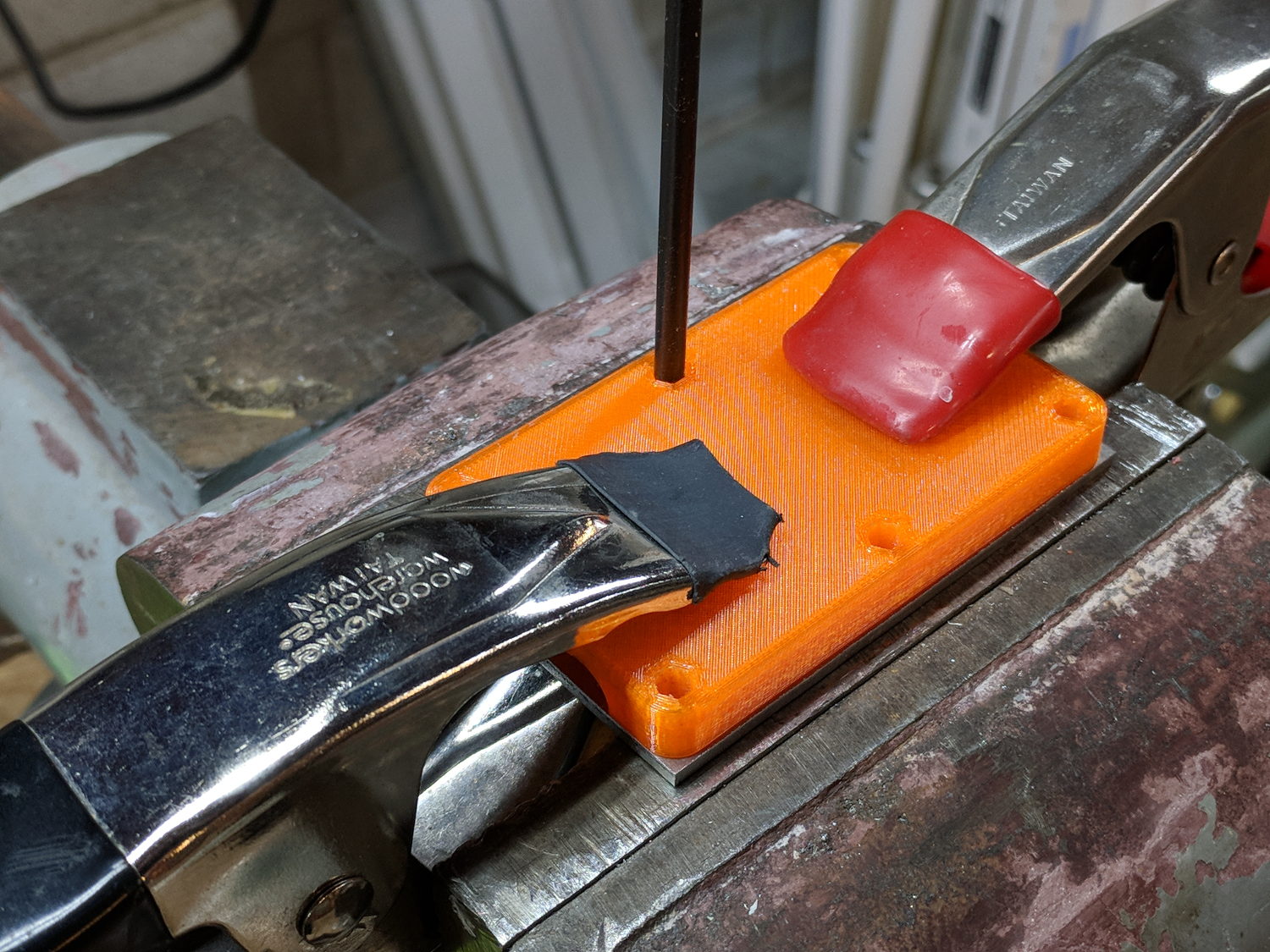

The clamp must hold its shape around a hose carrying 100 psi (for real!) water, so I put 100 mil aluminum backing plates on either side. Were you doing this for real, you’d shape the plates with a CNC mill, but I just bandsawed them to about the right size and transfer-punched the hole positions:

Soaker Hose Splice - plate transfer punch
Soaker Hose Splice – plate transfer punch

Some drill press action with a slightly oversize drill compensated for any misalignment and Mr Disk Sander rounded the corners to match the plastic block:

Soaker Hose Splice - plate corner rounding
Soaker Hose Splice – plate corner rounding

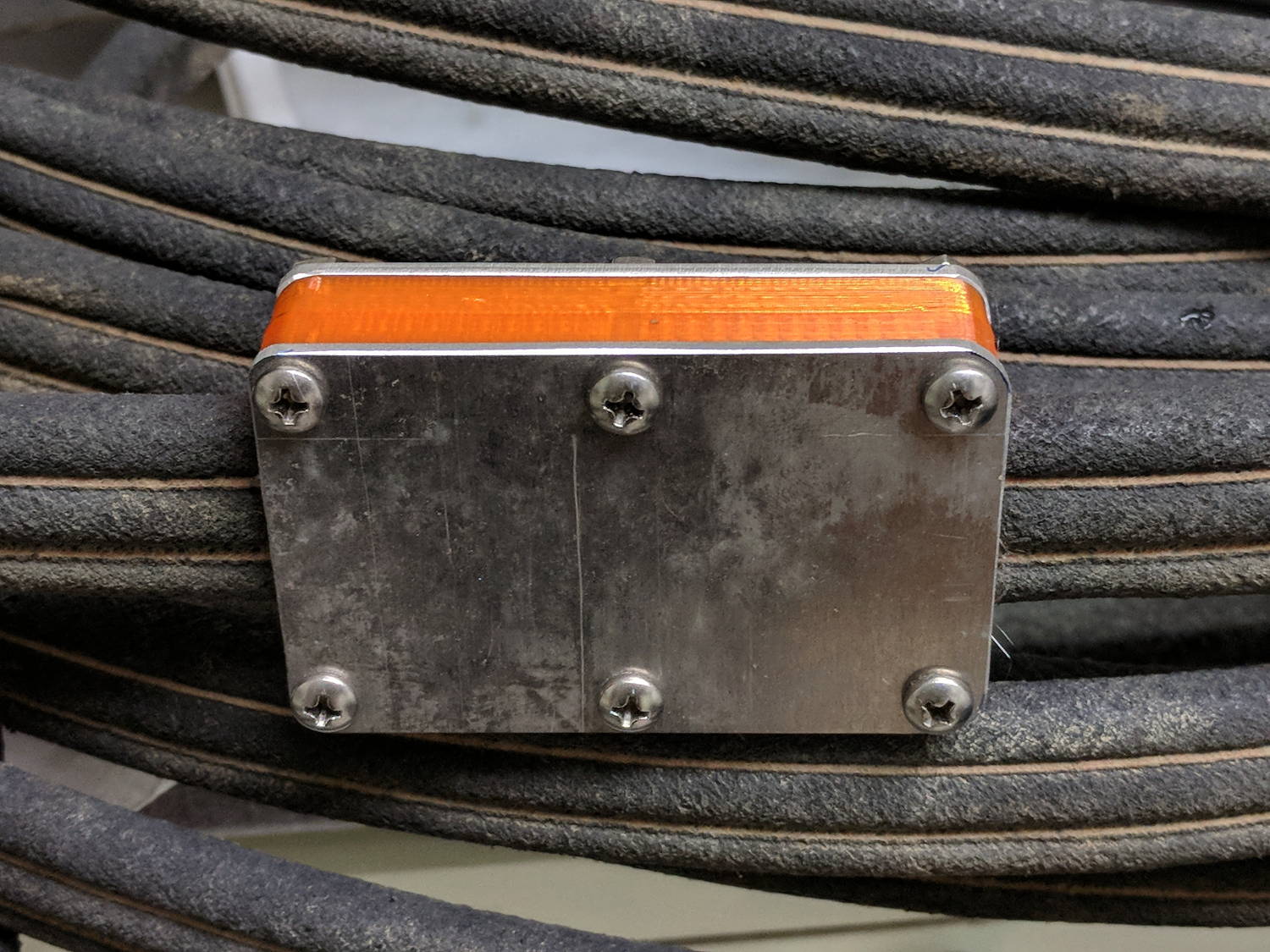

A handful of stainless steel 8-32 screws holds the whole mess together:

Soaker Hose Splice - installed
Soaker Hose Splice – installed

These hoses spend their lives at rest under a layer of mulch, so I’m ignoring the entire problem of stress relief at those sharp block edges. We’ll see how this plays out in real life, probably next year.

I haven’t tested it under pressure, but it sure looks capable!

The OpenSCAD source code as a GitHub Gist:

// Rubber Soaker Hose Splice
// Ed Nisley KE4ZNU July 2018
Layout = "Build"; // Hose Block Show Build
TestFit = false; // true to build test fit slice from center
//- Extrusion parameters must match reality!
ThreadThick = 0.25;
ThreadWidth = 0.40;
HoleWindage = 0.2;
Protrusion = 0.1; // make holes end cleanly
inch = 25.4;
function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);
// Dimensions
// Hose lies along X axis
Hose = [200,27.0,12.0]; // X = longer than anything else
Block = [80.0,50.0,4.0 + Hose.z]; // overall splice block size
echo(str("Block: ",Block));
Kerf = 0.1; // cut through middle to apply compression
ID = 0;
OD = 1;
// 8-32 stainless screws
Screw = [4.1,8.0,3.0]; // OD = head LENGTH = head thickness
Washer = [4.4,9.5,1.0];
Nut = [4.1,9.7,6.0];
CornerRadius = Washer[OD]/2;
NumScrews = 3; // screws along each side of cable
ScrewOC = [(Block.x - 2*CornerRadius) / (NumScrews - 1),
Block.y - 2*CornerRadius,
2*Block.z // ensure complete holes
echo(str("Screw OC: x=",ScrewOC.x," y=",ScrewOC.y));
// Useful routines
module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes
Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
FixDia = Dia / cos(180/Sides);
cylinder(d=(FixDia + HoleWindage),h=Height,$fn=Sides);
// Hose shape
// This includes magic numbers measured from reality
module HoseProfile() {
RimThick = 10.0; // outer sections
RimOD = RimThick;
RimFlatRecess = -0.7; // recess to front flat surface
OuterOC = Hose.y - RimOD; // outer tube centers
RecessM = 1.5; // back recess chord
RecessC = OuterOC;
RecessR = (pow(RecessM,2) + pow(RecessC,2)/4) / (2*RecessM);
RidgeM = 1.0; // front ridge chord
RidgeC = 8.0;
RidgeR = (pow(RidgeM,2) + pow(RidgeC,2)/4) / (2*RidgeM);
NumSides = 12*4;
difference() {
union() {
for (j=[-1,1]) // outer channels
translate([-RimOD/4,0]) // rear flat fill
translate([(RimOD/4 + RimFlatRecess),0]) // front flat fill
intersection() {
translate([-RidgeR + RimOD/2 + RimFlatRecess + RidgeM,0])
translate([-(RecessR + RimOD/2 - RecessM),0])
// Outside shape of splice Block
// Z centered on hose rim circles, not overall thickness through center ridge
module SpliceBlock() {
difference() {
for (i=[-1,1], j=[-1,1]) // rounded block
translate([i*(Block.x/2 - CornerRadius),j*(Block.y/2 - CornerRadius),-Block.z/2])
for (i = [0:NumScrews - 1], j=[-1,1]) // screw holes
translate([-(Block.x/2 - CornerRadius) + i*ScrewOC.x,
-(Block.z/2 + Protrusion)])
PolyCyl(Screw[ID],Block.z + 2*Protrusion,6);
cube([2*Block.x,2*Block.y,Kerf],center=true); // slice through center
// Splice block less hose
module ShapedBlock() {
difference() {
// Build them
if (Layout == "Hose")
if (Layout == "Block")
if (Layout == "Bottom")
if (Layout == "Top")
if (Layout == "Show") {
difference() {
if (Layout == "Build") {
SliceOffset = TestFit && !NumScrews%2 ? ScrewOC.x/2 : 0;
intersection() {
if (TestFit)
union() {
