MPCNC: Pen Holder Crunch

A few tweaks to the Customizable MPCNC Mount for Round Tools produces a Sakura Micron pen holder:

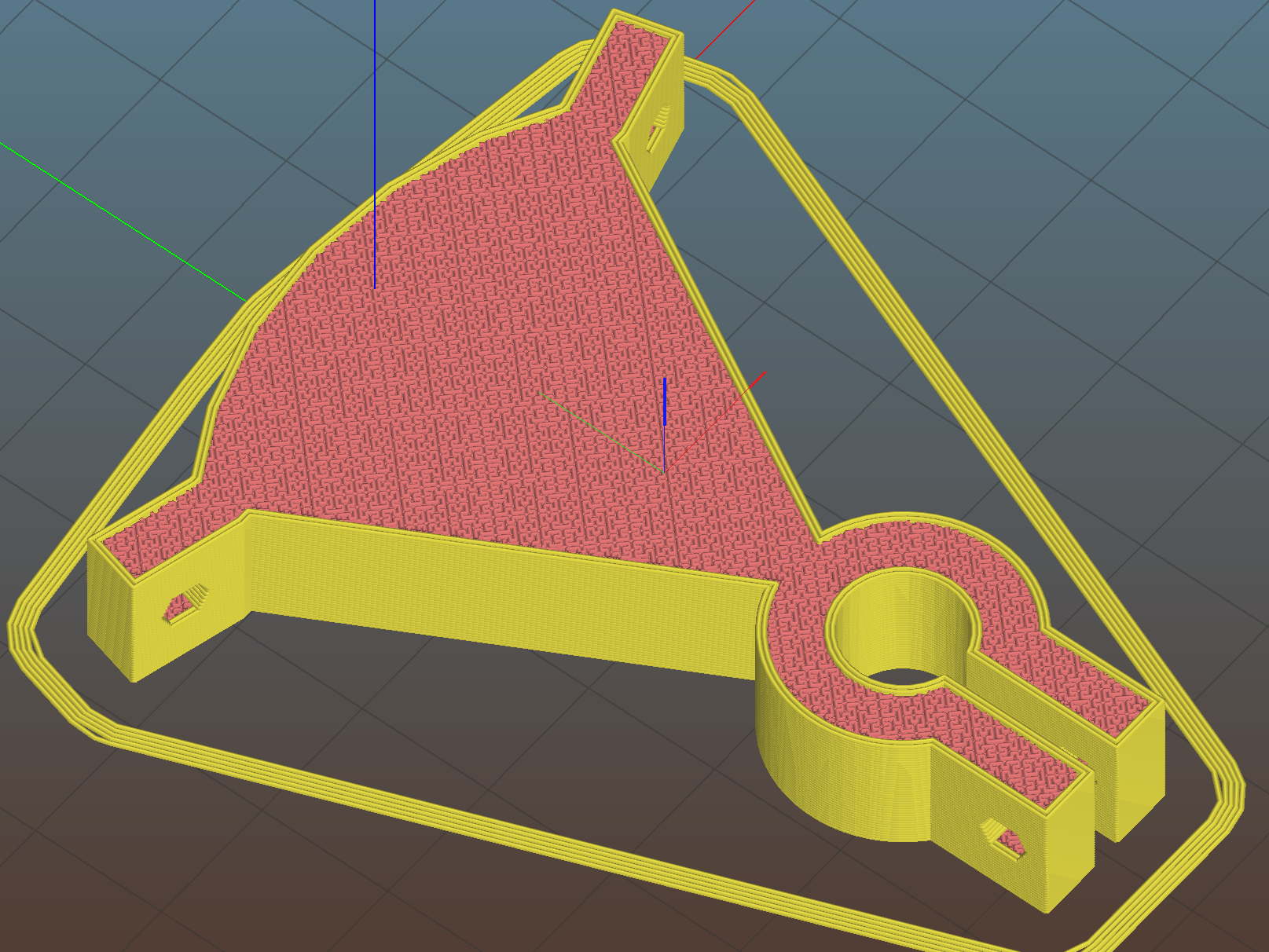

MPCNC - Sakura Pen Holder - Slic3r preview — MPCNC – Sakura Pen Holder – Slic3r preview

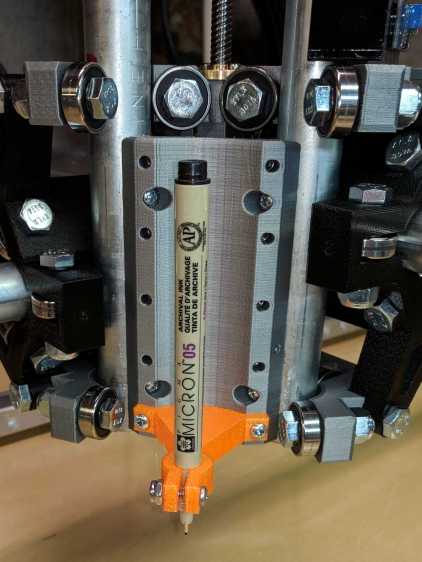

The pen body seats atop the holder, with its narrower snout inside the clamp, giving positive control of the point position:

MPCNC - Sakura in pen adapter — MPCNC – Sakura in pen adapter

Unfortunately, should one forget to zero the pen tip to the paper surface before starting a plot, Bad Things happen to good tips:

MPCNC - Sakura pen - crushed tip — MPCNC – Sakura pen – crushed tip

The holder really needs at least a few millimeters of compliance, as a fiber-tip pen makes a fairly delicate tool not intended for applying much force at all to anything.

But the holder might make a Z axis probe …
