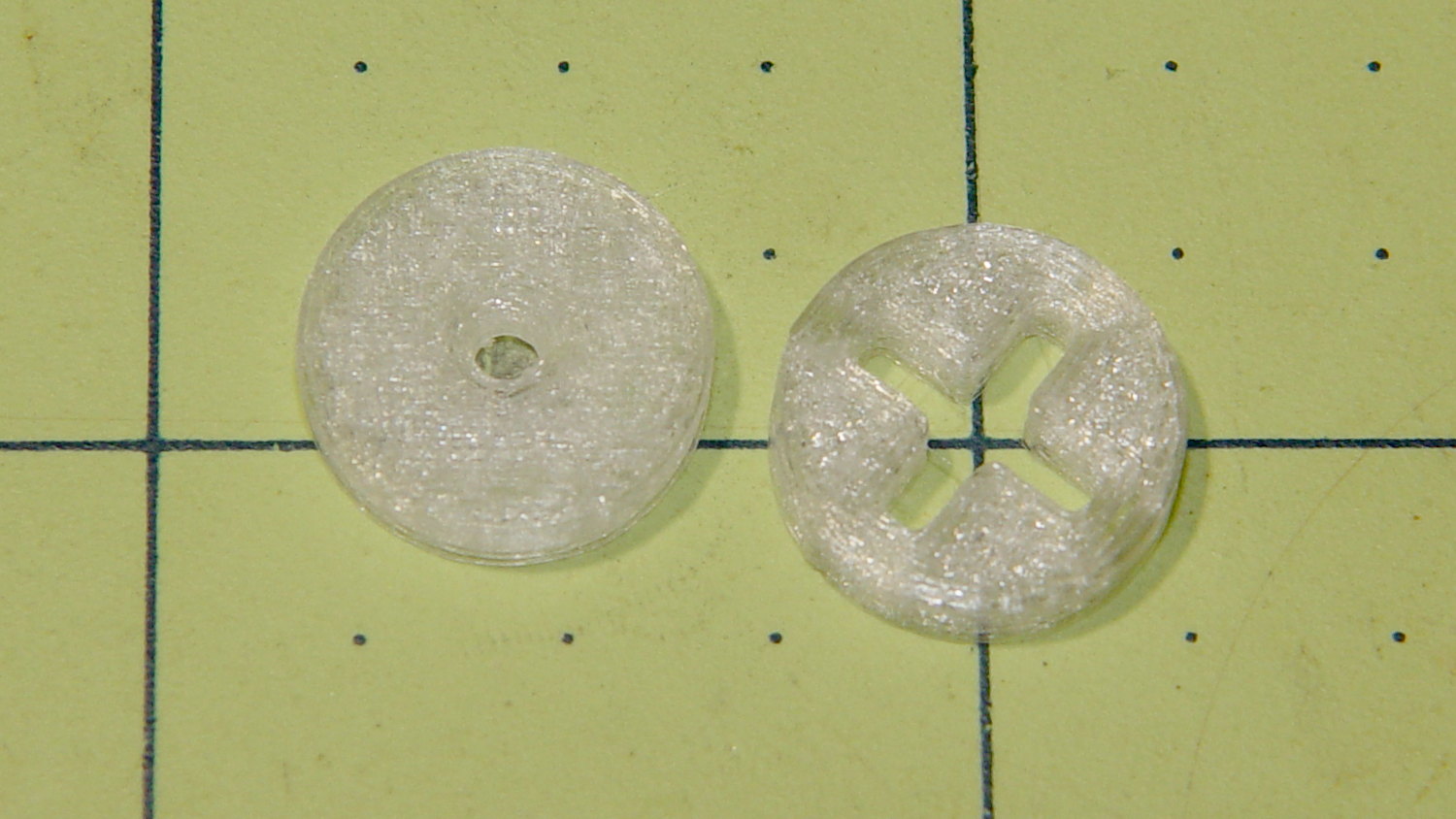

I made the pencil guides to help Mary design ruler quilting patterns, but sometimes she must line up the ruler with a feature on an existing pattern. To that end, we now have a reticle guide:
The general idea is that it’s easier to see the pattern on paper through the crosshair than through a small hole. You put the button over a feature, align the reticle, put the ruler against the button, replace it with pencil guide, and away you go.
The solid model looks much more lively than you’d expect:
Printing up a pair of each button produces the same surface finish as before; life is good!
The OpenSCAD source code as a GitHub Gist:
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| // Quilting Ruler Adapters | |
| // Ed Nisley KE4ZNU October 2016 | |
| //- Extrusion parameters must match reality! | |
| ThreadThick = 0.25; | |
| ThreadWidth = 0.40; | |
| HoleWindage = 0.2; | |
| Protrusion = 0.1; // make holes end cleanly | |
| inch = 25.4; | |
| function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit); | |
| //———- | |
| // Dimensions | |
| ID = 0; | |
| OD = 1; | |
| LENGTH = 2; | |
| Offset = 0.25 * inch; | |
| Template = [2.0,2*Offset,3.0]; | |
| NumSides = 16*4; | |
| HoleSides = 8; | |
| //———————- | |
| // Useful routines | |
| module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes | |
| Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2); | |
| FixDia = Dia / cos(180/Sides); | |
| cylinder(d=(FixDia + HoleWindage),h=Height,$fn=Sides); | |
| } | |
| //———- | |
| // Build them | |
| translate([-Template[OD],0,0]) | |
| difference() { | |
| cylinder(d=Template[OD],h=Template[LENGTH],$fn=NumSides); | |
| translate([0,0,-Template[LENGTH]]) | |
| PolyCyl(Template[ID],3*Template[LENGTH],HoleSides); | |
| translate([0,0,-Protrusion]) | |
| cylinder(d1=2*Template[ID],d2=Template[ID],h=Template[LENGTH]/3 + Protrusion,$fn=HoleSides); | |
| translate([0,0,Template[LENGTH] + Protrusion]) | |
| mirror([0,0,1]) | |
| cylinder(d1=2*Template[ID],d2=Template[ID],h=Template[LENGTH]/3 + Protrusion,$fn=HoleSides); | |
| } | |
| translate([Template[OD],0,0]) | |
| difference() { | |
| cylinder(d=Template[OD],h=Template[LENGTH],$fn=NumSides); | |
| for (a=[45,135]) | |
| rotate(a) | |
| cube([0.70*Template[OD],0.15*Template[OD],3*Template[LENGTH]],center=true); | |
| } | |
The Smell of Molten Projects in the Morning
Comments
8 responses to “Reticle Guide for Ruler Quilting”
I would have done a 3 x 3 array of the mix, but that’s just me. (Remembers playing Tic Tac Toe at the AT&T exhibit at the Museum of Science and Industry. Using a telephone dial as the input device.)
Dang! You’re right: the marketing feature list lacks a “multi-function tool” bullet item!
I’d be tempted to do a two-in-one version with a center ring (for the pencil guide), an outer ring (to establish the distance), separated by spokes (to allow visibility of the layout pattern).
I like it!
The first intensive test under field conditions comes up on a few days and we’ll see how they work. If the user community requests changes / improvements, that’ll be part of the proposal …
Given my new infatuation with lathes, I might go for a version turned from clear acrylic with engraved cross hairs on the bottom :)
There would be much waste material compared to printing, but that goes with the territory.
I was completely unsuccessful at selling the idea of adapting a plotter digitizing sight to the problem … [grin]
At selling to missus or yourself? Latter seems more likely but … :)
The user community was unanimous in its rejection.
However, I just scored a digitizing sight on eBay for a small fraction of the going price … [evil grin]
