Pencil Guides for Ruler Quilting

Mary has been doing Ruler Quilting and wanted a pencil guide (similar to the machine’s ruler foot) to let her sketch layouts before committing stitches to fabric. The general idea is to offset the pencil by 1/4 inch from the edge of the ruler:

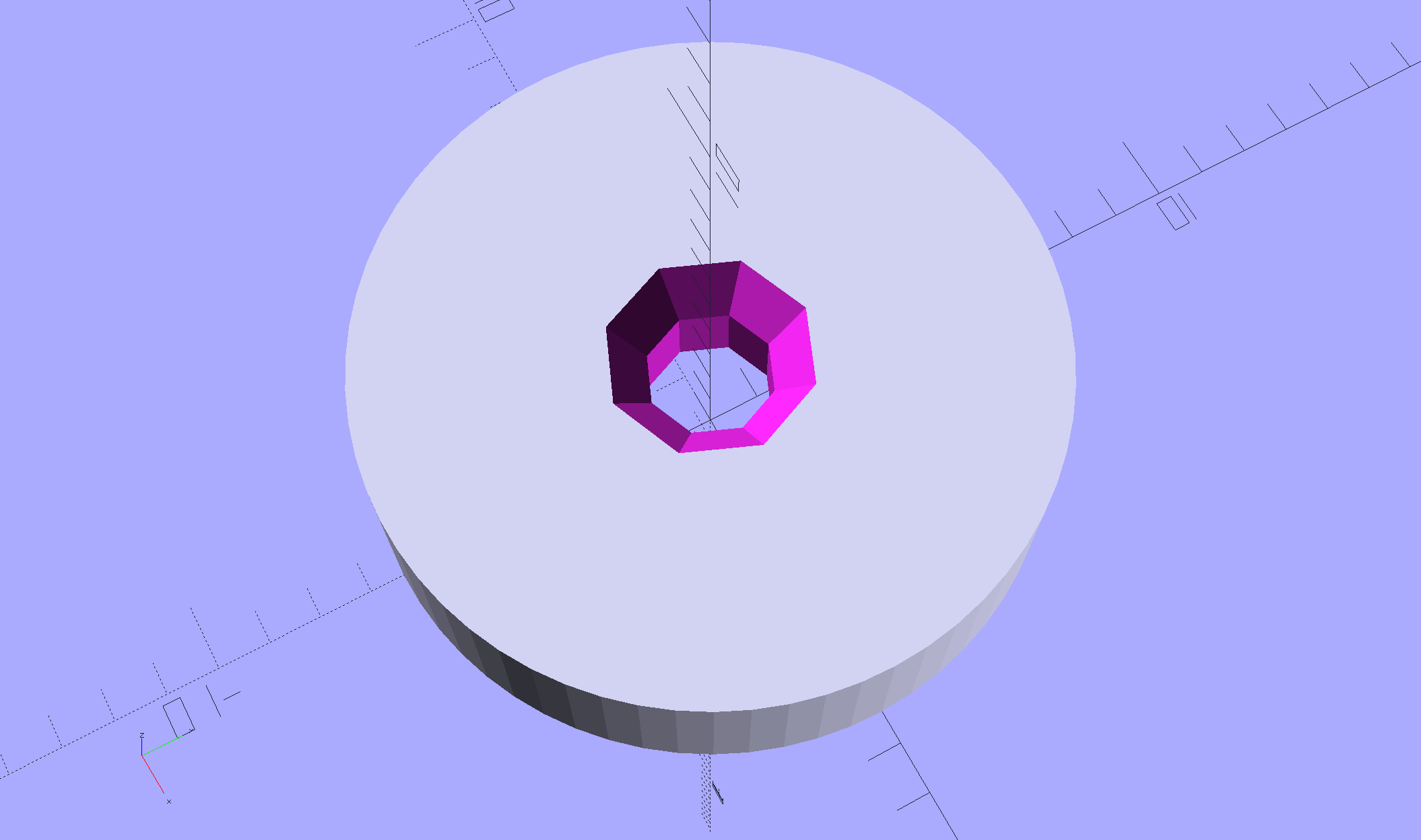

Ruler Adapter - solid model
Ruler Adapter – solid model

That was easy.

Print three to provide a bit of cooling time and let her pass ’em around at her next quilting bee:

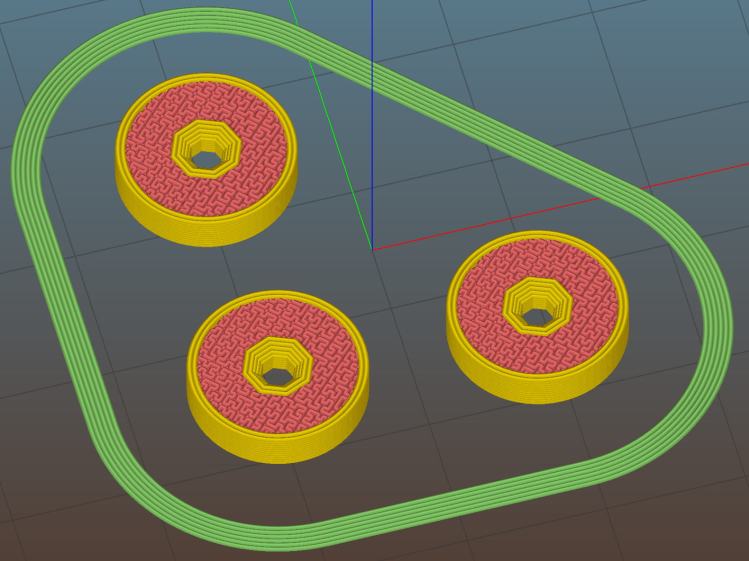

Ruler Adapter - Slic3r preview
Ruler Adapter – Slic3r preview

Her favorite doodling pencil shoves a 0.9 mm lead through a 2 mm ferrule, so ream the center hole with a #44 drill (86 mil = 2.1 mm) to suit:

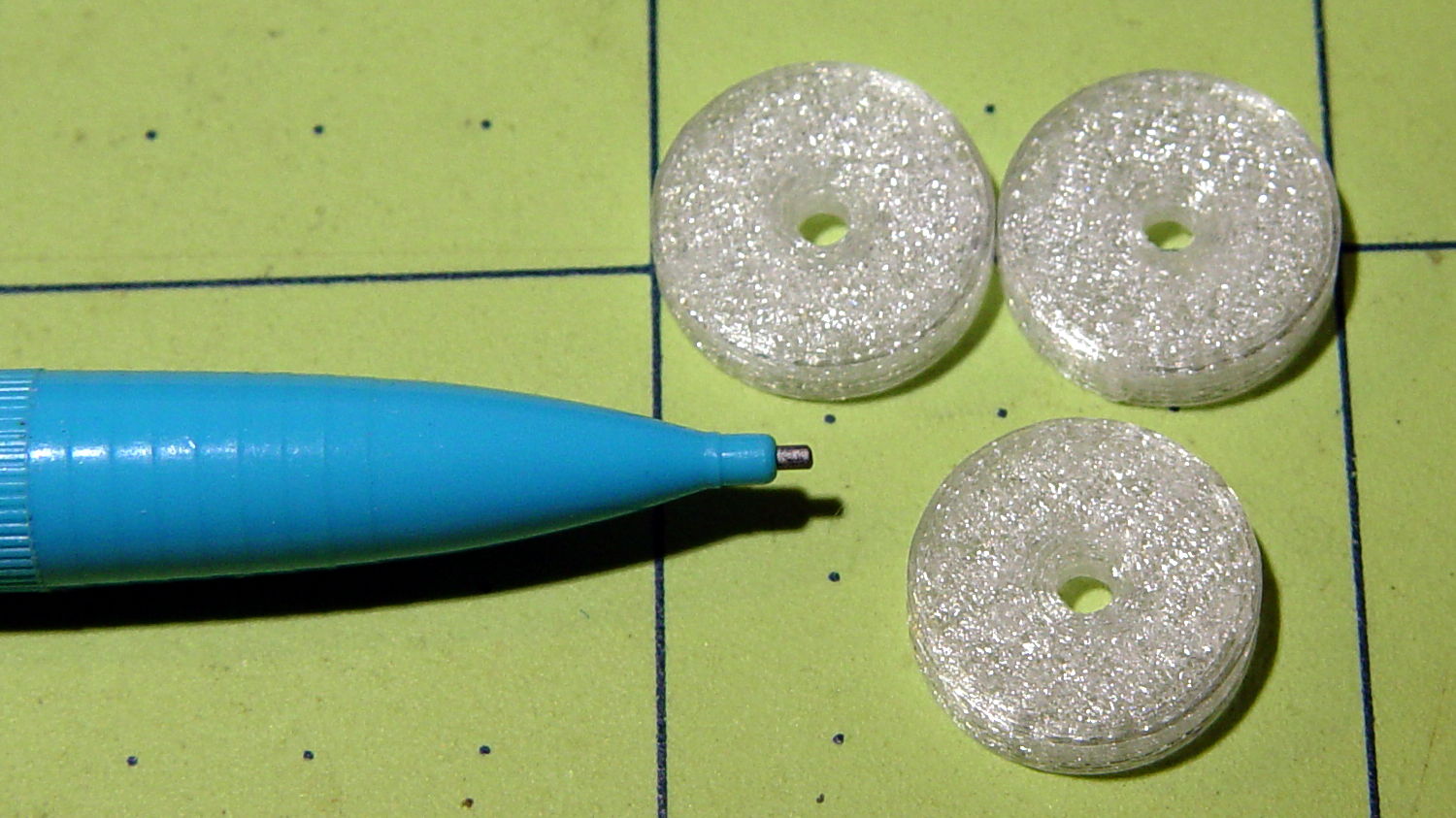

Ruler quilting pencil guides
Ruler quilting pencil guides

The outer perimeters have 64 facets, an unusually high number for my models, so they’re nice & smooth on the ruler. Even though I didn’t build them sequentially, they had zero perimeter zits and the OD came out 0.500 inch on the dot.

The chamfers guide the pencil point into the hole and provide a bit of relief for the pencil’s snout.

If I had a laser cutter, I could make special rulers for her, too …

The OpenSCAD source code as a GitHub Gist:

// Quilting Ruler Adapters
// Ed Nisley KE4ZNU October 2016
//- Extrusion parameters must match reality!
ThreadThick = 0.25;
ThreadWidth = 0.40;
HoleWindage = 0.2;
Protrusion = 0.1; // make holes end cleanly
inch = 25.4;
function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);
//----------
// Dimensions
ID = 0;
OD = 1;
LENGTH = 2;
Offset = 0.25 * inch;
Template = [2.0,2*Offset,3.0];
NumSides = 16*4;
HoleSides = 8;
//----------------------
// Useful routines
module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes
Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
FixDia = Dia / cos(180/Sides);
cylinder(d=(FixDia + HoleWindage),h=Height,$fn=Sides);
}
//----------
// Build it
difference() {
cylinder(d=Template[OD],h=Template[LENGTH],$fn=NumSides);
translate([0,0,-Template[LENGTH]])
PolyCyl(Template[ID],3*Template[LENGTH],HoleSides);
translate([0,0,-Protrusion])
cylinder(d1=2*Template[ID],d2=Template[ID],h=Template[LENGTH]/3 + Protrusion,$fn=HoleSides);
translate([0,0,Template[LENGTH] + Protrusion])
mirror([0,0,1])
cylinder(d1=2*Template[ID],d2=Template[ID],h=Template[LENGTH]/3 + Protrusion,$fn=HoleSides);
}
view raw Ruler Adapters.scad hosted with ❤ by GitHub
