Tour Easy Chainstay Rust Repair

While replacing the well-worn sprocket / chain / chainrings on Mary’s bike, I finally got around to repairing some damaged paint tucked in an inconvenient spot…

Over the years, a flaw in the paint underneath the strap connecting the chainstays on Mary’s Tour Easy let in enough moisture to dislodge the paint over a considerable area. I chipped off the loose paint and used Evapo-Rust to convert the oxide to phosphate; there’s not much damage to the steel parts, despite what it may look like in the pictures.

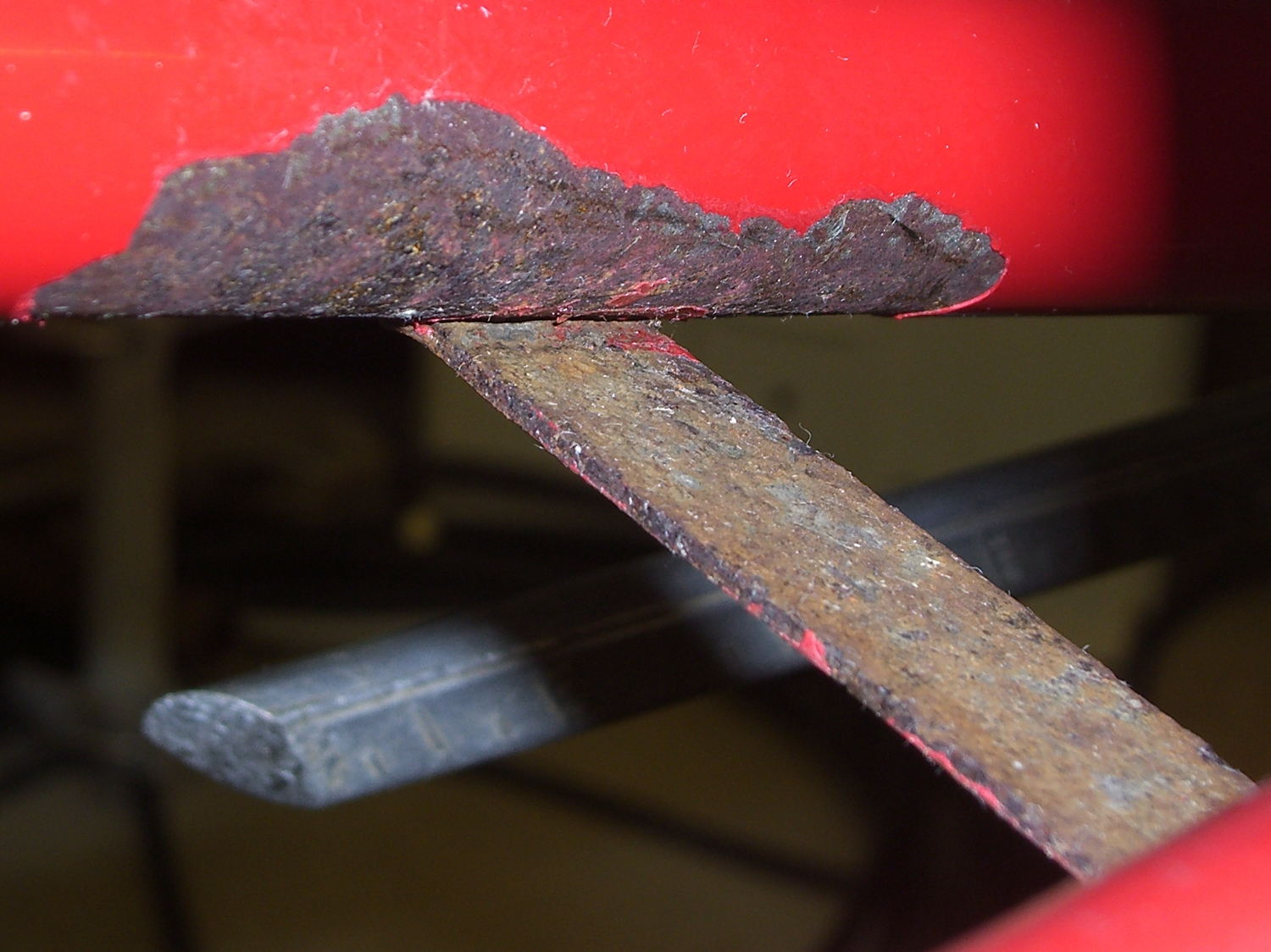

A top view from the right rear, minus the wheel & fender, looking toward the left chainstay:

Tour Easy - rusted chainstay strap

Tour Easy – rusted chainstay strap

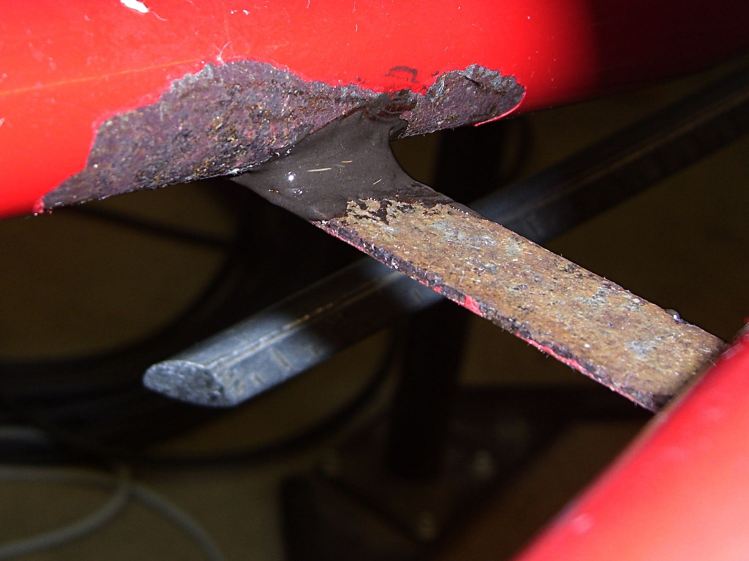

Two epoxy fillets in the concave sections where the strap meets the chainstays should eliminate problems in those sections forever more:

Tour Easy - chainstay strap - epoxy fillet

Tour Easy – chainstay strap – epoxy fillet

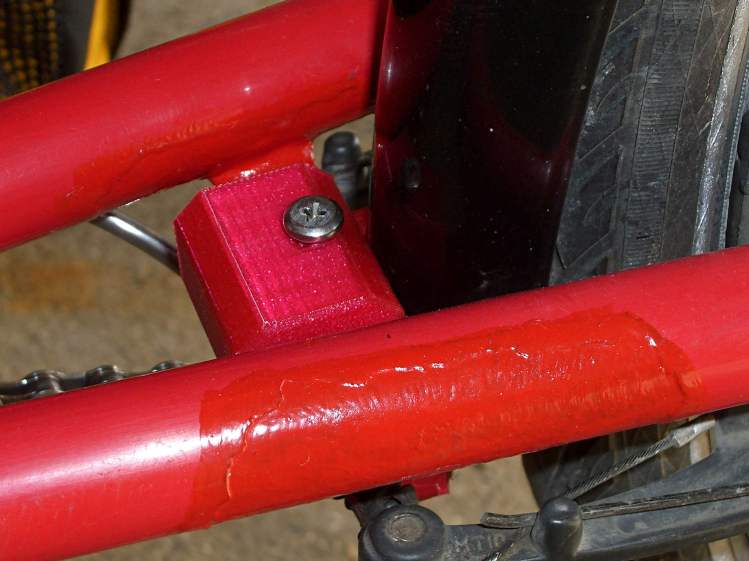

Some rusty-metal primer and a few coats of red paint conceal most of the ugliness:

Tour Easy - rear fender bracket - installed - top

Tour Easy – rear fender bracket – installed – top

It’ll never be mistaken for showroom quality, but our bikes are tools, not art objects.

The obviously 3D printed red block in the middle of the strap holds the fender in place, about which more tomorrow…

Advertisements

,

  1. #1 by David on 2015-04-13 - 21:07

    And to think it’s a mere six years since you’d been meaning to do it for years! :)

    • #2 by Ed on 2015-04-14 - 07:12

      Yeah, I definitely let that one slip, but there’s a reason why the bikes have Phil Wood hubs and cartridge bearings in the bottom brackets.

      I also took the headset apart and refreshed the grease; it was in surprisingly good shape. The Tour Easy headset has roller bearings, rather than balls, in the lower race and the fairing keeps water off the entire front end, so it’s good for the long haul and the high-threshold mechanic.
