Whirlpool Refrigerator Drawer Strut Re-Re-Repair

Well, another year, another deep-cleaning session, another break in the strut holding up the drawers in the Whirlpool refrigerator:

Whirlpool refrigerator drawer strut - clamped

Whirlpool refrigerator drawer strut – clamped

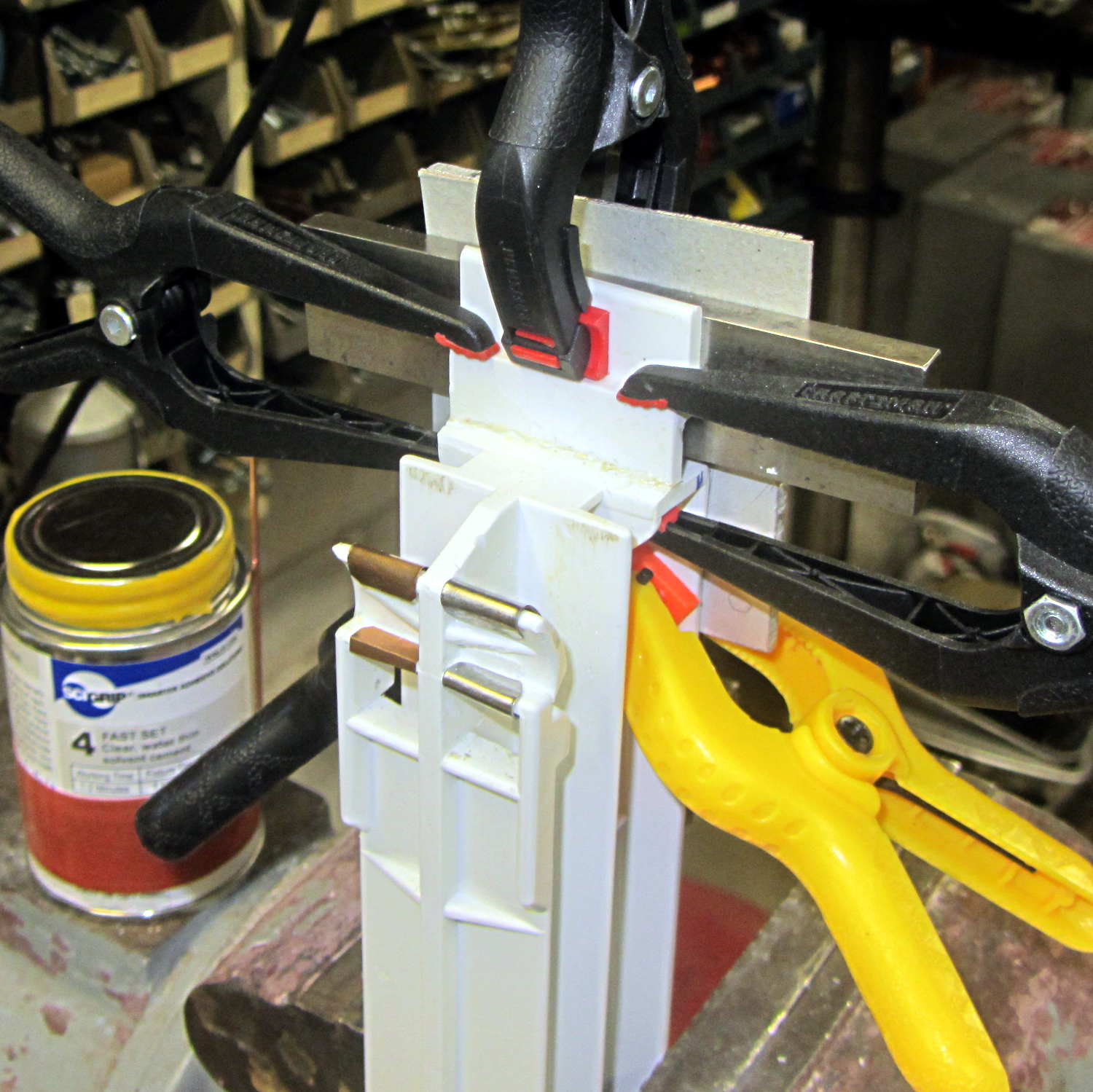

This time, there’s a fixture positioning the tab in the proper orientation while the solvent evaporates. The two bottom clamps hold an aluminum plate against the top (far side) of the strut, with the top-center clamp holding the tab against a steel block shimmed with cardboard to get the correct angle. The other two clamps squash the tab against the joint, which is well-soaked with IPS 4 adhesive.

I replaced the right-side guide plate, originally made from phosphor bronze strip, with some thicker steel strip. The bronze strip collapsed into the worn section of the plastic bump that appeared in the previous post:

Refrigerator strut - worn retainers

Refrigerator strut – worn retainers

I’ve written bigger caution messages on the top of the strut in red letters, but we think it’s getting on time for a whole new refrigerator…
