Tour Easy 1 W Amber Running Light: End Cap

My initial doodles suggested an end cap with an opening for the Arduino’s USB port and something for the power cable from the Bafang controller:

1 W LED Running Light - internal assembly
1 W LED Running Light – internal assembly

Common sense finally broke out and I made a simple disk cover held in place with an M3 screw:

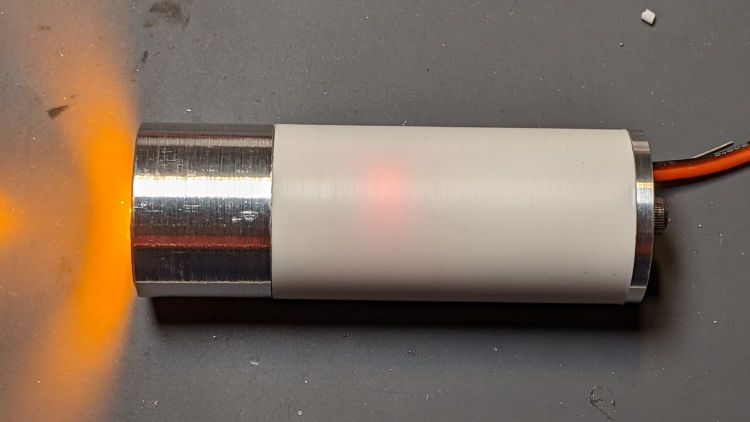

1 W Amber Running Light - bench test
1 W Amber Running Light – bench test

Unfortunately, I cut the PVC shell flush with the USB port, which meant the cap couldn’t have a little shoulder to stabilize it on the shell. Maybe next time?

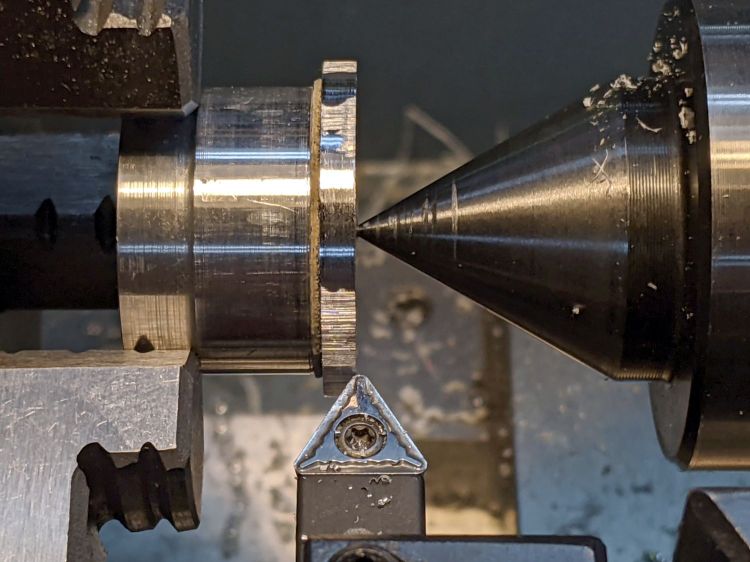

Machining the disk required using the scrap of aluminum rod left over from the heatsink as a fixture with a piece of sandpaper stuck to the front surface:

1 W Amber Running Light - end cap setup
1 W Amber Running Light – end cap setup

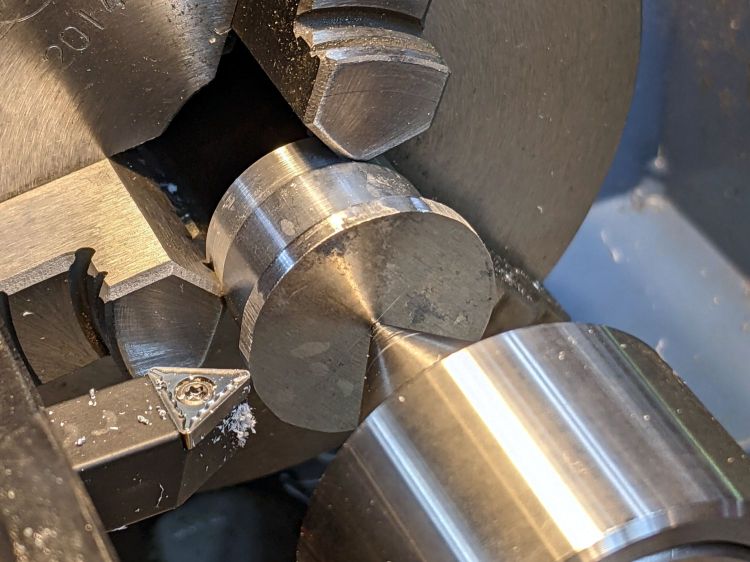

The live center presses the bandsawed + disk sanded cap against the sandpaper, providing barely enough traction for sissy cuts reducing the disk to the proper diameter:

1 W Amber Running Light - end cap turning
1 W Amber Running Light – end cap turning

It actually worked pretty well, although next time I’ll skip the sandpaper, affix the disk directly to the double sided duct tape, and be done with it.

Line up the center punch dimple and drill a hole for the M3 screw:

1 W Amber Running Light - end cap drilling
1 W Amber Running Light – end cap drilling

The power cable port turned into a little slot bandsawed into the edge of the disk with the sharp edges filed off.

Basically, the thing needs some road testing before I build one for real …

2 thoughts on “Tour Easy 1 W Amber Running Light: End Cap

  1. A trick I learned from Clickspring on Youtube is to machine concentric grooves on the work holder chucked in the lathe. Then glue the workpiece to the grooves with crazy glue. The joint is ahem crazy strong. A little heat afterwards and the workpiece breaks right off.

    1. Ever since I deliberately glued my fingers together to see how well cyanoacrylate worked as a skin adhesive, I’ve been reluctant to get near the stuff. It was a long time ago in a universe far away, but … lesson (over)learned!
