Tour Easy 1 W Amber Running Light: Internal Plate

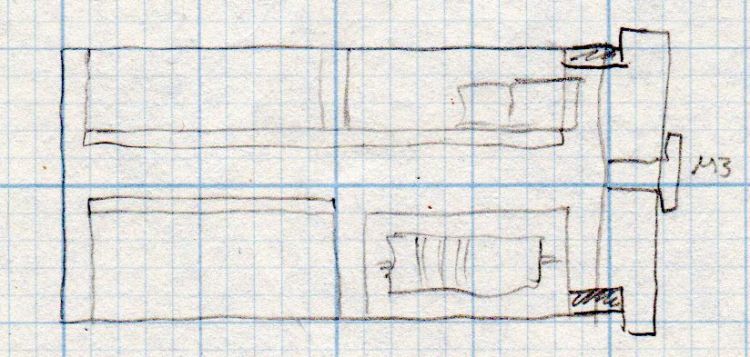

A semi-scaled doodle laying out an Arduino Nano and the MP1584 regulator board suggested they might fit behind the heatsink with the 1 W LED:

Amber running light - board layout doodle - side
Amber running light – board layout doodle – side

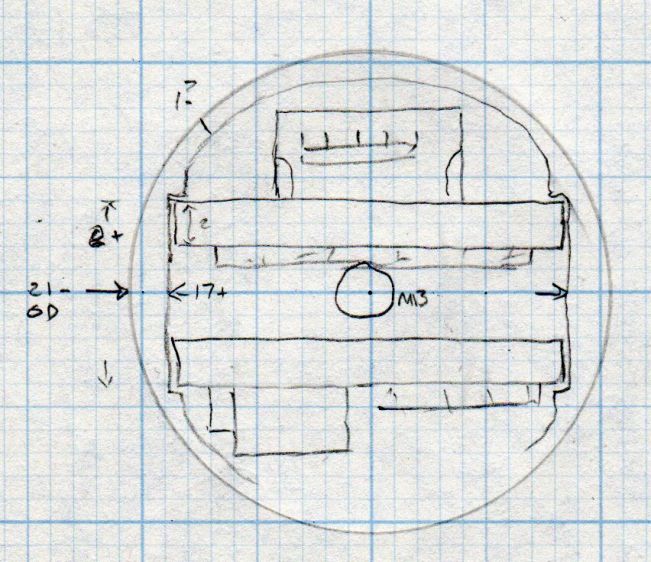

A somewhat more detailed doodle of the end view prompted me to bore the PVC pipe out to 23 mm:

Amber running light - board layout doodle - end
Amber running light – board layout doodle – end

The prospect of designing a 3D printed holder for the boards suggested Quality Shop Time combined with double-stick foam tape would ensure a better outcome.

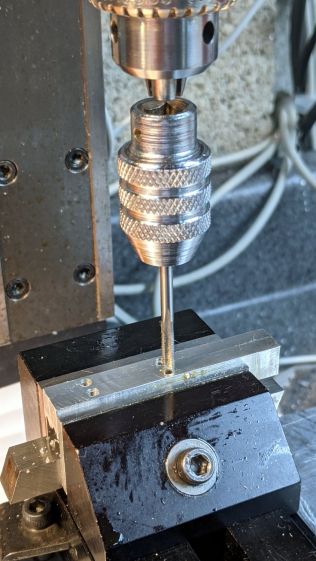

So I bandsawed the remains of a chunky angle bracket into a pair of rectangles, flycut All The Sides to square them up, and tapped a pair of M3 holes along one edge of each:

1 W LED Running Light - baseplate tapping
1 W LED Running Light – baseplate tapping

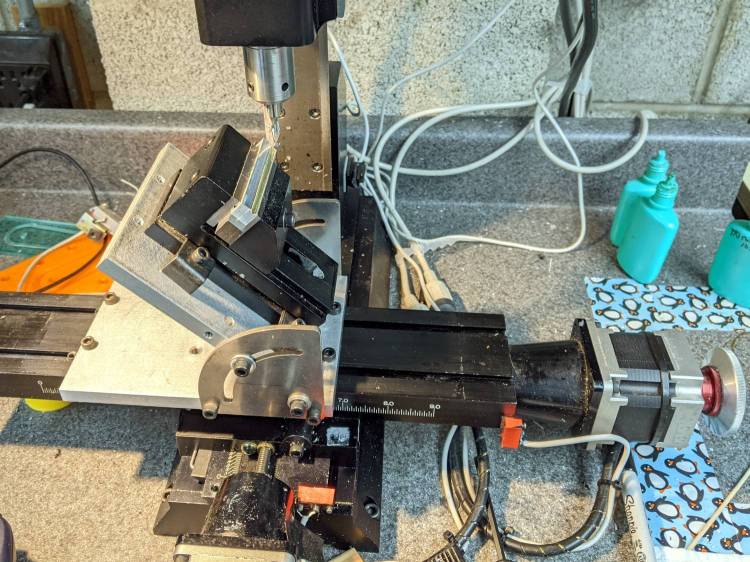

The other long edges got the V groove that killed the Sherline’s Y axis nut:

Sherline Y-Axis Nut Mishap - setup
Sherline Y-Axis Nut Mishap – setup

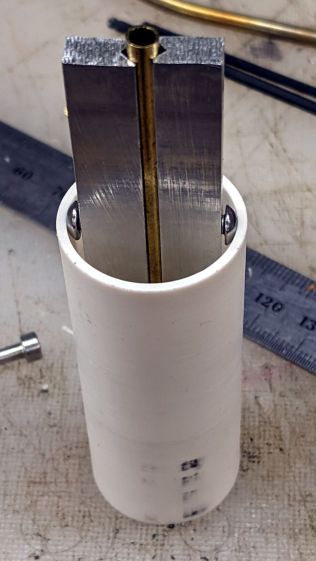

The groove holds a length of 4 mm OD (actually 5/32 inch, but don’t tell anybody) brass tubing:

1 W LED Running Light - baseplate trial fit
1 W LED Running Light – baseplate trial fit

The M3 button head screws are an admission of defeat, as I could see no way of controlling the width + thickness of the aluminum slabs to get a firm push fit in the PVC tube. The screws let me tune for best picture after everything else settled out.

A little more machining opened up the top of the groove:

1 W LED Running Light - baseplate dry assembly
1 W LED Running Light – baseplate dry assembly

A short M3 button head screw (with its head turned down to 4 mm) drops into the slot and holds the slab to the threaded hole in the LED heatsink. The long screw is holding the threaded insert in place for this dry fit.

I doodled a single long screw through the whole thing, but having it fall off the heatsink when taking the rear cover off seemed like a Bad Idea™. An M3 button head screw uses a 2 mm hex key that fits neatly through the threaded insert, thereby making it work.

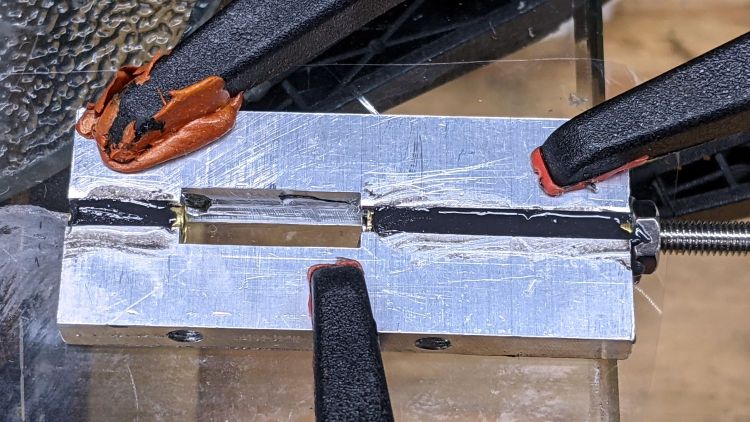

Butter it up with epoxy, scrape off the excess, and let things cure:

1 W LED Running Light - baseplate curing
1 W LED Running Light – baseplate curing

This was obviously made up as I went along …
