Bafang BBS02: Terry Symmetry Battery Mount

The Bafang 48 V 11.6 A·h battery for Gee’s Terry Symmetry mounts on the downtube:

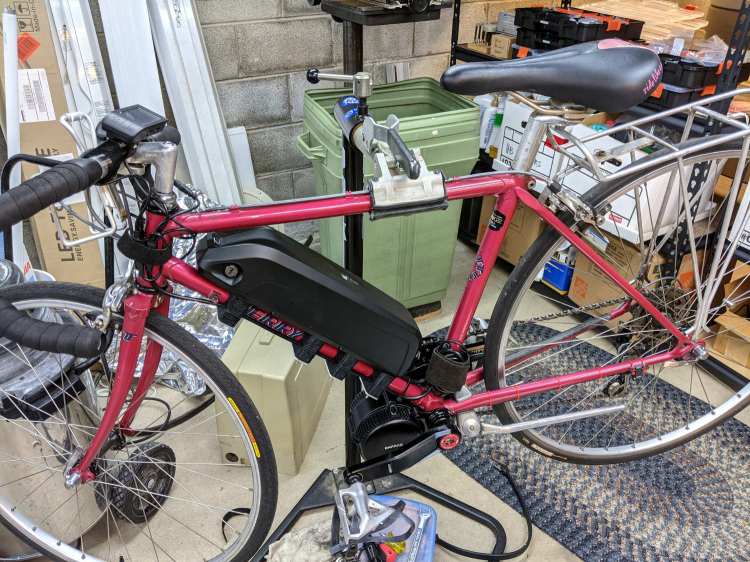

Bafang BBS02 - Terry Symmetry full assembly
Bafang BBS02 – Terry Symmetry full assembly

The battery slides onto a plate screwed to the pair of water bottle studs brazed to the tube:

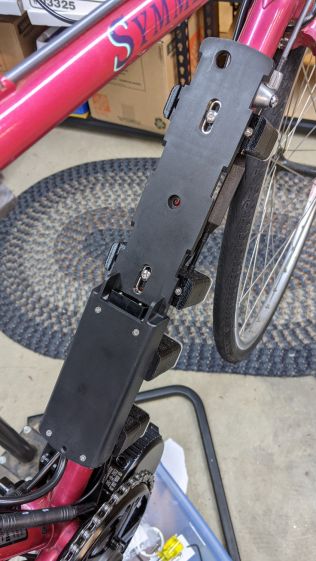

Terry Bafang battery mount plate - test install
Terry Bafang battery mount plate – test install

Water bottle studs are (nominally) 65 mm on center. One stud normally appears under the plate’s center hole, with the other stud under either the upper or lower slot, depending on whether the battery fits better mounted lower or higher on the downtube.

However, the Symmetry’s downtube is so short the plate must mount with the lowest slot matching the uppermost stud, putting the lower stud beneath the metal compartment with its complete lack of mounting holes.

Well, I can fix that:

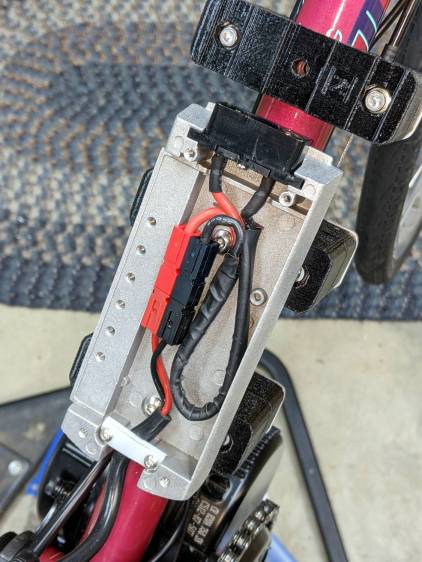

Terry Bafang battery mount - internal modifications
Terry Bafang battery mount – internal modifications

The upper hole in the metal base is 65 mm from the middle of the lower slot in the plastic baseplate, which will be (approximately) centered on the upper stud inside the black plastic mount. The location of that hole is not a free variable: it requires measuring and marking from the slot with the battery plate assembled.

The lower hole in the base puts the bottom of its plastic mount just about even with the end of the plate.

I shortened the battery side of the cable, crimped on (genuine!) 45 A Powerpole pins, and shaped the wiring to put the connector inside the metal compartment, out of harm’s way, and shielded from the weather.

The small bar of white HDPE serves as a cable clamp, held by a pair of M3 BHCS in the conveniently tapped holes.

With all that settled, the final iteration of the 3D printed mounting blocks took shape:

Terry - Bafang battery - all stations - solid model
Terry – Bafang battery – all stations – solid model

A station number from 1 through 4 identifies the blocks (station 0 is the blank block shape) and, of course, they’re all different. I refactored the OpenSCAD code used for Mary’s Tour Easy to put the feature selection into vectors, rather than convoluted logic:

Latches = [false,true,true,false,false];                // clearance for battery latch clips
Notch = [false,true,true,false,false];                  // notch for battery screw pockets
Recess = ["None","TeeNut","Bottle","Bottle","TeeNut"];  // stud or nut clearance against frame

HarnessCable = [false,true,true,true,true];             // passage for main harness cable

ShiftWire = [false,true,true,true,true];                //  .. shifter wire through sensor
Ferrules = ["None","Both","Front","None","Back"];       // ferrule and bushing ssockets

GearCable = [false,false,true,true,true];               //  .. gear sensor cable

Producing the features for a specific block is now a straightforward series of obvious choices. For example, adding the channels to clear the battery latches at stations 1 and 2 looks like this:

        if (Latches[BlkNum])
            for (i=[-1,1])
                translate([0,i*LatchOC/2,BlockMaxZ - LatchThick/2 + Protrusion])
                    cube([BossSlotOAL,LatchWidth,LatchThick + Protrusion],center=true);

Both parts of the block show the station number to avoid mixups:

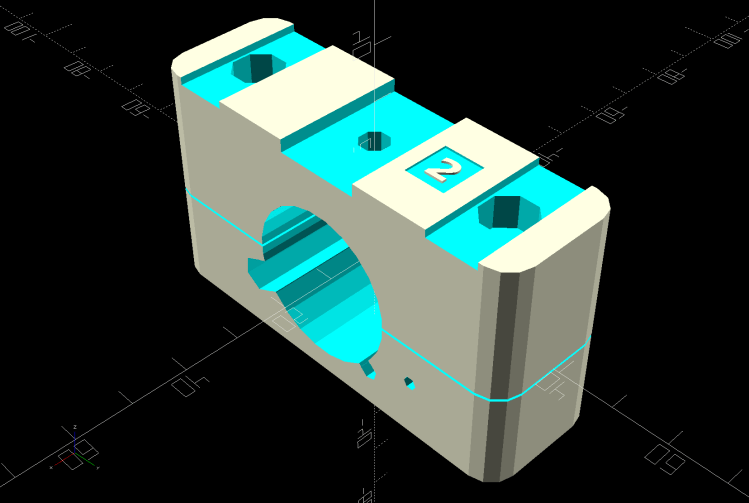

Terry - Bafang battery - station 2 - solid model
Terry – Bafang battery – station 2 – solid model

Each block requires a bit under three hours of printing time, so they’re produced singly:

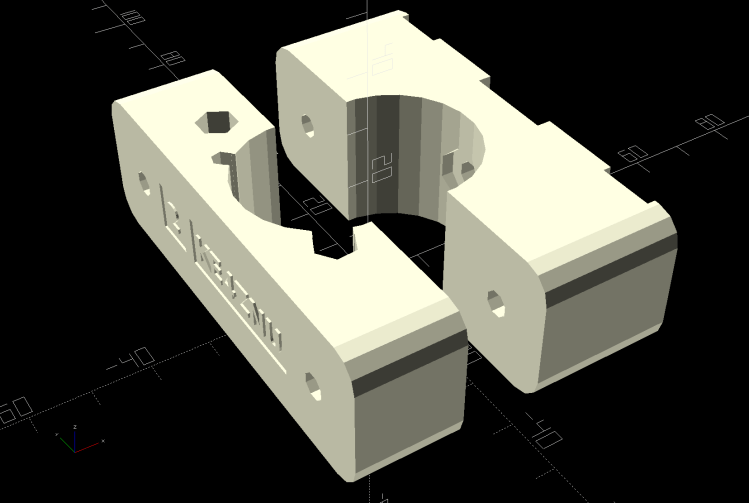

Terry - Bafang battery - station 2 build - solid model
Terry – Bafang battery – station 2 build – solid model

Building them sideways produces the best surface finish in all the recesses and holes. Small support structures under the rounded corners make them look Good Enough™ for their purpose.

A test assembly:

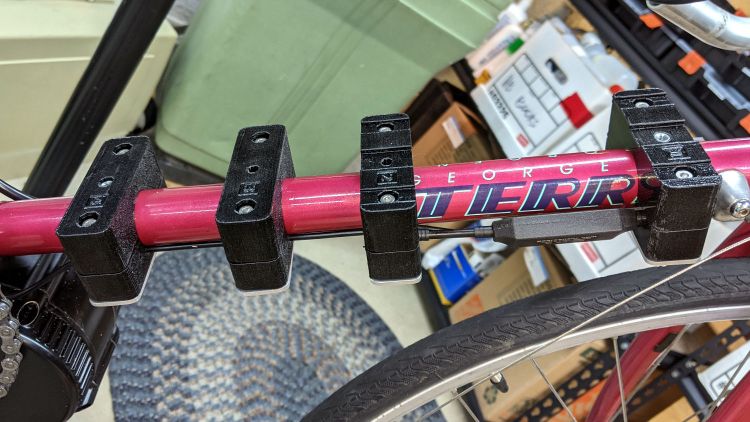

Terry Bafang battery mount - trial installation
Terry Bafang battery mount – trial installation

The two middle blocks (stations 3 and 2) sit at the water bottle studs. The rightmost block (station 1) is 130 mm from station 2, with the Bafang gear sensor on the rear derailleur cable.

An aluminum plate spreads the clamping force from the M4 screws across the bottom, as seen here below the cable stop cap holding the harness cable:

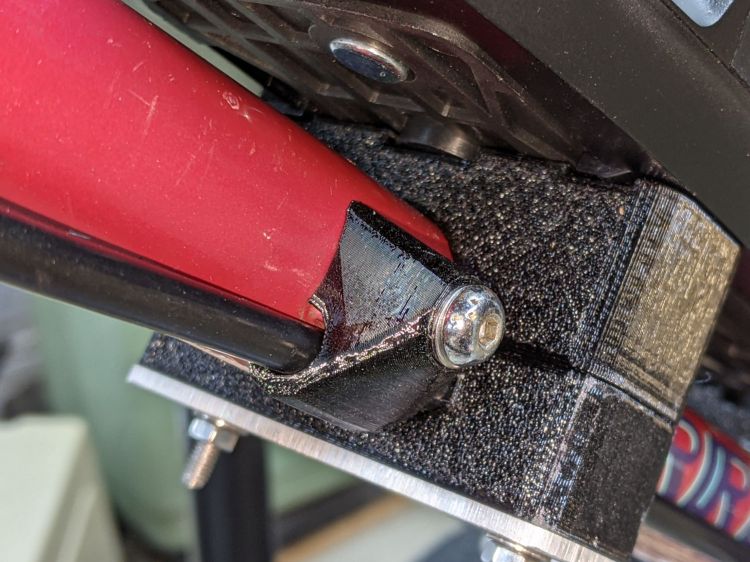

Terry Bafang - shift stop cap
Terry Bafang – shift stop cap

Those 50 mm screws are too long; a soon-to-arrive bag of 45 mm screws should fit perfectly. The final assembly will use nyloc nuts so they won’t vibrate loose.

The OpenSCAD source code for all the pieces as a GitHub Gist:

// Terry Symmetry - Bafang e-bike conversion
// Ed Nisley KE4ZNU 2021-06
Layout = "BuildClip"; // [Frame,Block,AllBlocks,BuildBlock,DispMount,BrakeMagnet,ShiftCap,BuildShiftCap,Case,NutMold,HeadClip, BuildClip]
Station = 4; // [0:4]
Support = false;
//- Extrusion parameters must match reality!
/* [Hidden] */
ThreadThick = 0.25;
ThreadWidth = 0.40;
HoleWindage = 0.2;
Protrusion = 0.1; // make holes end cleanly
inch = 25.4;
function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);
ID = 0;
OD = 1;
LENGTH = 2;
//----------
// Dimensions
// Bike frame lies along X axis, rear to +X
FrameTube = [400,28.9 + HoleWindage,28.9 + HoleWindage]; // X = longer than anything else
FrameSides = 24;
SpeedOD = 3.5; // speed sensor cable
PowerOD = 6.7; // power cable
Harness = [6.0,13.0,30.0]; // main motor-to-handlebar cable
GearOD = 3.0; // gear sensor cable
HandlebarMax = 1*inch; // middle handlebar diameter
HandlebarMin = 24.0; // .. tape section
HeadTube = [32.0,35.0,8.0]; // ID=tube OD=lug LENGTH=clear between lugs
BottleStud = [5.0,10.0,IntegerMultiple(1.2,ThreadThick)]; // frame fitting for bottle screws
BafangClampID = 22.3; // their handlebar clamp diameter
ShiftOD = 2.0; // rear shifter cable
ShiftFerrule = [ShiftOD,6.0,10.0];
ShiftOffset = 7.5; // .. from downtube
ShiftAngle = -20; // .. from midline
BatteryBoss = [5.5,16.0,2.5]; // battery mount boss, center boss is round
BossSlotOAL = 32.0; // .. end bosses are elongated
BossOC = 65.0; // .. along length of mount
LatchWidth = 10.0; // battery latches to mount plate
LatchThick = 1.5;
LatchOC = 56.0;
// Per-block features
// first element is unadorned block
Latches = [false,true,true,false,false]; // clearance for battery latch clips
Notch = [false,true,true,false,false]; // notch for battery screw pockets
Recess = ["None","TeeNut","Bottle","Bottle","TeeNut"]; // stud or nut clearance against frame
HarnessCable = [false,true,true,true,true]; // passage for main harness cable
ShiftWire = [false,true,true,true,true]; // .. shifter wire through sensor
Ferrules = ["None","Both","Front","None","Back"]; // ferrule and bushing ssockets
GearCable = [false,false,true,true,true]; // .. gear sensor cable
// M3 SHCS nyloc nut
Screw3 = [3.0,5.5,35.0]; // OD, LENGTH = head
Washer3 = [3.7,7.0,0.7];
Nut3 = [3.0,6.0,4.0];
// M4 SHCS nyloc nut
Screw4 = [4.0,7.0,4.0]; // OD, LENGTH = head
Washer4 = [4.2,8.9,1.0];
Nut4 = [4.0,7.8,5.0];
// M5 SHCS nyloc nut
Screw5 = [5.0,8.5,5.0]; // OD, LENGTH = head
Washer5 = [5.5,10.1,1.0];
Nut5 = [5.0,9.0,5.0];
Teenut5 = [6.5,17.0,8.0,2.0]; // OD, LENGTH+1 = flange
// 10-32 Philips nyloc nut
Screw10 = [5.2,9.8,3.6]; // OD, LENGTH = head
Washer10 = [5.5,11.0,1.0];
Nut10 = [5.2,10.7,6.2];
CableTie = [150,5.0,2.0];
WallThick = 4.0; // thinnest wall
BlockMinZ = -(FrameTube.z/2 + WallThick);
BlockMaxZ = FrameTube.z/2 + max(WallThick,Teenut5[LENGTH]) + BatteryBoss[LENGTH];
Block = [25.0,78.0,BlockMaxZ - BlockMinZ]; // Y = battery width
echo(str("Block: ",Block));
Kerf = 0.5; // cut through middle to apply compression
CornerRadius = 5.0;
EmbossDepth = 2*ThreadThick; // lettering depth
//----------------------
// Useful routines
module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes
Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
FixDia = Dia / cos(180/Sides);
cylinder(d=(FixDia + HoleWindage),h=Height,$fn=Sides);
}
// frame downtube
module Frame() {
rotate([0,90,0]) rotate(180/FrameSides)
cylinder(d=FrameTube.z,h=FrameTube.x,center=true,$fn=FrameSides);
}
// clamp overall shape
module ClampBlock(BlkNum = 1) {
Screw = Screw4;
Washer = Washer4;
Nut = Nut4;
ScrewOC = LatchOC;
ScrewSides = 8;
ScrewOrient = 180/ScrewSides;
ScrewRecess = LatchThick + Screw[LENGTH] + Washer[LENGTH] + 1.0;
echo(str("Screw length: ",Block.z - ScrewRecess));
difference() {
hull()
for (i=[-1,1], j=[-1,1])
translate([i*(Block.x/2 - CornerRadius),j*(Block.y/2 - CornerRadius),BlockMinZ])
cylinder(r=CornerRadius,h=Block.z,$fn=4*3);
cube([2*Block.x,2*Block.y,Kerf],center=true);
Frame();
for (j=[-1,1]) {
translate([0,j*ScrewOC/2,BlockMinZ - Protrusion])
rotate(ScrewOrient)
PolyCyl(Screw[ID],2*Block.z,ScrewSides);
translate([0,j*ScrewOC/2,BlockMaxZ - ScrewRecess])
rotate(ScrewOrient)
PolyCyl(Washer[OD],BlockMaxZ,ScrewSides);
}
if (Latches[BlkNum])
for (i=[-1,1])
translate([0,i*LatchOC/2,BlockMaxZ - LatchThick/2 + Protrusion])
cube([BossSlotOAL,LatchWidth,LatchThick + Protrusion],center=true);
if (Notch[BlkNum])
translate([0,0,BlockMaxZ - BatteryBoss[LENGTH]/2 + Protrusion])
cube([BossSlotOAL,BatteryBoss[OD],BatteryBoss[LENGTH] + Protrusion],center=true);
if (HarnessCable[BlkNum])
rotate([-155,0,0]) {
translate([0,FrameTube.y/2 - Harness[ID]/2,0])
cube([2*Block.x,2*Harness[ID],Harness[ID]],center=true);
translate([0,FrameTube.y/2 + Harness[ID]/2,0])
rotate([0,90,0])
translate([0,0,-Block.x])
rotate(180/6)
PolyCyl(Harness[ID],2*Block.x,6);
}
if (GearCable[BlkNum])
rotate([-45,0,0]) {
translate([0,FrameTube.y/2 - GearOD/2,0])
cube([2*Block.x,2*GearOD,GearOD],center=true);
translate([0,FrameTube.y/2 + GearOD/2,0])
rotate([0,90,0])
translate([0,0,-Block.x])
rotate(180/6)
PolyCyl(GearOD,2*Block.x,6);
}
rotate([ShiftAngle,0,0]) {
if (ShiftWire[BlkNum])
translate([-Block.x,FrameTube.y/2 + ShiftOffset,0])
rotate([0,90,0]) rotate(-(90 + ShiftAngle))
PolyCyl(ShiftOD,2*Block.x,6);
if (Ferrules[BlkNum] == "Back" || Ferrules[BlkNum] == "Both") {
i = 1;
translate([i*(Block.x/2 - ShiftFerrule[LENGTH]),FrameTube.y/2 + ShiftOffset,0])
rotate([0,i*90,0]) rotate(-i*(90 + ShiftAngle))
PolyCyl(ShiftFerrule[OD],Block.x,6);
}
if (Ferrules[BlkNum] == "Front" || Ferrules[BlkNum] == "Both") {
i = -1;
translate([i*(Block.x/2 - ShiftFerrule[LENGTH]),FrameTube.y/2 + ShiftOffset,0])
rotate([0,i*90,0]) rotate(-i*(90 + ShiftAngle))
PolyCyl(ShiftFerrule[OD],Block.x,6);
}
}
if (Recess[BlkNum] == "Bottle") {
rotate(ScrewOrient) {
PolyCyl(BottleStud[ID],2*Block.z,ScrewSides);
PolyCyl(BottleStud[OD],FrameTube.z/2 + BottleStud[LENGTH],ScrewSides);
}
}
else if (Recess[BlkNum] == "TeeNut") {
rotate(ScrewOrient) {
PolyCyl(Teenut5[ID],2*Block.z,ScrewSides);
PolyCyl(Teenut5[OD],FrameTube.z/2 + Teenut5[LENGTH+1],ScrewSides);
}
}
translate([0,15,BlockMaxZ - EmbossDepth/2 + Protrusion])
cube([9.0,8,EmbossDepth],center=true);
translate([0,17,BlockMinZ + EmbossDepth/2 - Protrusion])
cube([9.0,8,EmbossDepth],center=true);
translate([0,-5,BlockMinZ + EmbossDepth/2 - Protrusion])
cube([9.0,30,EmbossDepth],center=true);
}
translate([0,15,BlockMaxZ - EmbossDepth])
linear_extrude(height=EmbossDepth)
rotate(90)
text(text=str(BlkNum),size=5,spacing=1.00,font="Bitstream Vera Sans:style=Bold",
halign="center",valign="center");
translate([0,17,BlockMinZ])
linear_extrude(height=EmbossDepth)
rotate(-90) mirror([0,1,0])
text(text=str(BlkNum),size=4.5,spacing=1.00,font="Bitstream Vera Sans:style=Bold",
halign="center",valign="center");
translate([0,-5,BlockMinZ])
linear_extrude(height=EmbossDepth)
rotate(-90) mirror([0,1,0])
text(text="KE4ZNU",size=4.5,spacing=1.00,font="Bitstream Vera Sans:style=Bold",
halign="center",valign="center");
}
// complete clamp block
module Clamp(BlkNum = 1) {
ClampBlock(BlkNum);
if (Support)
color("Yellow") {
NumRibs = 7;
RibOC = Block.x/(NumRibs - 1);
intersection() {
translate([0,0,BlockMaxZ + Kerf/2])
cube([2*Block.x,2*Block.y,Block.z],center=true);
union() {
translate([0,0,Kerf/2])
cube([1.1*Block.x,FrameTube.y - 2*ThreadThick,4*ThreadThick],center=true);
for (i=[-floor(NumRibs/2):floor(NumRibs/2)])
translate([i*RibOC,0,0])
rotate([0,90,0]) rotate(180/FrameSides)
cylinder(d=FrameTube.z - 2*ThreadThick,h=2*ThreadWidth,$fn=FrameSides,center=true);
/*
translate([0,FrameTube.y/2 + PowerOD/2,Kerf/2])
cube([1.1*Block.x,PowerOD - 2*ThreadWidth,4*ThreadThick],center=true);
for (i=[-floor(NumRibs/2):floor(NumRibs/2)])
translate([i*RibOC,FrameTube.y/2 + PowerOD/2,PowerOD/4])
cube([2*ThreadWidth,PowerOD - 2*ThreadWidth,PowerOD/2 - 2*ThreadThick],center=true);
translate([0,-(FrameTube.y/2 + SpeedOD/2),Kerf/2])
cube([1.1*Block.x,SpeedOD - 2*ThreadWidth,4*ThreadThick],center=true);
for (i=[-floor(NumRibs/2):floor(NumRibs/2)])
translate([i*RibOC,-(FrameTube.y/2 + SpeedOD/2),SpeedOD/4])
cube([2*ThreadWidth,SpeedOD - 2*ThreadWidth,SpeedOD/2 - 2*ThreadThick],center=true);
*/
}
}
}
}
// Half clamp sections for printing
module HalfClamp(BlkNum = 1, Section = "Upper") {
render()
if (Section == "Upper")
intersection() {
translate([0,0,BlockMaxZ/2])
cube([1.1*Block.x,Block.y,BlockMaxZ],center=true);
translate([0,0,-Kerf/2])
Clamp(BlkNum);
}
else
intersection() {
translate([0,0,-BlockMinZ/2])
cube([1.1*Block.x,Block.y,-BlockMinZ],center=true);
translate([0,0,-BlockMinZ])
Clamp(BlkNum);
}
}
// Handlebar mount for controller
module DispMount() {
ClampRing = [HandlebarMax,HandlebarMax + 2*WallThick,10.0];
ClampOffset = (HandlebarMax + BafangClampID)/2 + 6.0;
DispStudLenth = 16.5;
NumSides = 24;
Tilt = 0*atan2((ClampRing[OD] - BafangClampID)/2,ClampOffset);
echo(str("Tilt: ",Tilt));
difference() {
union() {
hull() {
cylinder(d=ClampRing[OD],h=ClampRing[LENGTH],$fn=NumSides);
translate([0,ClampOffset,0])
cylinder(d=BafangClampID,h=ClampRing[LENGTH],$fn=NumSides);
}
translate([0,ClampOffset,0])
cylinder(d=BafangClampID,h=ClampRing[LENGTH] + DispStudLenth,$fn=NumSides);
translate([-ClampRing[ID]/4,-(ClampRing[OD]/2),ClampRing[LENGTH]/2])
rotate([0,90,0]) rotate(180/8)
cylinder(d=ClampRing[LENGTH]/cos(180/8),h=ClampRing[ID]/2,$fn=8);
}
cube([Kerf,4*ClampOffset,4*DispStudLenth],center=true);
translate([0,0,-Protrusion])
cylinder(d=ClampRing[ID],h=ClampRing[LENGTH] + 2*Protrusion,$fn=NumSides);
translate([-ClampRing[ID]/2,-(ClampRing[OD]/2),ClampRing[LENGTH]/2])
rotate([0,90,0]) rotate(180/8)
PolyCyl(Screw3[ID],ClampRing[ID],8);
for (i=[-1,1])
translate([i*ClampRing[ID]/4,-(ClampRing[OD]/2),ClampRing[LENGTH]/2])
rotate([0,i*90,0]) rotate(180/8)
PolyCyl(Washer3[OD],ClampRing[ID],$fn=8);
translate([-5,25,EmbossDepth/2 - Protrusion/2])
rotate(Tilt)
cube([4.5,21.5,EmbossDepth + Protrusion],center=true);
if (false)
translate([-6,25,EmbossDepth/2 - Protrusion/2])
rotate(-Tilt)
cube([4.0,27,EmbossDepth + Protrusion],center=true);
}
translate([-5,25,0])
linear_extrude(height=EmbossDepth)
rotate(90 + Tilt) mirror([0,1,0])
text(text="KE4ZNU",size=3.3,spacing=1.05,font="Bitstream Vera Sans:style=Bold",
halign="center",valign="center");
if (false)
translate([-6,25,0])
linear_extrude(height=EmbossDepth)
rotate(90 - Tilt) mirror([0,1,0])
text(text="softsolder.com",size=2.2,spacing=1.05,font="Bitstream Vera Sans:style=Bold",
halign="center",valign="center");
}
// Mold to reshape speed sensor nut
SensorNut = [0,14.4,13.0];
SensorMold = [SensorNut[OD] + 2*WallThick,SensorNut[OD] + 2*WallThick,SensorNut[LENGTH] + WallThick];
MoldSides = 20;
RodOD = 1.6;
module NutMoldBlock() {
difference() {
translate([0,0,SensorMold.z/2])
cube(SensorMold,center=true);
translate([0,0,WallThick])
rotate(180/MoldSides)
PolyCyl(SensorNut[OD],2*SensorNut[LENGTH],MoldSides);
translate([0,0,-Protrusion])
rotate(180/8)
PolyCyl(SpeedOD,2*SensorMold.z,8);
for (i=[-1,1])
translate([i*(SensorMold.x/2 - WallThick/2),SensorMold.y,SensorMold.z/2])
rotate([90,0,0])
PolyCyl(RodOD,2*SensorMold.y,6);
}
}
module NutMold() {
gap = 1.0;
for (j=[-1,1])
translate([0,j*gap,0])
intersection() {
translate([0,j*SensorMold.y,0])
cube(2*SensorMold,center=true);
NutMoldBlock();
}
}
// Brake sensor magnet mount
// Magnetized through thinnest section
module BrakeMagnet() {
Magnet = [10.5,3.0,5.5];
Plate = 2*ThreadThick;
BrakeRad = 10.0; // brake handle curve Radius
Holder = [2*BrakeRad,7.0,Magnet.z + Plate];
difference() {
intersection() {
translate([0,-BrakeRad,0])
rotate(180/24)
cylinder(r=BrakeRad,h=Holder.z,$fn=24);
translate([0,BrakeRad - Holder.y,Holder.z/2])
cube([2*BrakeRad,2*BrakeRad,Holder.z],center=true);
translate([0,0,-2*BrakeRad/sqrt(2) + Holder.z - 3.0 + BrakeRad])
rotate([0,45,0])
cube(2*[BrakeRad,2*BrakeRad,BrakeRad],center=true);
}
translate([0,Magnet.y/2 - Holder.y - Protrusion/2,Magnet.z/2 + Plate + Protrusion/2])
cube(Magnet + [0,Protrusion,Protrusion],center=true);
}
}
// Shift stud cap
// With passage for harness cable
CapBlock = [18,18,16.5];
module ShiftCap() {
Rounding = 3.5;
CapM = 3.0;
StudBase = [12.5,12.5,4.5];
Stud = [5.0,9.3,15.5];
difference() {
hull() {
translate([0,0,CapBlock.z - 0.5])
PolyCyl(Washer5[OD],0.5,12);
for (i=[-1,1], j=[-1,1])
translate([i*(CapBlock.x/2 - Rounding),j*(CapBlock.y/2 - Rounding),0])
sphere(r=Rounding,$fn=12);
translate([-CapBlock.x/2,-Harness[ID]/2 - StudBase.y/2,StudBase.z/2])
rotate([0,90,0])
cylinder(d=Harness[ID] + 2*WallThick,h=CapBlock.x,$fn=12);
}
translate([0,0,-(FrameTube.z/2 - CapM)])
Frame();
PolyCyl(Screw5[ID],2*CapBlock.z,6);
PolyCyl(Stud[OD],Stud[LENGTH],12);
translate([0,0,StudBase.z/2])
cube(StudBase,center=true);
translate([0,-StudBase.y/2,StudBase.z/2])
cube(StudBase + [0,-StudBase.y/2,0],center=true);
translate([-CapBlock.x,-Harness[ID]/2 - StudBase.y/2,StudBase.z/2])
rotate([0,90,0])
cylinder(d=1.5*Harness[ID],h=2*CapBlock.x,$fn=12);
}
}
// Head tube clip for harness cable joint
module HeadClip() {
CableOD = Harness[OD];
difference() {
linear_extrude(height=HeadTube[LENGTH],convexity=10)
difference() {
hull() {
circle(d=HeadTube[ID] + 2*WallThick,$fn=FrameSides);
translate([0,-(HeadTube[ID] + CableOD)/2])
rotate(180/(FrameSides/2))
circle(d=CableOD + 2*WallThick,$fn=FrameSides/2);
}
circle(d=HeadTube[ID] + HoleWindage,$fn=FrameSides);
translate([0,-(HeadTube[ID] + CableOD)/2])
rotate(180/(FrameSides/2))
circle(d=CableOD + HoleWindage,$fn=FrameSides/2);
translate([0,-HeadTube[ID]/2])
square(0.75*CableOD,center=true);
translate([0,HeadTube[ID]])
square(2*HeadTube[ID],center=true);
}
translate([0,-(HeadTube[ID]/2 + CableOD + WallThick - CableTie.z/2),HeadTube[LENGTH]/2])
cube([HeadTube[ID],CableTie.z,CableTie.y],center=true);
for (i=[-1,1])
translate([i*(HeadTube[ID]/2 + WallThick - CableTie.z/2),0,HeadTube[LENGTH]/2])
cube([CableTie.z,HeadTube[ID],CableTie.y],center=true);
}
}
// Programming cable case
ProgCavity = [60.0,18.0,7.0];
ProgBlock = [70.0,24.0,13.0];
ProgCableOD = 4.0;
module ProgrammerCase() {
difference() {
hull() {
for (i=[-1,1], j=[-1,1])
translate([i*(ProgBlock.x/2 - CornerRadius),j*i*(ProgBlock.y/2 - CornerRadius),-ProgBlock.z/2])
cylinder(r=CornerRadius,h=ProgBlock.z,$fn=12);
}
translate([-ProgBlock.x,0,0])
rotate([0,90,0])
PolyCyl(ProgCableOD,3*ProgBlock.x,6);
cube(ProgCavity,center=true);
translate([0,0,ProgBlock.z/2 + ProgCavity.z/2 - EmbossDepth])
cube(ProgCavity,center=true);
translate([0,0,-(ProgBlock.z/2 + ProgCavity.z/2 - EmbossDepth)])
cube(ProgCavity,center=true);
}
translate([0,4,ProgBlock.z/2 - EmbossDepth])
linear_extrude(height=EmbossDepth)
text(text="Bafang BBS02",
size=5,spacing=1.00,font="Bitstream Vera Sans:style=Bold",
halign="center",valign="center");
translate([0,-4,ProgBlock.z/2 - EmbossDepth])
linear_extrude(height=EmbossDepth)
text(text="Programmer",
size=5,spacing=1.00,font="Bitstream Vera Sans:style=Bold",
halign="center",valign="center");
translate([0,4,-ProgBlock.z/2])
linear_extrude(height=EmbossDepth)
mirror([1,0])
text(text="Ed Nisley",
size=5,spacing=1.00,font="Bitstream Vera Sans:style=Bold",
halign="center",valign="center");
translate([0,-4,-ProgBlock.z/2])
linear_extrude(height=EmbossDepth)
mirror([1,0])
text(text="softsolder.com",
size=5,spacing=1.00,font="Bitstream Vera Sans:style=Bold",
halign="center",valign="center");
}
// Half case sections for printing
module HalfCase(Section = "Upper") {
intersection() {
translate([0,0,ProgBlock.z/4])
cube([2*ProgBlock.x,2*ProgBlock.y,ProgBlock.z/2],center=true);
if (Section == "Upper")
ProgrammerCase();
else
translate([0,0,ProgBlock.z/2])
ProgrammerCase();
}
}
//----------
// Build them
if (Layout == "Frame")
Frame();
if (Layout == "DispMount")
DispMount();
if (Layout == "BrakeMagnet")
BrakeMagnet();
if (Layout == "ShiftCap")
ShiftCap();
if (Layout == "HeadClip")
HeadClip();
if (Layout == "BuildClip")
rotate([-90,0,0])
HeadClip();
if (Layout == "BuildShiftCap")
translate([0,0,CapBlock.z])
rotate([180,0,0])
ShiftCap();
if (Layout == "Case")
ProgrammerCase();
if (Layout == "NutMold")
NutMold();
if (Layout == "Upper" || Layout == "Lower")
HalfClamp(Station,Layout);
if (Layout == "Block") {
ClampBlock(Station);
if (false)
color("Red", 0.3)
Frame();
}
if (Layout == "AllBlocks") {
gap = 3*Block.x;
for (i=[0:4])
translate([i*gap - 2*gap,0,0])
Clamp(i);
if (true)
color("Red", 0.3)
Frame();
}
if (Layout == "BuildBlock") {
gap = 5.0;
translate([gap,0,Block.x/2])
rotate([0,90,0])
HalfClamp(Station,"Upper");
translate([-gap - Block.z/2,0,Block.x/2])
rotate([0,90,0])
HalfClamp(Station,"Lower");
}

One thought on “Bafang BBS02: Terry Symmetry Battery Mount

Spam comments get trashed, so don't bother. Comment moderation may cause a delay.

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out /  Change )

Google photo

You are commenting using your Google account. Log Out /  Change )

Twitter picture

You are commenting using your Twitter account. Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. Log Out /  Change )

Connecting to %s
