MPCNC Drag Knife: PETG Linear Bearing

Having reasonable success using a 12 mm hole bored in a 3D printed mount for the nice drag knife holder on the left, I thought I’d try the same trick for the raw aluminum holder on the right side:

Drag Knife holders - detail
Drag Knife holders – detail

The 11.5 mm body is long enough to justify making a longer holder with more bearing surface:

Drag Knife Holder - 11.5 mm body - Slic3r preview
Drag Knife Holder – 11.5 mm body – Slic3r preview

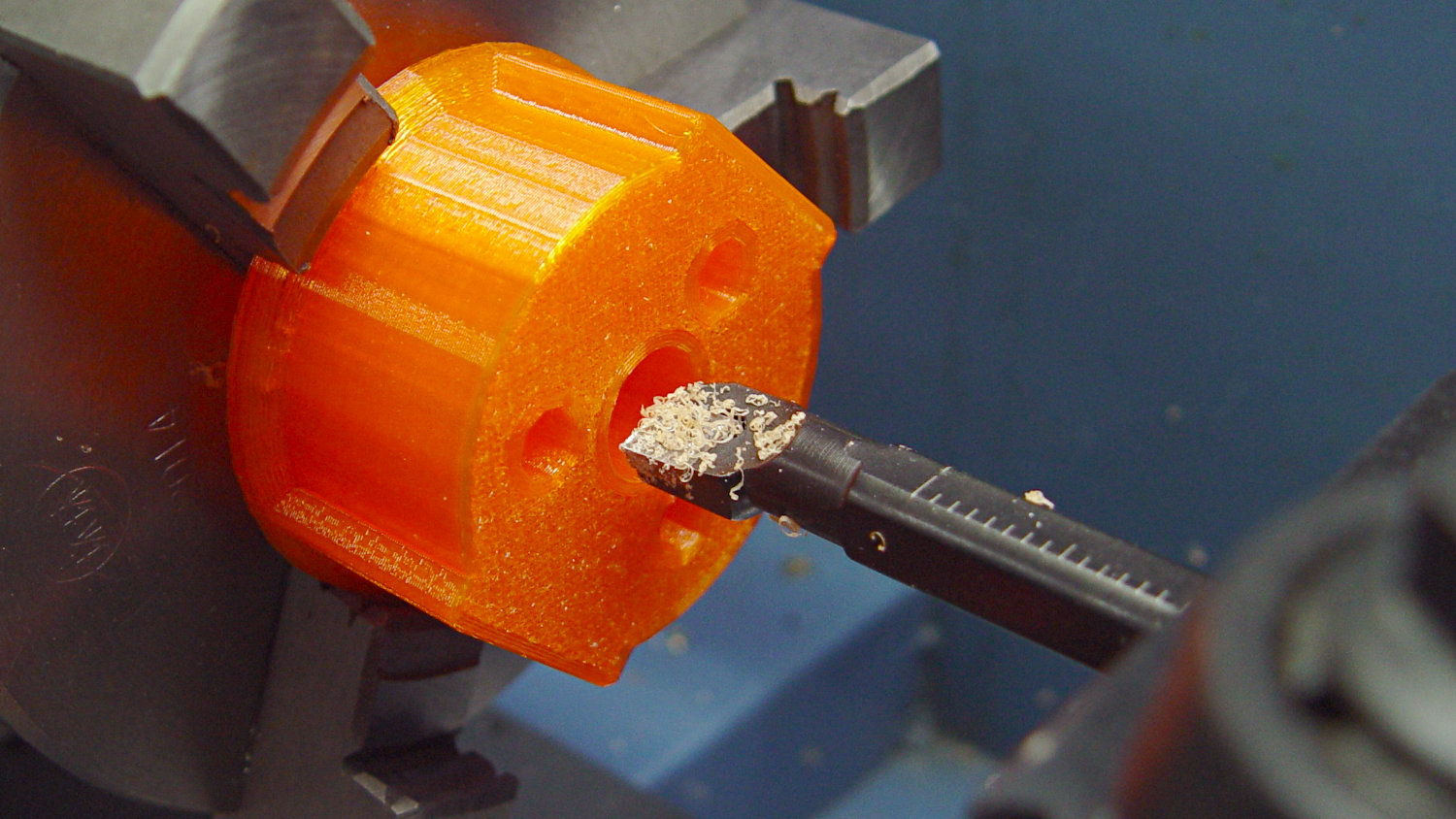

Slicing with four perimeter threads lays down enough reasonably solid plastic to bore the central hole to a nice sliding fit:

Drag Knife - 11.5 mm body - boring
Drag Knife – 11.5 mm body – boring

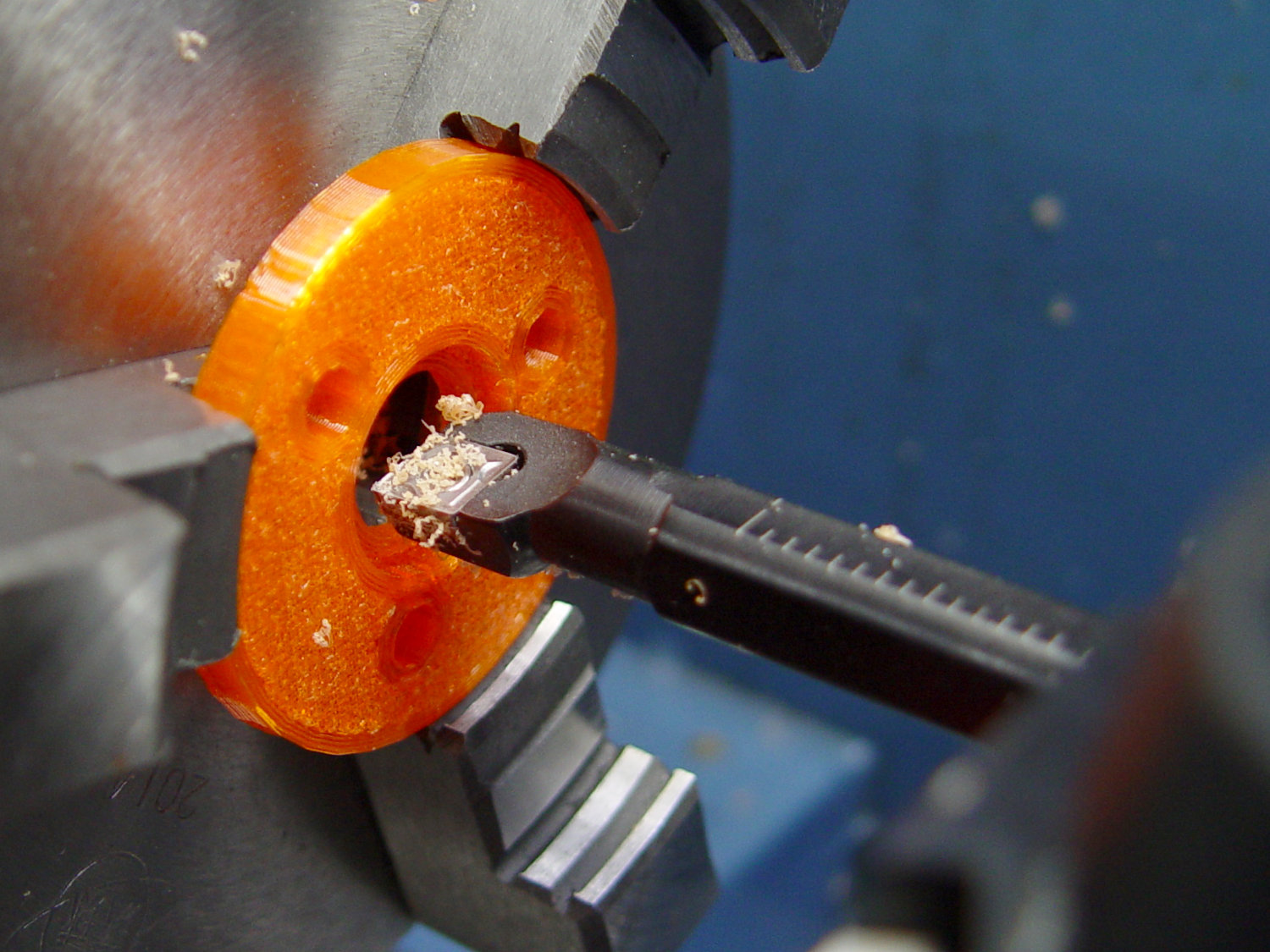

The top disk gets bored to a snug press fit around the flange and upper body:

Drag Knife - 11.5 mm body - flange boring
Drag Knife – 11.5 mm body – flange boring

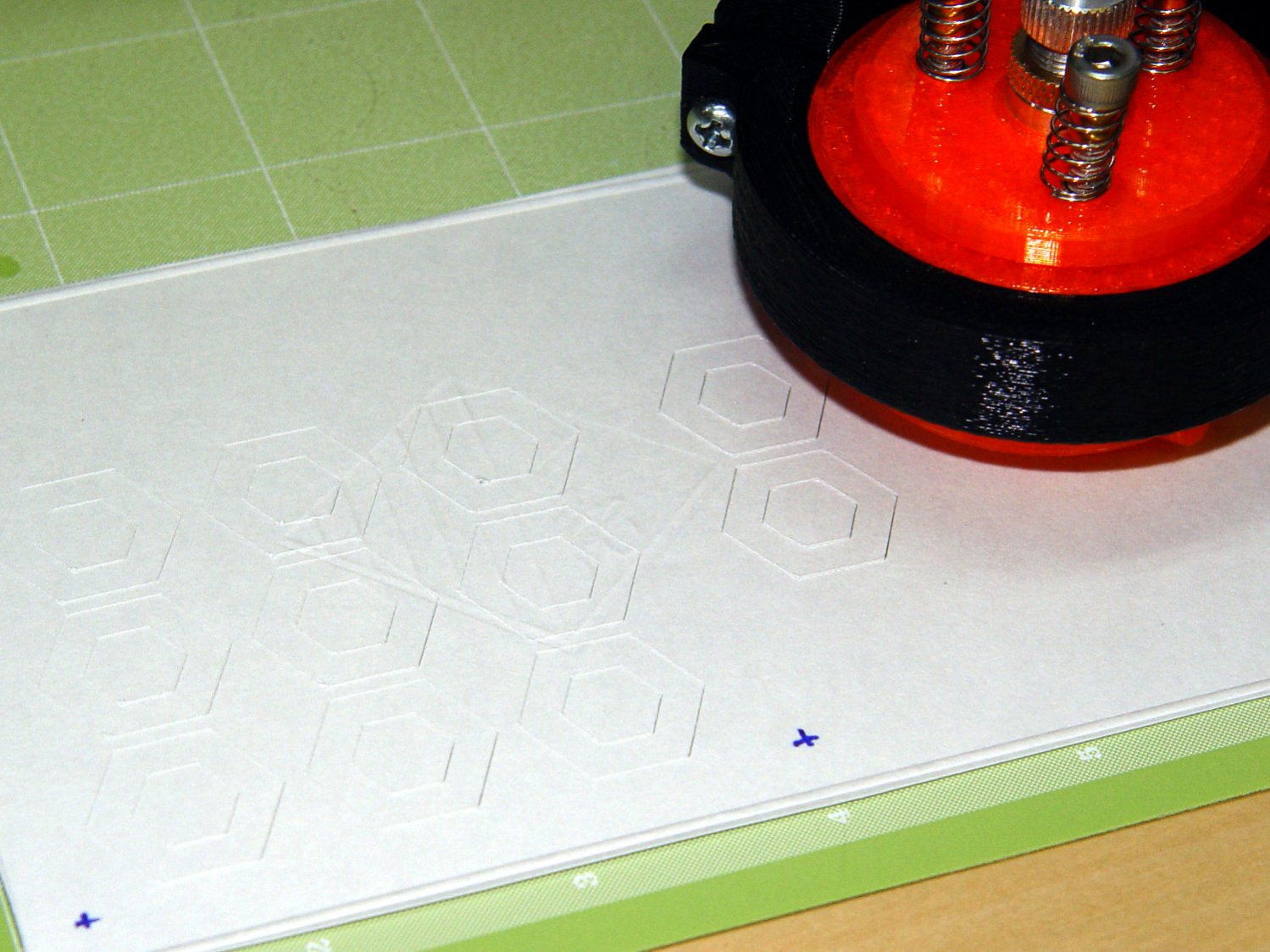

Assemble with springs and it pretty much works:

Drag Knife - hexagon depth setting
Drag Knife – hexagon depth setting

Unfortunately, it doesn’t work particularly well, because the two screws tightening the MPCNC’s DW660 tool holder (the black band) can apply enough force to deform the PETG mount and lock the drag knife body in the bore, while not being quite tight enough to prevent the mount from moving.

I think the holder for the black knife (on the left) worked better, because:

  • The anodized surface is much smoother & slipperier
  • The body is shorter, so less friction

In any event, I reached a sufficiently happy compromise for some heavy paper / light cardboard test shapes, but a PETG bearing won’t suffice for dependable drag knife cuttery.

Back to the laboratory …
