Frequency Modulated DDS: SPI Mock 1

The general idea is to frequency modulate the sine wave coming from a DDS, thereby generating a signal suitable for upconverting in amateur repeaters now tied to unobtainable crystals. The crystals run from 4-ish to 20-ish MHz, with frequency multiplication from 3 to 36 producing RF outputs from 30-ish MHz through 900-ish MHz; more details as I work through the choices.

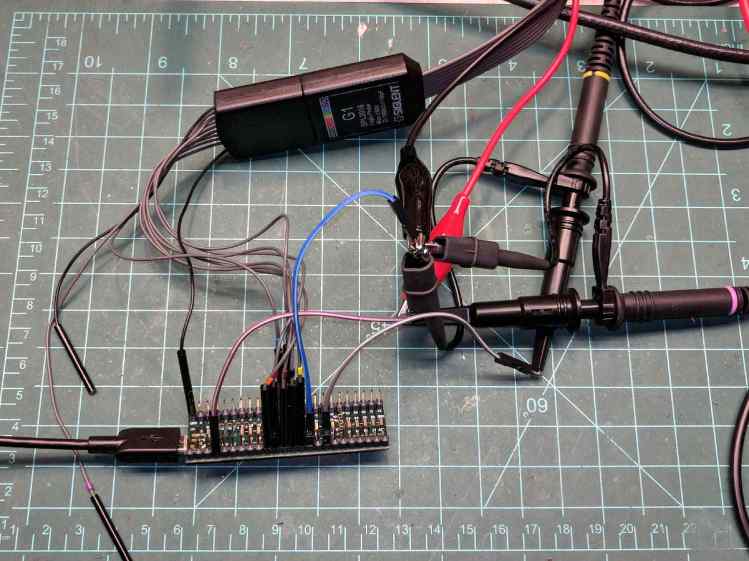

The demo code runs on a bare Teensy 3.6 as a dipstick test for the overall timing and functionality:

FM DDS - Teensy 3.6 SPI demo

FM DDS – Teensy 3.6 SPI demo

The fugliest thing you’ve seen in a while, eh?

An overview of the results:

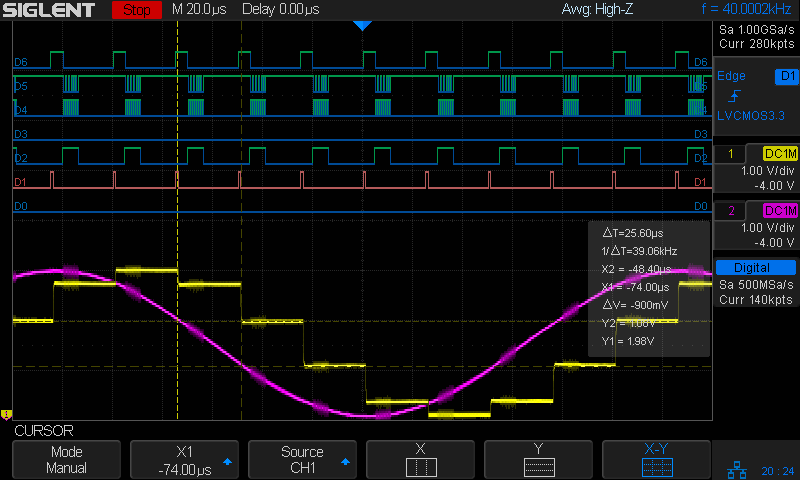

Analog 4 kHz @ 40 kHz - SPI demo overview

Analog 4 kHz @ 40 kHz – SPI demo overview

The pulses in D1 (orange digital) mark timer ticks at a 40 kHz pace, grossly oversampling the 4 kHz audio bandwidth in the hope of trivializing the antialiasing filters. The timer tick raises the DDS latch pin (D6, top trace) to change the DDS frequency, fires off another ADC conversion, and (for now) copies the previous ADC value to the DAC output:

void timer_callback(void) {
  digitalWriteFast(TIMER_PIN,HIGH);
  digitalWriteFast(DDS_FQUD_PIN,HIGH);                // latch previously shifted bits
  adc->startSingleRead(AUDIO_PIN, ADC_0);             // start ADC conversion
  analogWriteDAC0(AnalogSample);                      // show previous audio sample
  digitalWriteFast(TIMER_PIN,LOW);
}

The purple analog trace is the input sine wave at 4 kHz. The yellow analog stairstep comes from the DAC, with no hint of a reconstruction filter knocking off the sharp edges.

The X1 cursor (bold vertical dots) marks the start of the ADC read. I hope triggering it from the timer tick eliminates most of the jitter.

The Y1 cursor (upper dotted line, intersecting X1 just left of the purple curve) shows the ADC sample apparently happens just slightly after the conversion. The analog scales may be slightly off, so I wouldn’t leap to any conclusions.

The pulses in D2 mark the ADC end-of-conversion interrupts:

void adc0_isr(void) {
  digitalWriteFast(ANALOG_PIN,HIGH);
  AnalogSample = adc->readSingle();                     // fetch just-finished sample
  SPI.beginTransaction(SPISettings(8000000, MSBFIRST, SPI_MODE0));
  digitalWriteFast(DDS_FQUD_PIN, LOW);
  SPI.transfer(DDSBuffer.Phase);                // interleave with FM calculations
  SPI.transfer(DDSBuffer.Bits31_24);
  SPI.transfer(DDSBuffer.Bits23_16);
  SPI.transfer(DDSBuffer.Bits15_8);
  SPI.transfer(DDSBuffer.Bits7_0);
  SPI.endTransaction();                         // do not raise FQ_UD until next timer tick!
  digitalWriteFast(ANALOG_PIN,LOW);
}

The real FM code will multiply the ADC reading by the amplitude-to-frequency-deviation factor, add it to the nominal “crystal” frequency, convert the sum to the DDS delta-phase register value, then send it to the DDS through the SPI port. For now, I just send five constant bytes to get an idea of the minimum timing with the SPI clock ticking along at 8 MHz.

The tidy blurs in D4 show the SPI clock, with the corresponding data in D5.

D6 (top trace) shows the DDS FQ_UD (pronounced “frequency update”) signal dropping just before the SPI data transfer begins. Basically, FQ_UD is the DDS Latch Clock: low during the delta-phase value transfer, with the low-to-high transition latching all 40 control + data bits into the DDS to trigger the new frequency.

A closer look at the sample and transfer:

Analog 4 kHz @ 40 kHz - SPI demo detail

Analog 4 kHz @ 40 kHz – SPI demo detail

For reference, the digital players from bottom to top:

  • D0 – unused here, shows pulses marking main loop
  • D1 – 40 kHz timer ticks = ADC start conversion
  • D2 – ADC end of conversion,”FM calculation”, send DDS data
  • D3 – unused here, shows error conditions
  • D4 – SPI clock = rising edge active
  • D5 – SPI MOSI data to DDS = MSB first
  • D6 – SPI CS = FQ_UD = DDS latch

Remember, the yellow analog stairstepped trace is just a comfort signal showing the ADC actually samples the intended input.

The ARM CPU has floating-point hardware, but I suspect fixed-point arithmetic will once again win out over double-precision multiplies & divides.

Dropping the sampling to 20 kHz would likely work just as well and double the time available for calculations. At least now I can measure what’s going on.

All in all, it looks feasible.

And, yes, the scope is a shiny new Siglent SDS2304X with the MSO logic-analyzer option. It has some grievous UX warts & omissions suggesting an architectural botch job, but it’s mostly Good Enough for what I need. More later.

The TeensyDuino source code as a GitHub Gist:
