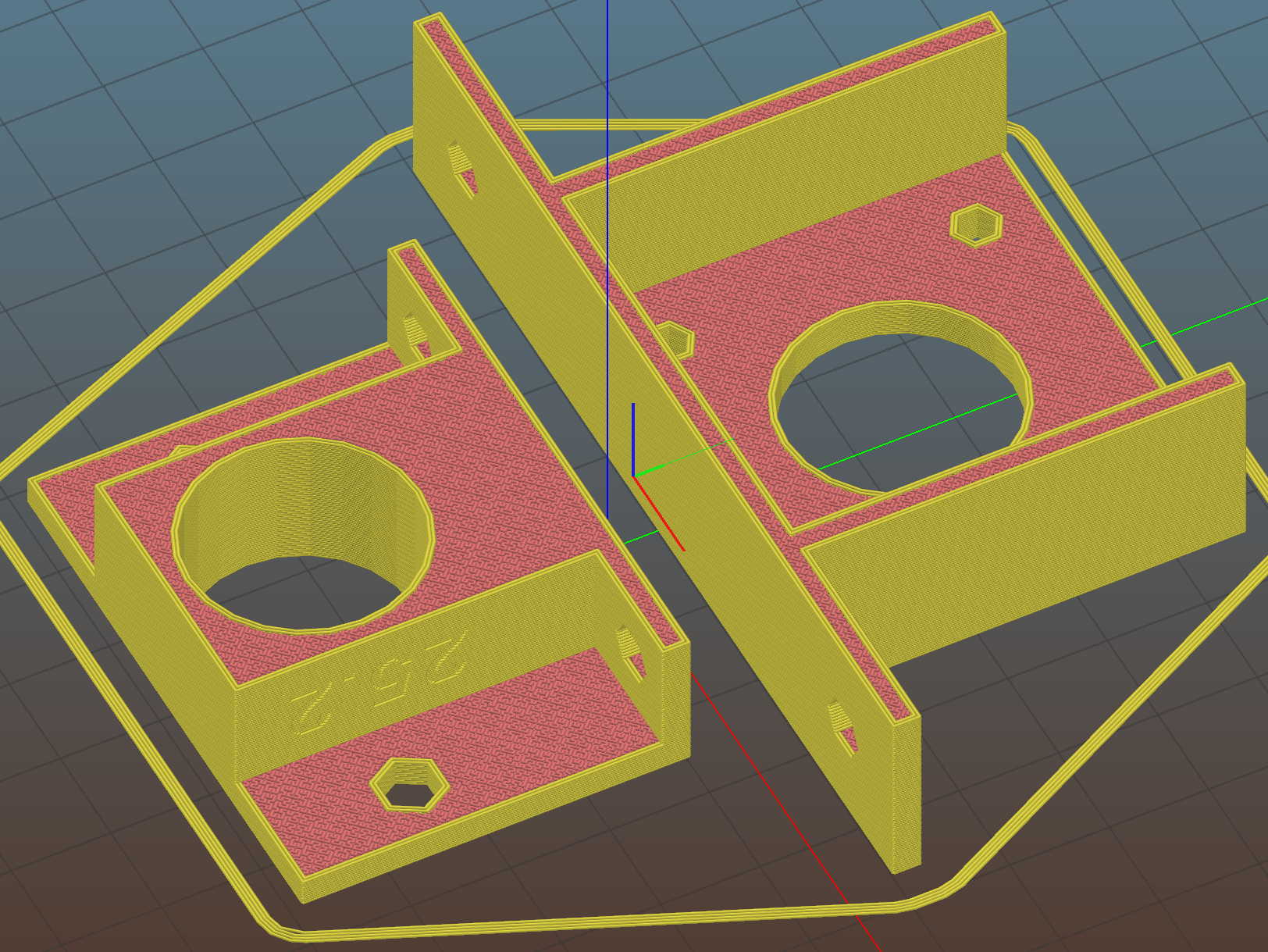

As part of coaching a student (and his father!) on their incredibly ambitious build-a-plotter-from-scratch project, I suggested stealing using HP’s grit-wheel paper drive, rather than fiddling with guide rods to move either the pen carrier or the entire paper platform. Dremel sanding drums seem about the right size and they had an 8 mm shaft harvested from a defunct printer, so a pair of mounts moves the project along:
The motor mount code is a hack job from my old NEMA17 mount and the code has a lot not to like. The bearing mount puts the bearing on the proper centerline using brute force copypasta and depends on friction to hold it in place. The two models should be integrated into the same file, the shaft centerline shouldn’t involve the printed thread width, and blah blah blah:
I had him turn the shaft adapter from an aluminum rod in the mini-lathe: he’s hooked.
The OpenSCAD source code as a GitHub Gist:
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| // Ball bearing mount | |
| // Ed Nisley KE4ZNU 2017-10-09 | |
| //– Extrusion parameters | |
| ThreadThick = 0.20; | |
| ThreadWidth = 0.40; | |
| HoleWindage = 0.2; // enlarge hole dia by this amount | |
| function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit); | |
| Protrusion = 0.1; // make holes look good and joints intersect properly | |
| //– Useful sizes | |
| inch = 25.4; | |
| Tap10_32 = 0.159 * inch; | |
| Clear10_32 = 0.190 * inch; | |
| Head10_32 = 0.373 * inch; | |
| Head10_32Thick = 0.110 * inch; | |
| Nut10_32Dia = 0.433 * inch; | |
| Nut10_32Thick = 0.130 * inch; | |
| // Bearing sizes | |
| ID = 0; | |
| OD = 1; | |
| LENGTH = 2; | |
| Bearing = [8.0,22.0,7.0]; | |
| ShaftHeight = IntegerMultiple(25.2,ThreadWidth); // arbitrary or copied from motor mount | |
| WallThick = 3.0; | |
| //– Mount Sizes | |
| MountSize = Bearing[OD] + 2*WallThick; | |
| BaseThick = max(WallThick,ShaftHeight – MountSize/2); // baseplate | |
| StandBoltHead = IntegerMultiple(Head10_32,2); // bolt head rounded up | |
| StandBoltClear = 1.25 * StandBoltHead; | |
| StandBoltOC = IntegerMultiple(MountSize + StandBoltClear,2); | |
| StandLength = StandBoltOC + StandBoltClear; | |
| StandThick = StandBoltClear + WallThick; | |
| StandHeight = MountSize + BaseThick; | |
| Cutout = (StandLength – MountSize)/2; | |
| echo(str("Stand Base: ",StandLength," x ",StandThick," x ",BaseThick)); | |
| echo(str("Stand Bolt OC: ",StandBoltOC)); | |
| echo(str("Shaft Height:",ShaftHeight)); | |
| //———————- | |
| // Useful routines | |
| module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes | |
| Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2); | |
| FixDia = Dia / cos(180/Sides); | |
| cylinder(r=(FixDia + HoleWindage)/2, | |
| h=Height, | |
| $fn=Sides); | |
| } | |
| //———————- | |
| // Put it together | |
| module BearingMount() { | |
| difference() { | |
| translate([BaseThick/2,0,StandThick/2]) | |
| cube([StandHeight,StandLength,StandThick],center=true); | |
| translate([0,0,-Protrusion]) | |
| PolyCyl(Bearing[OD],(StandThick + 2*Protrusion)); | |
| for (j=[-1,1]) // cutouts over bolts | |
| translate([-(StandHeight/2 – ShaftHeight + WallThick), | |
| j*(StandLength/2 – Cutout/2 + Protrusion/2), | |
| (WallThick + StandThick/2)]) | |
| cube([StandHeight, | |
| Cutout + Protrusion, | |
| StandThick],center=true); | |
| for (j=[-1,1]) // stand bolt holes – base | |
| translate([(MountSize/2 – Protrusion), | |
| j*StandBoltOC/2, | |
| WallThick + StandBoltClear/2]) | |
| rotate([0,90,0]) | |
| rotate(180/6) | |
| PolyCyl(Clear10_32,BaseThick + 2*Protrusion,6); | |
| for (j=[-1,1]) // stand bolt holes – back | |
| translate([0,j*StandBoltOC/2,-Protrusion]) | |
| rotate(180/6) | |
| PolyCyl(Clear10_32,StandThick + 2*Protrusion,6); | |
| translate([0,-(MountSize/2 – ThreadWidth/2),(StandThick – WallThick)/2 + WallThick]) | |
| rotate([90,180,0]) | |
| linear_extrude(ThreadWidth,convexity=10) | |
| text(text=str(ShaftHeight),size=6,spacing=1.20,font="Arial",halign="center",valign="center"); | |
| } | |
| } | |
| //———————- | |
| // Build it | |
| BearingMount(); | |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| // NEMA 17 stepper mount | |
| // Ed Nisley KE4ZNU August 2011 | |
| // Tweaked & thinned 2017-10-09 | |
| //– Extrusion parameters | |
| ThreadThick = 0.25; | |
| ThreadWidth = 0.4; | |
| HoleWindage = 0.3; // enlarge hole dia by this amount | |
| function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit); | |
| Protrusion = 0.1; // make holes look good and joints intersect properly | |
| //– Useful sizes | |
| inch = 25.4; | |
| Tap10_32 = 0.159 * inch; | |
| Clear10_32 = 0.190 * inch; | |
| Head10_32 = 0.373 * inch; | |
| Head10_32Thick = 0.110 * inch; | |
| Nut10_32Dia = 0.433 * inch; | |
| Nut10_32Thick = 0.130 * inch; | |
| NEMA17_ShaftDia = 5.0; | |
| NEMA17_ShaftLength = 24.0; | |
| NEMA17_PilotDia = 0.866 * inch; | |
| NEMA17_PilotLength = 0.080 * inch; | |
| NEMA17_BCD = 1.725 * inch; | |
| NEMA17_BoltDia = 3.5; | |
| NEMA17_BoltOC = 1.220 * inch; | |
| //– Mount Sizes | |
| MountWidth = IntegerMultiple(NEMA17_BCD,ThreadWidth); // use BCD for motor clearance | |
| MountThick = IntegerMultiple(4.0,ThreadThick); // for stiffness | |
| MountBoltDia = 3.0; | |
| StandThick = 3.0; // baseplate | |
| StrutThick = IntegerMultiple(3.0,ThreadWidth); // sides holding motor mount | |
| UprightLength = MountWidth + 2*StrutThick; | |
| StandBoltHead = IntegerMultiple(Head10_32,5); // bolt head rounded up | |
| StandBoltOC = IntegerMultiple(UprightLength + 2*StandBoltHead,5); | |
| StandLength = StandBoltOC + 2*StandBoltHead; | |
| StandWidth = 2*StandBoltHead; | |
| StandBoltClear = (StandLength – UprightLength)/2; // flat around bolt head | |
| MotorRecess = StandWidth – MountThick; | |
| ShaftHeight = IntegerMultiple(StandThick + MountWidth/2,ThreadWidth); | |
| echo(str("Stand Base: ",StandLength," x ",StandWidth," x ",StandThick)); | |
| echo(str("Stand Bolt OC: ",StandBoltOC)); | |
| echo(str("Shaft Height:",ShaftHeight)); | |
| echo(str("Strut Thick: ",StrutThick)); | |
| //———————- | |
| // Useful routines | |
| module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes | |
| Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2); | |
| FixDia = Dia / cos(180/Sides); | |
| cylinder(r=(FixDia + HoleWindage)/2, | |
| h=Height, | |
| $fn=Sides); | |
| } | |
| //———————- | |
| // Model | |
| module MotorMount() { | |
| difference() { | |
| translate([StandThick/2,0,StandWidth/2]) | |
| cube([(MountWidth + StandThick),StandLength,StandWidth],center=true); | |
| translate([-Protrusion/2,0,StandWidth – (MotorRecess – Protrusion)/2]) | |
| cube([(MountWidth + Protrusion),MountWidth,(MotorRecess + Protrusion)],center=true); | |
| translate([0,0,-Protrusion]) // pilot hole | |
| PolyCyl(NEMA17_PilotDia,(MountThick + 2*Protrusion)); | |
| for (i=[-1,1]) // motor bolt holes | |
| for (j=[-1,1]) | |
| translate([i*NEMA17_BoltOC/2,j*NEMA17_BoltOC/2,-Protrusion]) | |
| PolyCyl(MountBoltDia,(MountThick + 2*Protrusion),6); | |
| for (j=[-1,1]) // cutouts over bolts | |
| translate([-Protrusion/2, | |
| j*((StandLength – StandBoltClear)/2 + Protrusion/2), | |
| StandWidth/2]) | |
| cube([(MountWidth + Protrusion), | |
| (StandBoltClear + Protrusion), | |
| (StandWidth + 2*Protrusion)],center=true); | |
| for (j=[-1,1]) // stand bolt holes | |
| translate([(MountWidth/2 – Protrusion),j*StandBoltOC/2,StandWidth/2]) | |
| rotate([0,90,0]) | |
| rotate(180/6) | |
| PolyCyl(Clear10_32,StandThick + 2*Protrusion,6); | |
| translate([0,-(UprightLength/2 – ThreadWidth/2),StandWidth/2]) | |
| rotate([90,180,0]) | |
| linear_extrude(ThreadWidth,convexity=10) | |
| text(text=str(ShaftHeight),size=6,spacing=1.20,font="Arial",halign="center",valign="center"); | |
| } | |
| } | |
| //———————- | |
| // Build it | |
| MotorMount(); | |
