One of the octal tubes in my collection has a broken spigot / key post that lets some light in through the bottom of the normally opaque Bakelite base:
Perhaps drilling out the base would let more light pass around the evacuation tip, but that requires a shell drill to clear the tip. Some doodling suggested a drill with 12 mm OD and 8 mm ID, which was close enough to one of the smaller homebrew drills in my collection that I decided to see how it worked:

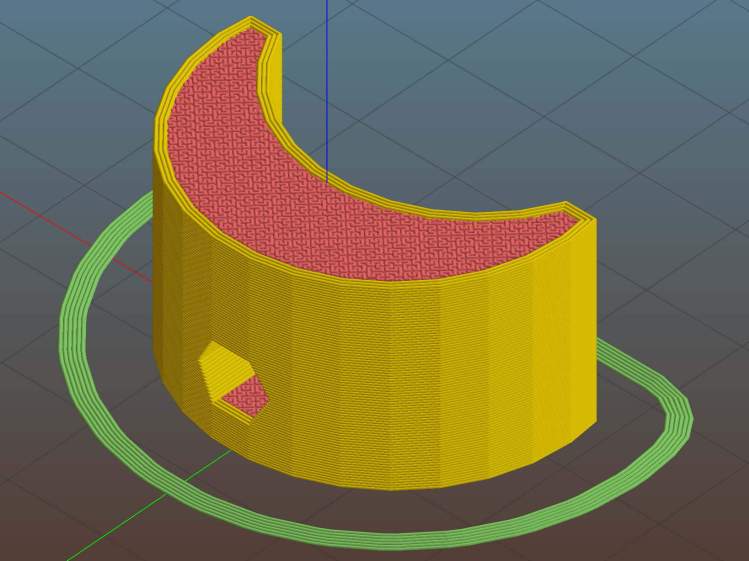

You (well, I) can’t freehand such a hole, particularly with a glass tip in the middle, so I needed a way to clamp the tube in either the drill press or the Sherline. A pad for the clamp screw in a V-block seemed appropriate:
The screw hole sits at the 1/3 point to put more pressure near the pin end of the base. Maybe that matters.
The setup looks like this, with a small red laser dot near the front of the base:
The tube rests on a random scrap of plastic, with the hope that the drill won’t apply enough pressure to break the glass envelope.
In normal use, the V-block would be oriented the other way to let you cross-drill the cylinder. In this end-on orientation, drilling torque can rotate the tube; compliant padding for more traction may be in order.
The OpenSCAD source code as a GitHub Gist now includes a module that spits out the clamp:
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| // Vacuum Tube LED Lights | |
| // Ed Nisley KE4ZNU February … September 2016 | |
| Layout = "TubeClamp"; // Cap LampBase USBPort Bushings | |
| // Socket(s) Cap (Build)FinCap Platter[Base|Fixture] | |
| // TubeClamp | |
| DefaultSocket = "Mini7"; | |
| Section = false; // cross-section the object | |
| Support = true; | |
| //- Extrusion parameters must match reality! | |
| ThreadThick = 0.25; | |
| ThreadWidth = 0.40; | |
| HoleWindage = 0.2; | |
| Protrusion = 0.1; // make holes end cleanly | |
| inch = 25.4; | |
| function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit); | |
| //———————- | |
| // Dimensions | |
| // https://en.wikipedia.org/wiki/Tube_socket#Summary_of_Base_Details | |
| // punch & screw OC modified for drive platter chassis plate | |
| // platter = 25 mm ID | |
| // CD = 15 mm ID with raised ring at 37 mm, needs screw head clearance | |
| T_NAME = 0; // common name | |
| T_NUMPINS = 1; // total, with no allowance for keying | |
| T_PINBCD = 2; // tube pin circle diameter | |
| T_PINOD = 3; // … diameter | |
| T_PINLEN = 4; // … length (must also clear evacuation tip / spigot) | |
| T_HOLEOD = 5; // nominal panel hole from various sources | |
| T_PUNCHOD = 6; // panel hole optimized for inch-size Greenlee punches | |
| T_TUBEOD = 7; // envelope or base diameter | |
| T_PIPEOD = 8; // light pipe from LED to tube base (clear evac tip / spigot) | |
| T_SCREWOC = 9; // mounting screw holes | |
| // Name pins BCD dia length hole punch tube pipe screw | |
| TubeData = [ | |
| ["Mini7", 8, 9.53, 1.016, 7.0, 16.0, 25.0, 18.0, 5.0, 35.0], // punch 11/16, screw 22.5 OC | |
| // ["Octal", 8, 17.45, 2.36, 11.0, 36.2, (8 + 1)/8 * inch, 32.0, 11.5, 47.0], // screw 39.0 OC | |
| ["Octal", 8, 17.45, 2.36, 11.0, 36.2, 25.0, 32.0, 11.5, 42.0], // platter + 4 mm screws | |
| ["Noval", 10, 11.89, 1.1016, 7.0, 22.0, 25.0, 21.0, 7.5, 35.0], // punch 7/8, screw 28.0 OC | |
| ["Magnoval", 10, 17.45, 1.27, 9.0, 29.7, (4 + 1)/4 * inch, 46.0, 12.4, 38.2], // similar to Novar | |
| // ["Duodecar", 13, 19.10, 1.05, 9.0, 32.0, (4 + 1)/4 * inch, 38.0, 12.5, 47.0], // screw was 39.0 OC | |
| ["Duodecar", 13, 19.10, 1.05, 9.0, 25.0, 25.0, 38.0, 12.5, 42.0], // fit un-punched drive platter | |
| ]; | |
| ID = 0; | |
| OD = 1; | |
| LENGTH = 2; | |
| Pixel = [7.0,10.0,3.0]; // ID = contact patch, OD = PCB dia, LENGTH = overall thickness | |
| SocketNut = // socket mounting: threaded insert or nut recess | |
| // [3.5,5.2,7.2] // 6-32 insert | |
| [4.0,6.0,5.9] // 4 mm short insert | |
| ; | |
| NutSides = 8; | |
| SocketShim = 2*ThreadThick; // between pin holes and pixel top | |
| SocketFlange = 1.5; // rim around socket below punchout | |
| PanelThick = 1.5; // socket extension through punchout | |
| FinCutterOD = 1/8 * inch; | |
| FinCapSize = [(Pixel[OD] + 2*FinCutterOD),30.0,(10.0 + 2*Pixel[LENGTH])]; | |
| USBPCB = | |
| // [28,16,6.5] // small Sparkfun knockoff | |
| [36,18 + 1,5.8 + 0.4] // Deek-Robot fake FTDI with ISP header | |
| ; | |
| Platter = [25.0,95.0,1.26]; // hard drive platter dimensions | |
| //———————- | |
| // Useful routines | |
| module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes | |
| Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2); | |
| FixDia = Dia / cos(180/Sides); | |
| cylinder(d=(FixDia + HoleWindage),h=Height,$fn=Sides); | |
| } | |
| //———————- | |
| // Tube cap | |
| CapTube = [4.0,3/16 * inch,10.0]; // brass tube for flying lead to cap LED | |
| CapSize = [Pixel[ID],(Pixel[OD] + 2.0),(CapTube[OD] + 2*Pixel[LENGTH])]; | |
| CapSides = 8*4; | |
| module Cap() { | |
| difference() { | |
| union() { | |
| cylinder(d=CapSize[OD],h=(CapSize[LENGTH]),$fn=CapSides); // main cap body | |
| translate([0,0,CapSize[LENGTH]]) // rounded top | |
| scale([1.0,1.0,0.65]) | |
| sphere(d=CapSize[OD]/cos(180/CapSides),$fn=CapSides); // cos() fixes slight undersize vs cylinder | |
| cylinder(d1=(CapSize[OD] + 2*3*ThreadWidth),d2=CapSize[OD],h=1.5*Pixel[LENGTH],$fn=CapSides); // skirt | |
| } | |
| translate([0,0,-Protrusion]) // bore for wiring to LED | |
| PolyCyl(CapSize[ID],(CapSize[LENGTH] + 3*ThreadThick + Protrusion),CapSides); | |
| translate([0,0,-Protrusion]) // PCB recess with clearance for tube dome | |
| PolyCyl(Pixel[OD],(1.5*Pixel[LENGTH] + Protrusion),CapSides); | |
| translate([0,0,(1.5*Pixel[LENGTH] – Protrusion)]) // small step + cone to retain PCB | |
| cylinder(d1=(Pixel[OD]/cos(180/CapSides) + HoleWindage),d2=Pixel[ID],h=(Pixel[LENGTH] + Protrusion),$fn=CapSides); | |
| translate([0,0,(CapSize[LENGTH] – CapTube[OD]/(2*cos(180/8)))]) // hole for brass tube holding wire loom | |
| rotate([90,0,0]) rotate(180/8) | |
| PolyCyl(CapTube[OD],CapSize[OD],8); | |
| } | |
| } | |
| //———————- | |
| // Heatsink tube cap | |
| module FinCap() { | |
| CableOD = 3.5; // cable + braid diameter | |
| BulbOD = 3.75 * inch; // bulb OD; use 10 inches for flat | |
| echo(str("Fin Cutter: ",FinCutterOD)); | |
| FinSides = 2*4; | |
| BulbRadius = BulbOD / 2; | |
| BulbDepth = BulbRadius – sqrt(pow(BulbRadius,2) – pow(FinCapSize[OD],2)/4); | |
| echo(str("Bulb OD: ",BulbOD," recess: ",BulbDepth)); | |
| NumFins = floor(PI*FinCapSize[ID] / (2*FinCutterOD)); | |
| FinAngle = 360 / NumFins; | |
| echo(str("NumFins: ",NumFins," angle: ",FinAngle," deg")); | |
| difference() { | |
| union() { | |
| cylinder(d=FinCapSize[ID],h=FinCapSize[LENGTH],$fn=2*NumFins); // main body | |
| for (i = [0:NumFins – 1]) // fins | |
| rotate(i * FinAngle) | |
| hull() { | |
| translate([FinCapSize[ID]/2,0,0]) | |
| rotate(180/FinSides) | |
| cylinder(d=FinCutterOD,h=FinCapSize[LENGTH],$fn=FinSides); | |
| translate([(FinCapSize[OD] – FinCutterOD)/2,0,0]) | |
| rotate(180/FinSides) | |
| cylinder(d=FinCutterOD,h=FinCapSize[LENGTH],$fn=FinSides); | |
| } | |
| rotate(FinAngle/2) // cable entry boss | |
| translate([FinCapSize[ID]/2,0,FinCapSize[LENGTH]/2]) | |
| cube([FinCapSize[OD]/4,FinCapSize[OD]/4,FinCapSize[LENGTH]],center=true); | |
| } | |
| for (i = [1:NumFins – 1]) // fin inner gullets, omit cable entry side | |
| rotate(i * FinAngle + FinAngle/2) // joint isn't quite perfect, but OK | |
| translate([FinCapSize[ID]/2,0,-Protrusion]) | |
| rotate(0*180/FinSides) | |
| cylinder(d=FinCutterOD/cos(180/FinSides),h=(FinCapSize[LENGTH] + 2*Protrusion),$fn=FinSides); | |
| translate([0,0,-Protrusion]) // PCB recess | |
| PolyCyl(Pixel[OD],(1.5*Pixel[LENGTH] + Protrusion),FinSides); | |
| PolyCyl(Pixel[ID],(FinCapSize[LENGTH] – 3*ThreadThick),FinSides); // bore for LED wiring | |
| translate([0,0,(FinCapSize[LENGTH] – 3*ThreadThick – 2*CableOD/(2*cos(180/8)))]) // cable inlet | |
| rotate(FinAngle/2) rotate([0,90,0]) rotate(180/8) | |
| PolyCyl(CableOD,FinCapSize[OD],8); | |
| if (BulbOD <= 10.0 * inch) // curve for top of bulb | |
| translate([0,0,-(BulbRadius – BulbDepth + 2*ThreadThick)]) // … slightly flatten tips | |
| sphere(d=BulbOD,$fn=16*FinSides); | |
| } | |
| } | |
| //———————- | |
| // Aperture for USB-to-serial adapter snout | |
| // These are all magic numbers, of course | |
| module USBPort() { | |
| translate([0,USBPCB[0]]) | |
| rotate([90,0,0]) | |
| linear_extrude(height=USBPCB[0]) | |
| polygon(points=[ | |
| [0,0], | |
| [USBPCB[1]/2,0], | |
| [USBPCB[1]/2,0.5*USBPCB[2]], | |
| [USBPCB[1]/3,USBPCB[2]], | |
| [-USBPCB[1]/3,USBPCB[2]], | |
| [-USBPCB[1]/2,0.5*USBPCB[2]], | |
| [-USBPCB[1]/2,0], | |
| ]); | |
| } | |
| //———————- | |
| // Box for Leviton ceramic lamp base | |
| module LampBase() { | |
| Insert = [3.5,5.2,7.2]; // 6-32 brass insert to match standard electrical screws | |
| Bottom = 3.0; | |
| Base = [4.0*inch,4.5*inch,20.0 + Bottom]; | |
| Sides = 12*4; | |
| Retainer = [3.5,11.0,1.0]; // flat fiber washer holding lamp base screws in place | |
| StudSides = 8; | |
| StudOC = 3.5 * inch; | |
| Stud = [Insert[OD], // insert for socket screws | |
| min(15.0,1.5*(Base[ID] – StudOC)/cos(180/StudSides)), // OD = big enough to merge with walls | |
| (Base[LENGTH] – Retainer[LENGTH])]; // leave room for retainer | |
| union() { | |
| difference() { | |
| rotate(180/Sides) | |
| cylinder(d=Base[OD],h=Base[LENGTH],$fn=Sides); | |
| rotate(180/Sides) | |
| translate([0,0,Bottom]) | |
| cylinder(d=Base[ID],h=Base[LENGTH],$fn=Sides); | |
| translate([0,-Base[OD]/2,Bottom + 1.2]) // mount on double-sided foam tape | |
| rotate(0) | |
| USBPort(); | |
| } | |
| for (i = [-1,1]) | |
| translate([i*StudOC/2,0,0]) | |
| rotate(180/StudSides) | |
| difference() { | |
| cylinder(d=Stud[OD],h=Stud[LENGTH],$fn=StudSides); | |
| translate([0,0,Bottom]) | |
| PolyCyl(Stud[ID],(Stud[LENGTH] – (Bottom – Protrusion)),6); | |
| } | |
| } | |
| } | |
| //———————- | |
| // Base for hard drive platters | |
| module PlatterBase(TubeName = DefaultSocket) { | |
| PCB = | |
| [36,18,3] // Arduino Pro Mini | |
| ; | |
| Tube = search([TubeName],TubeData,1,0)[0]; | |
| SocketHeight = Pixel[LENGTH] + SocketShim + TubeData[Tube][T_PINLEN] – PanelThick; | |
| echo(str("Base for ",TubeData[Tube][0]," socket")); | |
| Overhang = 5.5; // platter overhangs base by this much | |
| Bottom = 4*ThreadThick; | |
| Base = [(Platter[OD] – 3*Overhang), // smaller than 3.5 inch Sch 40 PVC pipe… | |
| (Platter[OD] – 2*Overhang), | |
| 2.0 + max(PCB[1],(2.0 + SocketHeight + USBPCB[2])) + Bottom]; | |
| Sides = 24*4; | |
| echo(str(" Height: ",Base[2]," mm")); | |
| Insert = // platter mounting: threaded insert or nut recess | |
| // [3.5,5.2,7.2] // 6-32 insert | |
| [3.9,5.0,8.0] // 3 mm – long insert | |
| ; | |
| NumStuds = 4; | |
| StudSides = 8; | |
| Stud = [Insert[OD], // insert for socket screws | |
| 2*Insert[OD], // OD = big enough to merge with walls | |
| Base[LENGTH]]; // leave room for retainer | |
| StudBCD = floor(Base[ID] – Stud[OD] + (Stud[OD] – Stud[ID])/2); | |
| echo(str("Platter screw BCD: ",StudBCD," mm")); | |
| PCBInset = Base[ID]/2 – sqrt(pow(Base[ID]/2,2) – pow(PCB[0],2)/4); | |
| union() { | |
| difference() { | |
| rotate(180/Sides) | |
| cylinder(d=Base[OD],h=Base[LENGTH],$fn=Sides); | |
| rotate(180/Sides) | |
| translate([0,0,Bottom]) | |
| cylinder(d=Base[ID],h=Base[LENGTH],$fn=Sides); | |
| translate([0,-Base[OD]/2,Bottom + 1.2]) // mount PCB on foam tape | |
| rotate(0) | |
| USBPort(); | |
| } | |
| for (a = [0:(NumStuds – 1)]) // platter mounting studs | |
| rotate(180/NumStuds + a*360/(NumStuds)) | |
| translate([StudBCD/2,0,0]) | |
| rotate(180/StudSides) | |
| difference() { | |
| cylinder(d=Stud[OD],h=Stud[LENGTH],$fn=2*StudSides); | |
| translate([0,0,Bottom]) | |
| PolyCyl(Stud[ID],(Stud[LENGTH] – (Bottom – Protrusion)),StudSides); | |
| } | |
| intersection() { // microcontroller PCB mounting plate | |
| rotate(180/Sides) | |
| cylinder(d=Base[OD],h=Base[LENGTH],$fn=Sides); | |
| translate([-PCB[0]/2,(Base[ID]/2 – PCBInset),0]) | |
| cube([PCB[0],Base[OD]/2,Base[LENGTH]],center=false); | |
| } | |
| difference() { | |
| intersection() { // totally ad-hoc bridge around USB opening | |
| rotate(180/Sides) | |
| cylinder(d=Base[OD],h=Base[LENGTH],$fn=Sides); | |
| translate([-1.25*USBPCB[1]/2,-(Base[ID]/2),0]) | |
| cube([1.25*USBPCB[1],2.0,Base[LENGTH]],center=false); | |
| } | |
| translate([0,-Base[OD]/2,Bottom + 1.2]) // mount PCB on foam tape | |
| rotate(0) | |
| USBPort(); | |
| translate([0,-(Base[ID]/2 – 2.0 + 1*ThreadWidth),Bottom – 3*ThreadThick]) // legend | |
| rotate([90,0,180]) | |
| linear_extrude(height=1*ThreadWidth + Protrusion) { | |
| translate([0,(Base[LENGTH] – 5.5),0]) | |
| text(text=TubeName,size=4,font="Arial:style=Bold",halign="center"); | |
| // translate([0,(Base[LENGTH] – 8.5),0]) | |
| // text(text=str("BCD ",StudBCD),size=2,font="Arial",halign="center"); | |
| translate([0,(Base[LENGTH] – 11),0]) | |
| text(text="KE4ZNU",size=3,font="Arial",halign="center"); | |
| } | |
| } | |
| } | |
| } | |
| //———————- | |
| // Drilling fixture for disk platters | |
| module PlatterFixture() { | |
| StudOC = [1.16*inch,1.16*inch]; // Sherline tooling plate screw spacing | |
| StudClear = 5.0; | |
| BasePlate = [(20 + StudOC[0]*ceil(Platter[OD] / StudOC[0])),(Platter[OD] + 10),7.0]; | |
| PlateRound = 10.0; // corner radius | |
| difference() { | |
| hull() // basic block | |
| for (i=[-1,1], j=[-1,1]) | |
| translate([i*(BasePlate[0]/2 – PlateRound),j*(BasePlate[1]/2 – PlateRound),0]) | |
| cylinder(r=PlateRound,h=BasePlate[2],$fn=4*4); | |
| for (i=[-1:1], j=[-1:1]) // index marks | |
| translate([i*100/2,j*100/2,BasePlate[2] – 2*ThreadThick]) | |
| cylinder(d=1.5,h=1,$fn=6); | |
| for (i=[-1,1], j=[-1,0,1]) // holes for tooling plate studs | |
| translate([i*StudOC[0]*ceil(Platter[OD] / StudOC[0])/2,j*StudOC[0],-Protrusion]) | |
| PolyCyl(StudClear,BasePlate[2] + 2*Protrusion,6); | |
| translate([0,0,-Protrusion]) // center clamp hole | |
| PolyCyl(StudClear,BasePlate[2] + 2*Protrusion,6); | |
| translate([0,0,BasePlate[2] – Platter[LENGTH]]) // disk locating recess | |
| linear_extrude(height=(Platter[LENGTH] + Protrusion),convexity=2) | |
| difference() { | |
| circle(d=(Platter[OD] + 1),$fn=8*4); | |
| circle(d=Platter[ID],$fn=8*4); | |
| } | |
| translate([0,0,BasePlate[2] – 4.0]) // drilling recess | |
| linear_extrude(height=(4.0 + Protrusion),convexity=2) | |
| difference() { | |
| circle(d=(Platter[OD] – 10),$fn=8*4); | |
| circle(d=(Platter[ID] + 10),$fn=8*4); | |
| } | |
| } | |
| } | |
| //———————- | |
| // Tube Socket | |
| module Socket(Name = DefaultSocket) { | |
| NumSides = 6*4; | |
| Tube = search([Name],TubeData,1,0)[0]; | |
| echo(str("Building ",TubeData[Tube][0]," socket")); | |
| echo(str(" Punch: ",TubeData[Tube][T_PUNCHOD]," mm = ",TubeData[Tube][T_PUNCHOD]/inch," inch")); | |
| echo(str(" Screws: ",TubeData[Tube][T_SCREWOC]," mm =",TubeData[Tube][T_SCREWOC]/inch," inch OC")); | |
| OAH = Pixel[LENGTH] + SocketShim + TubeData[Tube][T_PINLEN]; | |
| BaseHeight = OAH – PanelThick; | |
| difference() { | |
| union() { | |
| linear_extrude(height=BaseHeight) // base outline | |
| hull() { | |
| circle(d=(TubeData[Tube][T_PUNCHOD] + 2*SocketFlange),$fn=NumSides); | |
| for (i=[-1,1]) | |
| translate([i*TubeData[Tube][T_SCREWOC]/2,0]) | |
| circle(d=2.0*SocketNut[OD],$fn=NumSides); | |
| } | |
| cylinder(d=TubeData[Tube][T_PUNCHOD],h=OAH,$fn=NumSides); // boss in chassis punch hole | |
| } | |
| for (i=[0:(TubeData[Tube][T_NUMPINS] – 1)]) // tube pins | |
| rotate(i*360/TubeData[Tube][T_NUMPINS]) | |
| translate([TubeData[Tube][T_PINBCD]/2,0,(OAH – TubeData[Tube][T_PINLEN])]) | |
| rotate(180/4) | |
| PolyCyl(TubeData[Tube][T_PINOD],(TubeData[Tube][T_PINLEN] + Protrusion),4); | |
| for (i=[-1,1]) // mounting screw holes & nut traps / threaded inserts | |
| translate([i*TubeData[Tube][T_SCREWOC]/2,0,-Protrusion]) { | |
| PolyCyl(SocketNut[OD],(SocketNut[LENGTH] + Protrusion),NutSides); | |
| PolyCyl(SocketNut[ID],(OAH + 2*Protrusion),NutSides); | |
| } | |
| translate([0,0,-Protrusion]) { // LED recess | |
| PolyCyl(Pixel[OD],(Pixel[LENGTH] + Protrusion),8); | |
| } | |
| translate([0,0,(Pixel[LENGTH] – Protrusion)]) { // light pipe | |
| rotate(180/TubeData[Tube][T_NUMPINS]) | |
| PolyCyl(TubeData[Tube][T_PIPEOD],(OAH + 2*Protrusion),TubeData[Tube][T_NUMPINS]); | |
| } | |
| for (i=[-1,1]) // cable retaining slots | |
| translate([i*(Pixel[OD] + TubeData[Tube][T_SCREWOC])/4,0,(Pixel[LENGTH] – Protrusion)/2]) | |
| cube([Pixel[LENGTH],TubeData[Tube][T_SCREWOC],(Pixel[LENGTH] + Protrusion)],center=true); | |
| } | |
| // Totally ad-hoc support structures … | |
| if (Support) { | |
| color("Yellow") { | |
| for (i=[-1,1]) // nut traps | |
| translate([i*TubeData[Tube][T_SCREWOC]/2,0,(SocketNut[LENGTH] – ThreadThick)/2]) | |
| for (a=[0:5]) | |
| rotate(a*30 + 15) | |
| cube([2*ThreadWidth,0.9*SocketNut[OD],(SocketNut[LENGTH] – ThreadThick)],center=true); | |
| if (Pixel[OD] > TubeData[Tube][T_PIPEOD]) // support pipe only if needed | |
| translate([0,0,(Pixel[LENGTH] – ThreadThick)/2]) | |
| for (a=[0:7]) | |
| rotate(a*22.5) | |
| cube([2*ThreadWidth,0.9*Pixel[OD],(Pixel[LENGTH] – ThreadThick)],center=true); | |
| } | |
| } | |
| } | |
| //———————- | |
| // Greenlee punch bushings | |
| module PunchBushing(Name = DefaultSocket) { | |
| PunchScrew = 9.5; | |
| BushingThick = 3.0; | |
| Tube = search([Name],TubeData,1,0)[0]; | |
| echo(str("Building ",TubeData[Tube][0]," bushing")); | |
| NumSides = 6*4; | |
| difference() { | |
| union() { | |
| cylinder(d=Platter[ID],h=BushingThick,$fn=NumSides); | |
| cylinder(d=TubeData[Tube][T_PUNCHOD],h=(BushingThick – Platter[LENGTH]),$fn=NumSides); | |
| } | |
| translate([0,0,-Protrusion]) | |
| PolyCyl(PunchScrew,5.0,8); | |
| } | |
| } | |
| //———————- | |
| // Tube clamp | |
| module TubeClamp(Name = DefaultSocket) { | |
| Tube = search([Name],TubeData,1,0)[0]; | |
| echo(str("Building ",TubeData[Tube][0]," clamp")); | |
| ClampWidth = 37.0; // inside of clamp arch | |
| ClampLength = 20; // along tube base | |
| ClampScrew = [6.0,7.8,6.0]; // nose of clamp screw | |
| ClampArc = 3*45; // angle subtended by block bottom | |
| ClampChordWidth = 2 * (TubeData[Tube][T_TUBEOD]/2) * sin(ClampArc/2); | |
| ClampChordDepth = (ClampChordWidth / 2) * tan(ClampArc/4); | |
| echo(str("Chord width: ",ClampChordWidth," depth: ",ClampChordDepth)); | |
| ClampBlock = [ClampWidth,(ClampChordDepth + 2*ClampScrew[LENGTH]),ClampLength]; | |
| difference() { | |
| translate([0,(ClampBlock[1]/2 + TubeData[Tube][T_TUBEOD]/2 – ClampChordDepth),0]) | |
| intersection() { | |
| translate([0,0,ClampLength/2]) | |
| cube(ClampBlock,center=true); | |
| translate([0,(ClampBlock[1]/2 – ClampWidth/2),0]) | |
| cylinder(d=ClampWidth,h=ClampLength); | |
| } | |
| translate([0,0,-Protrusion]) // remove tube base (remains centered) | |
| cylinder(d=TubeData[Tube][T_TUBEOD],h=(ClampLength + 2*Protrusion)); | |
| translate([0,(TubeData[Tube][T_TUBEOD]/2 + ClampScrew[LENGTH]),ClampBlock[LENGTH]/3]) | |
| rotate([-90,0,0]) | |
| PolyCyl(ClampScrew[ID],2*ClampScrew[LENGTH],6); | |
| } | |
| } | |
| //———————- | |
| // Build it | |
| if (Layout == "Cap") { | |
| if (Section) | |
| difference() { | |
| Cap(); | |
| translate([-CapSize[OD],0,CapSize[LENGTH]]) | |
| cube([2*CapSize[OD],2*CapSize[OD],3*CapSize[LENGTH]],center=true); | |
| } | |
| else | |
| Cap(); | |
| } | |
| if (Layout == "FinCap") { | |
| if (Section) render(convexity=5) | |
| difference() { | |
| FinCap(); | |
| // translate([0,-FinCapSize[OD],FinCapSize[LENGTH]]) | |
| // cube([2*FinCapSize[OD],2*FinCapSize[OD],3*FinCapSize[LENGTH]],center=true); | |
| translate([-FinCapSize[OD],0,FinCapSize[LENGTH]]) | |
| cube([2*FinCapSize[OD],2*FinCapSize[OD],3*FinCapSize[LENGTH]],center=true); | |
| } | |
| else | |
| FinCap(); | |
| } | |
| if (Layout == "BuildFinCap") | |
| translate([0,0,FinCapSize[LENGTH]]) | |
| rotate([180,0,0]) | |
| FinCap(); | |
| if (Layout == "LampBase") | |
| LampBase(); | |
| if (Layout == "PlatterBase") | |
| PlatterBase(); | |
| if (Layout == "PlatterFixture") | |
| PlatterFixture(); | |
| if (Layout == "USBPort") | |
| USBPort(); | |
| if (Layout == "TubeClamp") | |
| TubeClamp("Octal"); | |
| if (Layout == "Bushings") | |
| PunchBushing(); | |
| if (Layout == "Socket") | |
| if (Section) { | |
| difference() { | |
| Socket(); | |
| translate([-100/2,0,-Protrusion]) | |
| cube([100,50,50],center=false); | |
| } | |
| } | |
| else | |
| Socket(); | |
| if (Layout == "Sockets") { | |
| translate([0,50,0]) | |
| Socket("Mini7"); | |
| translate([0,20,0]) | |
| Socket("Octal"); | |
| translate([0,-15,0]) | |
| Socket("Duodecar"); | |
| translate([0,-50,0]) | |
| Socket("Noval"); | |
| translate([0,-85,0]) | |
| Socket("Magnoval");} |
The Smell of Molten Projects in the Morning
Comments
One response to “Octal Tube Base Clamp”
[…] the glass envelope (1.5 inch = 38.1 mm OD) extends beyond the base (1.125 inch = 28.6 mm OD), the simple base clamp must let the tube extend over the […]
