Many of my solid models have holes for alignment pins made from filament snippets that let me glue the pieces together with near-perfect registration:

Alignment Hole and Pin

Alignment Hole and Pin

A reader who designs oil-field equipment for a living pointed out that, in his world, they’re called “stabbing guides”:

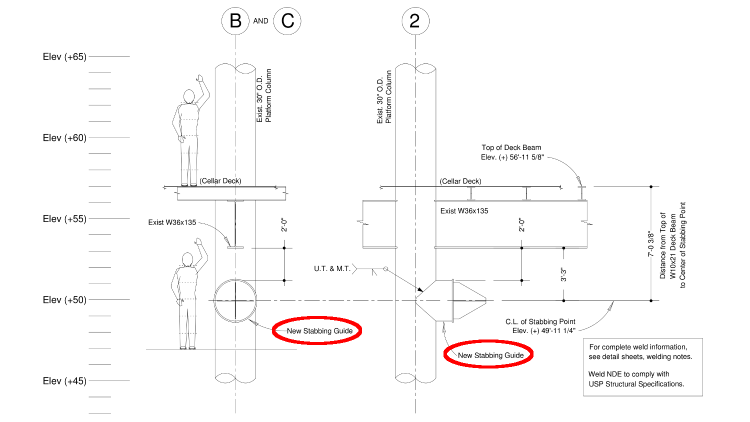

Stabbing_Point_on_Leg_1

Stabbing_Point_on_Leg_1

He specifies steel plate and welding instructions:

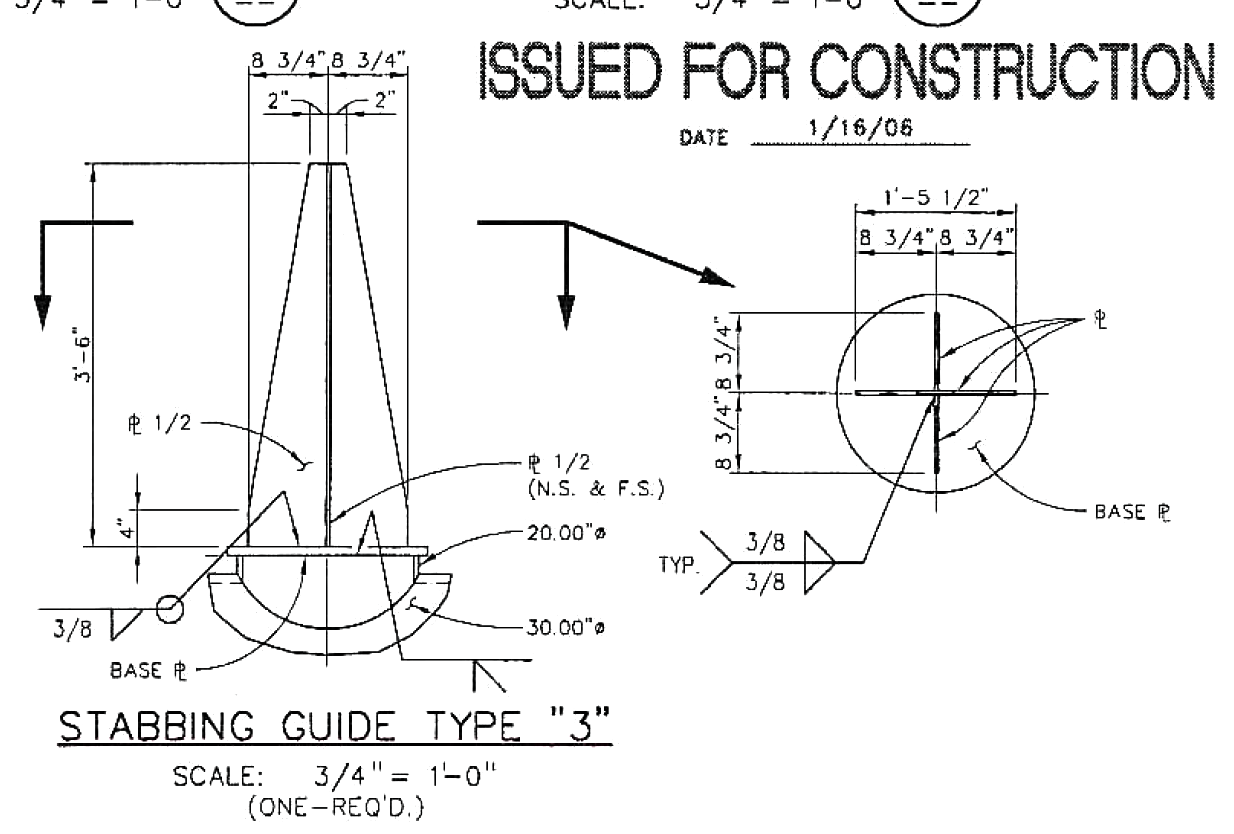

Stabbing_Guide_Type_3

Stabbing_Guide_Type_3

Stabbing guides for large modules may rise 25 feet above the deck plates…

After they install all the little bits on a “part” like this:

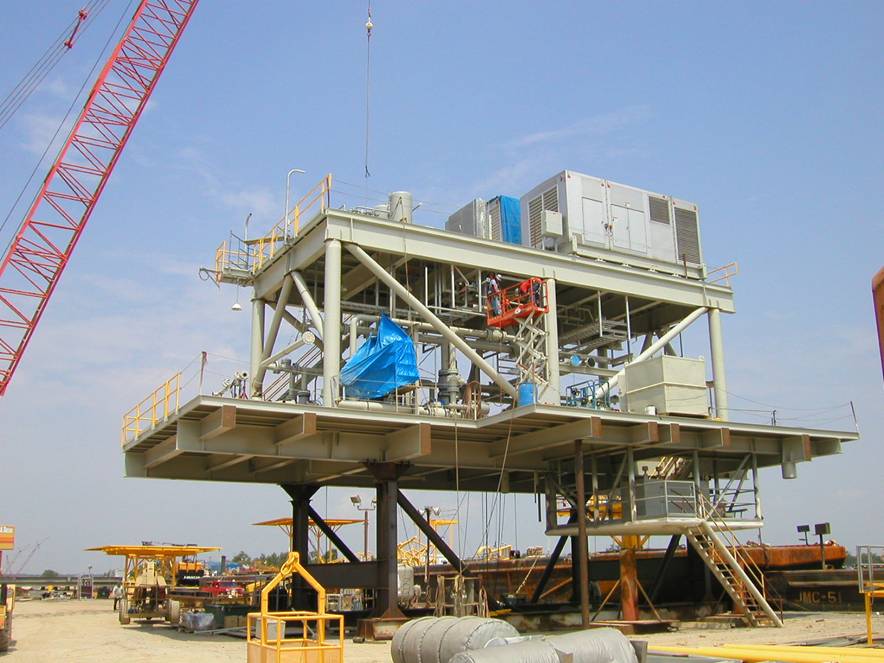

Generator Module - during assembly

Generator Module – during assembly

It fits neatly atop the stabbing guides and gets welded to a somewhat larger structure:

Generator Module - installed

Generator Module – installed

No sissy plastic for him!

My puny pins don’t qualify as stabbing guides, but forgive me if I sneak the term in every now and then…

Thanks, Tom!
