MakerGear M2: Under-Gantry LED Lighting Clip

,

The V4 hot end reduced the clearance under the X-axis gantry to the point where a bight of wire from the white LED panels drooped onto the platform during homing. A bit of snipping, drilling, and filing produced a clip from the same steel strap that’s holding the Z-axis switch cable against the gantry:

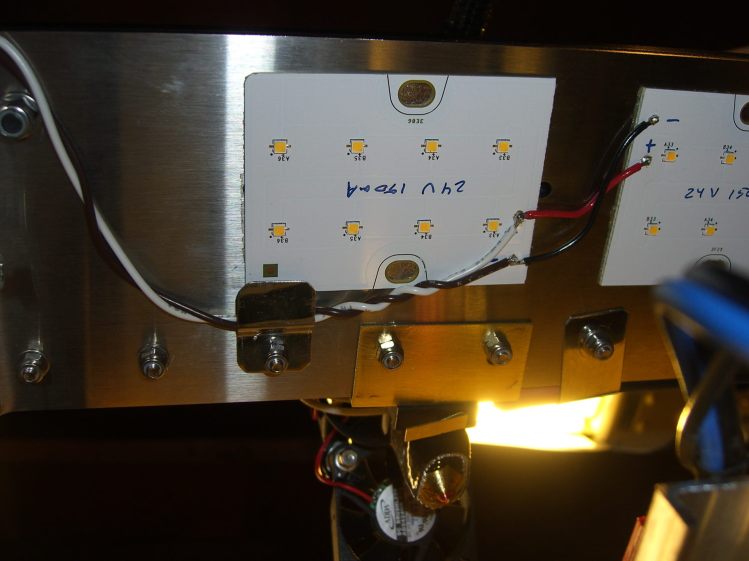

M2 Gantry - LED wire clip
M2 Gantry – LED wire clip

That was easy…
