OMTech 60 W Laser: Improved COB LED Shades

Adding (fake) rivets to the COB LED shade brackets definitely improves their appearance:

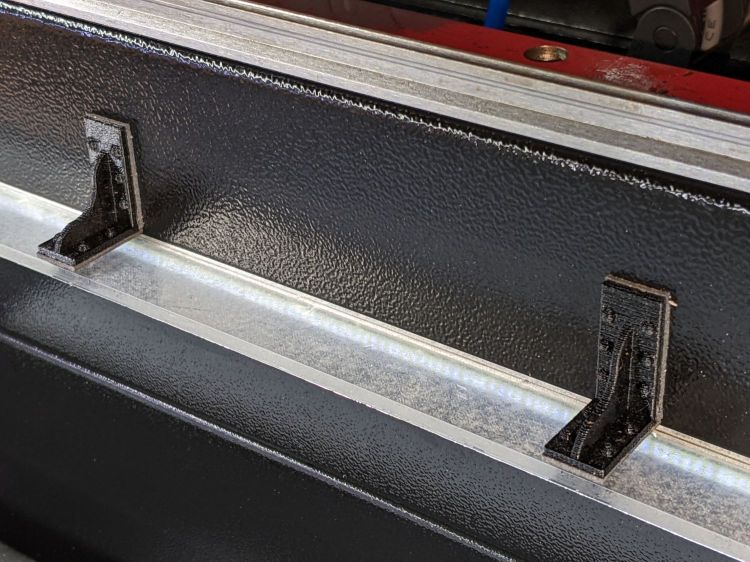

Acrylic COB LED Shade - installed
Acrylic COB LED Shade – installed

I cut new shades from vintage clear acrylic sheet, with more aluminized mylar attached to the lower surface: you can barely see the COB LED strip through the reflecting surface.

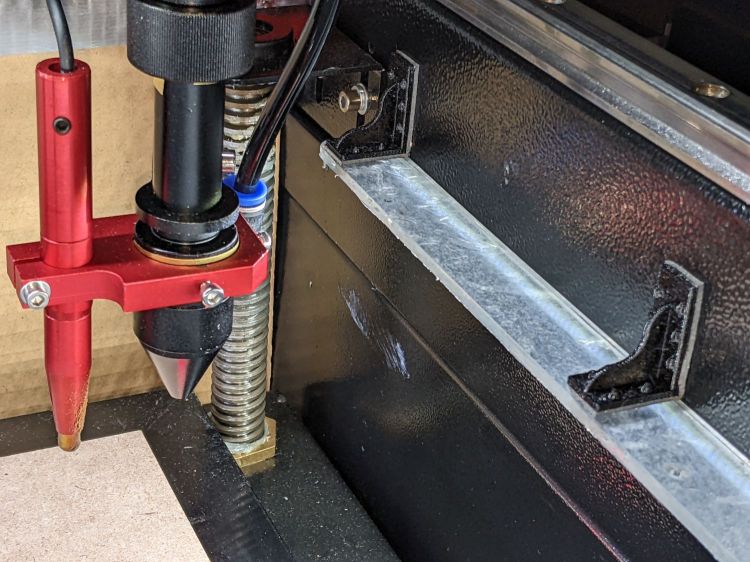

Depending on how you arrange all the hardware hanging on the nozzle, the shades can collide with something at the home position in the far right corner:

Acrylic COB LED Shade - X clearance
Acrylic COB LED Shade – X clearance

Definitely a step up from cardboard …
