OMTech 60 W Laser: Improved MDF Spikes and Stops

A bit of tinkering suggested I needed a way to repeatably position stock sheets on the honeycomb, so I conjured stops that would be slightly taller than the magnetic spikes:

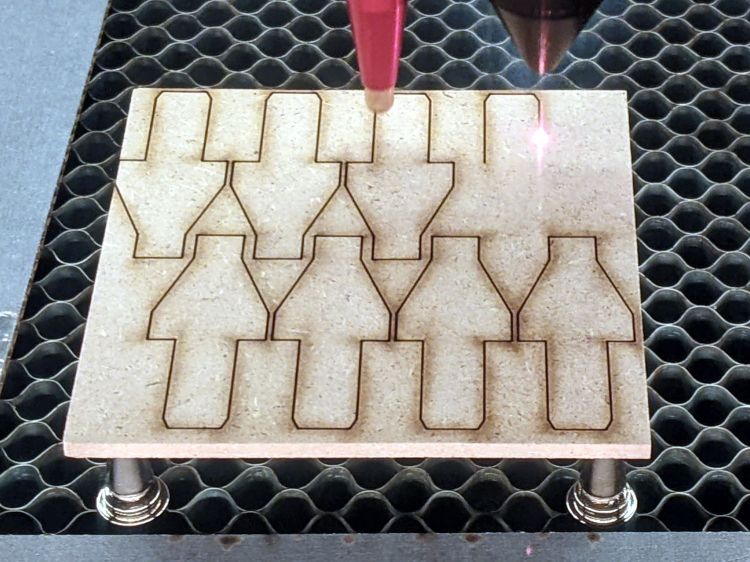

Improved MDF Honeycomb Spikes - first pass
Improved MDF Honeycomb Spikes – first pass

Three of those form a corner into which you can tuck victims of the same general size:

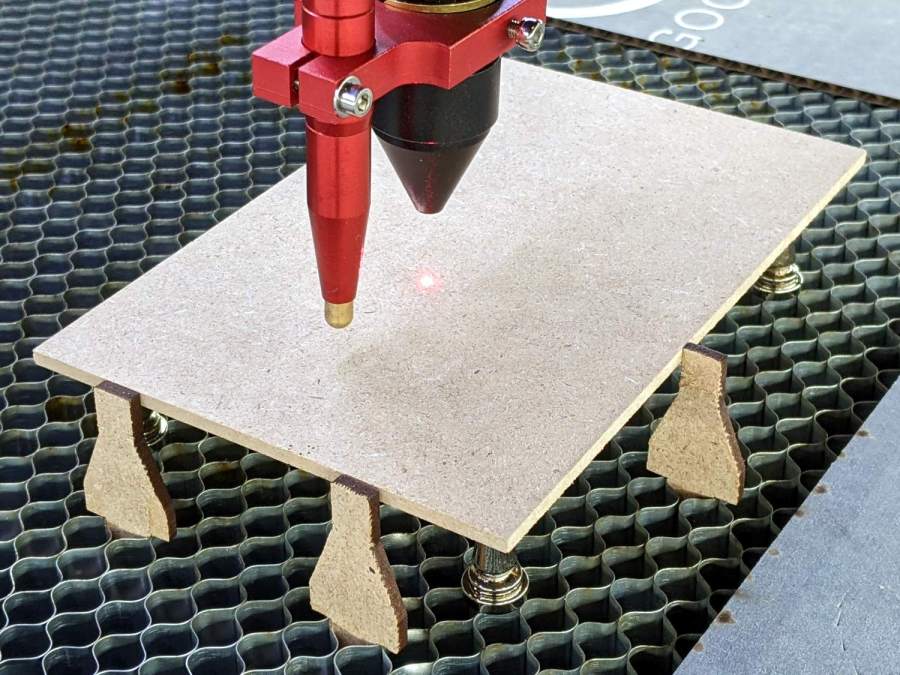

Improved MDF Honeycomb Spikes - stock alignment
Improved MDF Honeycomb Spikes – stock alignment

Those pointy MDF spikes should start with slightly rounded tops, because that’s what they’ll look like after a few uses:

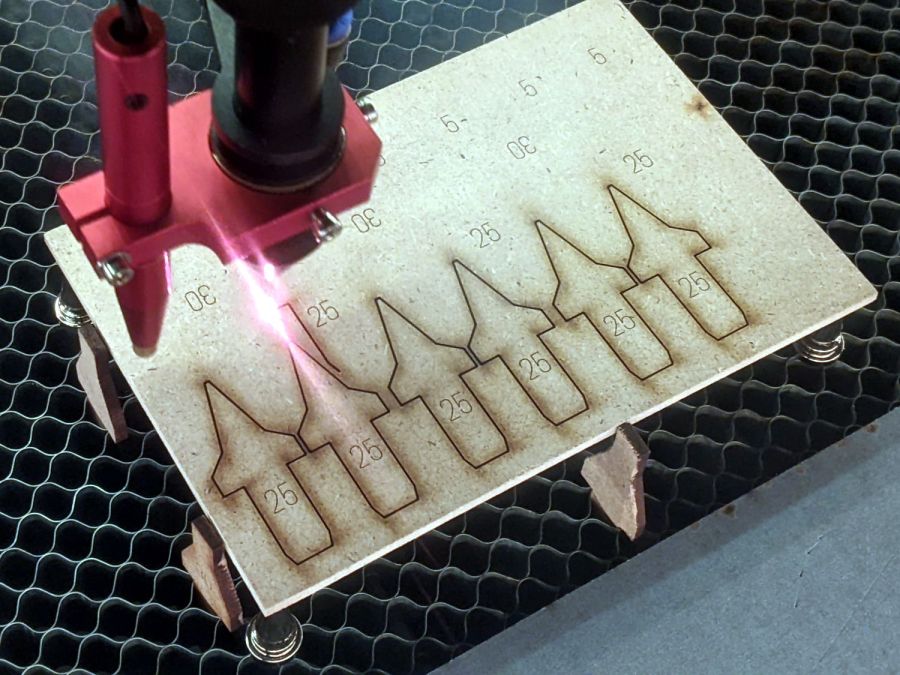

Improved MDF Honeycomb Spikes - alignment stops
Improved MDF Honeycomb Spikes – alignment stops

I also made a low-profile stop for victims lying directly on the honeycomb for engraving:

Please Close The Gate - engraved
Please Close The Gate – engraved

The SVG images include a nested version to tile across random MDF leftovers.

The SVG images as a GitHub Gist:

Sorry, something went wrong. Reload?
Sorry, we cannot display this file.
Sorry, this file is invalid so it cannot be displayed.
Sorry, something went wrong. Reload?
Sorry, we cannot display this file.
Sorry, this file is invalid so it cannot be displayed.

5 thoughts on “OMTech 60 W Laser: Improved MDF Spikes and Stops

  1. Three large diameter neodymium magnets also make handy and very secure stops for use directly on the honeycomb. They are also generally useful for flattening out slightly warped stock from the corners, as long as you are confident you can avoid lasing them.

    1. Maybe the 3 mm plywood and MDF sheets will remain as un-warped as when they arrived, but they’re now in the same basement with everything else.

      I have some ferocious neo bar magnets (polarized through their flat side, not their length) that should hold the corners down; with my luck, through, the middle of the sheet will warp upward.
