Mary’s folks asked me to figure out why the carousel on their Kodak 750H projector no longer turned. Some initial poking around suggested a problem with the solenoid, which only clunked when the projector was upside-down on the desk. I thought it might just have gummed up after all those years, but disassembling the thing (per the Service Manual and the usual Youtube videos) produced the root cause:

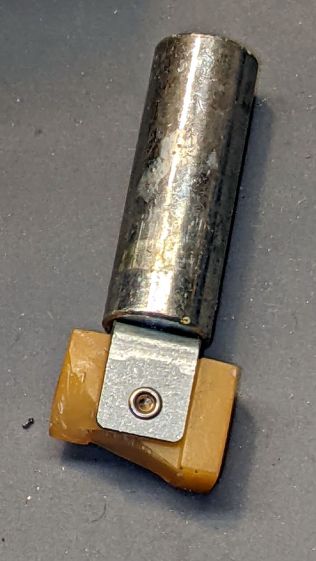

Kodak 750H Projector - broken solenoid link
Kodak 750H Projector – broken solenoid link

That explained the yellowish plastic fragments rattling around inside.

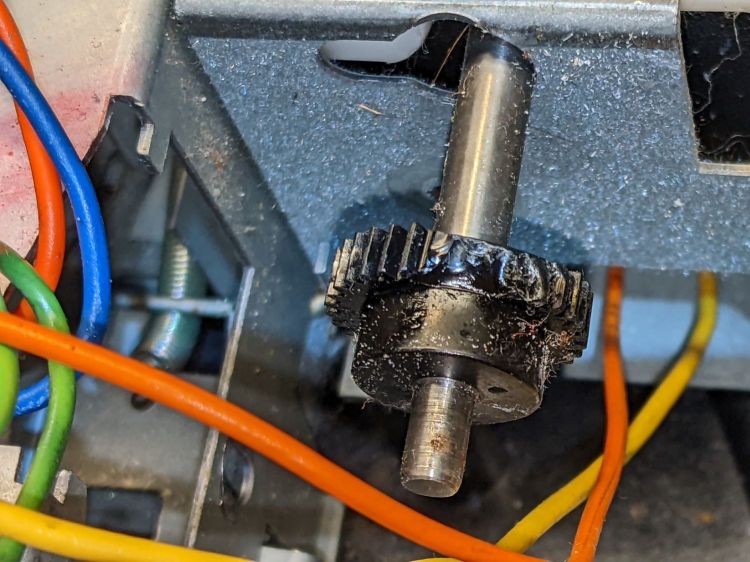

As predicted, it’s impossible to remove the solenoid without breaking the equally brittle focus gear in the process:

Kodak 750H Projector - stripped focus gear
Kodak 750H Projector – stripped focus gear

This is a sufficiently common projector to make repair parts cheap and readily available, at least for now.

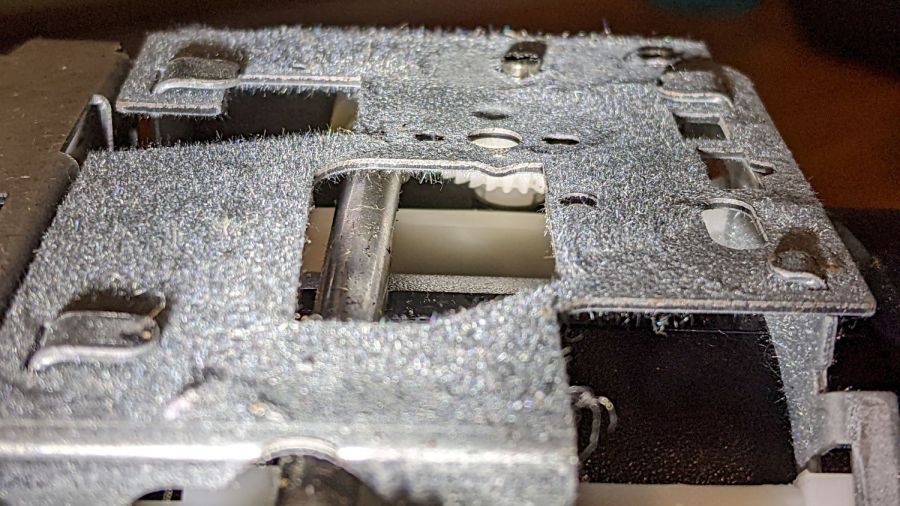

Some of the interior sheet metal has a dark surface, likely heavy tin plating, covered with a thick coat of whiskers:

  • Kodak 750H Projector - tin whiskers
  • Kodak 750H Projector - tin whiskers
  • Kodak 750H Projector - tin whiskers
  • Kodak 750H Projector - tin whiskers

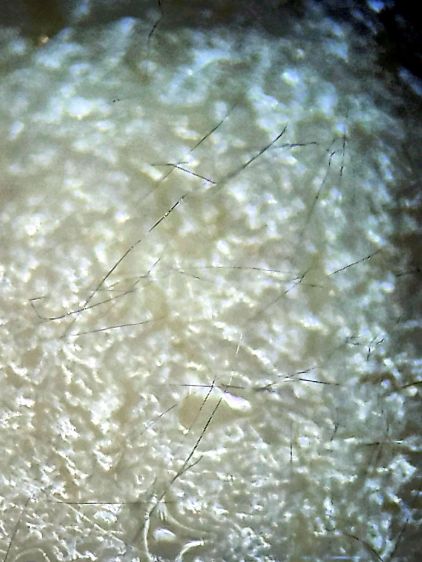

Touching a whiskered surface with masking tape captures the culprits, whereupon zooming the microscope and camera all the way in makes them just barely visible: they’re a few millimeters long and a few atoms wide:

Kodak 750H Projector - tin whiskers - detail
Kodak 750H Projector – tin whiskers – detail

I have surely contaminated the entire Basement Laboratory with tin whiskers. Makes me itchy just thinking about them …
