Bike Helmet Mirror: Brasswork Clamp

A bit of Quality Shop Time produced a slight improvement to the clamp holding the mirror to the stalk:

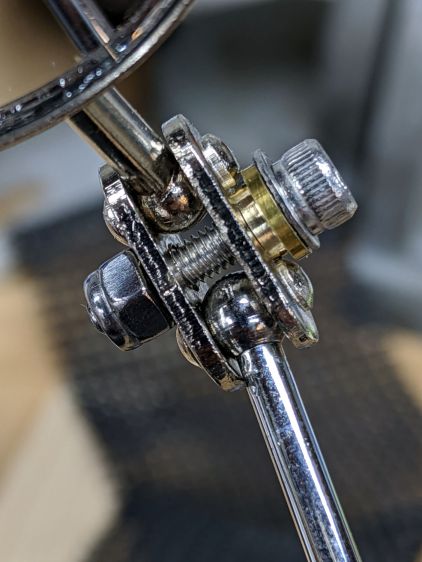

Helmet Mirror Ball Mount - mirror joint brasswork
Helmet Mirror Ball Mount – mirror joint brasswork

The general idea is to hold the wave washer (it’s mashed under the flat washer, honest) above those bumps on the plate holding the mirror and stalk balls. It’s a few millimeters from the end of a ¼ inch brass rod, drilled for the M3 screw, and reduced to 4.5 mm with a parting tool to clear the bumps.

While I was at it, I made two spare mirrors, just to have ’em around:

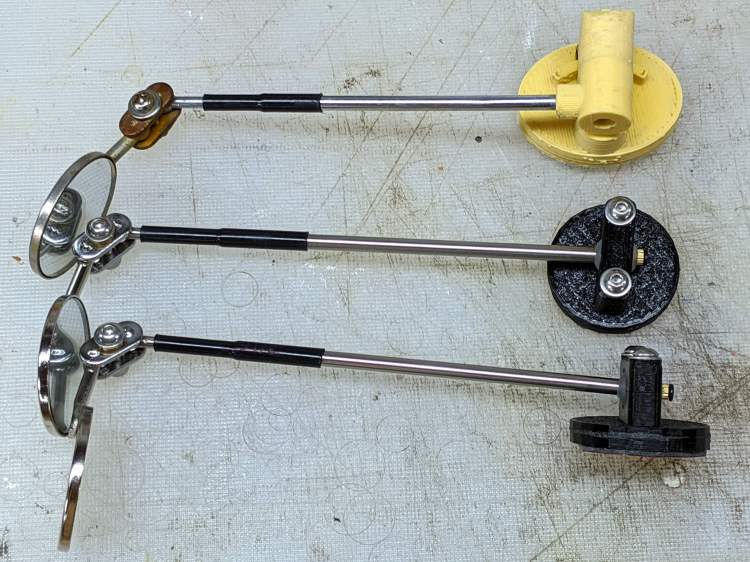

Helmet Mirror Ball Mount - new vs old
Helmet Mirror Ball Mount – new vs old

The new ball mount looks downright svelte compared to the old Az-El mount, doesn’t it?

I should replace the steel clamp plates with a stainless-steel doodad of some sort to eliminate the unsightly rust, but that’s definitely in the nature of fine tuning.
