Minilathe MT3 Spindle Collet Fitting

I’ve used the LMS set of inch-size MT3 spindle collets on occasion, but releasing them required an unseemly amount of drawbar battering. It recently occurred to me to check their fit in the spindle taper:

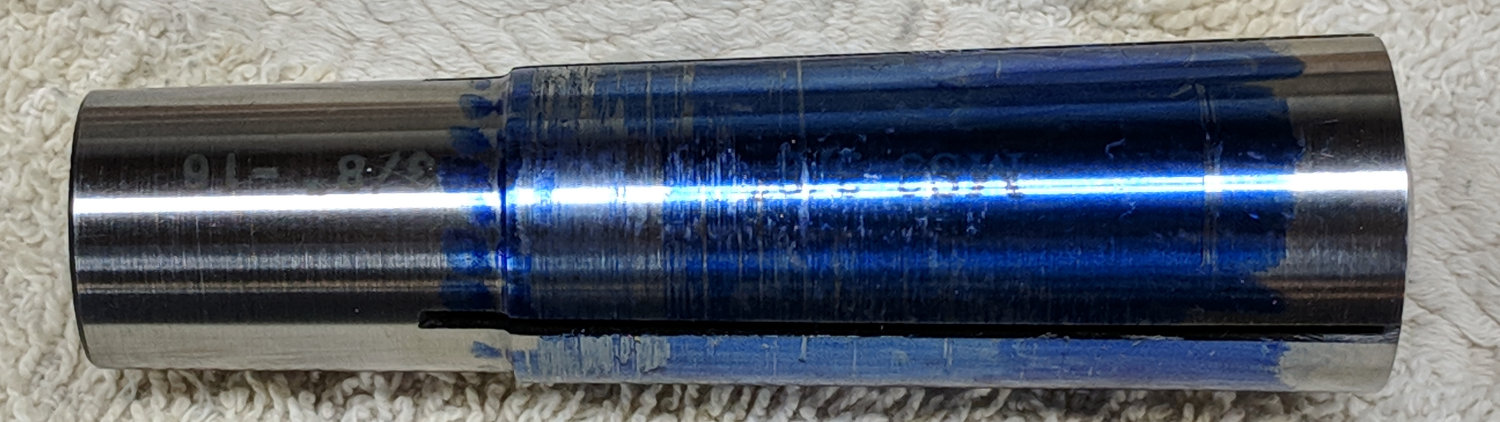

Minilathe - MT3 collet - taper test

Minilathe – MT3 collet – taper test

Huh.

The only place they touch the spindle is right around the base, so it’s no wonder they clamp poorly and release grudgingly. I tried several others with the same result.

Cross-checking shows a much closer fit along the entire length of the dead center, so it’s not the spindle’s fault:

Minilathe - Dead Center - MT3 taper check

Minilathe – Dead Center – MT3 taper check

Stipulated: we’re not talking toolroom precision here

I set the collets on centers:

Minilathe - MT3 collet - drive setup

Minilathe – MT3 collet – drive setup

And proceeded to file away the offending section to move the clamping force closer to the business end of the collet:

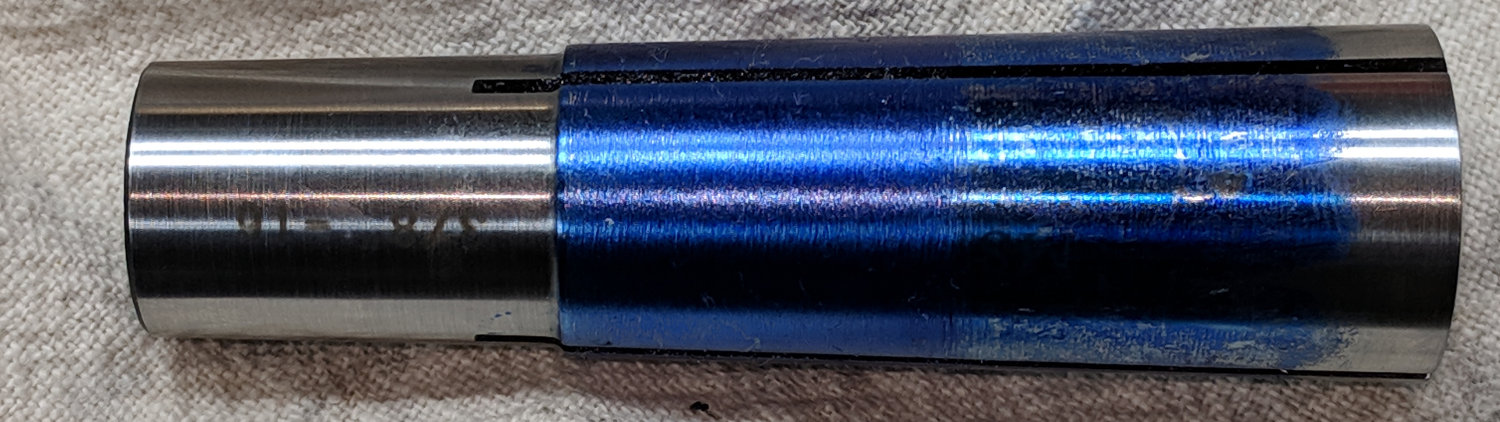

Minilathe - MT3 collet - filed result

Minilathe – MT3 collet – filed result

I did the small collets, the ones I’m most likely to need, and left the big ones for another rainy day.

They don’t have much clamping range and seem good only for exact-inch-size rods.

I should lay in a stock of ER16 and maybe ER32 collets for small stuff.



Advertisements

,

  1. #1 by Vedran on 2019-01-16 - 12:59

    Your data points may be skewed because collets are slit. Blueing should be done with a pin of nominal diameter in the collet bore, otherwise the front side can simply compress more than back and seemingly not register with the spindle.
    On the other hand, I almost never clamp nominal diameter stock – it’s usually a hair smaller no matter what it is – in which case it makes sense to thin the back side a bit.
    Did you leave the file marks or did you polish the surface? I can’t tell if what looks like a texture is from the bluing or the underlying material.

    • #2 by Ed on 2019-01-16 - 16:42

      So I tried out the 1/2 inch collet.

      It has a 0.487 relaxed opening and contacts the spindle at the narrow end of the taper, pretty much like the un-filed version in the post.

      Ramming a 0.500 inch ground steel bar into it (about 3/4 inch is all it will accept) moves the contact patch to the big end of the taper (at the right end of the spindle), but I must clamp the base of the collet in the bench vise and pull with all my strength to get the bar out again. I don’t know how I’d get enough of a grip to extract a small cylindrical part, unless it had an internal screw thread or a transverse hole.

      A 0.490 inch bar fits snugly in the collet and can be separated by hand, but doesn’t move the contact patch far from the base. I was unwilling to tighten the drawbar, because I didn’t want to hammer the bearings again.

      So I think the (unmodified) collet would work for any rod between 0.492 and 0.496 inch, which isn’t much of a range: call it 0.1 mm.

      I didn’t do much cleanup of the filed area: you’re seeing as-filed steel. [grin]

  2. #3 by david on 2019-01-16 - 21:16

    Quoth the linked page: “hardened and ground to close tolerance”. Sounds like zero for three…

    • #4 by Ed on 2019-01-16 - 21:38

      It’s for damn sure the exterior isn’t hardened: the file didn’t bounce right off …

  3. #5 by Vedran on 2019-01-17 - 10:58

    My lathe takes Schaublin L20 collets. They have a cylindrical seat (slip fit) on the left side and a short taper on the right so tightening doesn’t change contact point. They should only be used with nominal size stock, but will tolerate a bit smaller stuff. I didn’t try on purpose, but they are pretty hard (grin), and also have a through hole and come with a hollow drawbar. Taper is self releasing. Other then a high price and low availability they are my go to clamping method to the point where I’ll procrastinate on jobs that require me to mount a chuck :)

    • #6 by Ed on 2019-01-17 - 18:07

      Those look like watchmaker collets: precise and delicate!

      • #7 by Vedran on 2019-01-21 - 12:26

        Precise yes, delicate, so-so. With 20mm capacity and 120mm overall length, they are much bigger then what would be considered “watchmaker” size.
