Desk Drawer Stops

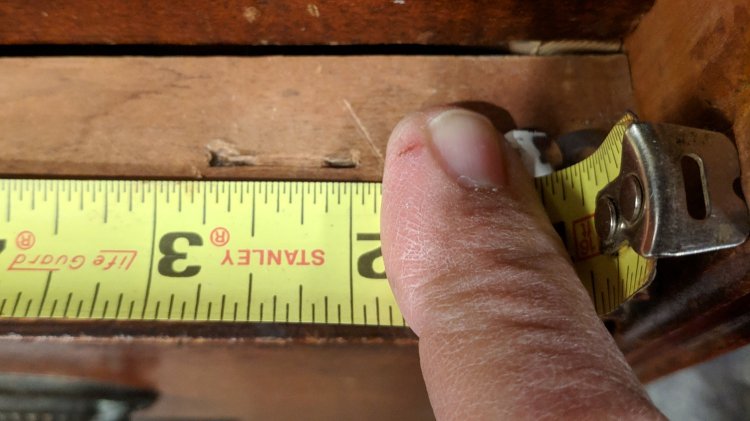

The stops aligning the top two drawers of an old desk vanished, so I got the job of replacing them. They’re hammered into the wood frame:

Drawer Stops - width measurement

Drawer Stops – width measurement

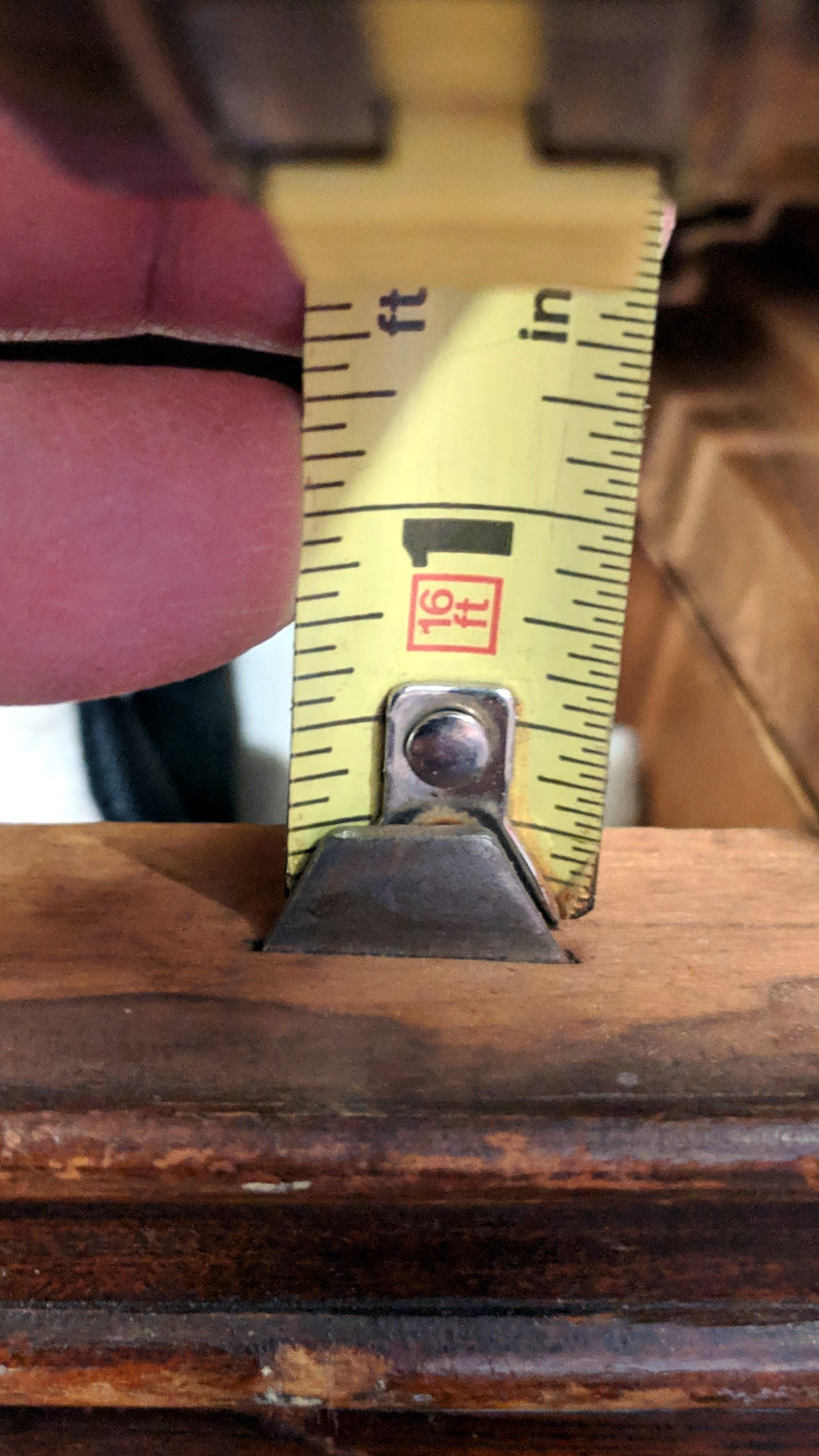

And stand up just enough to engage the back of the drawer face:

Drawer Stops - height measurement

Drawer Stops – height measurement

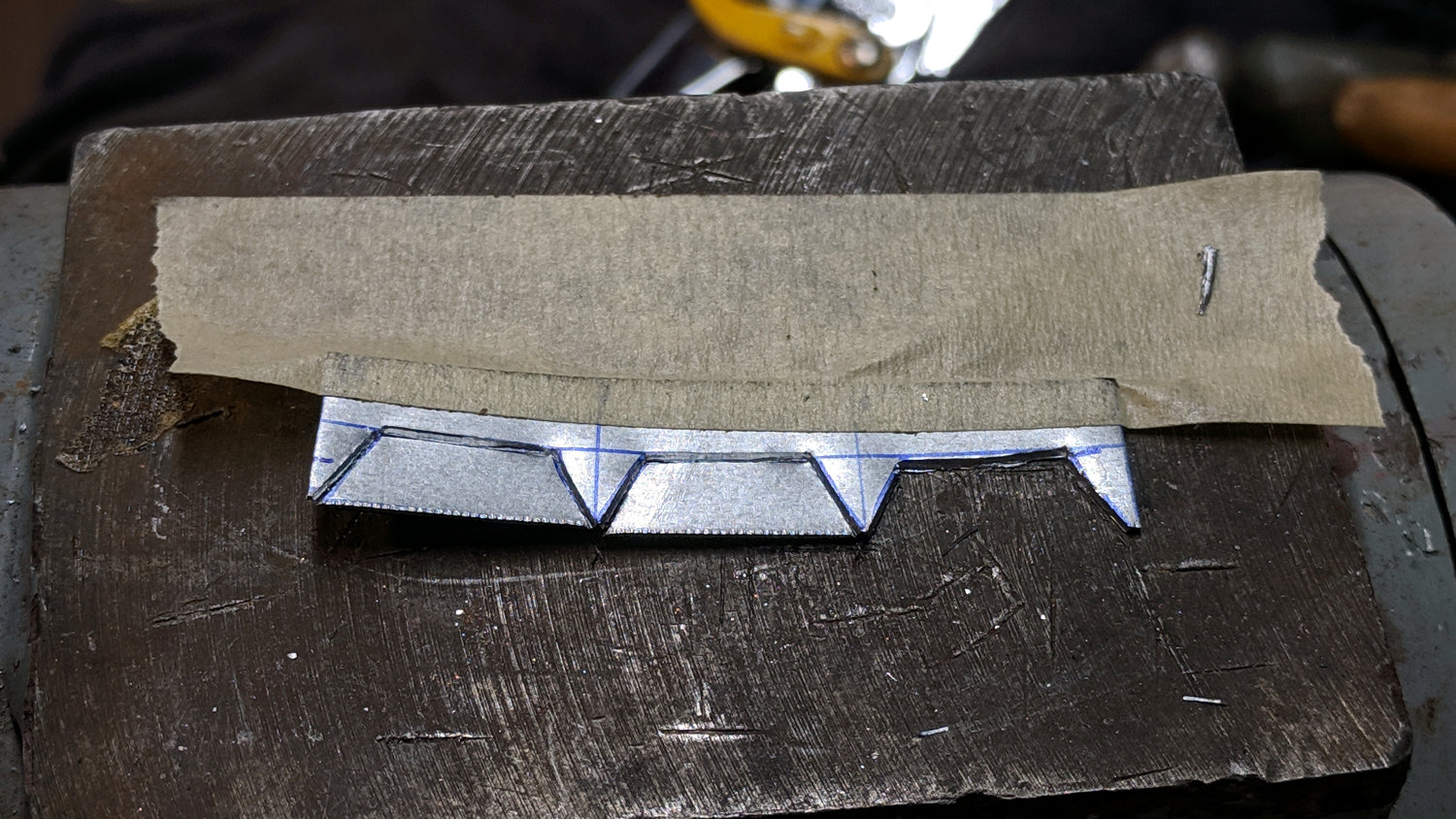

Back in the Basement Laboratory Shop Wing, I harvested steel strips from a defunct PC case, rubber-hammered them flat, sharpened a cold chisel (un-hardened, so it always needs sharpening), and got to work:

Drawer Stops - chiseled blanks

Drawer Stops – chiseled blanks

The pointy sides should have sharp edges, which you get for free with a chisel. You also get a bench full of little steel slivers perfectly suited for embedding in human flesh. Wearing eye protection is more than just a good idea, too.

Introducing what will become the visible edges to Mr Disk Sander makes them marginally less hazardous:

Drawer Stops - in progress

Drawer Stops – in progress

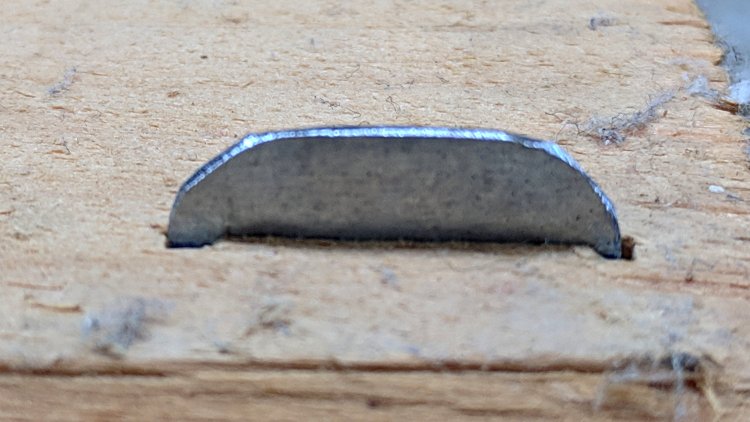

A slightly fuzzy picture of a test fit shows the stops should suffice:

Drawer Stops - trial fit

Drawer Stops – trial fit

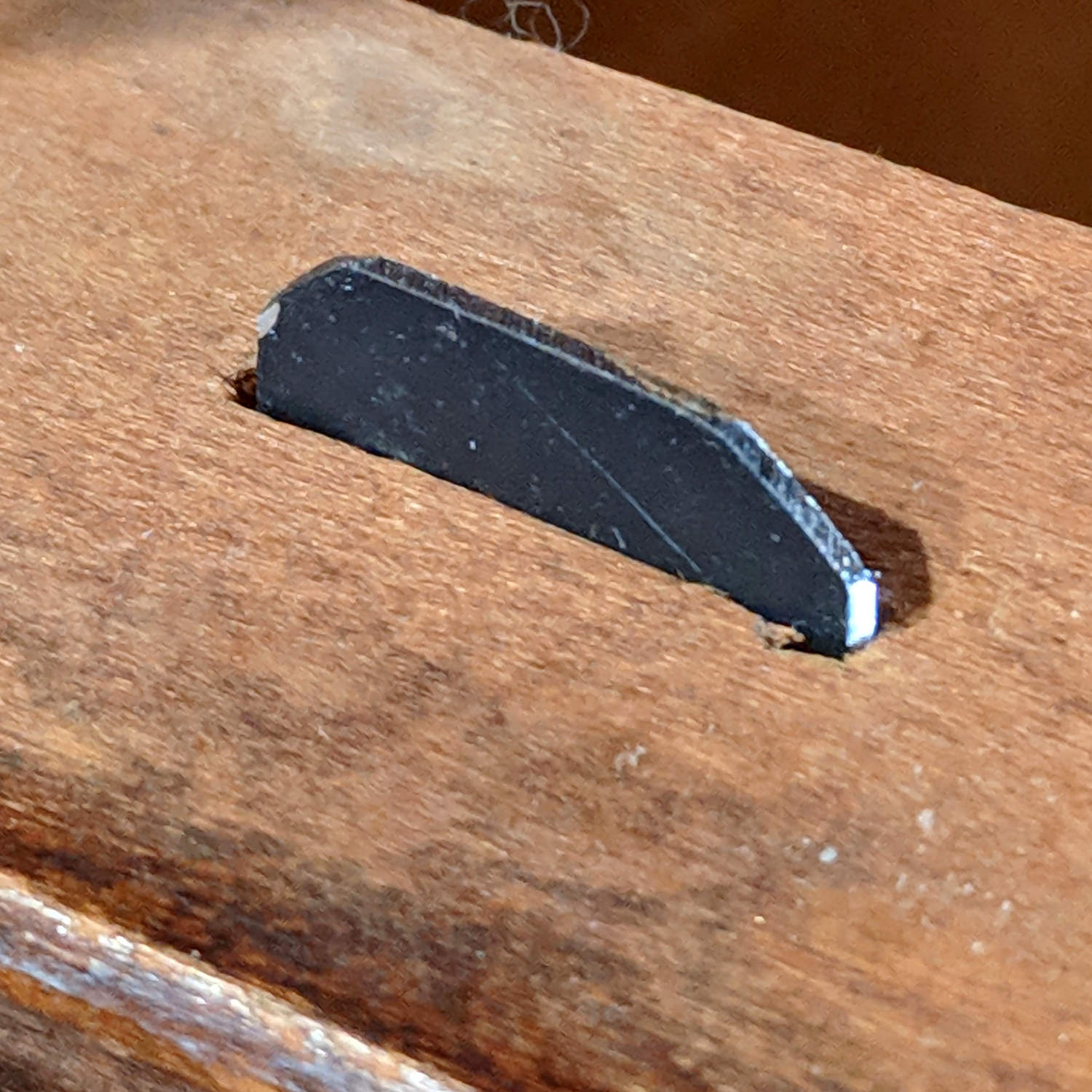

Which they did:

Drawer Stops - installed

Drawer Stops – installed

Nobody will ever notice the blob of hot melt glue behind each one:

Drawer Stops - glue blob

Drawer Stops – glue blob

Done!
