The original astable multivibrator ran from a dead CR123 primary lithium cell:
CR123A Astable – front

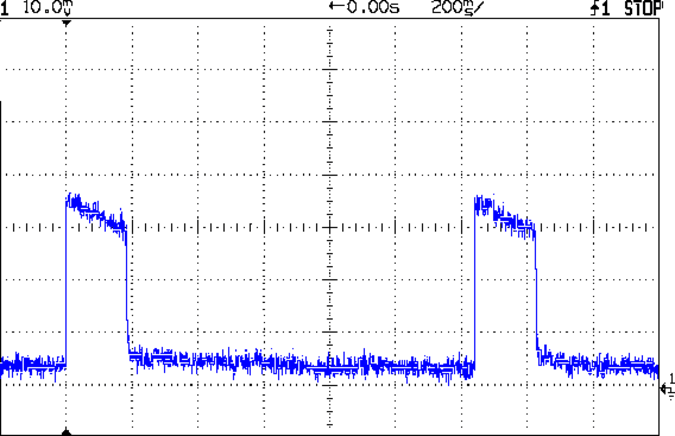

With a terminal voltage falling from barely 3 V, the LED drew about 3 mA (1 mA/div), tops, without a ballast resistor:
Astable – CR123A 2.8 V – 1 mA -green
Hacking in a charged NP-BX1 secondary lithium cell boosted the supply to 4 V:
NP-BX1 Holder – SMT pogo pins
Which, diodes being the way they are, raised the LED current to nearly 400 mA (100 mA/div):
Astable – NP-BX1 4V – base V – 100mA-div

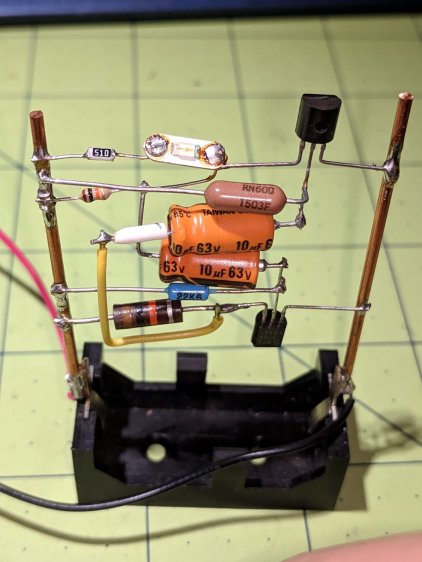

Somewhat to my surprise, a few weeks of abuse didn’t do any obvious damage to the LED, but I added a resistor while I was soldering up another holder:
Astable – 51 ohm SMD ballast
There’s not quite enough room for a 1/8 W axial resistor, so why not blob in a surface-mount resistor?

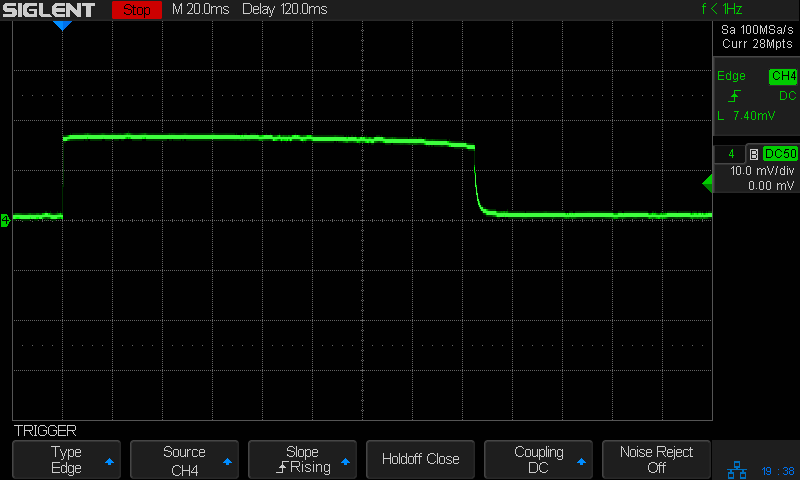

Which cuts the current down to a mere 15 mA (10 mA/div) from a lithium battery at 4 V:
Astable – NP-BX1 – 51 ohm ballast – 10ma-div
It’s still blindingly bright, but now I don’t feel bad about it.
