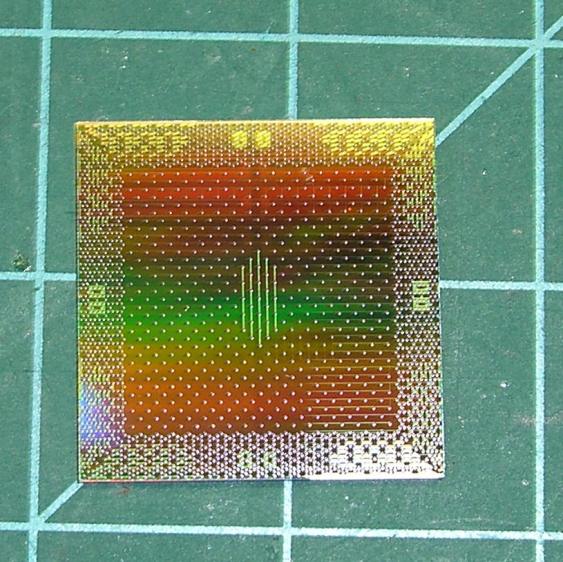

Dragorn of Kismet gave me a handful of identical mystery chips that might date back to the 1980s. They’re surprisingly large and covered with contacts:

Mystery IC - overview

Mystery IC – overview

There are no logos or identification anywhere on the chip. The back side is blank silicon.

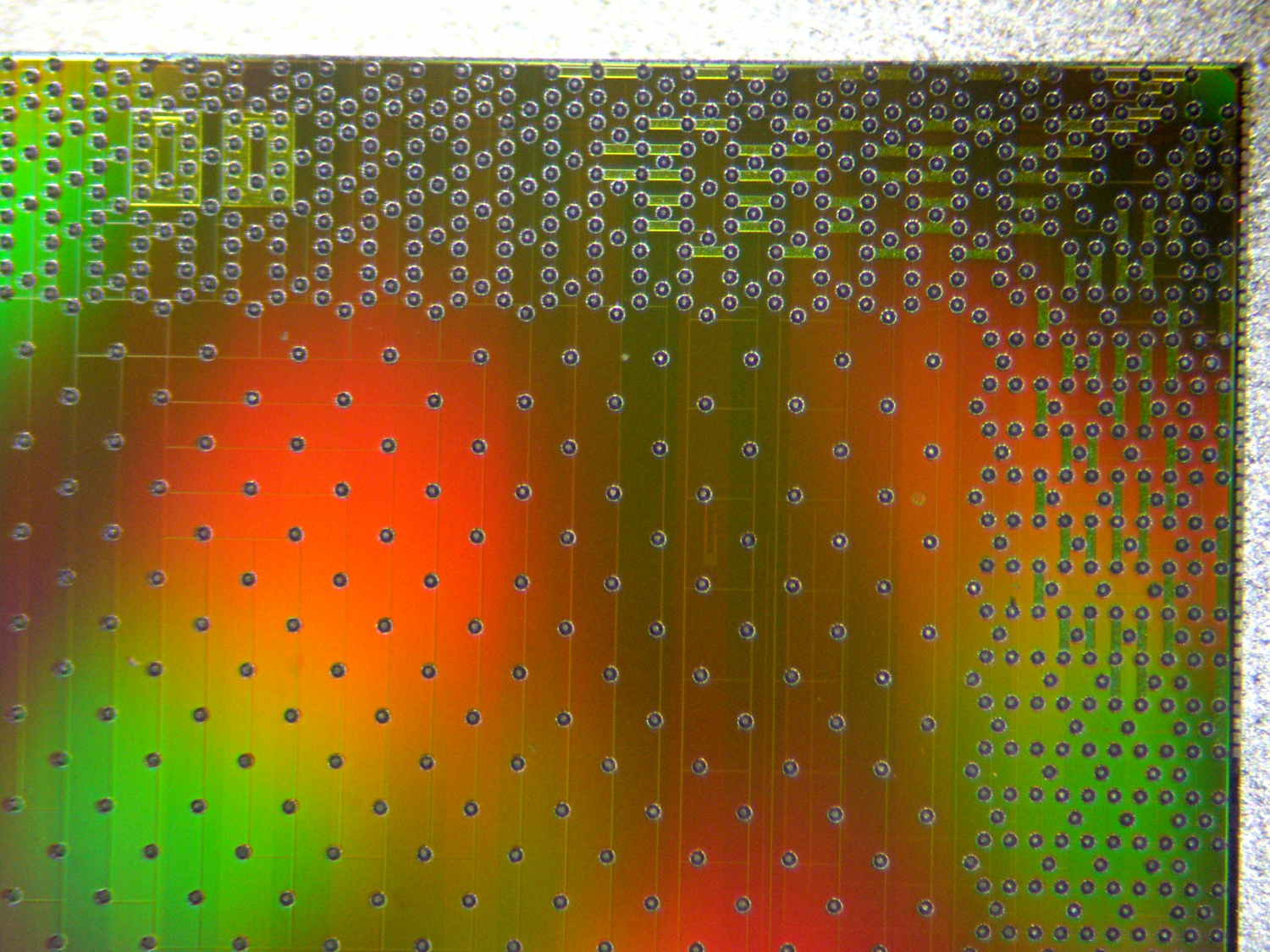

The visible patterns don’t suggest anything obvious:

Mystery IC - detail 1

Mystery IC – detail 1

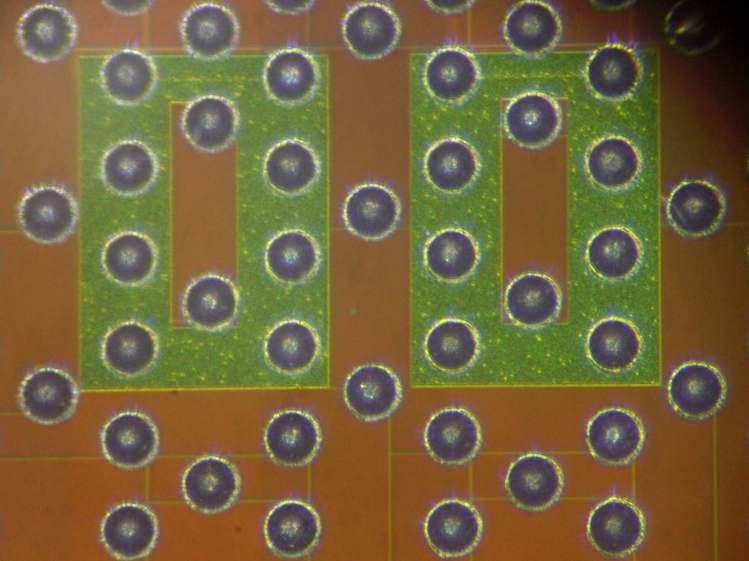

The metallization layers aren’t particularly intricate:

Mystery IC - detail 2

Mystery IC – detail 2

Surely┬áthere’s something tucked under the top metallization; I have neither the materials nor inclination to dissolve the thing one layer at a time.

I gave a sampling to our Larval Engineer, who says she may┬áturn them into fancy jewelry. I’m sure the solder bumps contain lead, but …
