HP7475A Plotter: Never Throw Anything Out

Our Larval Engineer stopped by, on her way to a half-year co-op job out around Route 128, and devoted a few days to merge-sorting / triaging her possessions. Having shown her the HP 74754A plotter project, she later dropped a bag o’ stuff on my desk without comment:

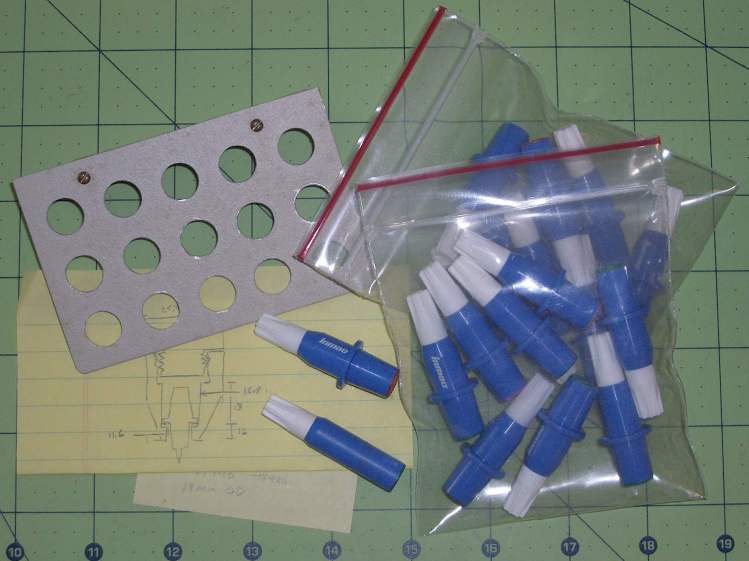

HP7475A - My old pens racks doodles

HP7475A – My old pens racks doodles

The perforated pen holder stuck to the plotter case (hey, it would still fit!) in front of the carousel with a bit of foam tape on an angled bracket you can’t quite see. It held 15 pens at the ready: I really used that plotter.

The doodle on the yellow sheet sketches a bulky adapter between the spindle nose thread on the Sherline CNC mill and a plotter cartridge. The flange-less pen body might just fit into the spindle bore, but I remember concluding that machining pen bodies or adapters wasn’t worth the effort. Now it’s a simple matter of some OpenSCAD source code and a few hours of hands-off production, so perhaps I should re-think that.

No dates on anything, but I got the Sherline in 2004. The pen holder probably dates back to the late 80s, shortly after I got the plotter. Most likely, I gave her the bag o’ stuff and told her to make something interesting; it could still happen…
